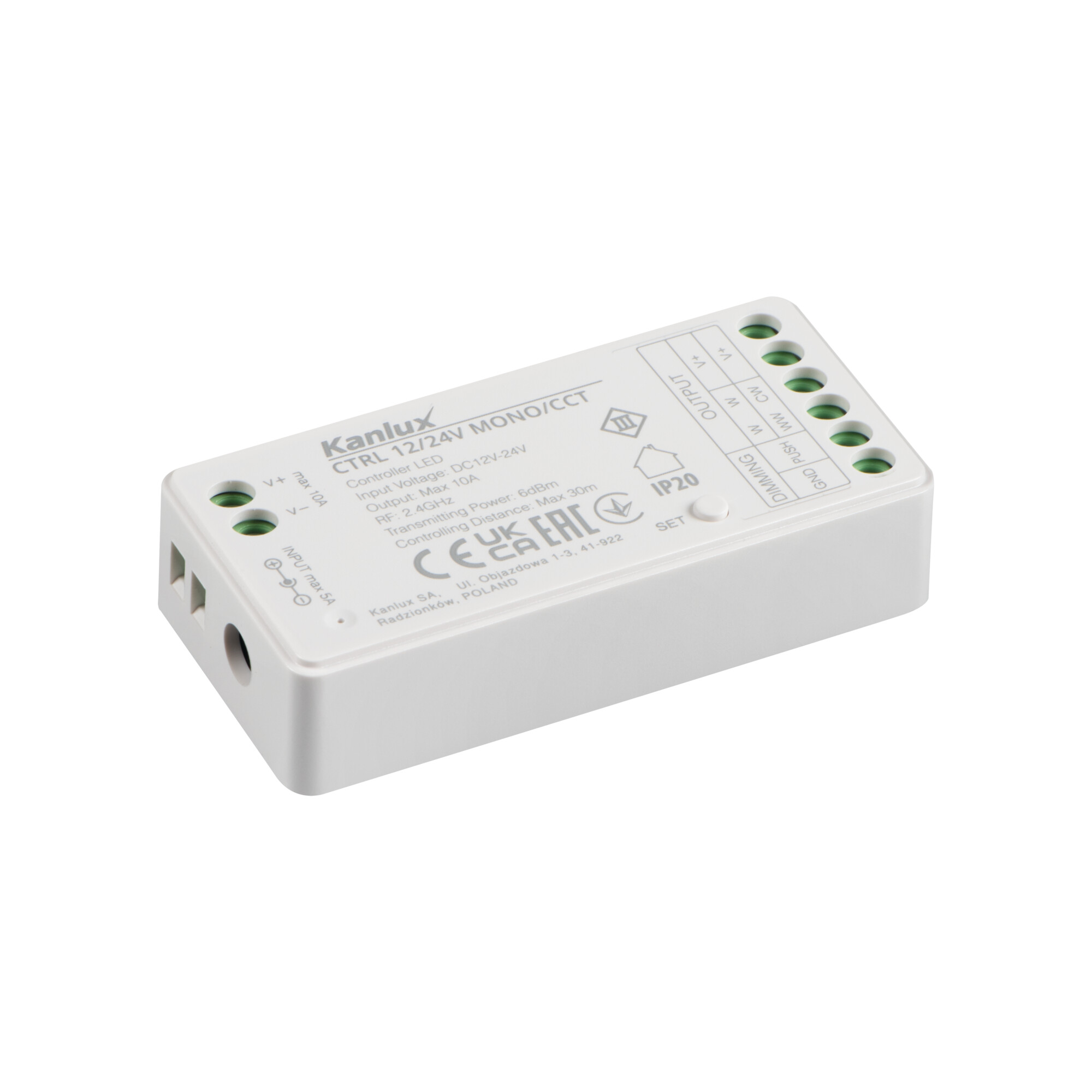

Controller for LED tapes CTRL 12/24V MONO/CCT

CTRL 12/24V MONO/CCT

Product code: 22147 logo KANLUX

The controller is compatible with single-colour LED strips and LED CCT strips. A single-channel REMOTE (Kanlux code 22144) or four-channel REMOTE CCT (Kanlux code 22145) remote control is required for full operation.

Product presentation
Colour white
Scroll down to the full specification

Specification

General description
EAN13 5905339221476
Material plastic

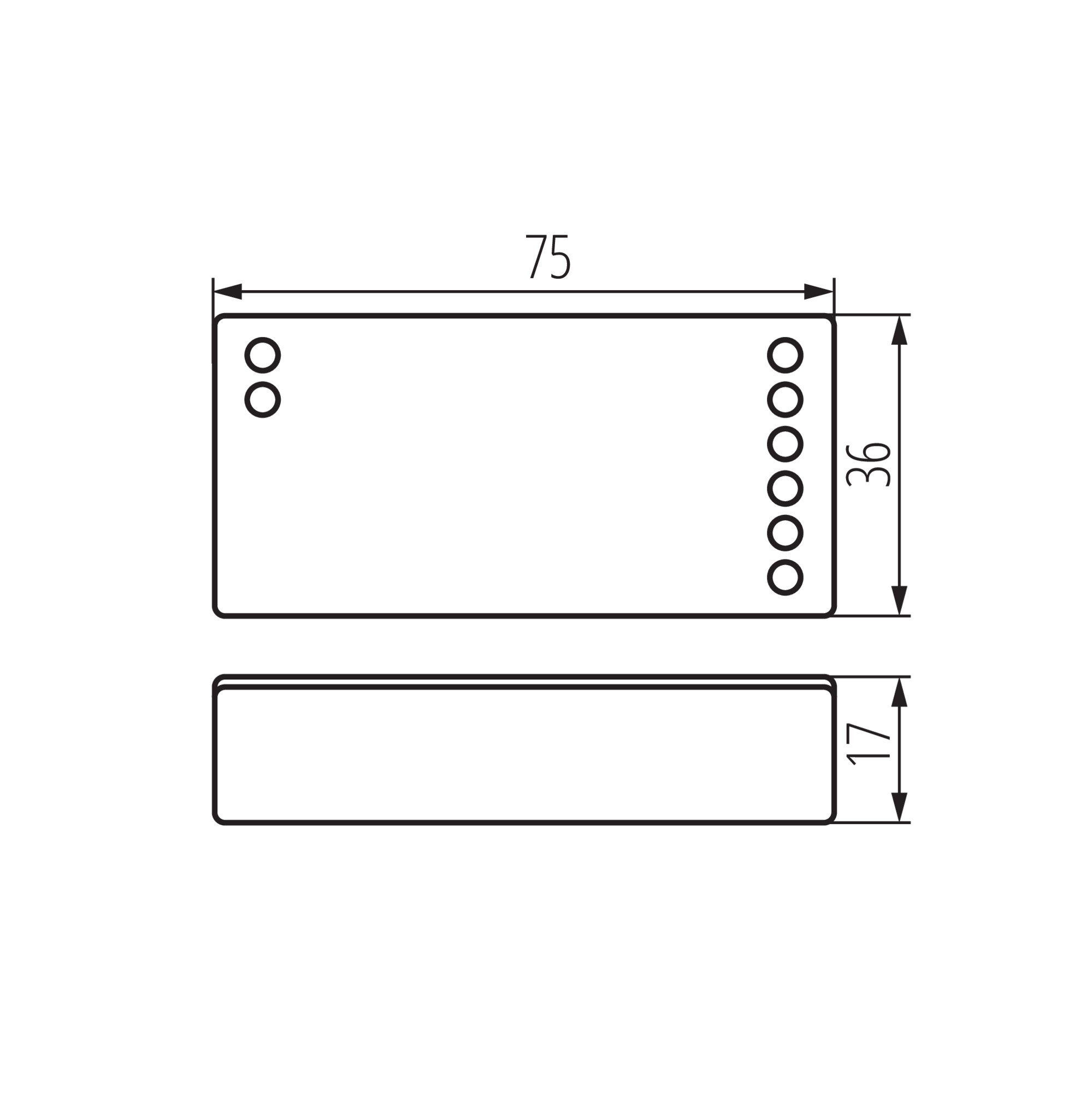

Weight and dimensions
Height [mm] 16
Width [mm] 36
Length [mm] 75
Weight 32g
Sales unit piece
Outer box 200
Additional features
  • The controller is compatible with single-colour LED strips and LED CCT strips.
  • The controller is compatible with single-colour LED strips and LED CCT strips.
Technical data
Rated voltage [V] 12 DC; 24 DC
Rated current [A] max 10
Show more ▾
Range [m] max 30, max 30
Class of protection against electric shock III
IP class 20
Control RF 2,4GHz
Connection type Terminal block
