DALLA CT-DTL50-B

DALLA CT-DTL50-B Kanlux
Miniatura DALLA CT-DTL50-B - KANLUX Miniatura DALLA CT-DTL50-B - KANLUX Miniatura DALLA CT-DTL50-B - KANLUX Miniatura aranżacji DALLA CT-DTL50-B Miniatura schematu DALLA CT-DTL50-B

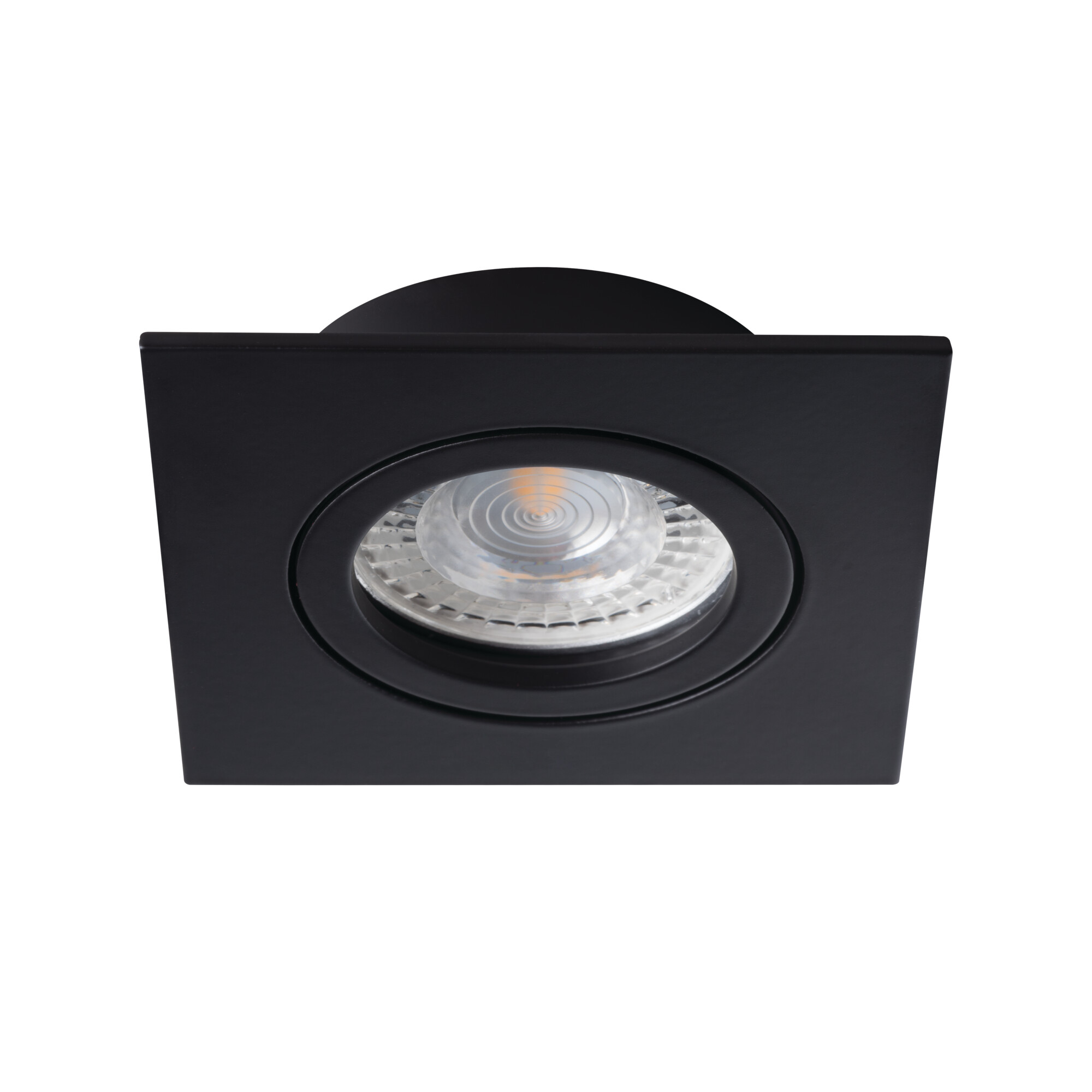

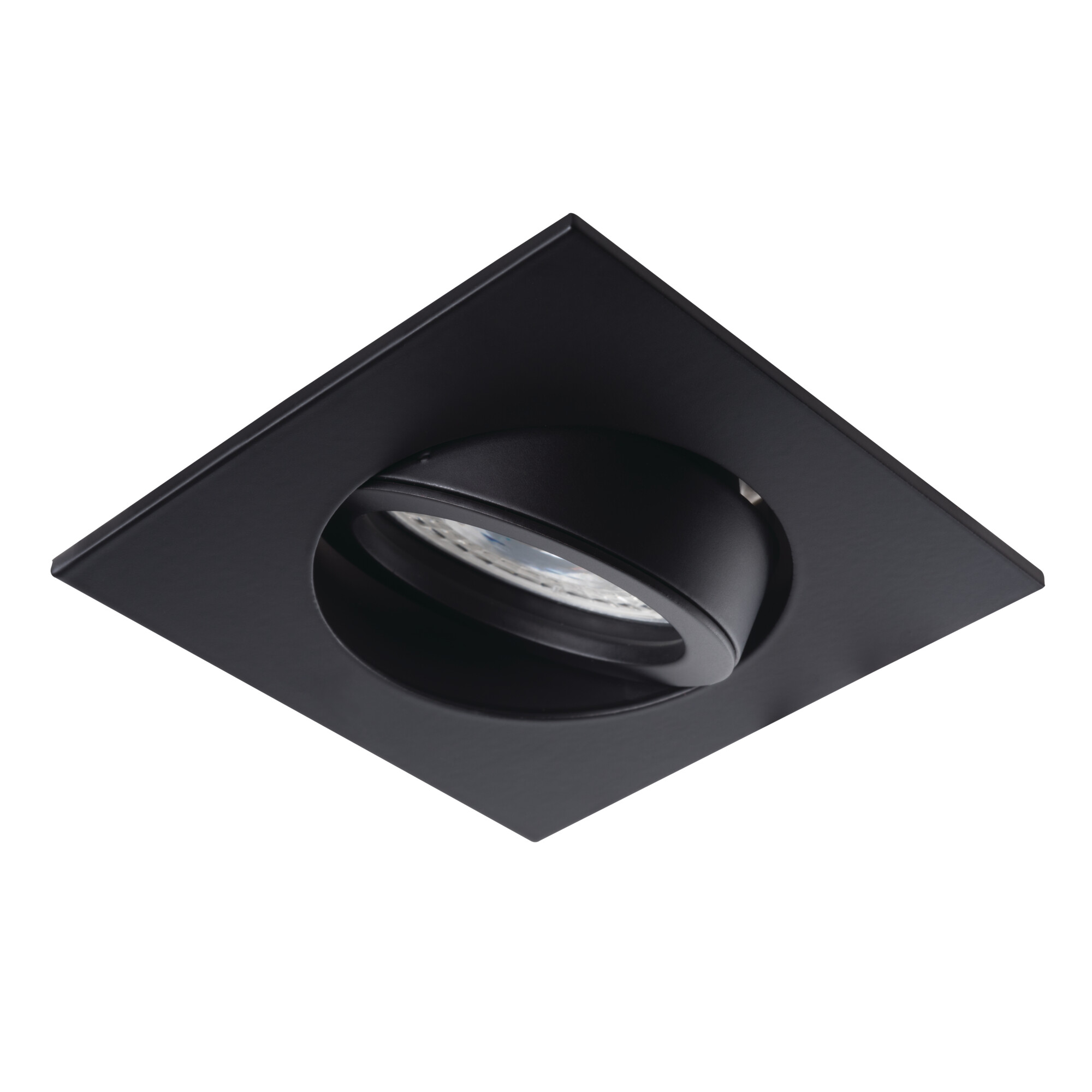

Ceiling-mounted spotlight fitting DALLA

DALLA CT-DTL50-B

Product code: 22433 logo KANLUX

Kanlux DALLA is a very carefully made holder for installation inside buildings. It has a movable ring, thanks to which you can adjust the light stream. Its shapes and universal colours allow achieving a modern, discrete effect of elegance.

Rated voltage [V] 12 AC; 12 DC
Maximum power [W] max 10
Cap Gx5,3
Lighting-fixture angle regulation [°] 30
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
DALLA CT-DTO50-W - KANLUX DALLA CT-DTO50-W - KANLUX
Ceiling-mounted spotlight fitting DALLA DALLA CT-DTO50-W Product code: 22430

logo KANLUX
DALLA CT-DTL50-W - KANLUX DALLA CT-DTL50-W - KANLUX
Ceiling-mounted spotlight fitting DALLA DALLA CT-DTL50-W Product code: 22431

logo KANLUX
DALLA CT-DTO50-B - KANLUX DALLA CT-DTO50-B - KANLUX
Ceiling-mounted spotlight fitting DALLA DALLA CT-DTO50-B Product code: 22432

NEW NEW
logo KANLUX
DALLA DTL-B - KANLUX DALLA DTL-B - KANLUX
Ring for spotlight fittings DALLA DALLA DTL-B Product code: 22434

NEW NEW
logo KANLUX
DALLA DTL-W - KANLUX DALLA DTL-W - KANLUX
Ring for spotlight fittings DALLA DALLA DTL-W Product code: 22435

NEW NEW
logo KANLUX
DALLA DTO-B - KANLUX DALLA DTO-B - KANLUX
Ring for spotlight fittings DALLA DALLA DTO-B Product code: 22436

NEW NEW
logo KANLUX
DALLA DTO-W - KANLUX DALLA DTO-W - KANLUX
Ring for spotlight fittings DALLA DALLA DTO-W Product code: 22437

Together better

Select complementary products
logo KANLUX
TOMI LED5W MR16-WW - KANLUX
Energy class G LED light source TOMI LED TOMI LED5W MR16-WW Product code: 22704

logo KANLUX
TOMI LED5W MR16-CW - KANLUX
Energy class G LED light source TOMI LED TOMI LED5W MR16-CW Product code: 22705

logo KANLUX
TOMI LED7W MR16-WW - KANLUX
Energy class G LED light source TOMI LED TOMI LED7W MR16-WW Product code: 22706

logo KANLUX
TOMI LED7W MR16-CW - KANLUX
Energy class G LED light source TOMI LED TOMI LED7W MR16-CW Product code: 22707

logo KANLUX
DRIVE LED N 15W 12V - KANLUX DRIVE LED N 15W 12V - KANLUX
CV power supply unit DRIVE LED DRIVE LED N 15W 12V Product code: 23861

logo KANLUX
POWELED P 12V 30W - KANLUX
CV power supply unit POWELED POWELED P 12V 30W Product code: 26810

logo KANLUX
POWELED P 12V 60W - KANLUX
CV power supply unit POWELED POWELED P 12V 60W Product code: 26811

logo KANLUX
POWELED P 12V 100W - KANLUX
CV power supply unit POWELED POWELED P 12V 100W Product code: 28961

logo KANLUX
POWELED P 12V 150W - KANLUX
CV power supply unit POWELED POWELED P 12V 150W Product code: 28963

logo KANLUX
POWELED P 12V 200W - KANLUX
CV power supply unit POWELED POWELED P 12V 200W Product code: 28965

Specification

General description
EAN13 5905339224330
Colour black
Enclosure material aluminum alloy

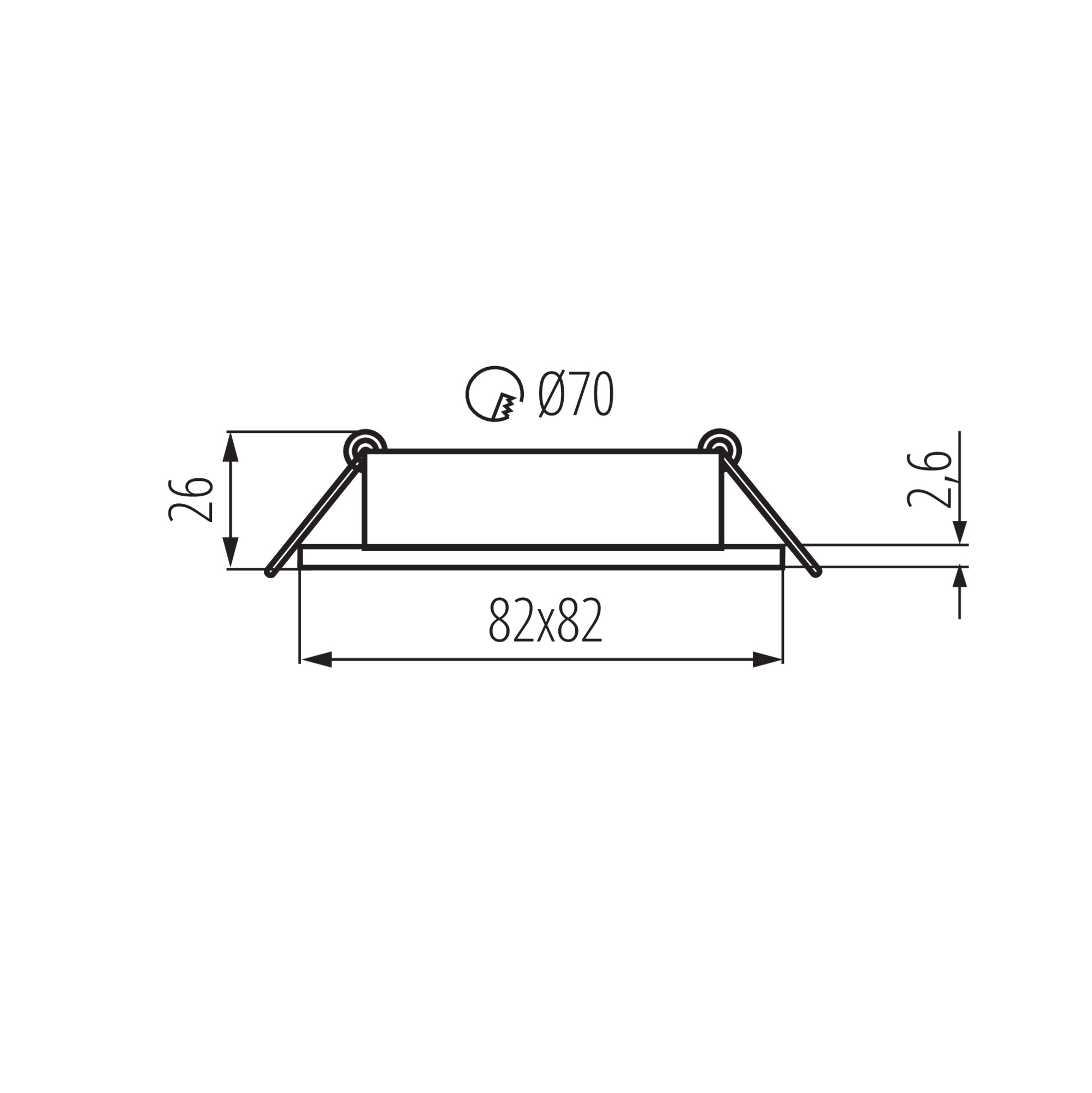

Weight and dimensions
Height [mm] 26
Width [mm] 82
Length [mm] 82
Weight 84g
Sales unit piece
Outer box 50
Technical data
Rated voltage [V] 12 AC; 12 DC
Show more ▾
Colour black
Maximum power [W] max 10
Replaceable light source yes
Cap Gx5,3
Class of protection against electric shock III
Place of assembly Recessed mount in the ceiling
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Lighting-fixture angle regulation in one axis
Lighting-fixture angle regulation [°] 30
Wielkość otworu montażowego [mm] Ø70
The product is not suitable to be covered with a heat-insulating material
Necessity of using self-shielding lamps
Connection type Free cable ends
Wire length [m] 0.12
Wire diameter [mm²] 0.75
Minimum distance from the illuminated object 0,5m
Light source included no
Light source MR16
Shape square

Materials

Specification
Family card PDF, Size: 312.12 KB
Technical card PDF, Size: 318.77 KB
Handling and installation
User manual PDF, Size: 1.31 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 719.77 KB
