MAH LED HI 38W-NW RYF

132

Miniatura MAH LED HI 38W-NW RYF - KANLUX

Miniatura aranżacji MAH LED HI 38W-NW RYF

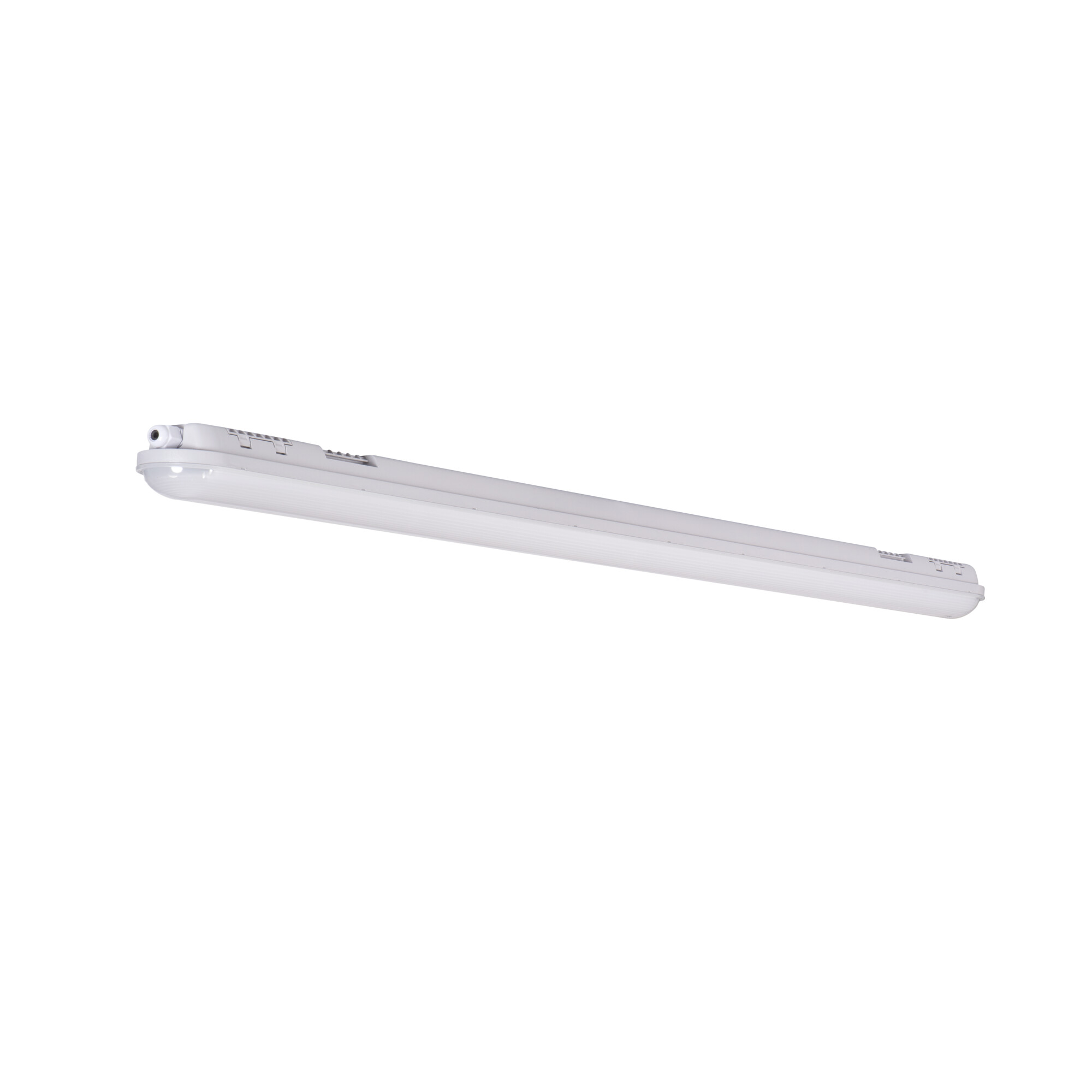

LED dustproof lighting fitting MAH LED HI

MAH LED HI 38W-NW RYF

Product code: 22607 logo KANLUX

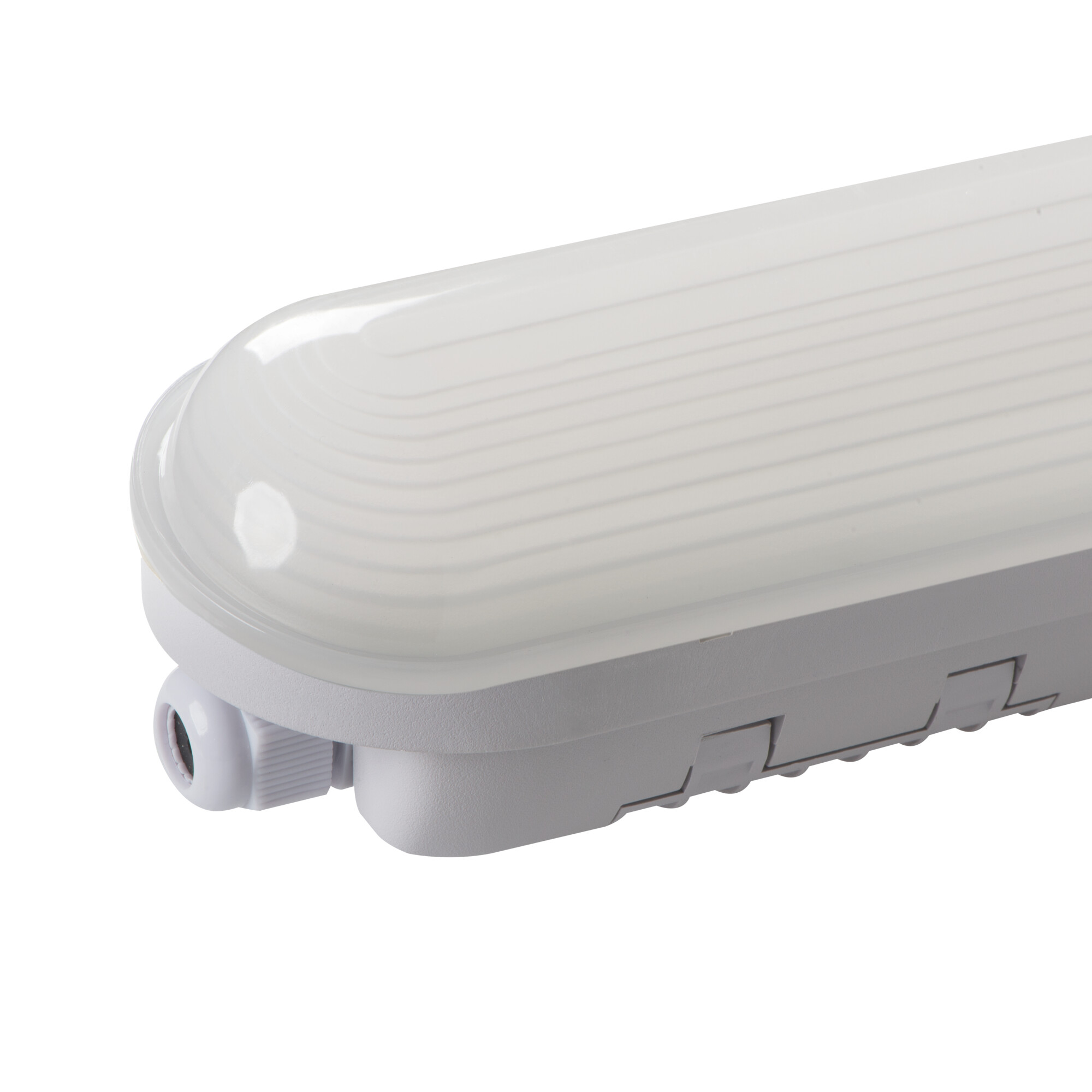

Kanlux MAH LED HI are hermetic luminaires designed for demanding users. They are characterised by exceptional luminous efficacy reaching 150 lm/W. Kanlux MAH LED HI luminaires are easy and quick to mount and can be connected in lines, enabling the illumination of large spaces. In Kanlux MAH LED HI luminaires, we used a grooved lampshade, which increases the luminous flux.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 38

Luminous flux of the light fitting [lm] 5000

Service life [h] 50000

Colour temperature [K] 4000

IP class 65

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

126

LED dustproof lighting fitting MAH LED HI MAH LED HI 19W-NW RYF Product code: 22606

Compare

133

LED dustproof lighting fitting MAH LED HI MAH LED HI 48W-NW RYF Product code: 22608

Compare

150

LED dustproof lighting fitting MAH LED HI MAH LED HI 26W-NW RYF Product code: 22609

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339226075

Colour grey

Enclosure material PC

Lampshade material PC

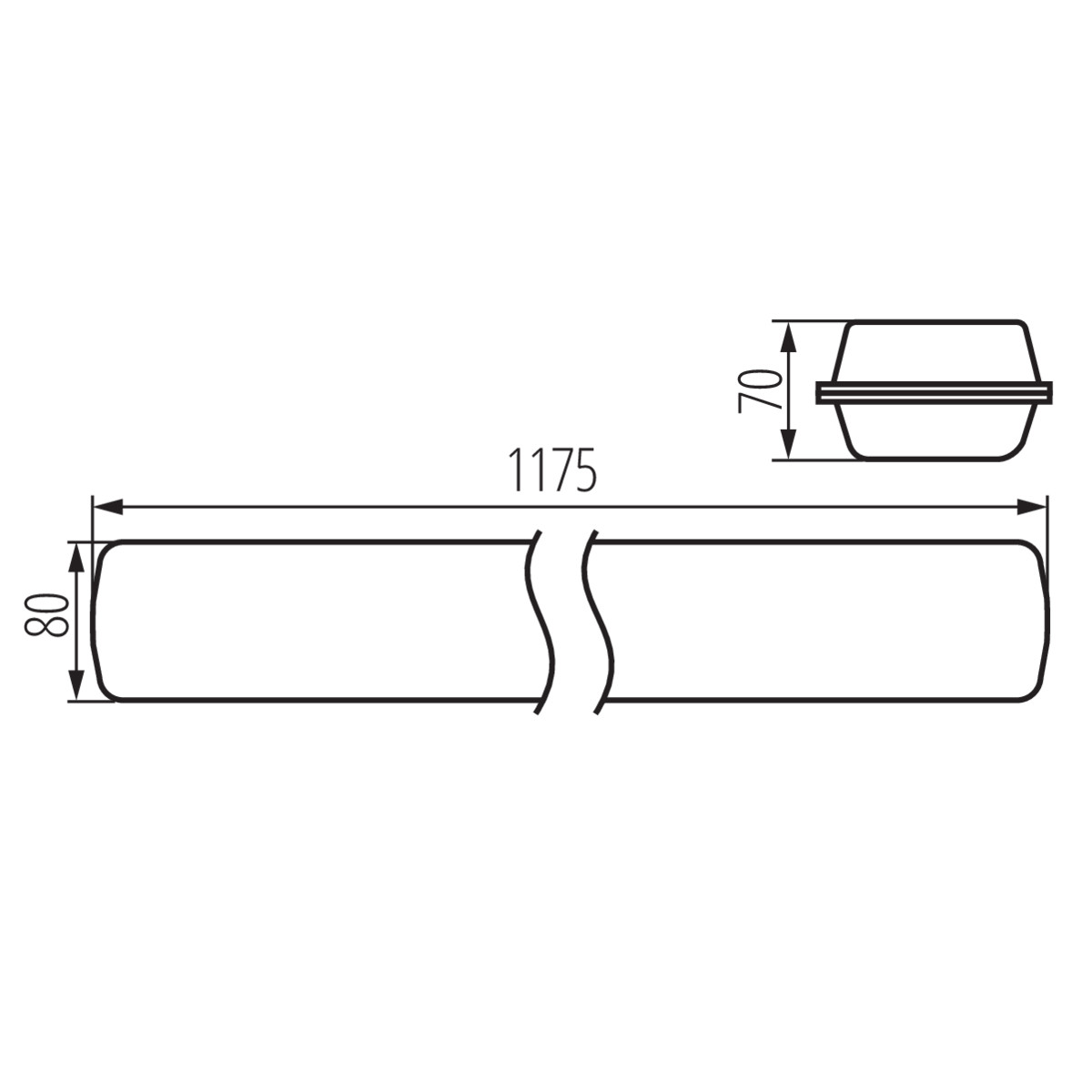

Weight and dimensions

Height [mm] 70

Width [mm] 80

Length [mm] 1175

Weight 1300g

Sales unit piece

Outer box 12

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour grey

Power factor 0.95

Maximum power [W] 38

Integrated LED light source

Luminous flux of the light fitting [lm] 5000

Lighting angle [°] 110

Number of on/off cycles ≥15000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L70B50

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED SMD

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock II

IP class 65

Ambient temperature range to which the product can be exposed -20÷40

Place of assembly ceiling mounted, wall mounted

IK class 08

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1,5÷2,5

Number of chokes 2

Possibility of fixture-loop-through connection

Minimum distance from the illuminated object 0,5m

Luminous efficiency of the lamp [lm/W] 132

Useful luminous flux of the light source Φuse [lm] 5700

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Shape prostokątny

Materials

Specification

Family card PDF, Size: 404.21 KB

Technical card PDF, Size: 1017.1 KB

Support material PDF, Size: 5.83 MB

Drawings and 3D models

3ds MAX 3DS, Size:335.5 KB

Autocad 3D DWG, Size:682.73 KB

Material library MTL, Size:619 B

Object 3D OBJ, Size:1.03 MB

Filmbox FBX, Size:399.81 KB

Photometric data

File ldt - MAH LED HI 38W-NW RYF LDT, Size: 9.22 KB

File ies - MAH LED HI 38W-NW RYF IES, Size: 9 KB

Handling and installation

User manual PDF, Size: 1.03 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 856.6 KB

PZH approval PDF, Size: 528.36 KB

Warranty Statement PDF, Size: 89.52 KB

UKCA certificate PDF, Size: 475.36 KB

Catalogues, folders and leaflets

Product card MAH HI PDF, Size: 5.12 MB
