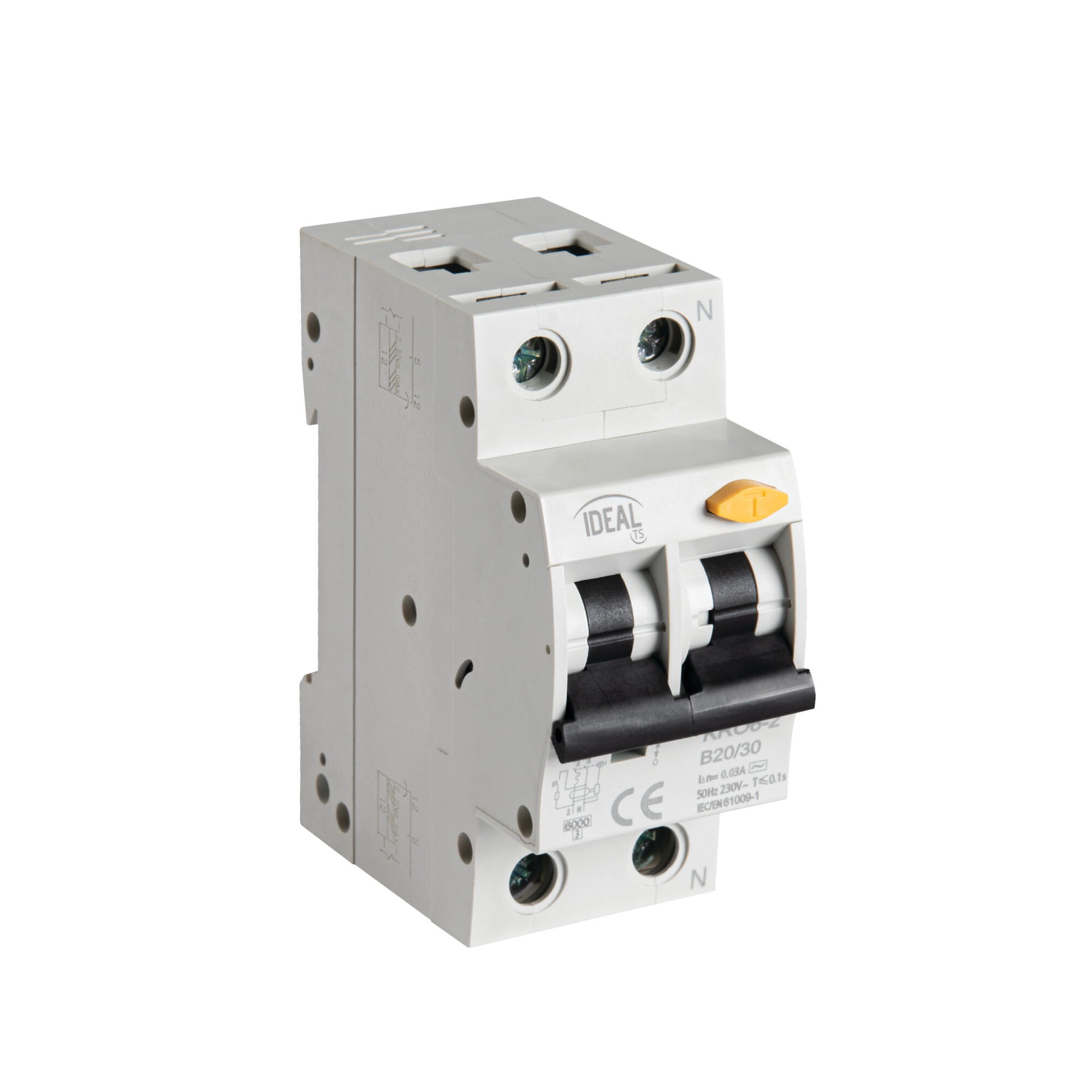

Residual-current circuit breaker with overcurrent module, 6kA, 2P KRO6

KRO6-2/B20/30

Product code: 23219 logo ITS

Residual current device with overcurrent protection is used to protect against overloads and short circuits in installations and devices, as well as to protect against electric shock.


Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
Warranty [years] 5
EAN13 5905339232199
Colour white
Weight and dimensions
Height [mm] 81
Width [mm] 35
Length [mm] 75
Weight 180g
Sales unit piece
Outer box 60
Technical data
Rated voltage [V] 230 AC
Rated frequency [Hz] 50
Colour white
Rated current [A] 20
Show more ▾
Differential-rated current [mA] 30
Range of sections of wires used [mm2] 10÷16
Ambient temperature range to which the product can be exposed -25÷40
IP class 20
Residual-current protection type AC
Rated short-circuit current [A] 6000
Energy-limit class 3
Release characteristics B
Number of modules 2, 2
Application 2
Place of assembly na szynę TH35
Norm PN-EN 61009 -1, PN-EN 61009 -1
Rated insulation voltage UI [V] 400
