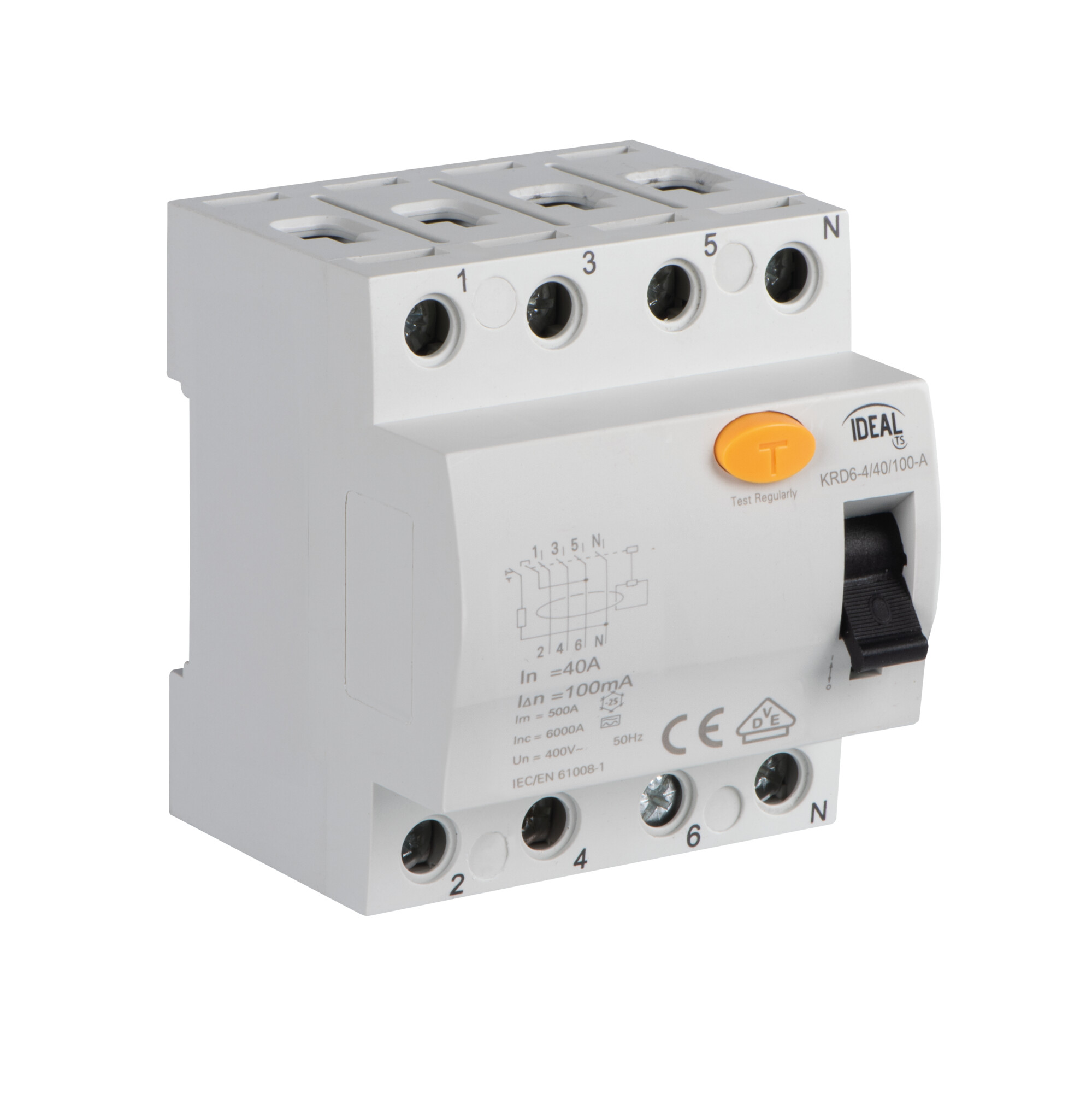

Residual-current circuit breaker, 4P KRD6-4

KRD6-4/40/100-A

Product code: 23228 logo ITS

Residual current circuit breaker: is used for additional protection against electric shock, designed for work in sinusoidal alternating current circuits (AC type) and sinusoidal alternating and pulsating current with DC component (A type).


Scroll down to the full specification

Specification

General description
Warranty [years] 2
EAN13 5905339232281
Colour white

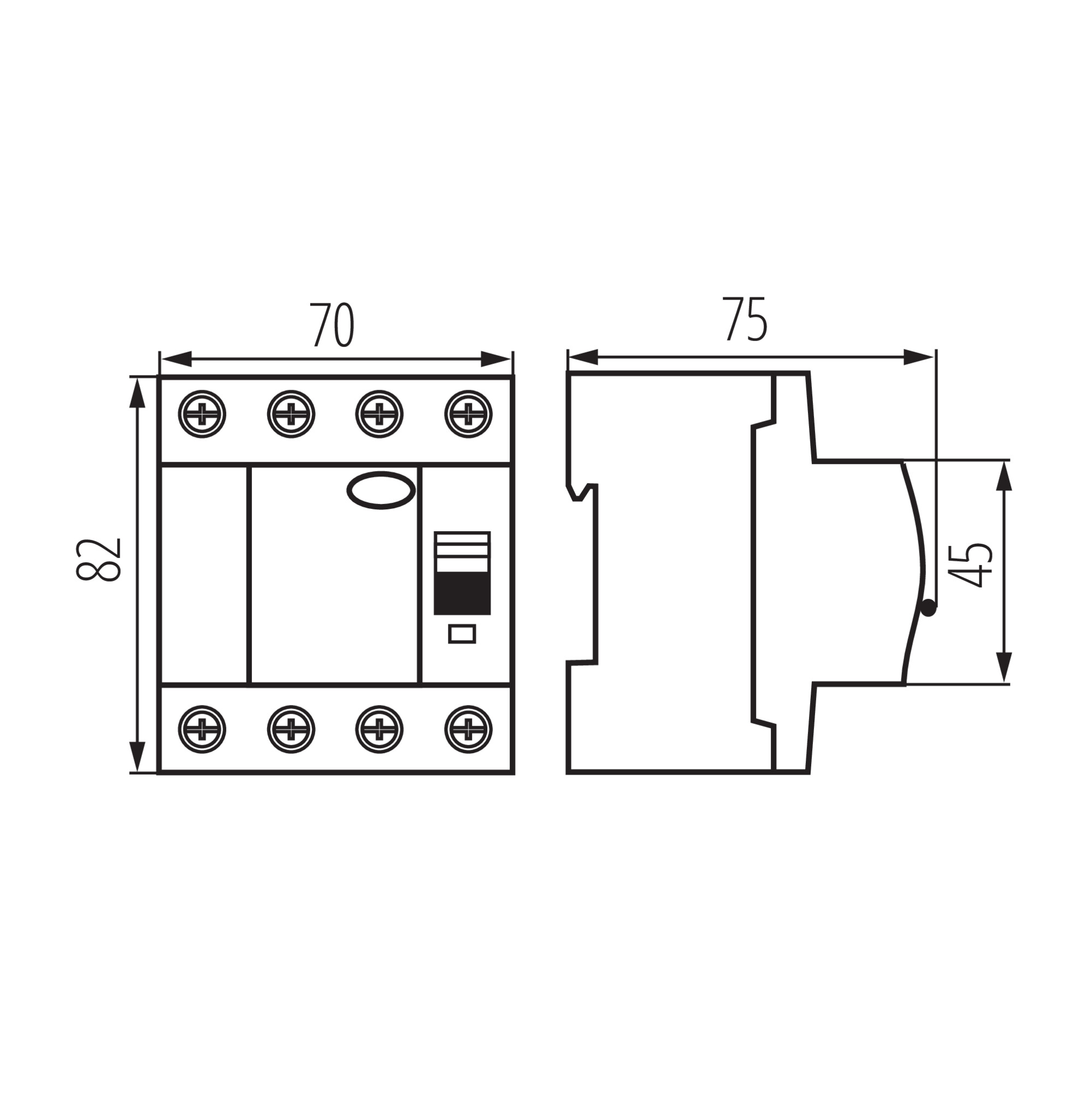

Weight and dimensions
Height [mm] 82
Width [mm] 70
Length [mm] 75
Weight 326g
Sales unit piece
Outer box 30
Technical data
Rated voltage [V] 400 AC
Rated frequency [Hz] 50
Colour white
Rated current [A] 40
Show more ▾
Differential-rated current [mA] 100
Range of sections of wires used [mm2] do 35
Ambient temperature range to which the product can be exposed -25÷40
IP class 20
Residual-current protection type A
Rated activation capacity[A] 6000
Number of modules 4, 4
Application 4
Place of assembly na szynę TH35
Norm PN-EN 61008-1, PN-EN 61008-1
Rated insulation voltage UI [V] 400
