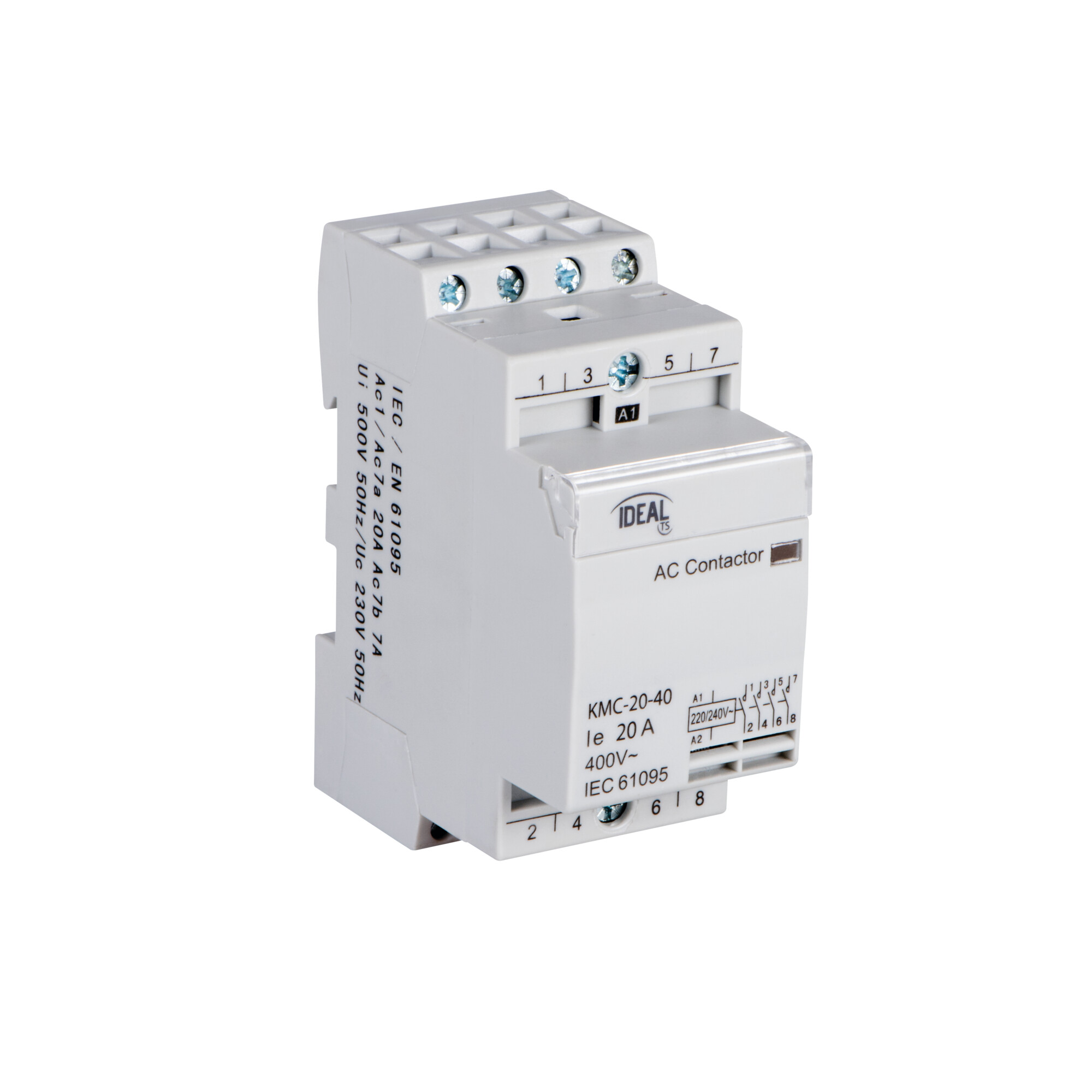

Modular contactor, 230 VAC control voltage KMC

KMC-20-40

Product code: 23241 logo ITS

Contactor is used for automatic activation of electricity receivers. Categories of use AC7a, AC7b.


Scroll down to the full specification

Specification

General description
Warranty [years] 5
EAN13 5905339232410
Colour white

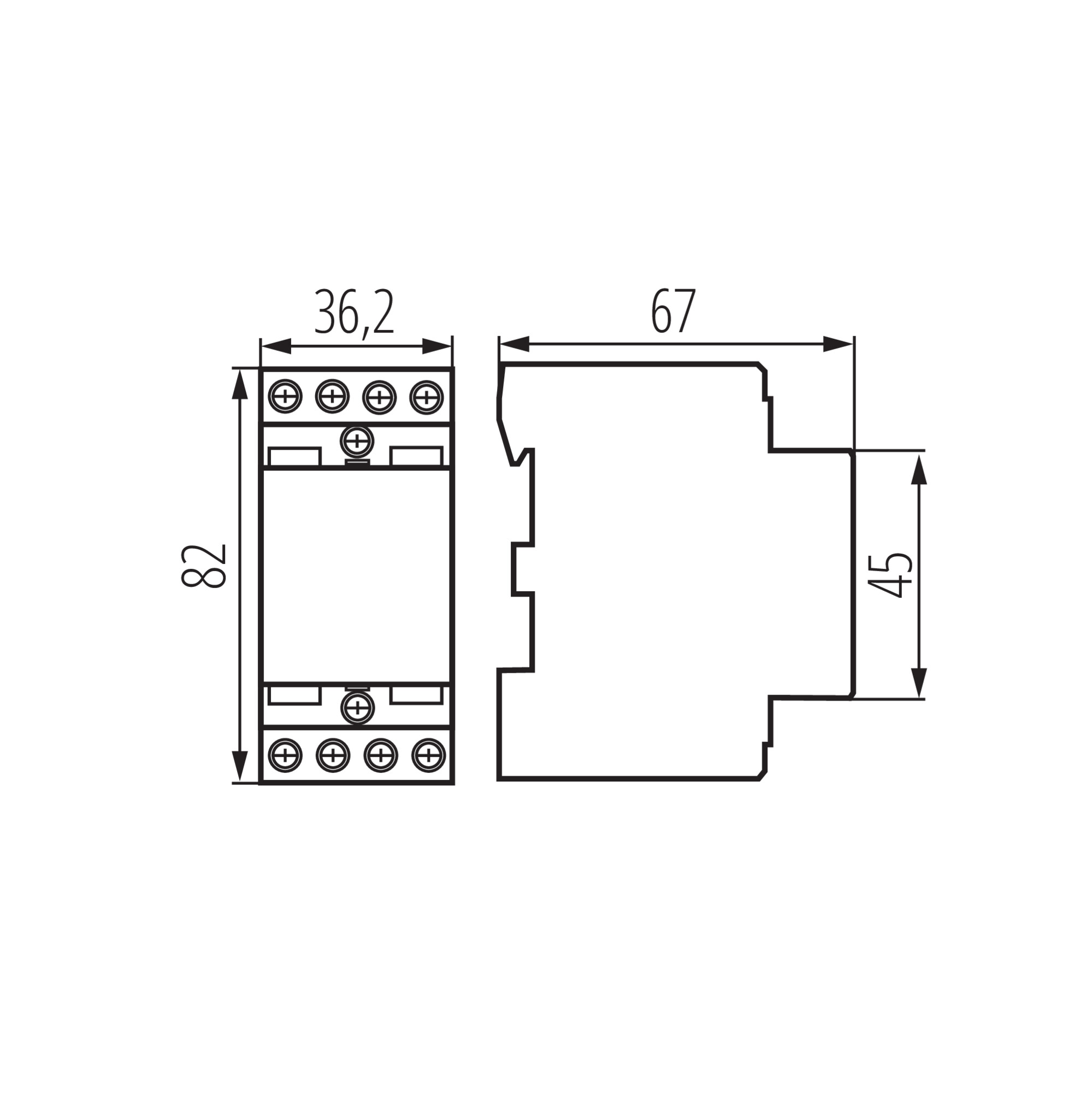

Weight and dimensions
Height [mm] 82
Width [mm] 36.2
Weight 210g
Sales unit piece
Outer box 6
Technical data
Rated voltage [V] 230 AC
Rated frequency [Hz] 50
Colour white
Coil-supply voltage [V] 230V AC 50/60Hz
Show more ▾
Number of modules 2, 2
IP class 20
Ambient temperature range to which the product can be exposed -25÷40
Utilisation category AC-7A, AC-7B
Number of n.o./n.c. contacts 4/0
Rated current I(N) AC-7B/AC-1 7A
Rated current I(N) AC-7A/AC-1 20A
Rated power AC-7A/400 13kW
Rated power AC-7B/400 3,5kW
Connection type Terminal block
Place of assembly na szynę TH35
Norm PN-EN 60947-4-1, PN-EN 60947-4-1
