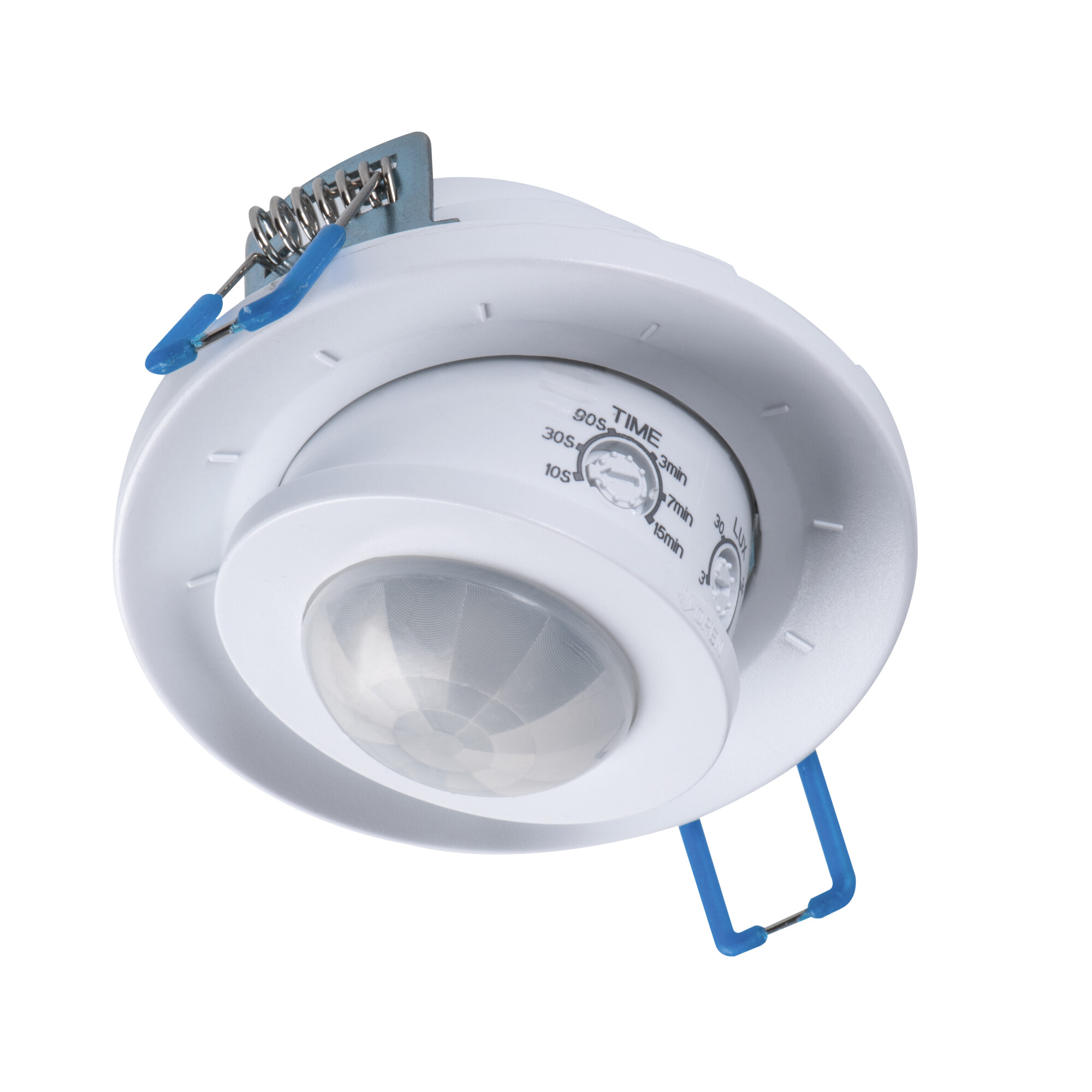

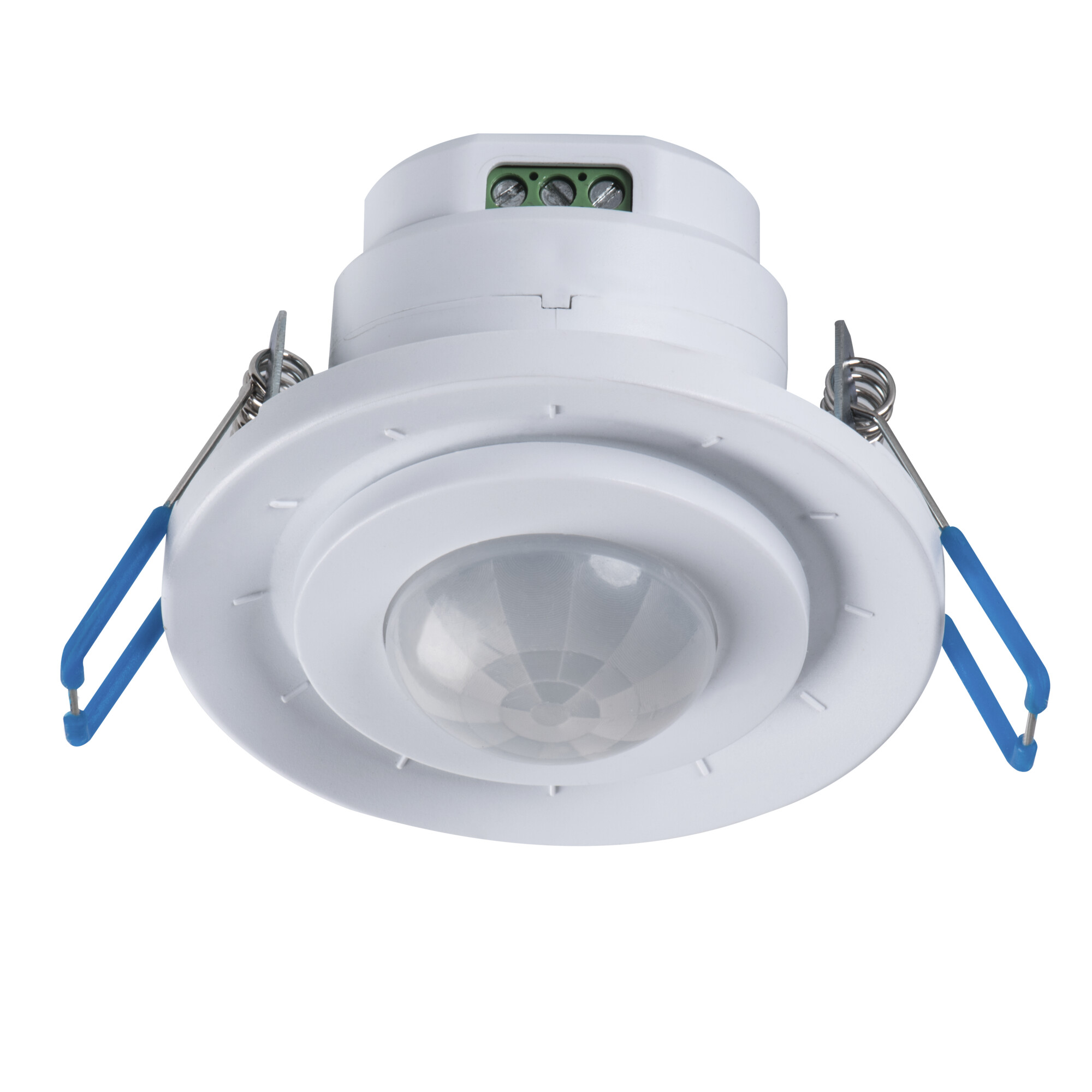

PIR motion sensor MERGE

MERGE ADJ-O

Product code: 23451 logo KANLUX

Kanlux MERGE ADJ is a PIR motion detector with maximum motion detection range of 5m. Its maximum horizontal angle of work comes to 360 degrees. In the MERGE ADJ sensor, you can adjust settings of parameters without a necessity to disassemble the detector.

Rated voltage [V] 220-240 AC
Sensor type PIR
sensor working angle [°] H360/V120
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
MERGE MW-L - KANLUX MERGE MW-L - KANLUX
MW motion sensor MERGE MERGE MW-L Product code: 23453

Specification

General description
EAN13 5905339234513
Colour white
Material plastic

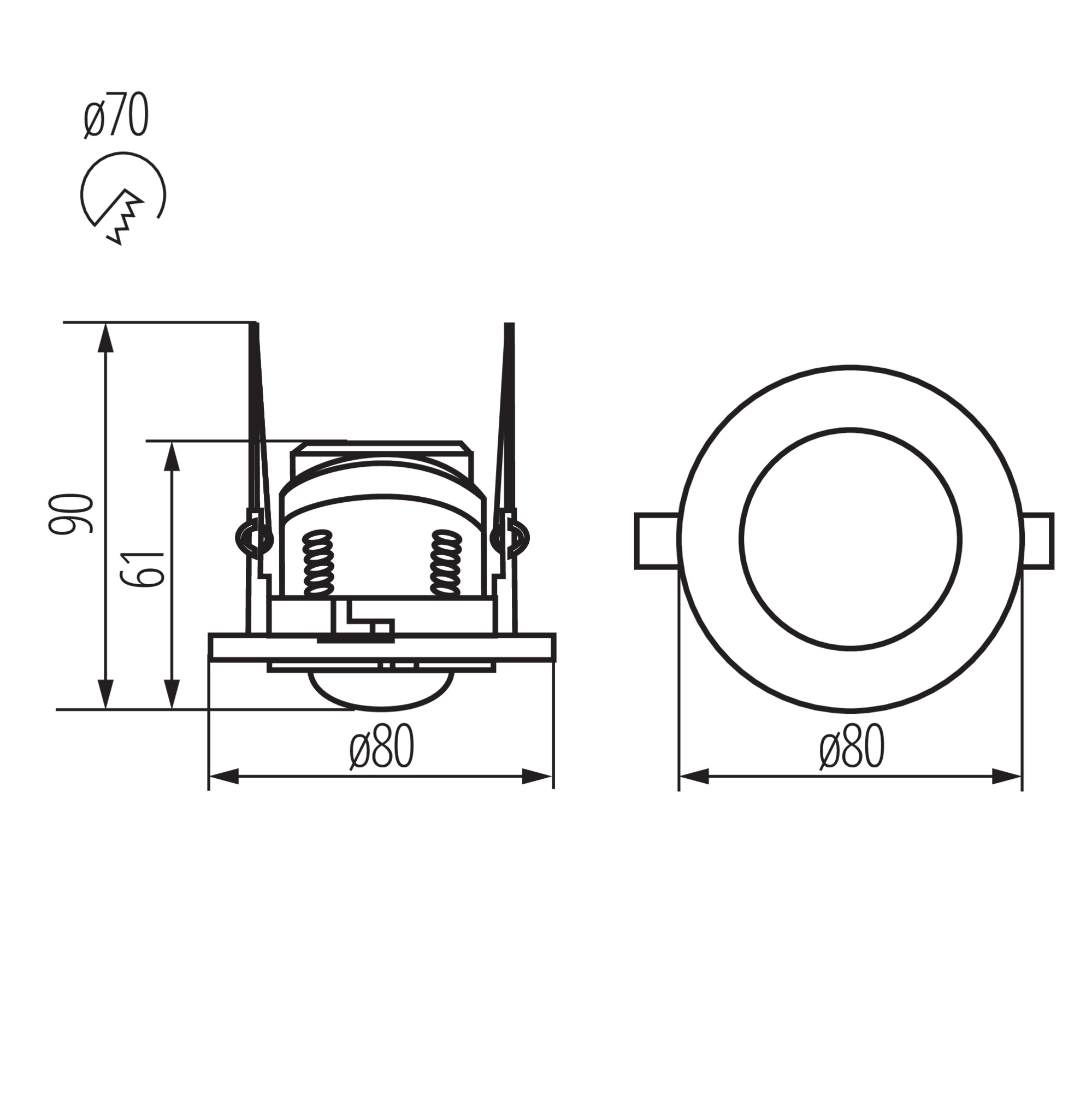

Weight and dimensions
Height [mm] 90
Diameter [mm] 80
Weight 94g
Sales unit piece
Outer box 50
Additional features
  • Maximum movement detection up to 5m
  • Maximum horizontal angle of operation of the motion sensor – 360°
  • Light on time adjustable from 10s to 15min
  • Capability to set the light intensity of the environment in which the device works
  • Motion detection 0.6…1.5m/s
  • Maximum vertical angle of operation of the motion sensor 120°
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Maximum power [VA] 800
Show more ▾
IP class 20
Place of assembly Recessed mount in the ceiling
Class of protection against electric shock II
Sensor range[m] max 5
sensor working angle [°] H360/V120
Minimum operating time[s] 10
Maximum operating time [min] 15
Sensor-operation time [second-minute] 10-15
Sensor type PIR
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Micro-interval between relay contacts
Ambient temperature range to which the product can be exposed 5÷25
Connection type Terminal block
Range of sections of wires used [mm2] 0,75÷1,5
Wielkość otworu montażowego [mm] Ø70
