PIR motion sensor ZONA

ZONA FLAT-W

Product code: 23452 logo KANLUX

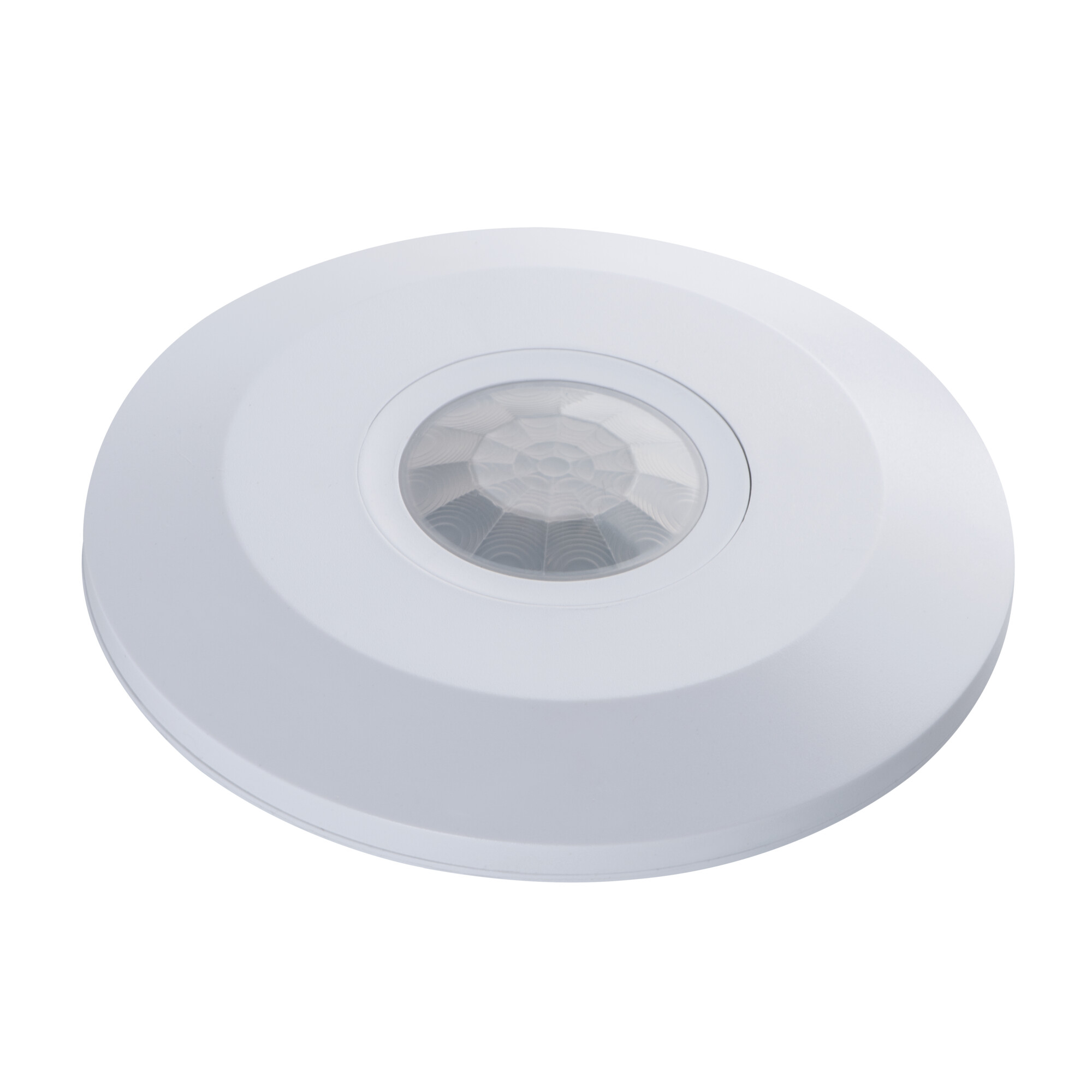

Kanlux ZONA FLAT is a motion detector with maximum motion detection range of 8m. In turn, its maximum horizontal angle of work comes to 360 degrees. In the ZONA sensor, you can adjust the time of lighting from 10s to 15min as well as set the surrounding light intensity level at which the device will work.


Rated voltage [V] 220-240 AC
Sensor type PIR
sensor working angle [°] H360/V120
IP class 20
Scroll down to the full specification

Specification

General description
Warranty [years] 2
EAN13 5905339234520
Colour white
Material plastic

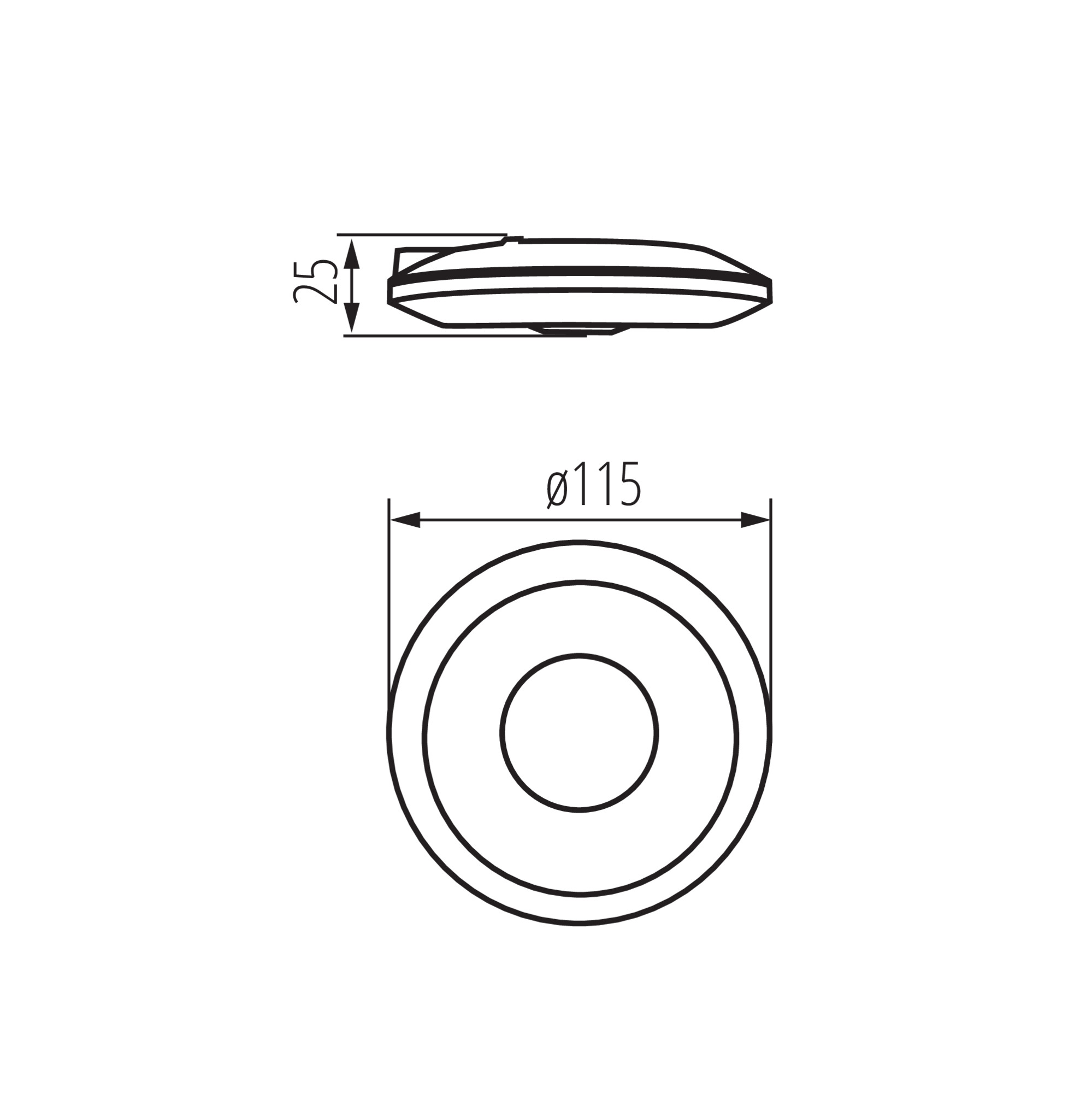

Weight and dimensions
Height [mm] 25
Diameter [mm] 115
Weight 110g
Sales unit piece
Outer box 50
Additional features
  • Maximum movement detection up to 8m
  • Maximum horizontal angle of operation of the motion sensor – 360°
  • Light on time adjustable from 10s to 15min
  • Capability to set the light intensity of the environment in which the device works
  • Motion detection 0.6…1.5m/s
  • Maximum vertical angle of operation of the motion sensor 120°
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Maximum power [VA] 2000
Show more ▾
IP class 20

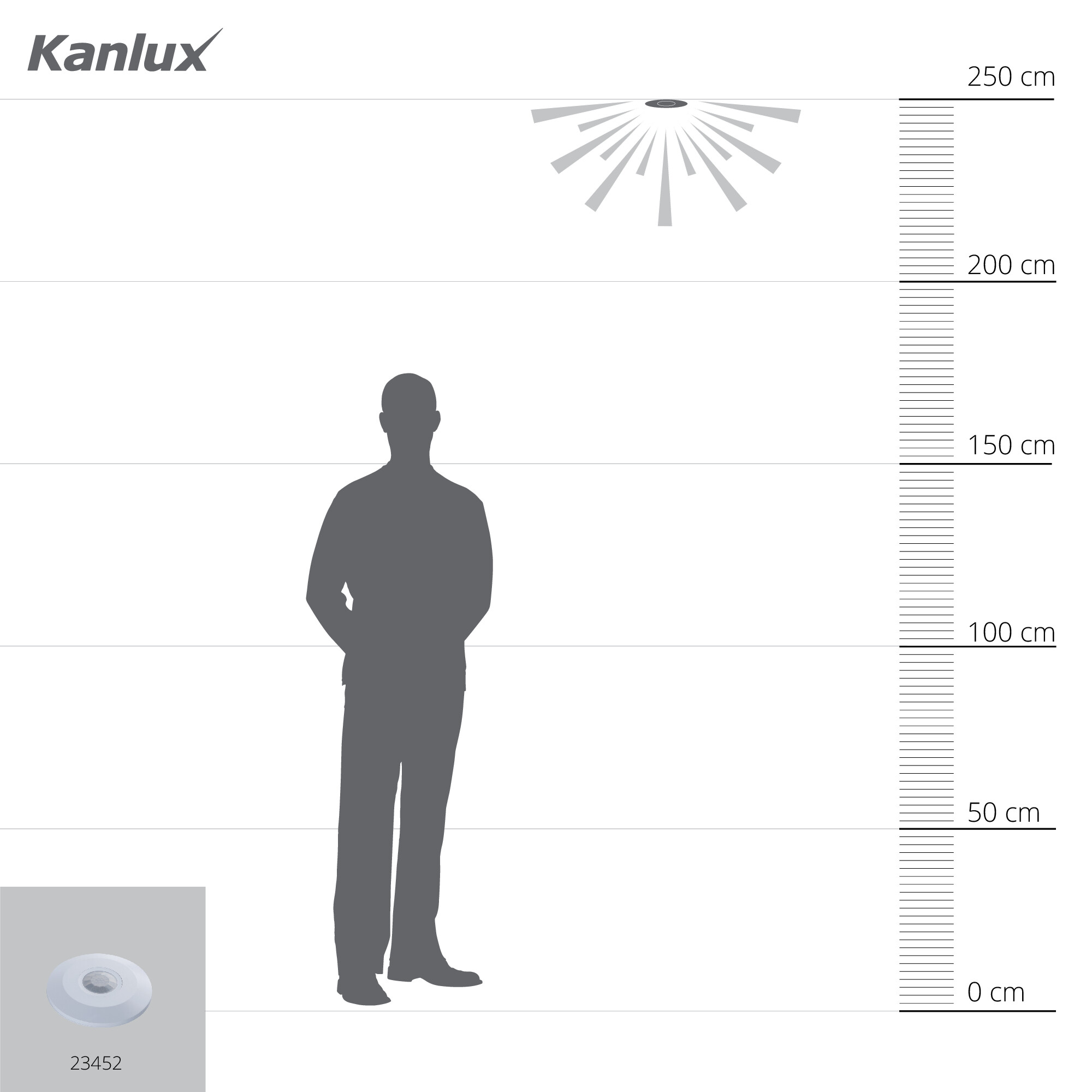

Place of assembly ceiling mounted
Class of protection against electric shock II
Sensor range[m] max 8
sensor working angle [°] H360/V120
Minimum operating time[s] 10
Maximum operating time [min] 15
Sensor-operation time [second-minute] 10-15
Sensor type PIR
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Micro-interval between relay contacts
Ambient temperature range to which the product can be exposed 5÷25
Connection type Terminal block
Range of sections of wires used [mm2] 0,75÷1,5
