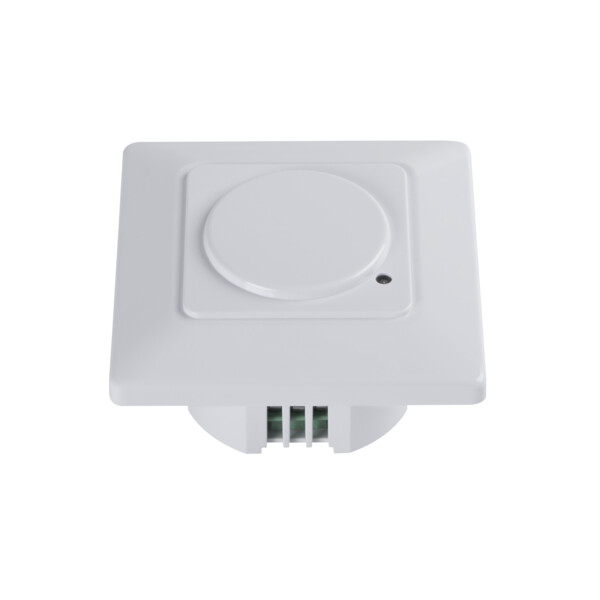

MW motion sensor MERGE

MERGE MW-L

Product code: 23453 logo KANLUX

Kanlux MERGE MW detector is an aesthetic and functional solution. The maximum detection range comes to 9 metres. You can set adjustments of the lighting time and light intensity level at which the detector works.

Rated voltage [V] 220-240 AC
Sensor type microwave
sensor working angle [°] 180
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
MERGE ADJ-O - KANLUX MERGE ADJ-O - KANLUX
PIR motion sensor MERGE MERGE ADJ-O Product code: 23451

Specification

General description
EAN13 5905339234537
Colour white
Material plastic

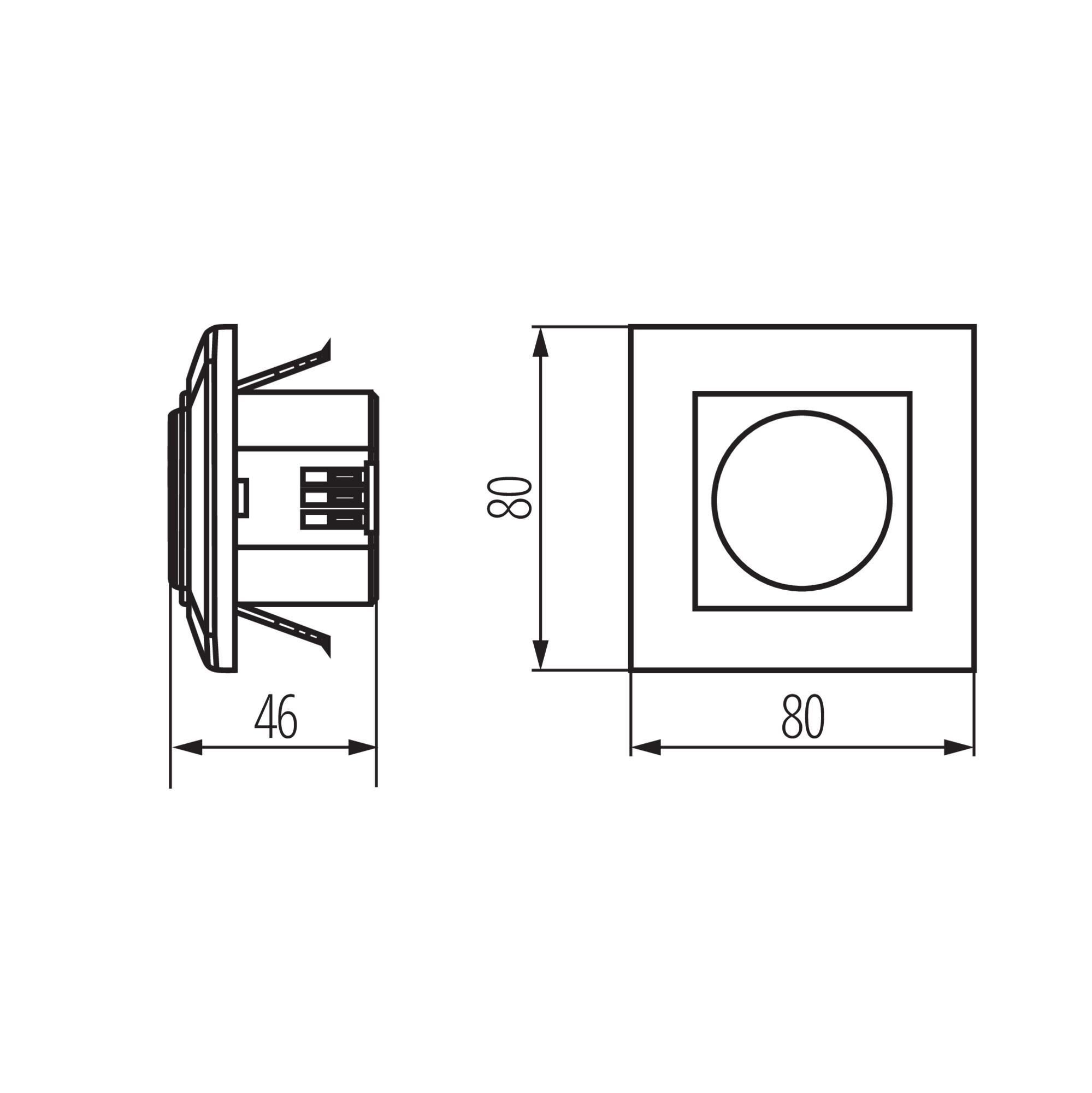

Weight and dimensions
Height [mm] 80
Width [mm] 47
Length [mm] 80
Weight 92g
Sales unit piece
Outer box 100
Additional features
  • Maximum movement detection up to 9m
  • Maximum horizontal angle of operation of the motion sensor – 180°
  • Light on time adjustable from 10s to 12min
  • Capability to set the light intensity of the environment in which the device works
  • Motion detection 0.6…1.5m/s
  • Maximum vertical angle of operation of the motion sensor 180°
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Maximum power [VA] 1200
Show more ▾
IP class 20
Place of assembly Recessed mount in the wall
Class of protection against electric shock II
Sensor range[m] max 9
sensor working angle [°] 180
Minimum operating time[s] 10
Maximum operating time [min] 12
Sensor-operation time [second-minute] 10-12
Sensor-operation frequency [MHz] 5,8
Sensor type microwave
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Micro-interval between relay contacts
Sensitivity regulation
Ambient temperature range to which the product can be exposed 5÷25
Connection type Terminal block
Range of sections of wires used [mm2] 0,75÷1,5

Materials

Specification
Family card PDF, Size: 335.09 KB
Technical card PDF, Size: 194.24 KB
Handling and installation
User manual PDF, Size: 1.17 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 871.22 KB
