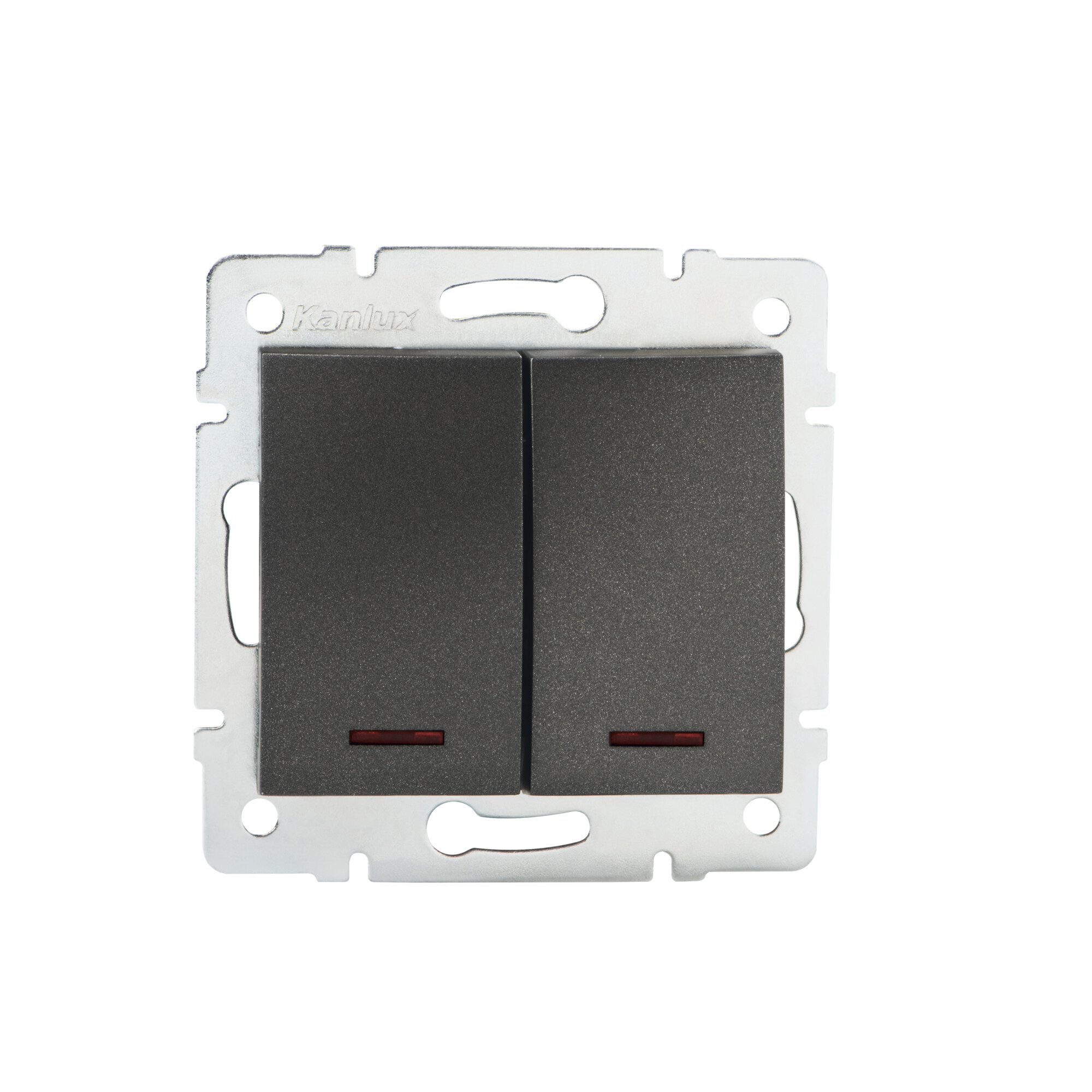

Łącznik dwugrupowy świecznikowy z LED LOGI

LOGI 02-1120-141 gr

Product code: 25257 logo MOWION

A two-gang light switch with LEDs is used to control circuits of two lamps or two groups of lamps from one place. The switch has LED backlight.


Scroll down to the full specification

Together better

Select complementary products

Specification

General description
EAN13 5905339252579
Colour graphite
Weight and dimensions

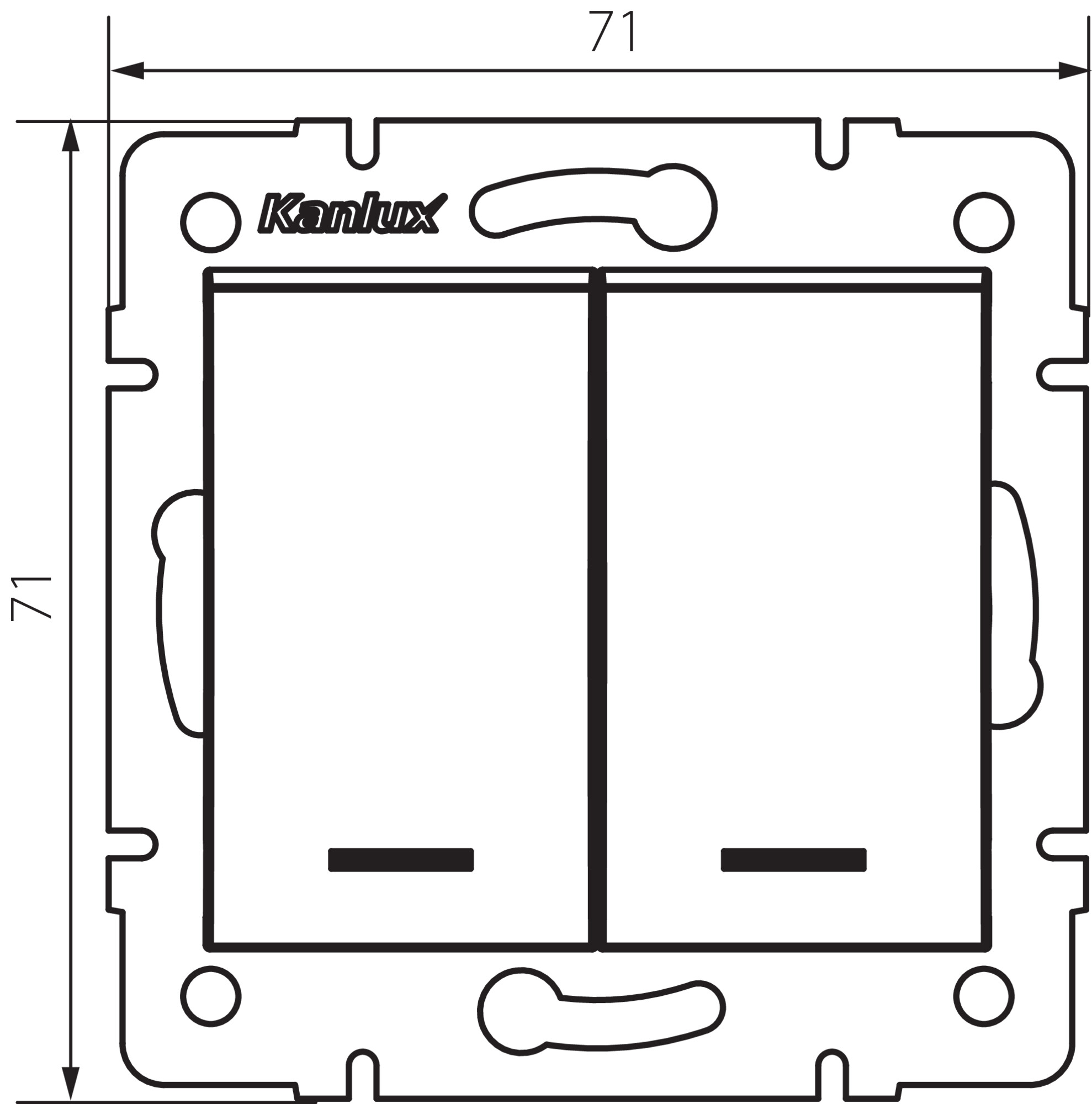

Height [mm] 71
Width [mm] 71
Weight 76g
Sales unit piece
Outer box 10
Technical data
Rated voltage [V] 250 AC
Rated current [AX] 10
Colour graphite
Number of levers 2
Show more ▾
Place of assembly Recessed mount in the wall
Highlighting yes
IP class 20
Terminal type Screw terminal
Plastic ABS
Material of contacts CuZn70
Diameter of an installation box 60
Installation depth 25
