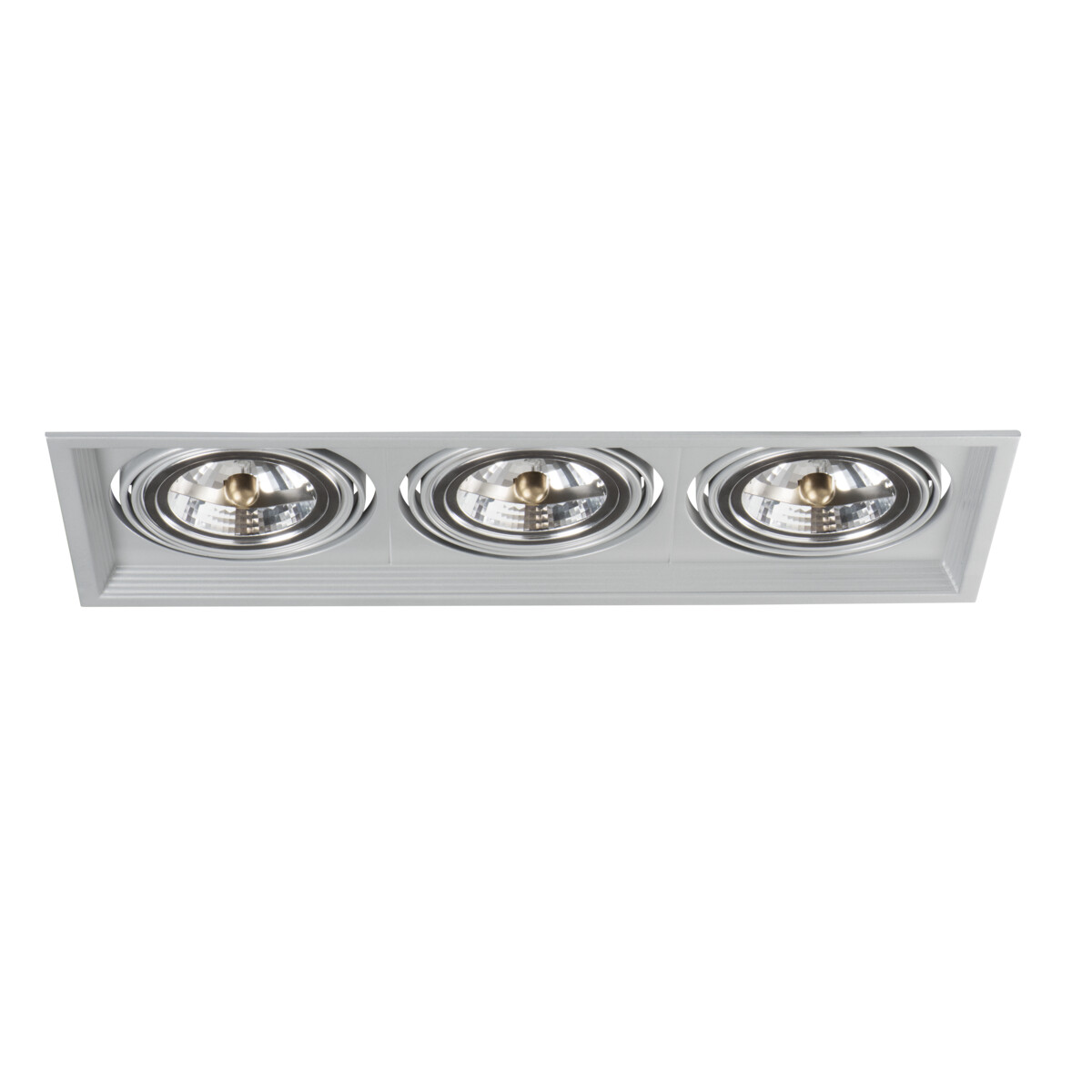

ARTO 3L-SR

Downlight fitting ARTO

ARTO 3L-SR

Product code: 26616 logo KANLUX

Kanlux ARTO luminaires are designed for AR111 light sources. The luminaire is discrete, has a simple design and allows for adjusting the angle of light incidence.

Rated voltage [V] 12 AC; 12 DC

Maximum power [W] 3 x max 35

Light source AR-111

Cap G53

IP class 20

Colour silver

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Together better

Select complementary products

LED light source IQ-LED AR-111 IQ-LED AR-111 13W-WW Product code: 35252

Compare

LED light source IQ-LED AR-111 IQ-LED AR-111 13W-NW Product code: 35253

Compare

Specification

General description

Warranty [years] 2

EAN13 5905339266163

Colour silver

Enclosure material steel

Weight and dimensions

Height [mm] 43

Width [mm] 186

Length [mm] 486

Weight 700g

Sales unit piece

Outer box 20

Technical data

Rated voltage [V] 12 AC; 12 DC

Show more ▾

Colour silver

Maximum power [W] 3 x max 35

Light source AR-111

Cap G53

Class of protection against electric shock III

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly Recessed mount in the ceiling

Lighting-fixture angle regulation in two axes

Lighting-fixture angle regulation [°] 15/15

The product is not suitable to be covered with a heat-insulating material

Connection type Free cable ends

Wielkość otworu montażowego [mm] 470x170

Minimum distance from the illuminated object 1m

Replaceable light source yes

Light source included no

Shape rectangular

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 326.19 KB

Technical card PDF, Size: 514.72 KB

Handling and installation

User manual PDF, Size: 936.29 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 722.6 KB
