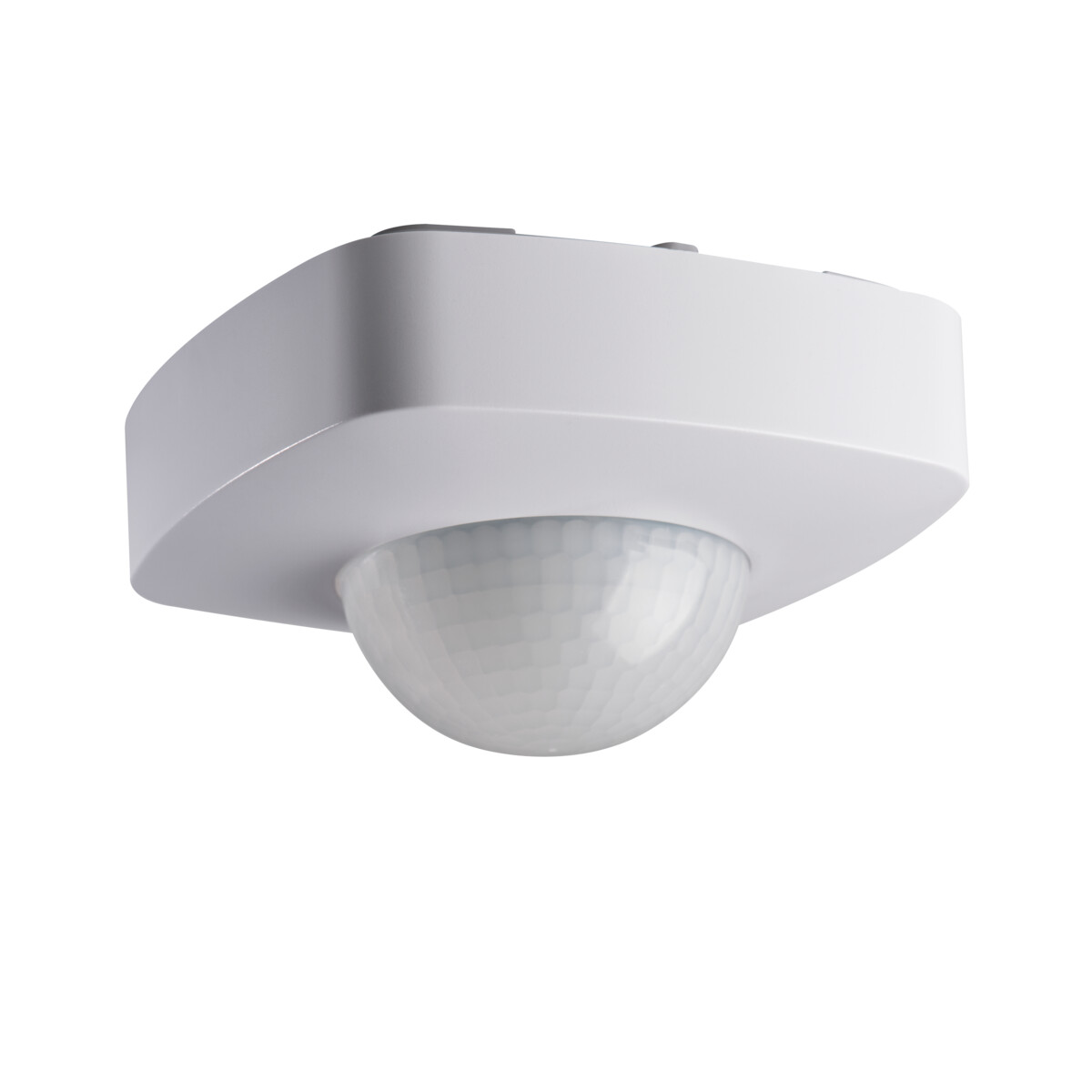

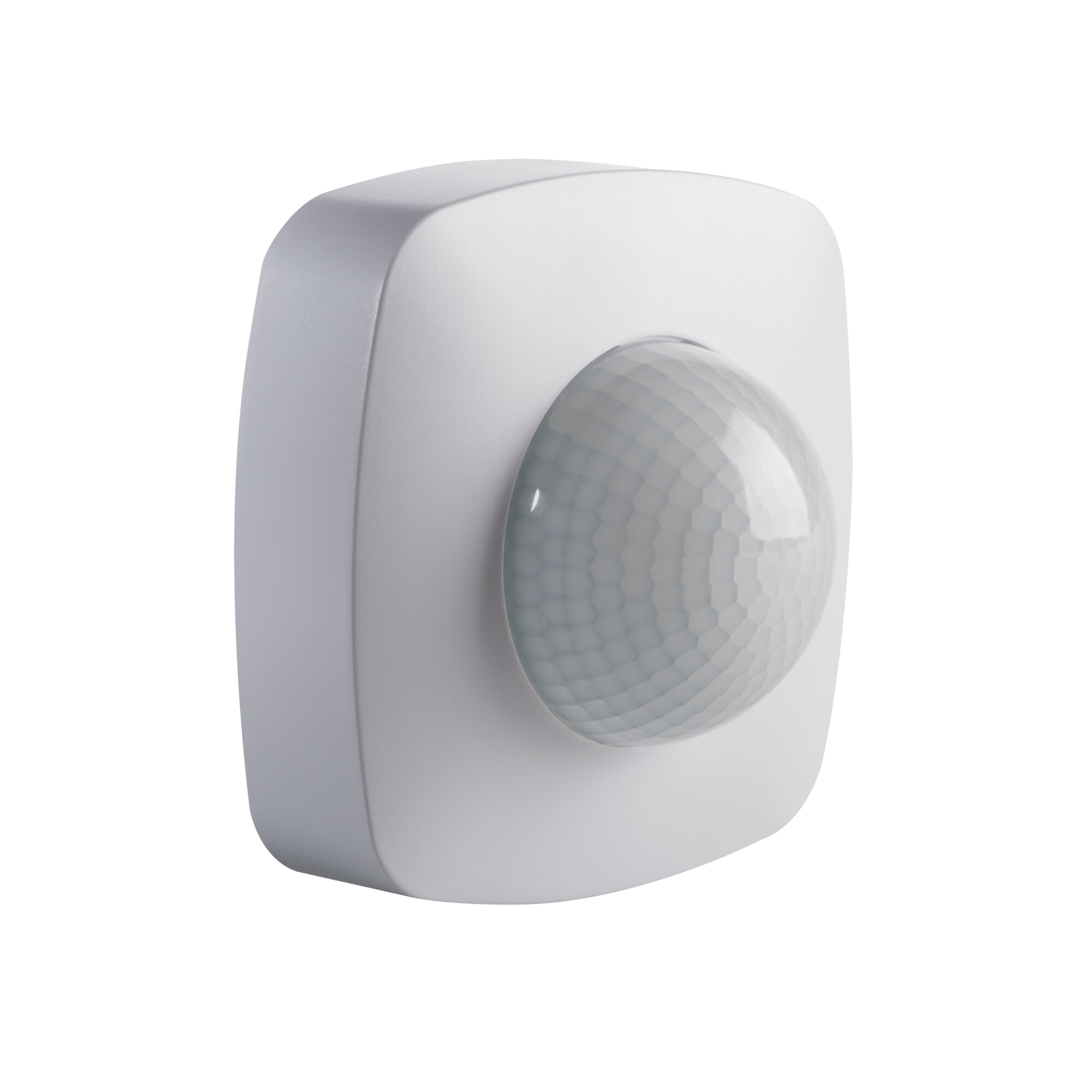

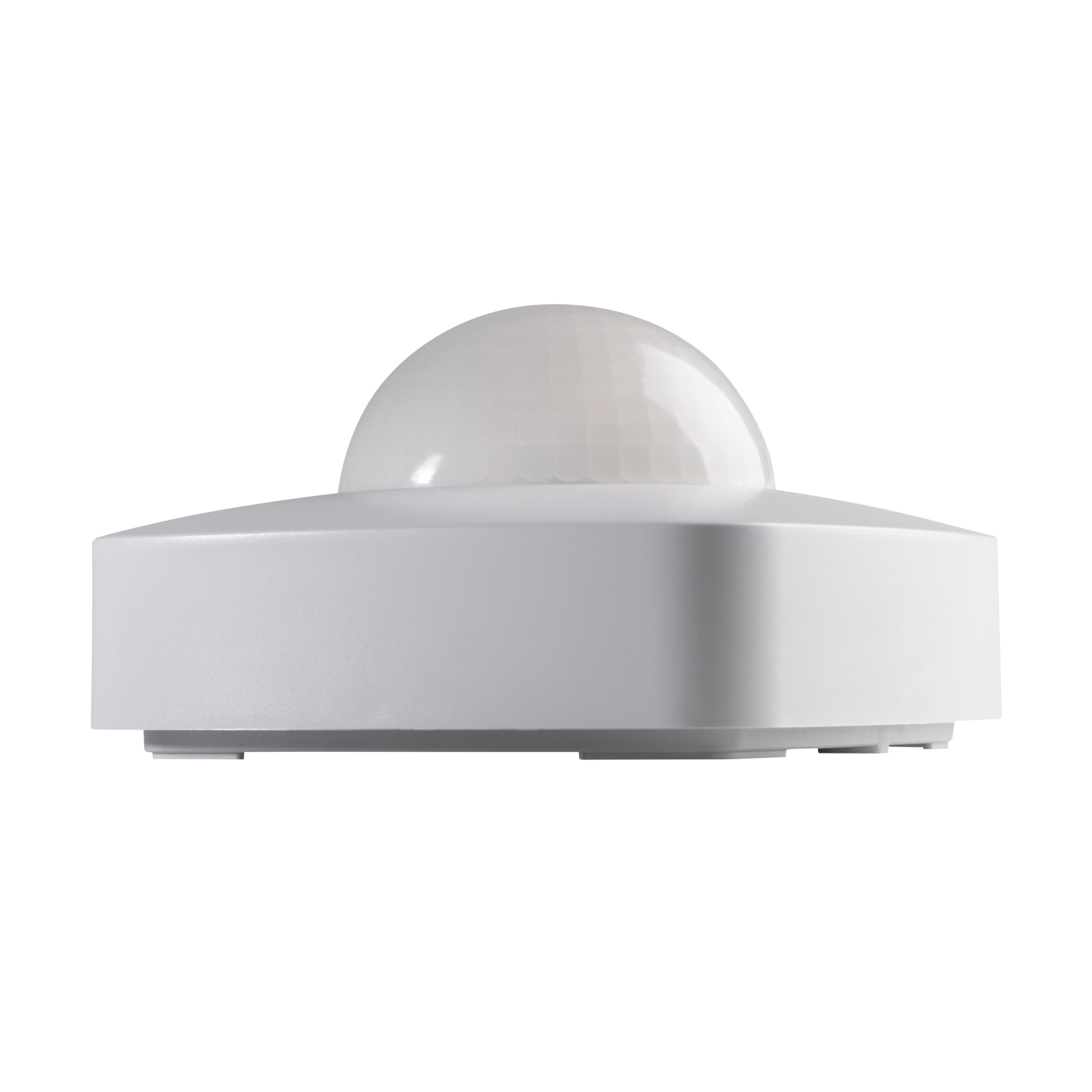

PIR motion sensor SENTO

SENTO

Product code: 26820 logo KANLUX

Kanlux SENTO is an electronic sensor for movement detection. Its exceptionality lies in the fact that as many as three infrared detectors are installed in one sensor. This guarantees an unprecedented sensitivity and allows you to capture even the slightest movement. Kanlux SENTO, due to its unusual features, is referred to as a presence detector.

Rated voltage [V] 220-240 AC

Sensor type 3xPIR

sensor working angle [°] H360/V120

IP class 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339268204

Colour white

Material plastic

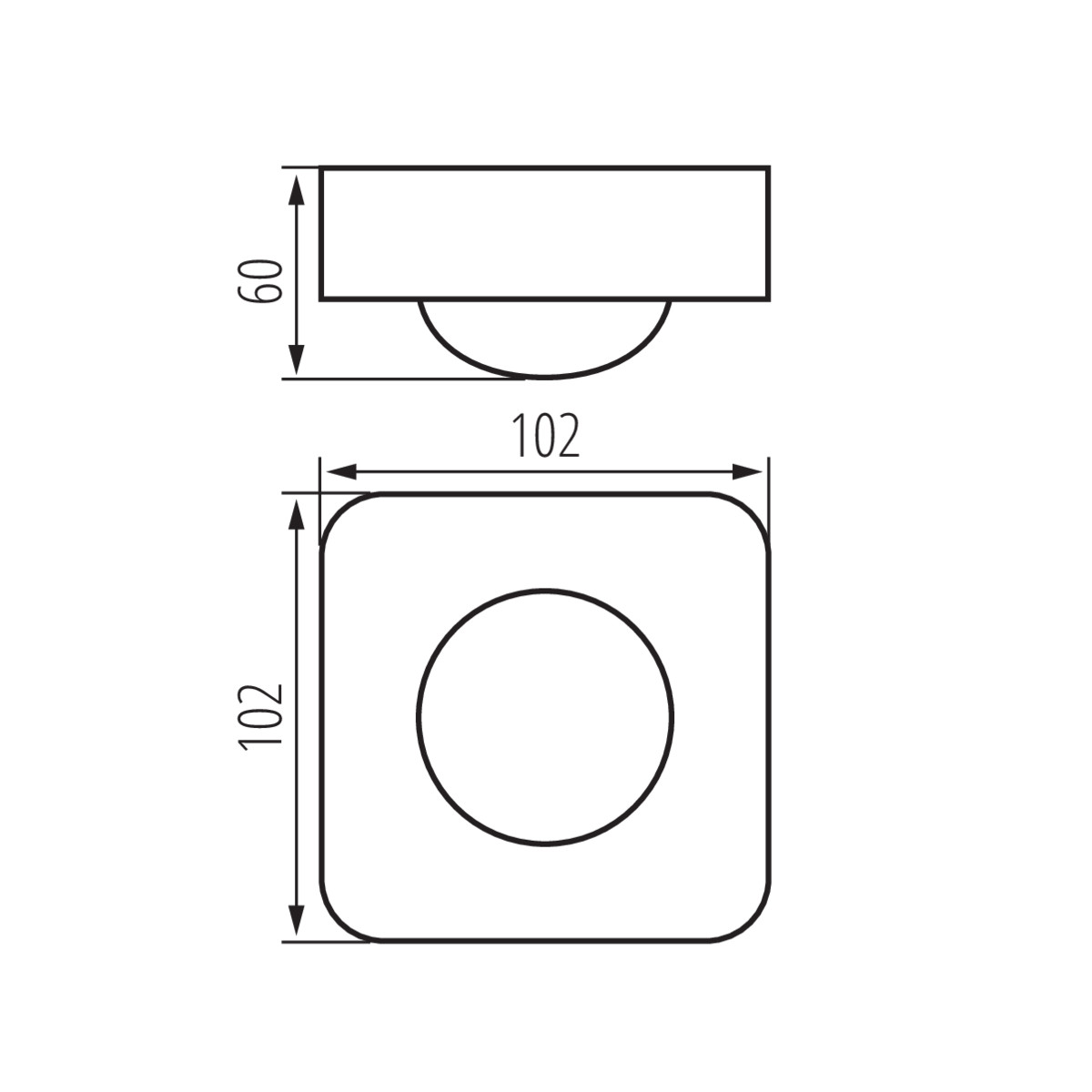

Weight and dimensions

Height [mm] 60

Width [mm] 102

Length [mm] 102

Weight 142g

Sales unit piece

Outer box 50

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Colour white

Maximum power [VA] 2000

Show more ▾

IP class 20

Place of assembly ceiling mounted, wall mounted

Class of protection against electric shock II

Sensor range[m] max 10

sensor working angle [°] H360/V120

Minimum operating time[s] 10

Maximum operating time [min] 30

Sensor-operation time [second-minute] 10-30

Sensor type 3xPIR

Illumination-level setpoint by which the sensor detects movement [lx] 3-2000

Micro-interval between relay contacts

Sensitivity regulation

Ambient temperature range to which the product can be exposed 5÷25

Connection type Terminal block

Range of sections of wires used [mm2] 0,75÷1,5

Materials

Specification

Family card PDF, Size: 497.06 KB

Technical card PDF, Size: 481.73 KB

Handling and installation

User manual PDF, Size: 928.88 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 870.77 KB
