FT1200 37W-840-INT

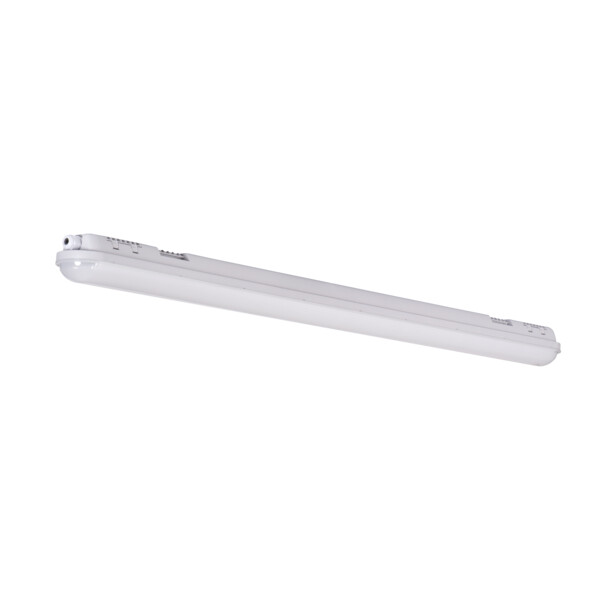

LED dustproof lighting fitting FUTURIO LED 37W 1180mm

FT1200 37W-840-INT

Product code: 28633 logo Kanlux Factory

Maximum power [W] 37

Luminous flux of the light fitting [lm] 5200

Service life [h] 50000

IP class 65

IK class 08

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

We will adapt to your needs Configurator

LED dustproof lighting fitting FUTURIO LED 37W 1180mm FT1200 37W-840-OPL Product code: 28630

Compare

LED dustproof lighting fitting FUTURIO LED 37W 1180mm FT1200 37W-840-RYF Product code: 28631

Compare

LED dustproof lighting fitting FUTURIO LED 37W 1180mm FT1200 37W-840-ASY Product code: 28634

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339286338

Colour grey

Enclosure material PC

Lampshade material PC

Weight and dimensions

Height [mm] 70

Width [mm] 80

Length [mm] 1180

Weight 2020g

Sales unit piece

Outer box 1

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Shade type prismatic,narrow-beam

Show more ▾

Colour grey

Maximum power [W] 37

Integrated LED light source

Luminous flux of the light fitting [lm] 5200

Luminous efficiency of the lamp [lm/W] 141

Lighting angle [°] X70/Y95

Number of on/off cycles ≥30000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L90B10

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤3

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED SMD

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock I

IP class 65

Ambient temperature range to which the product can be exposed -25÷40

Place of assembly ceiling mounted, wall mounted

IK class 08

Connection type Self-clamping block

Range of sections of wires used [mm2] 1,5÷2,5

Possibility of fixture-loop-through connection

Maximum number of loop-through-connected fixtures 10

Minimum distance from the illuminated object 0,5m

Materials

Specification

Family card PDF, Size: 410.17 KB

Technical card PDF, Size: 476.51 KB

Photometric data

File ldt - FT1200 37W-840-INT LDT, Size: 9.19 KB

File ies - FT1200 37W-840-INT IES, Size: 8.97 KB

Handling and installation

User manual PDF, Size: 1.07 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 929.48 KB

PZH approval PDF, Size: 994.12 KB

Warranty Statement PDF, Size: 534.49 KB

Catalogues, folders and leaflets

Product folder PDF, Size: 2.3 MB
