Kanlux Oświetlenie

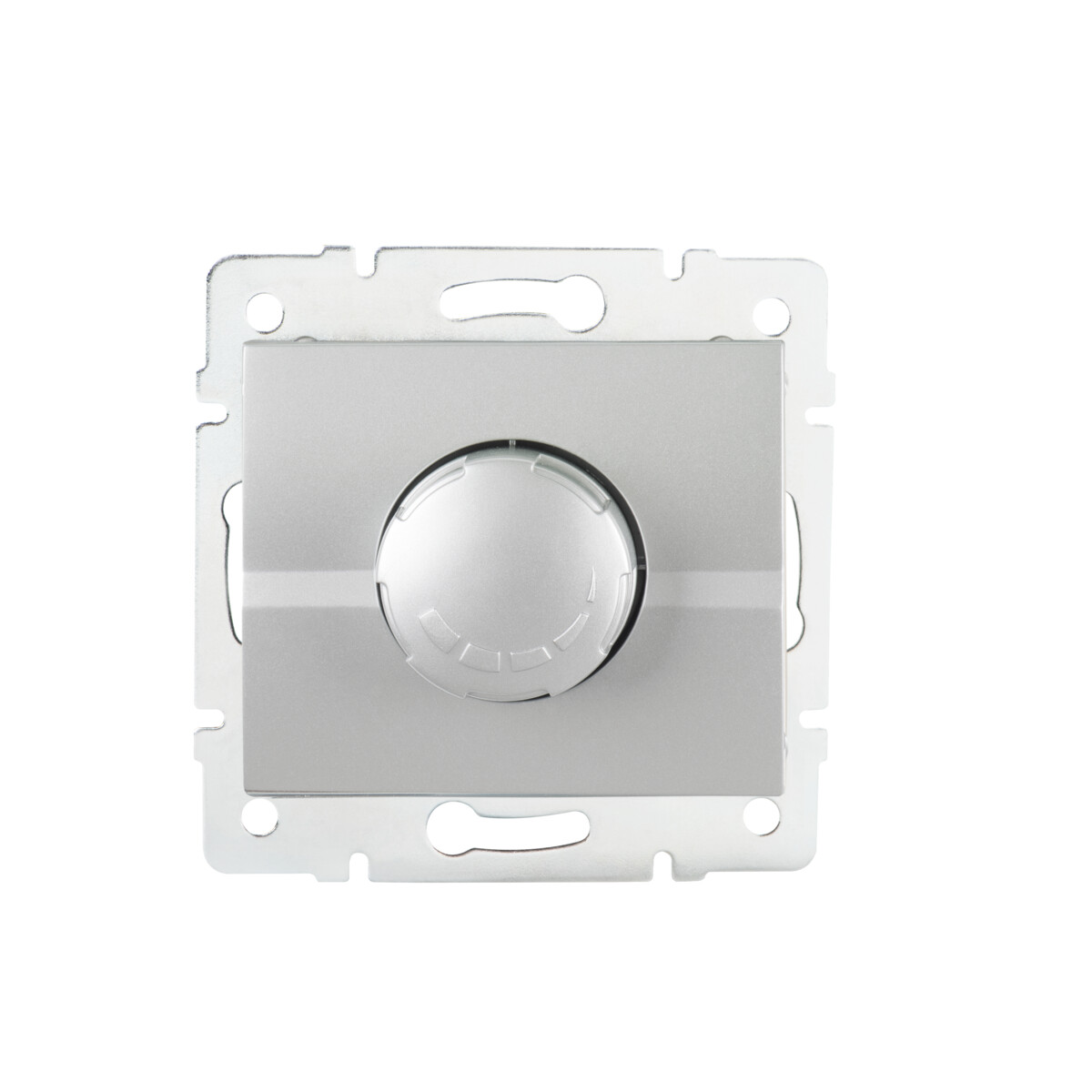

LED switch / dimmer LOGI

LOGI 02-1161-143

Product code: 28752 logo MOWION

A LED dimmer switch is used to control the light intensity of a lamp or a group of lamps. The dimmer switch works with LED light sources intended for trailing/leading edge dimming.


Scroll down to the full specification

Together better

Select complementary products

Specification

General description
EAN13 5905339287526
Colour silver

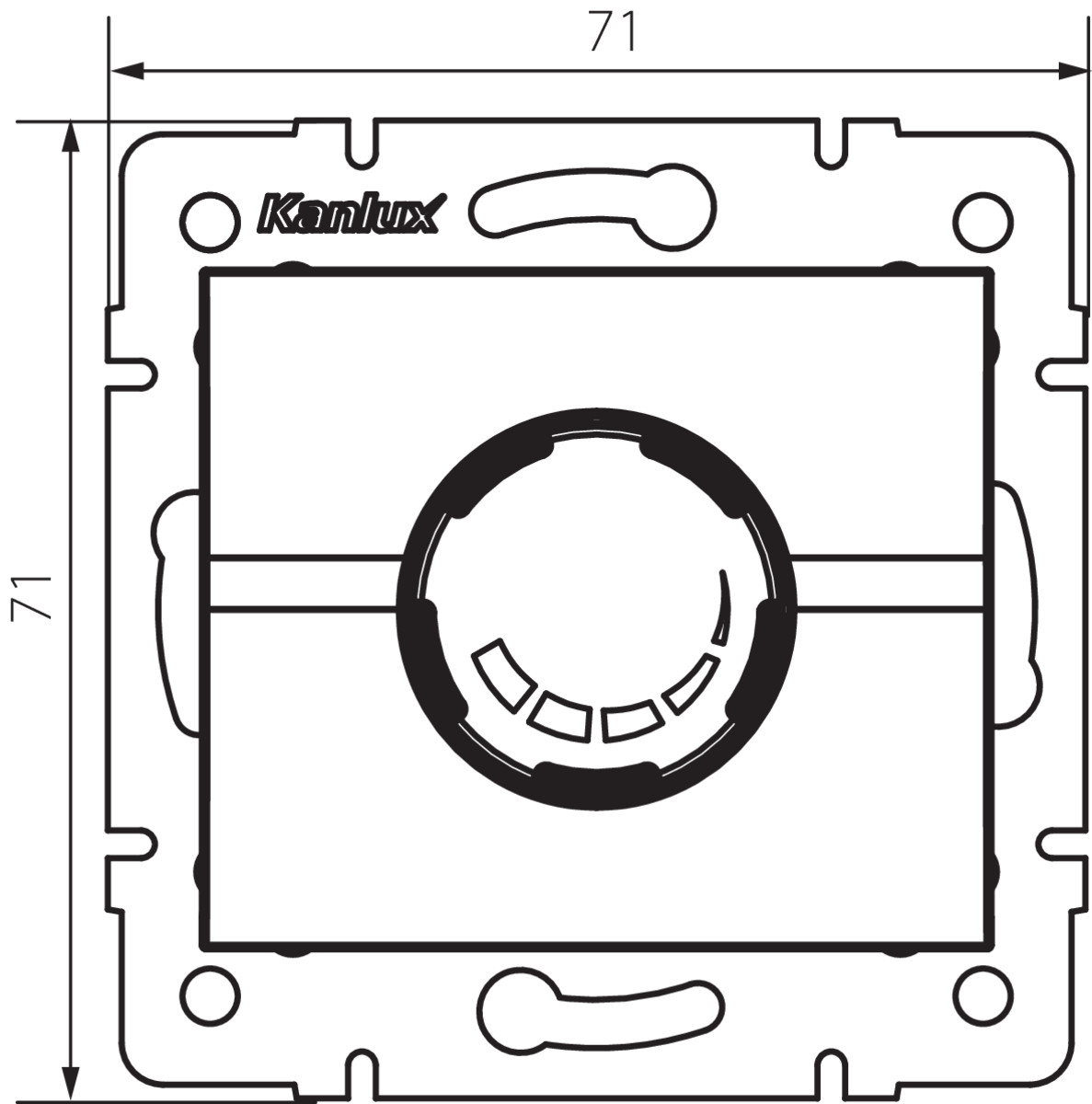

Weight and dimensions
Height [mm] 71
Width [mm] 71
Weight 92g
Sales unit piece
Outer box 120
Technical data
Rated voltage [V] 250 AC
Rated frequency [Hz] 50
Rated power [W] 3-100
Rated power (LED) [W] 3-100
Show more ▾
Colour silver
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Connection type Bolt terminal block
Place of assembly Recessed mount in the wall
Terminal type Screw terminal
Plastic ABS
Class of protection against electric shock II
Diameter of an installation box 60

Materials

Handling and installation
Catalogues, folders and leaflets

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.
