ENALI EL-3I B

Miniatura zdjęcia dzień-noc ENALI EL-3I B

Wall & ceiling lighting fitting ENALI

ENALI EL-3I B

Product code: 28767 logo KANLUX

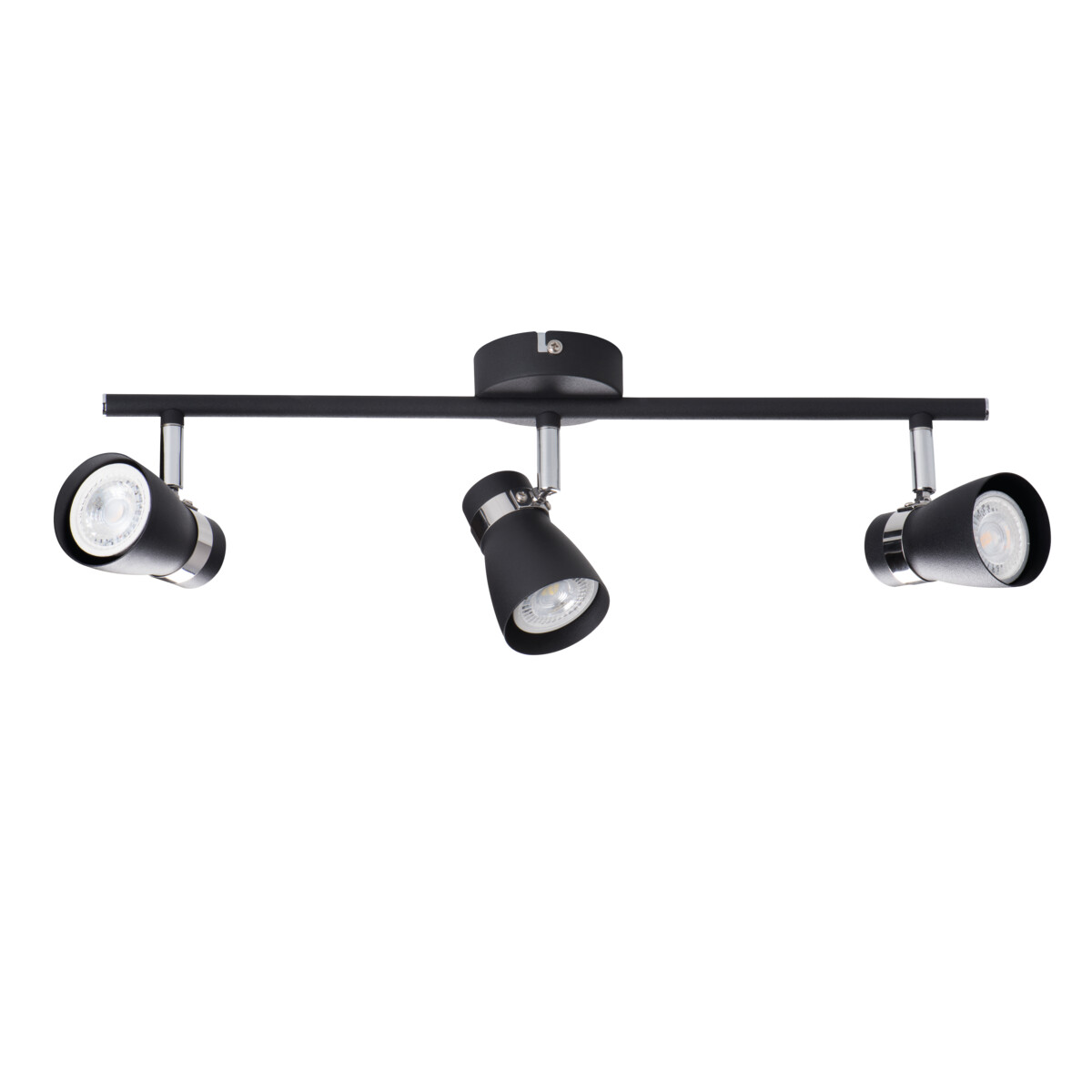

The Kanlux ENALI is a family of point fixtures (ceiling and wall). Thanks to the adjustable joints you can freely set the light-beam angle. The fixtures fit perfectly into Scandinavian style interiors, their shape will emphasise the character of retro interiors, and the chrome accessories will add a subtle touch to modern interiors.

Rated voltage [V] 220-240 AC

Maximum power [W] 3 x max 10

Cap GU10

Light source PAR16

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339287670

Colour black

Enclosure material steel

Lampshade material steel

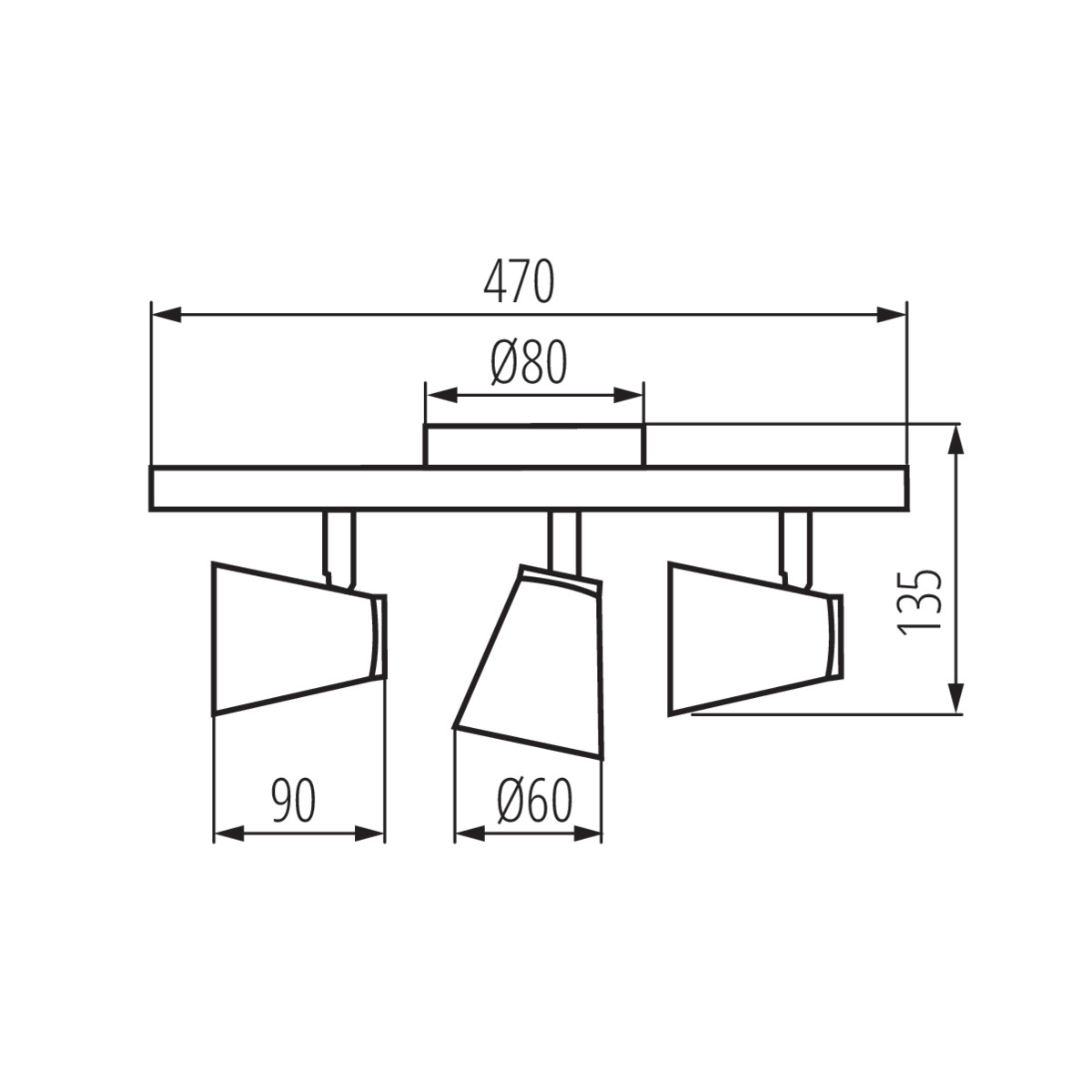

Weight and dimensions

Height [mm] 135

Width [mm] 80

Length [mm] 470

Weight 590g

Sales unit piece

Outer box 10

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour black

Light source included no

Maximum power [W] 3 x max 10

Light source PAR16

Cap GU10

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly wall mounted, ceiling mounted

Lighting-fixture angle regulation [°] in two axes

The fixture is movable horizontally [°] 310

The fixture is movable vertically [°] 90

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1÷2,5

Minimum distance from the illuminated object 0,5m

Shape other

Materials

Specification

Family card PDF, Size: 477.42 KB

Technical card PDF, Size: 371.99 KB

Drawings and 3D models

Autocad 3D DWG, Size:1.22 MB

Industry Foundation CLass IFC, Size:1.34 MB

Material library MTL, Size:925 B

Object 3D OBJ, Size:1.46 MB

Filmbox FBX, Size:520.23 KB

Handling and installation

User manual PDF, Size: 1.15 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 801.57 KB
