CV power supply unit POWELED

POWELED P 24V 100W

Product code: 28962 logo KANLUX

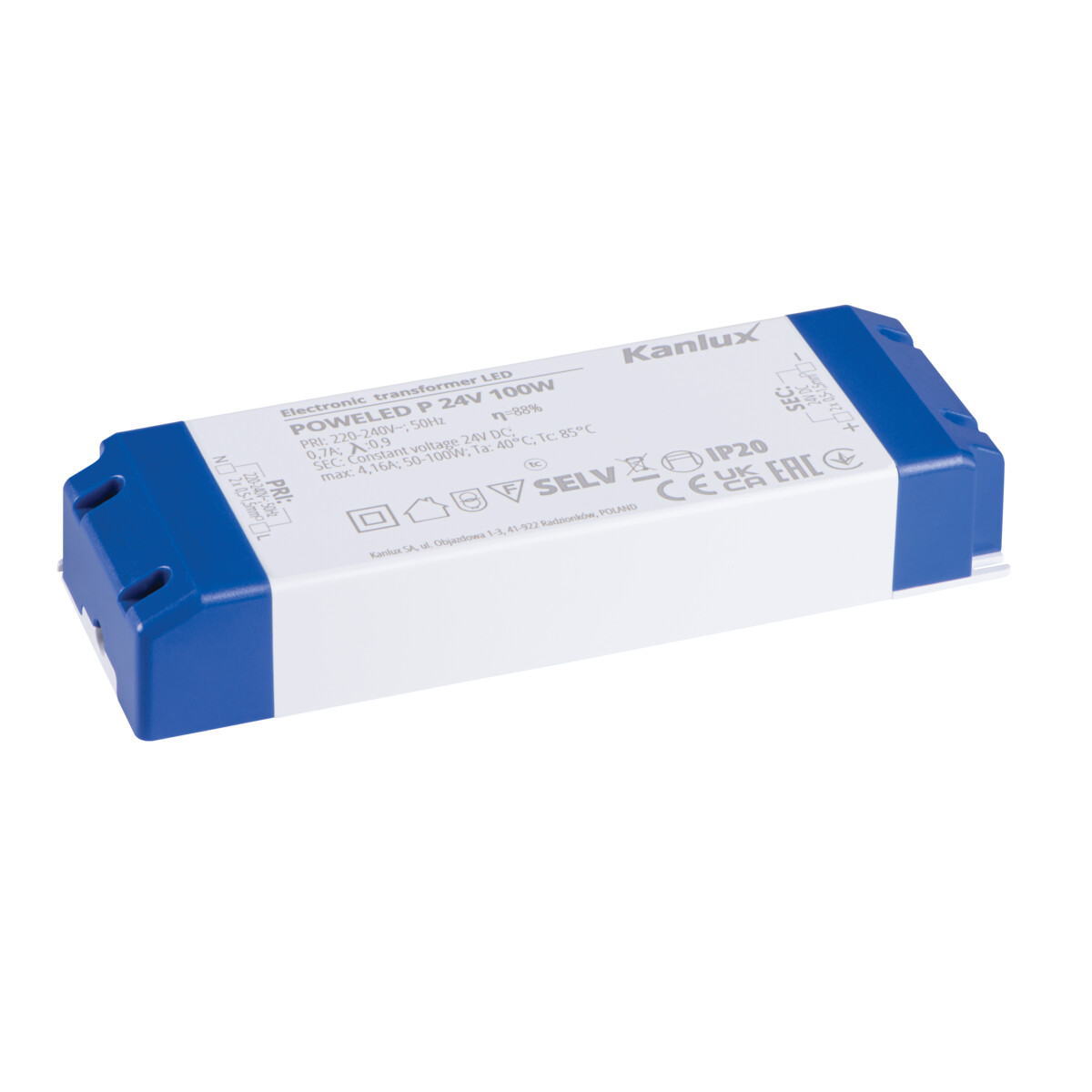

Kanlux POWELED is an electronic constant-voltage power supply unit. It is used for powering LED belts such as LEDS P or LEDS B.


Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
EAN13 5905339289629
Colour white
Material plastic

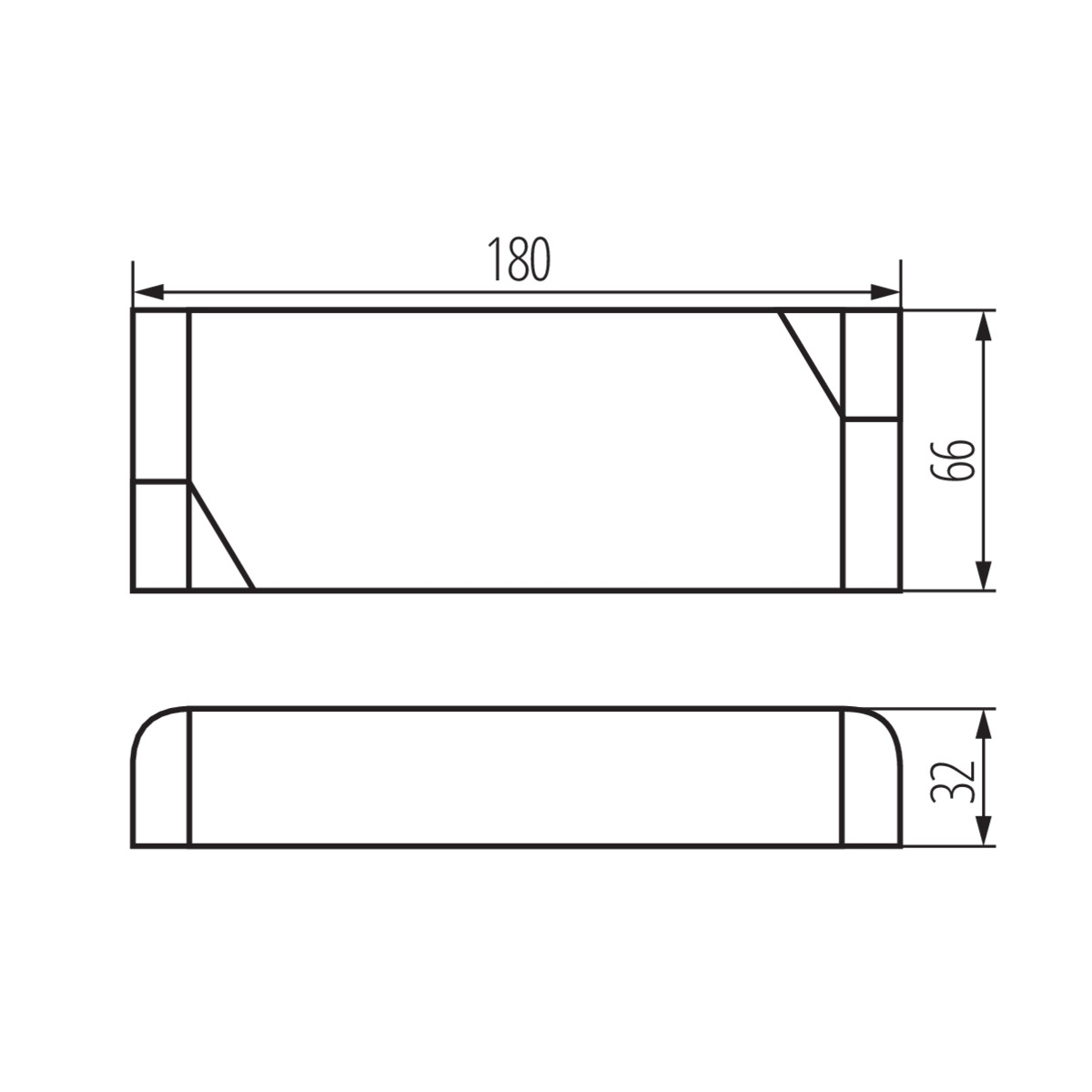

Weight and dimensions
Height [mm] 32
Width [mm] 66
Length [mm] 180
Weight 302g
Sales unit piece
Outer box 50
Additional features
  • The power supply  unit is not designed to work without load.
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Supply-cord type constant-voltage
Show more ▾
Maximum power [W] 1-100
Input voltage - PRI [V] 220-240
Output voltage - SEC [V] 24 DC
Output current - sec [ma] max 4160
Tc [°C] 85
Maximum temperature Ta [°C] 40
Short-circuit protection 1
Possibility of installation on a normally flammable surface yes
IP class 20
Class of protection against electric shock II
Connection type Terminal block
Range of sections of wires used [mm2] 0,5-1,5
Ambient temperature range to which the product can be exposed 5÷25
