REKA LED EL 7W-O-W

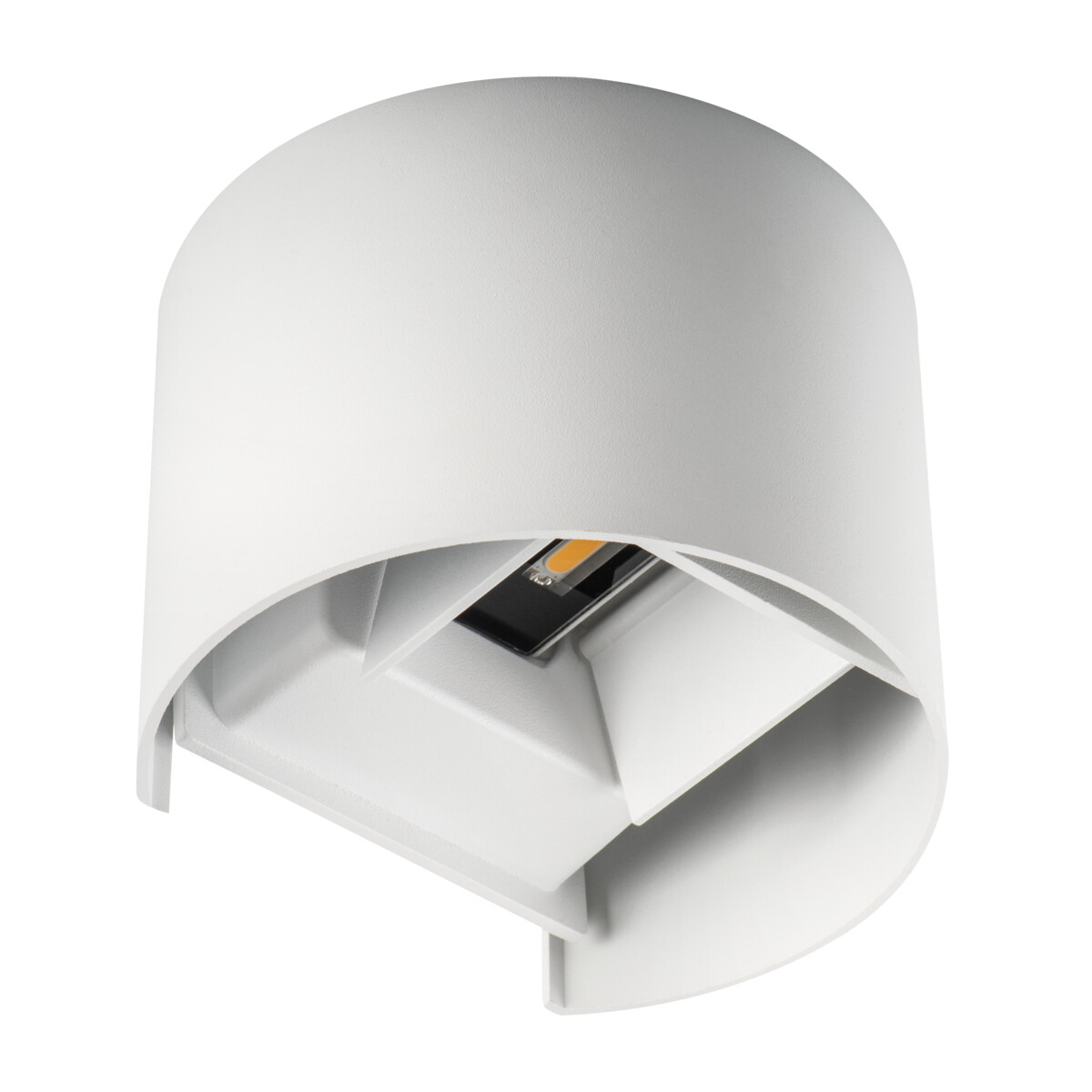

Facade luminaire REKA LED

REKA LED EL 7W-O-W

Product code: 28993 logo KANLUX

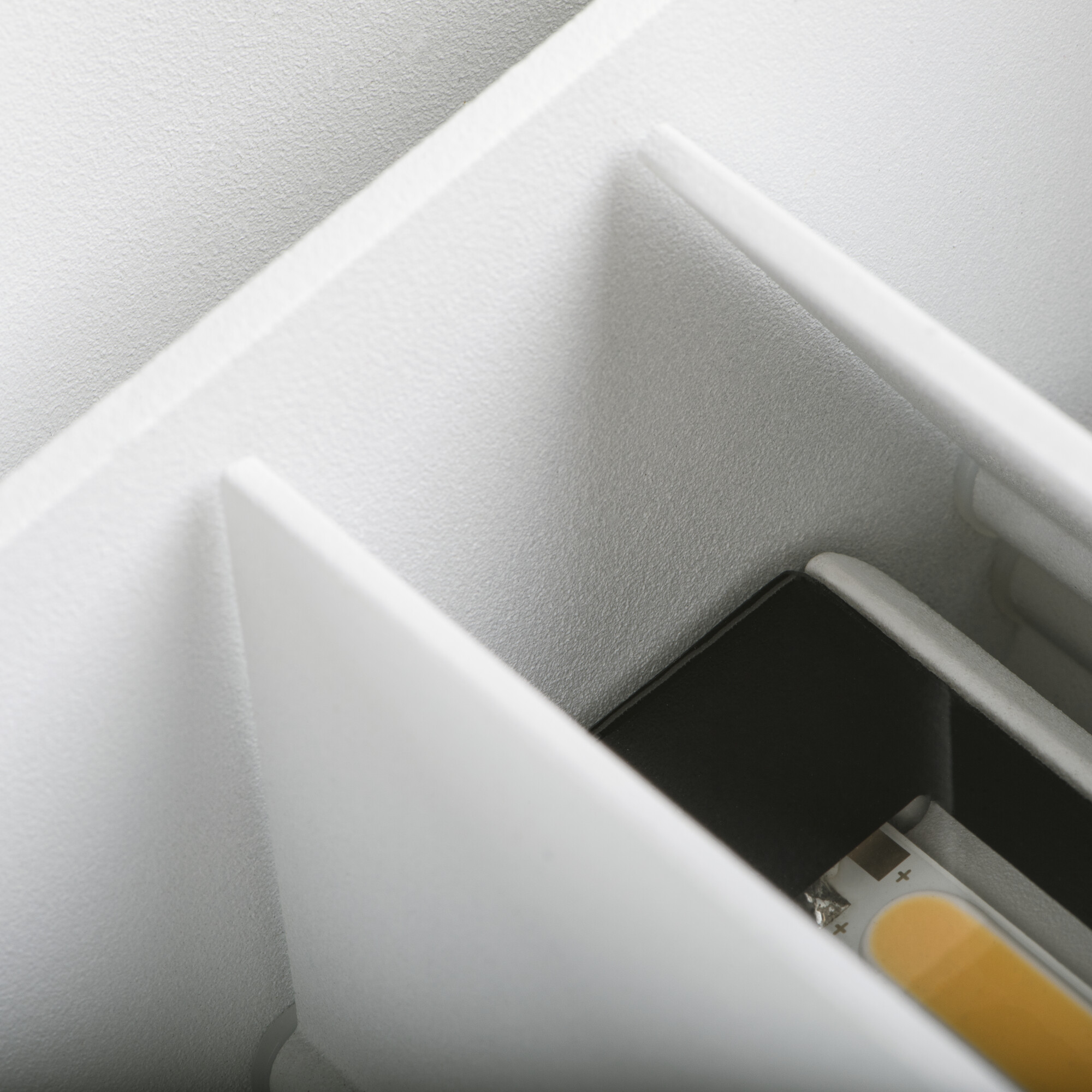

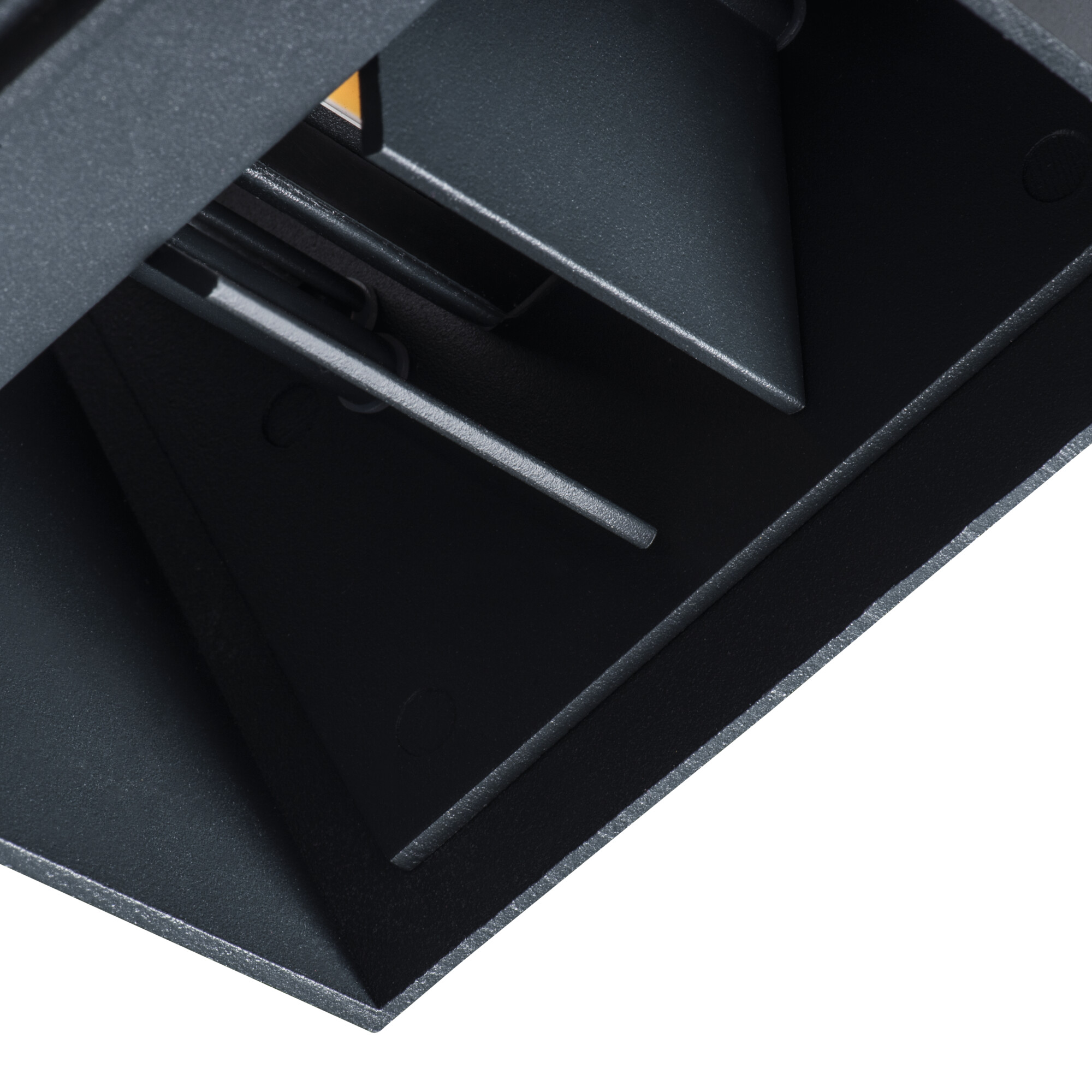

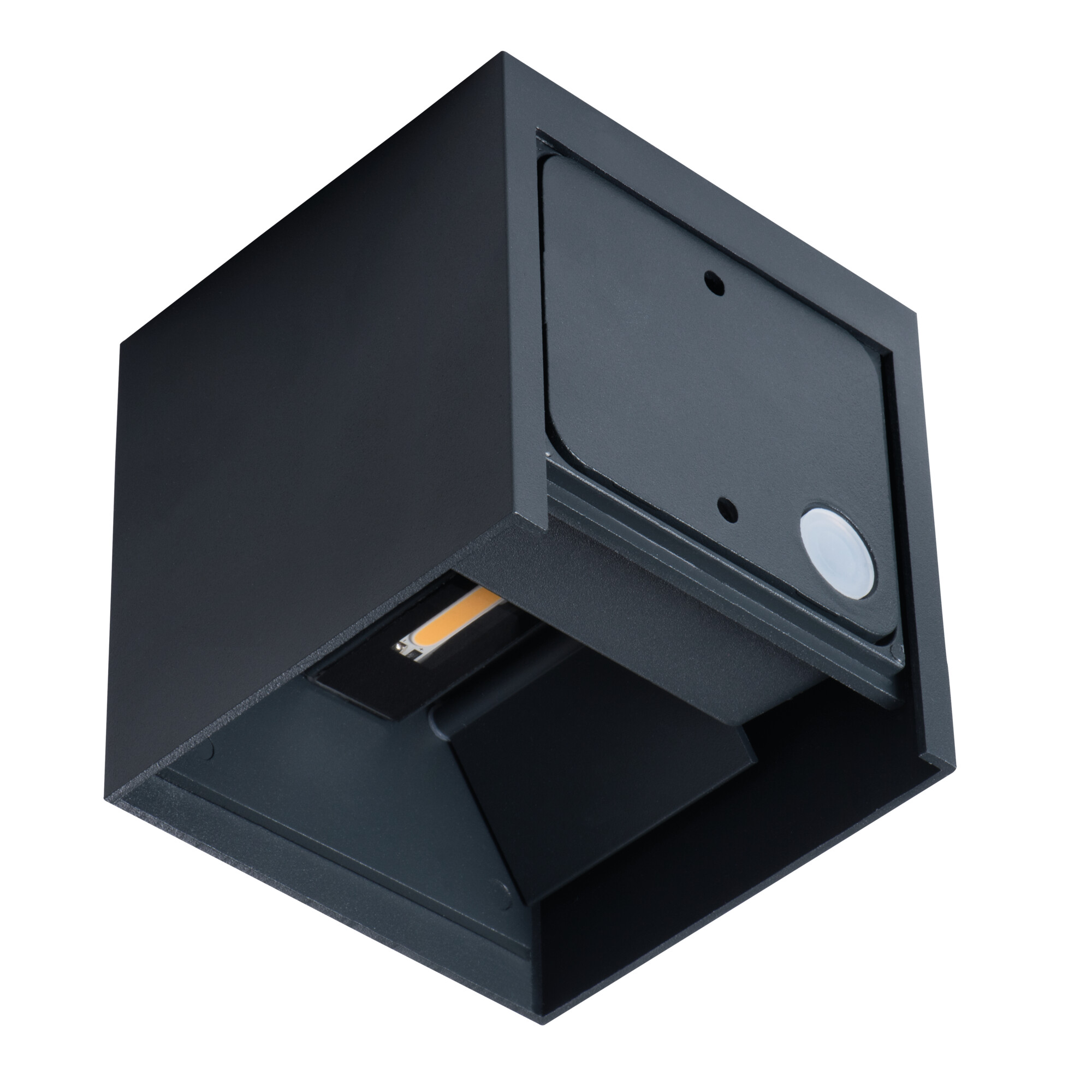

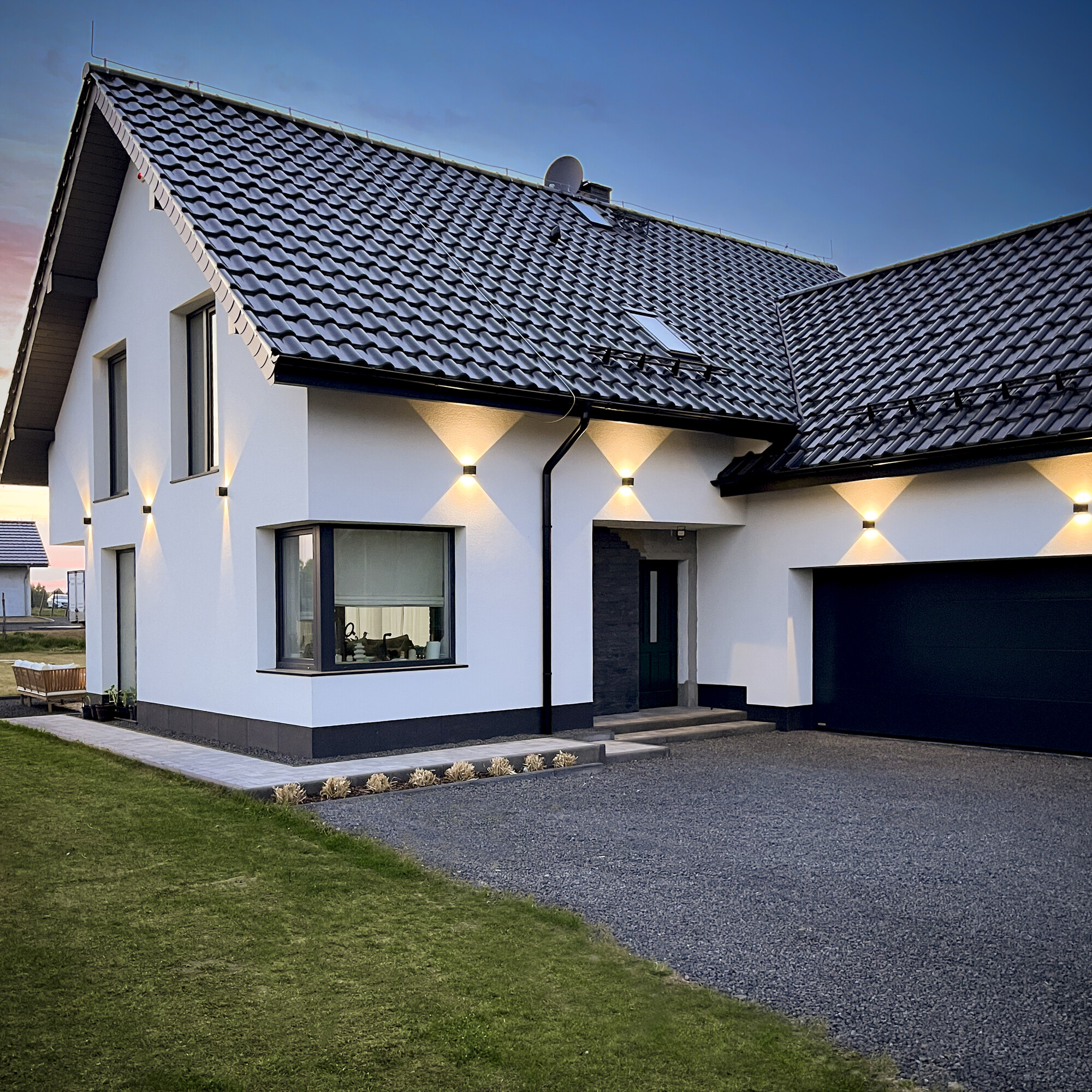

The main advantage of Kanlux REKA LED is a visually unique light effect, which we create ourselves after switching on. Thanks to the wings placed at the bottom and top of the luminaire, we can decide on the direction and width of the luminous flux. The Kanlux REKA lamp shines in two directions - up and down - and the luminous flux can be set independently of each other, creating, for example, a perfectly thin line of light at the top, and at the bottom by setting wide light cascades that will flow from the lamp to the ground. Kanlux REKA LED can be used to illuminate the facades of buildings, terraces, balconies or gazebos' external walls.

Rated voltage [V] 220-240 AC

Maximum power [W] 7

Luminous flux of the light fitting [lm] max 510

Service life [h] 30000

Colour temperature [K] 4000

IP class 54

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

Facade luminaire REKA LED REKA LED EL 7W-L-GR Product code: 28990

Compare

Facade luminaire REKA LED REKA LED EL 7W-O-GR Product code: 28991

Compare

Facade luminaire REKA LED REKA LED EL 7W-L-W Product code: 28992

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339289933

Colour white

Enclosure material aluminum alloy

Protective glass material Tempered glass

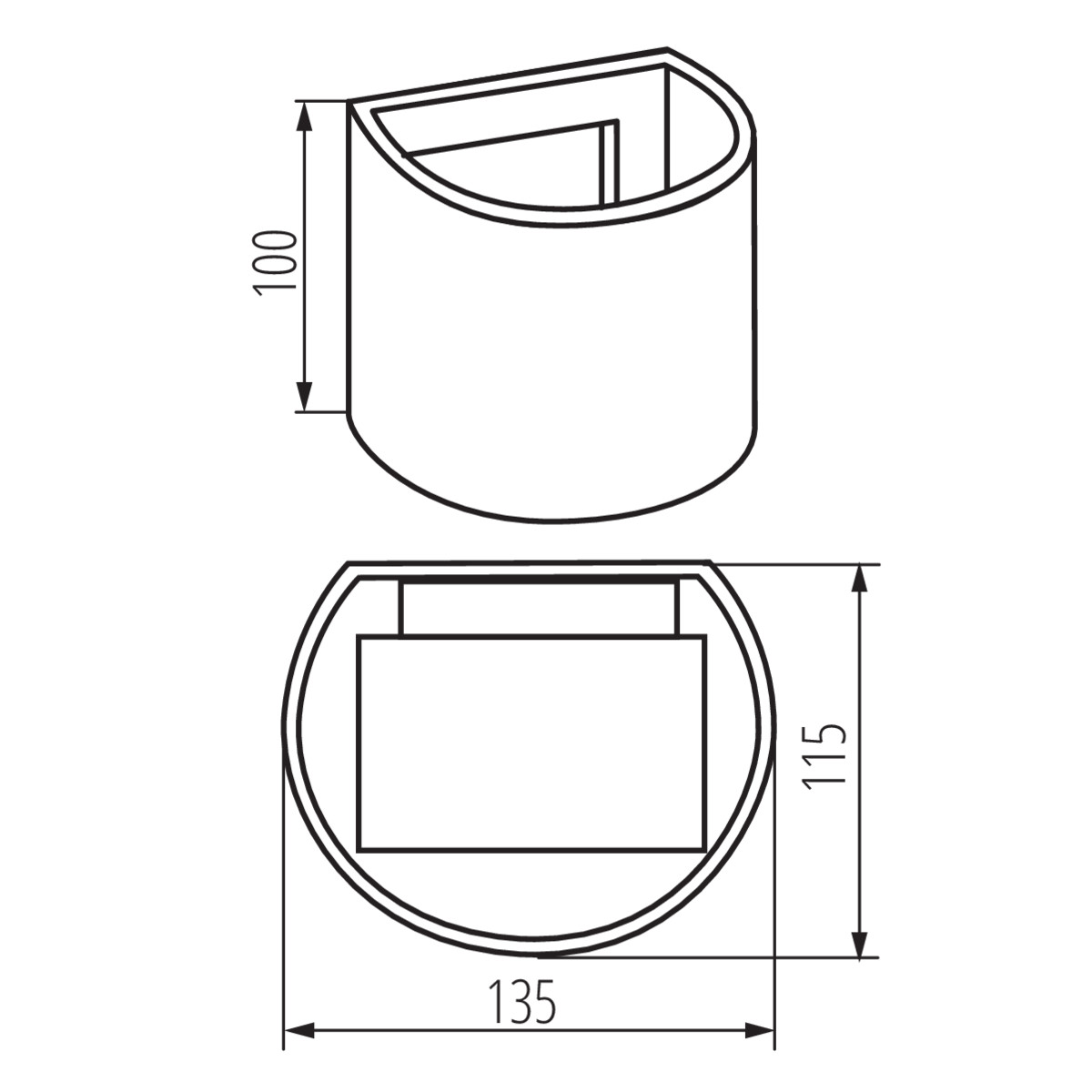

Weight and dimensions

Height [mm] 100

Width [mm] 115

Length [mm] 135

Weight 570g

Sales unit piece

Outer box 20

Additional features

Beam-angle adjustment
5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour white

Maximum power [W] 7

Integrated LED light source

Luminous flux of the light fitting [lm] max 510

Lighting angle [°] max 90

Number of on/off cycles ≥20000

Service life [h] 30000

Colour temperature [K] 4000

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED COB

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock I

IP class 54

Minimum distance from the illuminated object 0,5m

Ambient temperature range to which the product can be exposed -15÷35

Place of assembly wall mounted

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1

Fixture lighting direction up and down

Movement detection no

Useful luminous flux of the light source Φuse [lm] 500

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Shape inny

Materials

Specification

Family card PDF, Size: 505.14 KB

Technical card PDF, Size: 793.39 KB

Drawings and 3D models

Industry Foundation CLass IFC, Size:79.22 KB

Photometric data

File ldt - REKA LED EL 7W-O-W LDT, Size: 96.74 KB

File ies - REKA LED EL 7W-O-W IES, Size: 95.85 KB

Handling and installation

User manual PDF, Size: 1.26 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 764.69 KB

Warranty Statement PDF, Size: 90.19 KB
