LAURIN EL-3O W

Miniatura zdjęcia dzień-noc LAURIN EL-3O W

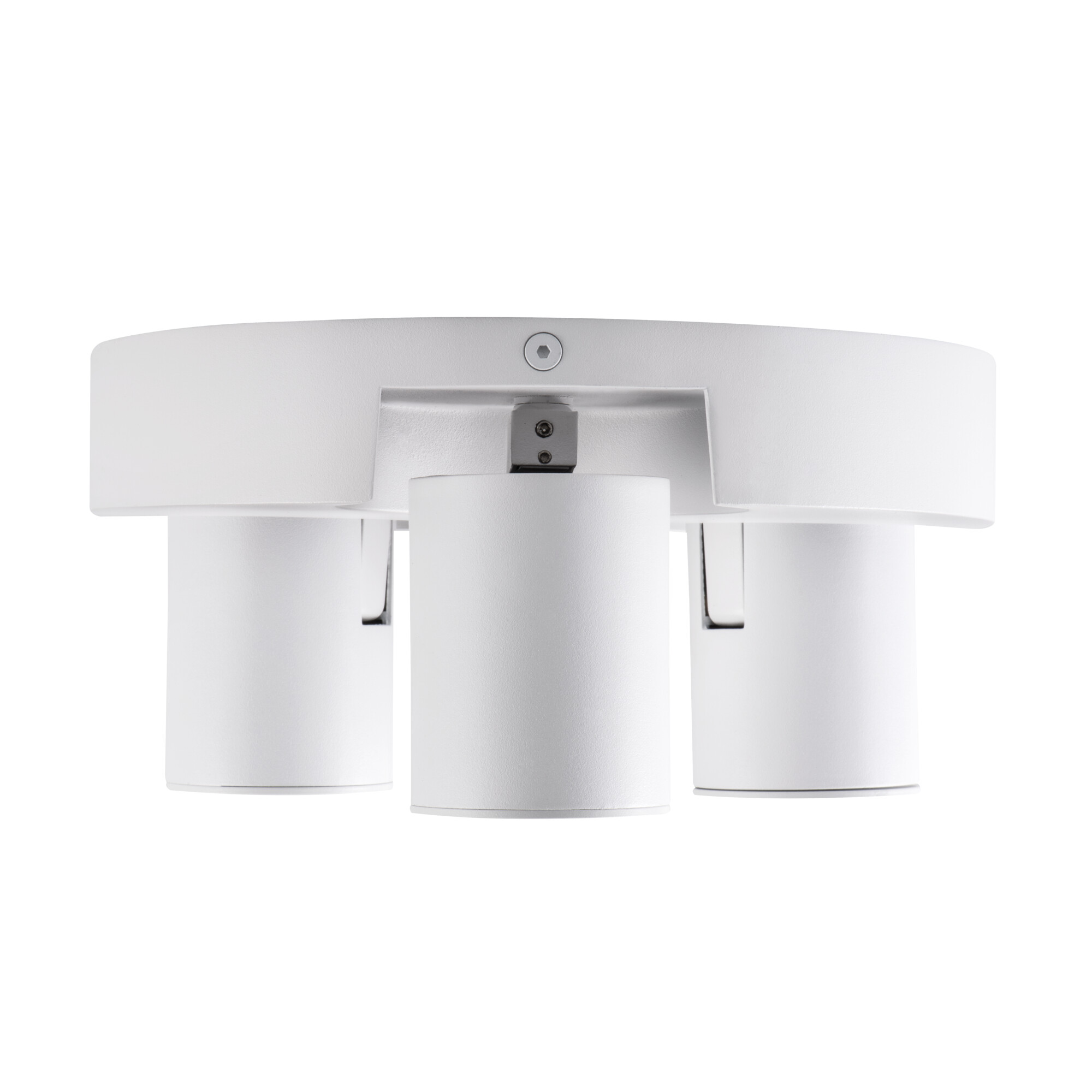

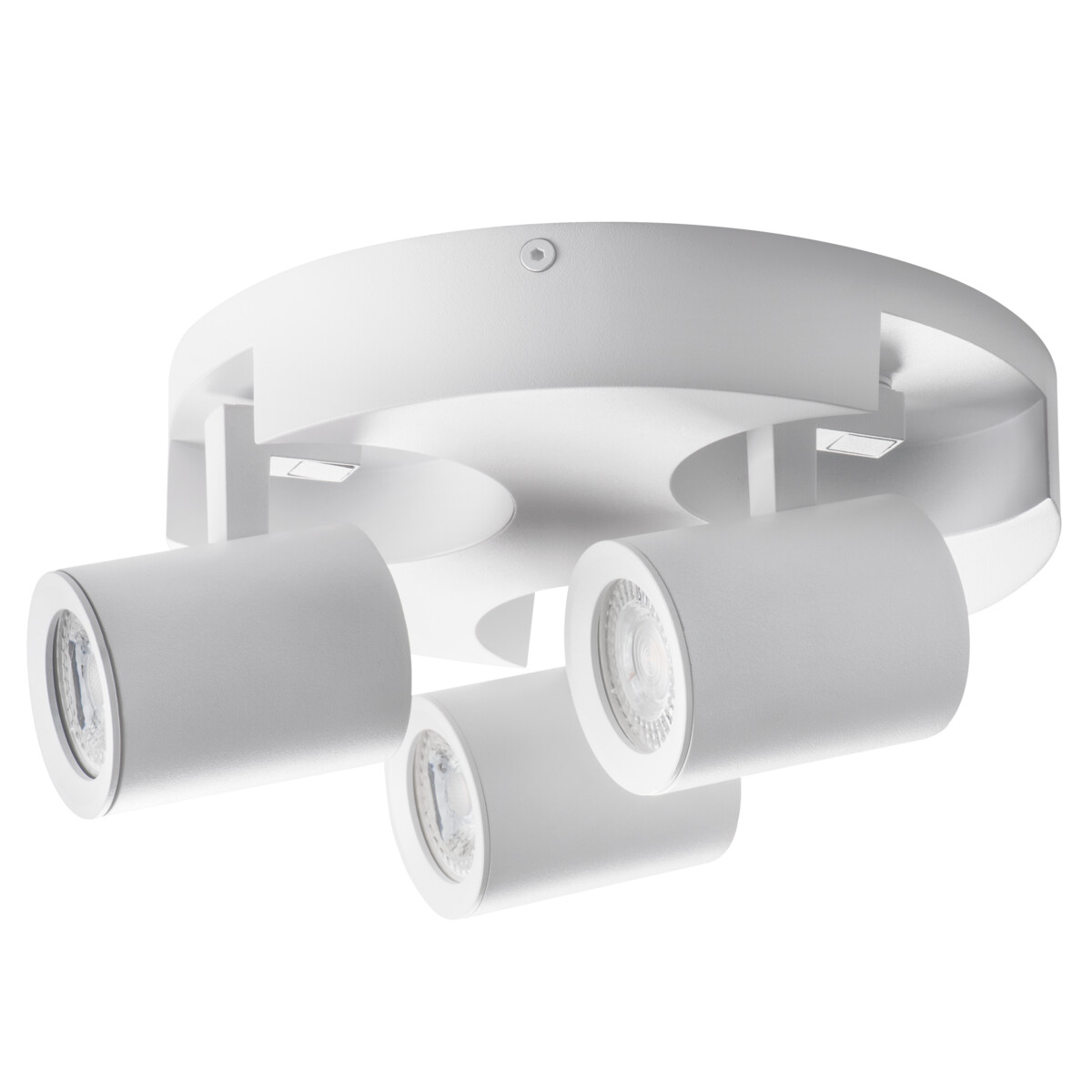

Wall & ceiling lighting fitting LAURIN

LAURIN EL-3O W

Product code: 29126 logo KANLUX

Kanlux LAURIN spotlights provide a very large selection of directional ceiling and wall lamps. The simple and minimalist design can be successfully used in many rooms in the house. Free adjustment of the luminous flux direction is an additional advantage of these fixtures.

Rated voltage [V] 220-240 AC

Maximum power [W] 3 x max 35

Cap GU10

Light source PAR16

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339291264

Colour white

Enclosure material aluminum alloy

Lampshade material aluminum alloy

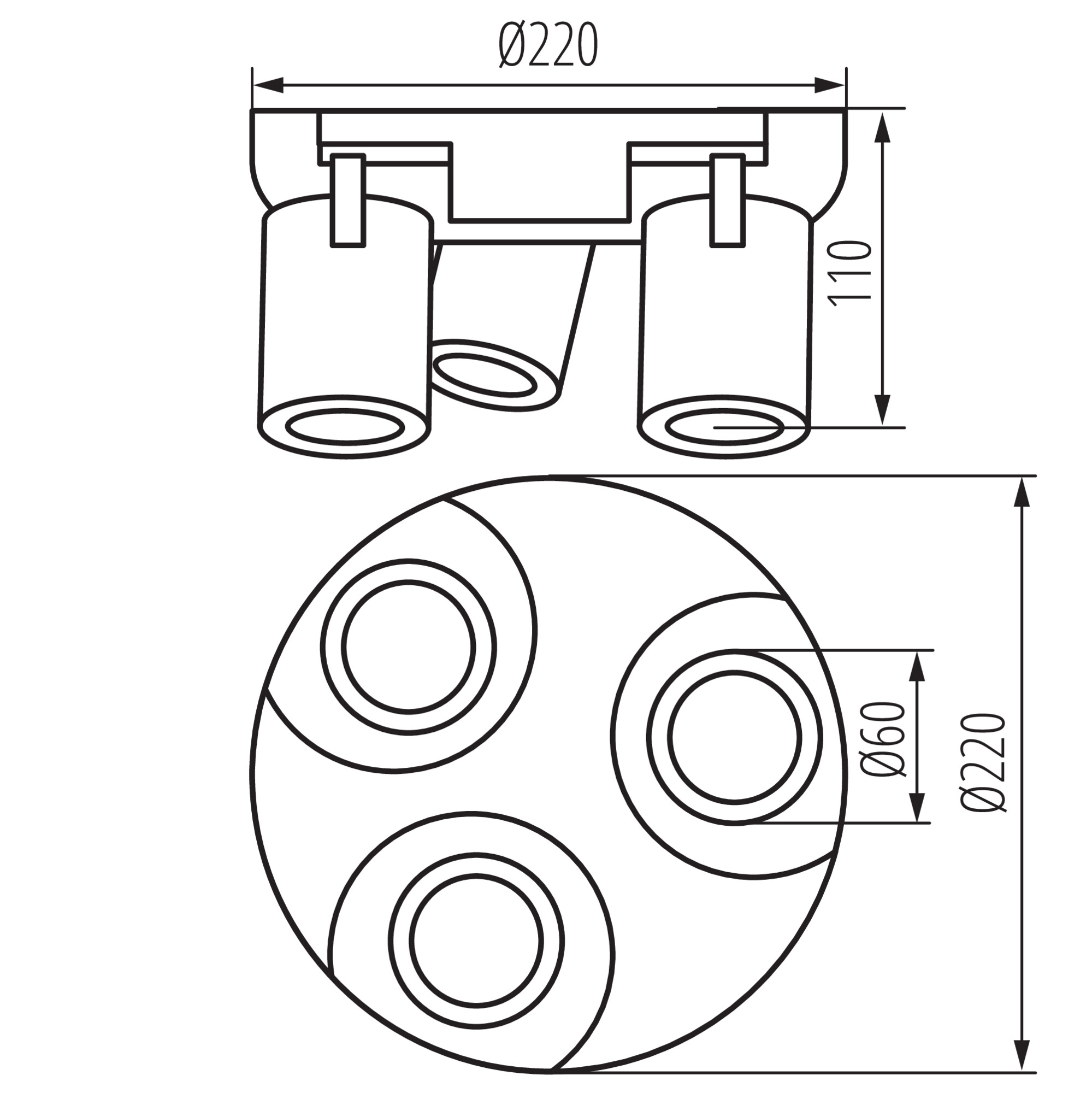

Weight and dimensions

Height [mm] 108

Diameter [mm] 220

Weight 900g

Sales unit piece

Outer box 6

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour white

Light source included no

Maximum power [W] 3 x max 35

Light source PAR16

Cap GU10

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly wall mounted, ceiling mounted

Lighting-fixture angle regulation [°] in two axes

The fixture is movable horizontally [°] 310

The fixture is movable vertically [°] 90

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1÷2,5

Minimum distance from the illuminated object 0,5m

Shape round

Materials

Specification

Family card PDF, Size: 539.92 KB

Technical card PDF, Size: 463.66 KB

Drawings and 3D models

3ds MAX 3DS, Size:515.31 KB

Autocad 3D DWG, Size:1.22 MB

Material library MTL, Size:967 B

Object 3D OBJ, Size:1.49 MB

Filmbox FBX, Size:457.75 KB

Handling and installation

User manual PDF, Size: 1.07 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 82.57 KB
