GARTO LED EL 8W-GR

GARTO LED EL 8W-GR Kanlux
Miniatura GARTO LED EL 8W-GR - KANLUX Miniatura GARTO LED EL 8W-GR - KANLUX Miniatura GARTO LED EL 8W-GR - KANLUX Miniatura GARTO LED EL 8W-GR - KANLUX Miniatura aranżacji GARTO LED EL 8W-GR Miniatura aranżacji GARTO LED EL 8W-GR Miniatura aranżacji GARTO LED EL 8W-GR Miniatura zdjęcia dzień-noc GARTO LED EL 8W-GR Miniatura schematu GARTO LED EL 8W-GR

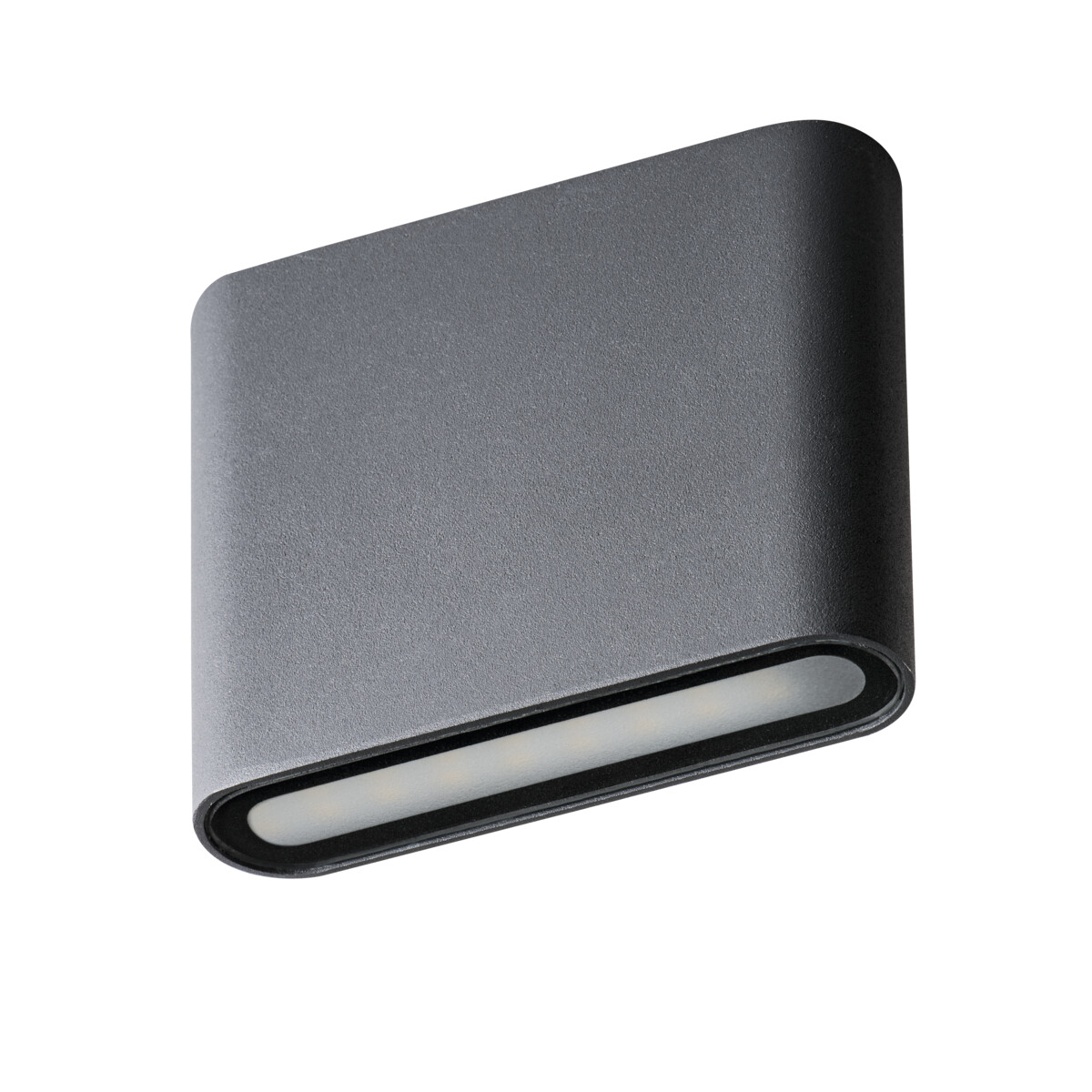

Facade luminaire GARTO LED

GARTO LED EL 8W-GR

Product code: 29270 logo KANLUX

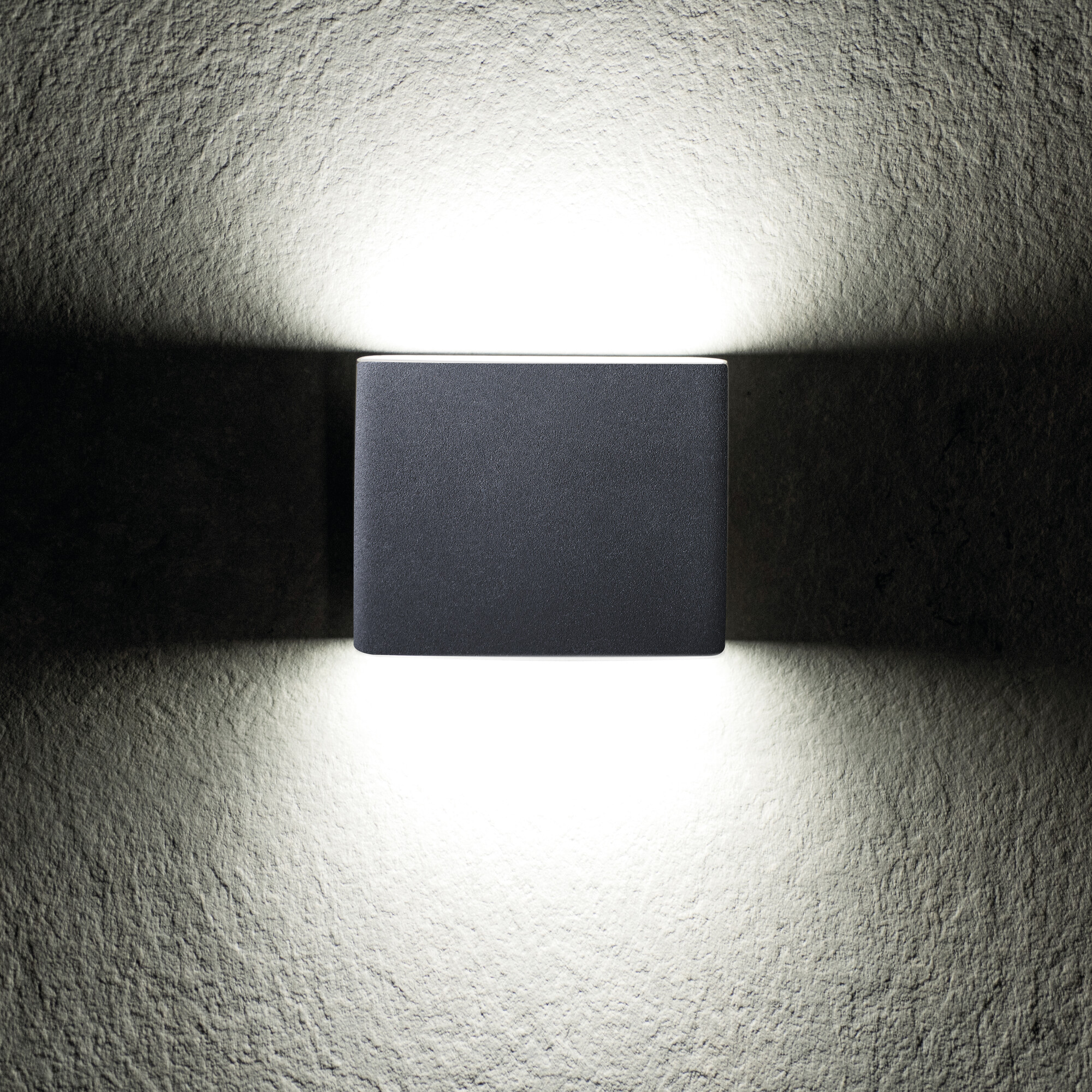

Kanlux GARTO are facade fittings characterized by simple and attractive design. They can be used as a fitting for interiors (they have an appropriate CRI coefficient), at the same time they can be used on building facades (IP54). In Kanlux GARTO holder light falls on facade from upwards and from downwards being evenly diffused in both directions.

Rated voltage [V] 220-240 AC
Maximum power [W] 8
IP class 54
Colour graphite
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
GARTO LED EL 8W-W - KANLUX GARTO LED EL 8W-W - KANLUX
Facade luminaire GARTO LED GARTO LED EL 8W-W Product code: 29271

Specification

General description
EAN13 5905339292704
Colour graphite
Enclosure material aluminum alloy
Protective glass material plastic
Weight and dimensions
Height [mm] 90
Width [mm] 30
Length [mm] 115
Weight 400g
Sales unit piece
Outer box 20
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour graphite
Power factor 0.5
Maximum power [W] 8
Integrated LED light source
Luminous flux of the light fitting [lm] 300
Number of on/off cycles ≥25000
Service life [h] 25000
Colour temperature [K] 4000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 80
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED SMD
Compatible with a dimmer no
Colour temperature white
Class of protection against electric shock I
IP class 54
Minimum distance from the illuminated object 0,5m
Ambient temperature range to which the product can be exposed -15÷40
Place of assembly wall mounted
Connection type Bolt terminal block
Range of sections of wires used [mm2] 1,5÷2,5
RAL 7016
Movement detection no
Luminous efficiency of the lamp [lm/W] 38
Useful luminous flux of the light source Φuse [lm] 370
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
Additional information Containing product (CP)
Shape rectangular

Materials

Specification
Family card PDF, Size: 504.3 KB
Technical card PDF, Size: 835.87 KB
Drawings and 3D models
3ds MAX 3DS, Size:299.39 KB
Autocad 3D DWG, Size:592.69 KB
Material library MTL, Size:792 B
Object 3D OBJ, Size:818.76 KB
Filmbox FBX, Size:299.21 KB
Photometric data
File ldt - GARTO LED EL 8W-GR LDT, Size: 8.88 KB
File ies - GARTO LED EL 8W-GR IES, Size: 8.66 KB
Handling and installation
User manual PDF, Size: 1.02 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 76.82 KB
External links
Karta informacyjna EPREL eprel.ec.europa.eu

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.

OPRAWA LED GARTO LED EL 8W-GR

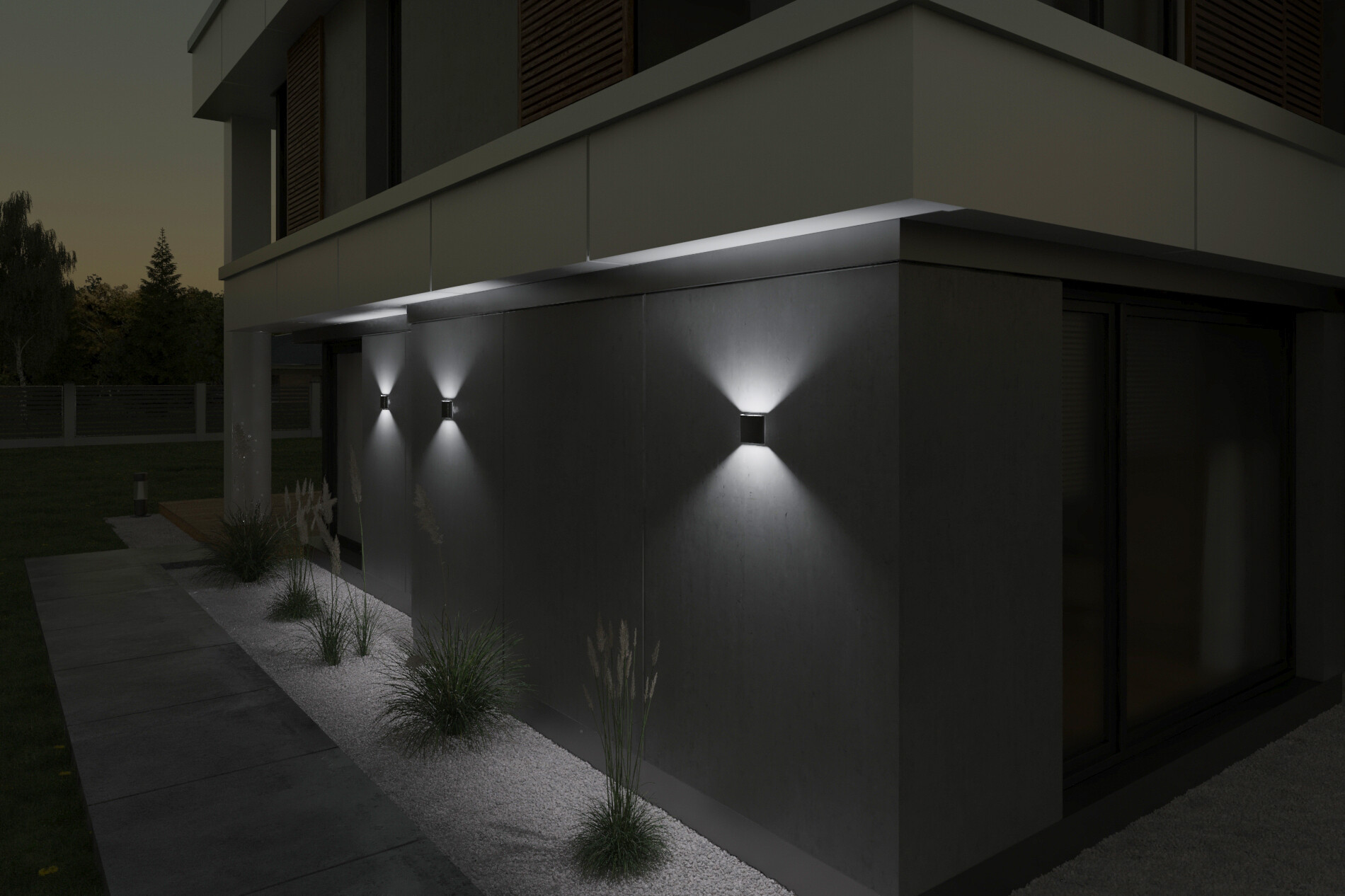

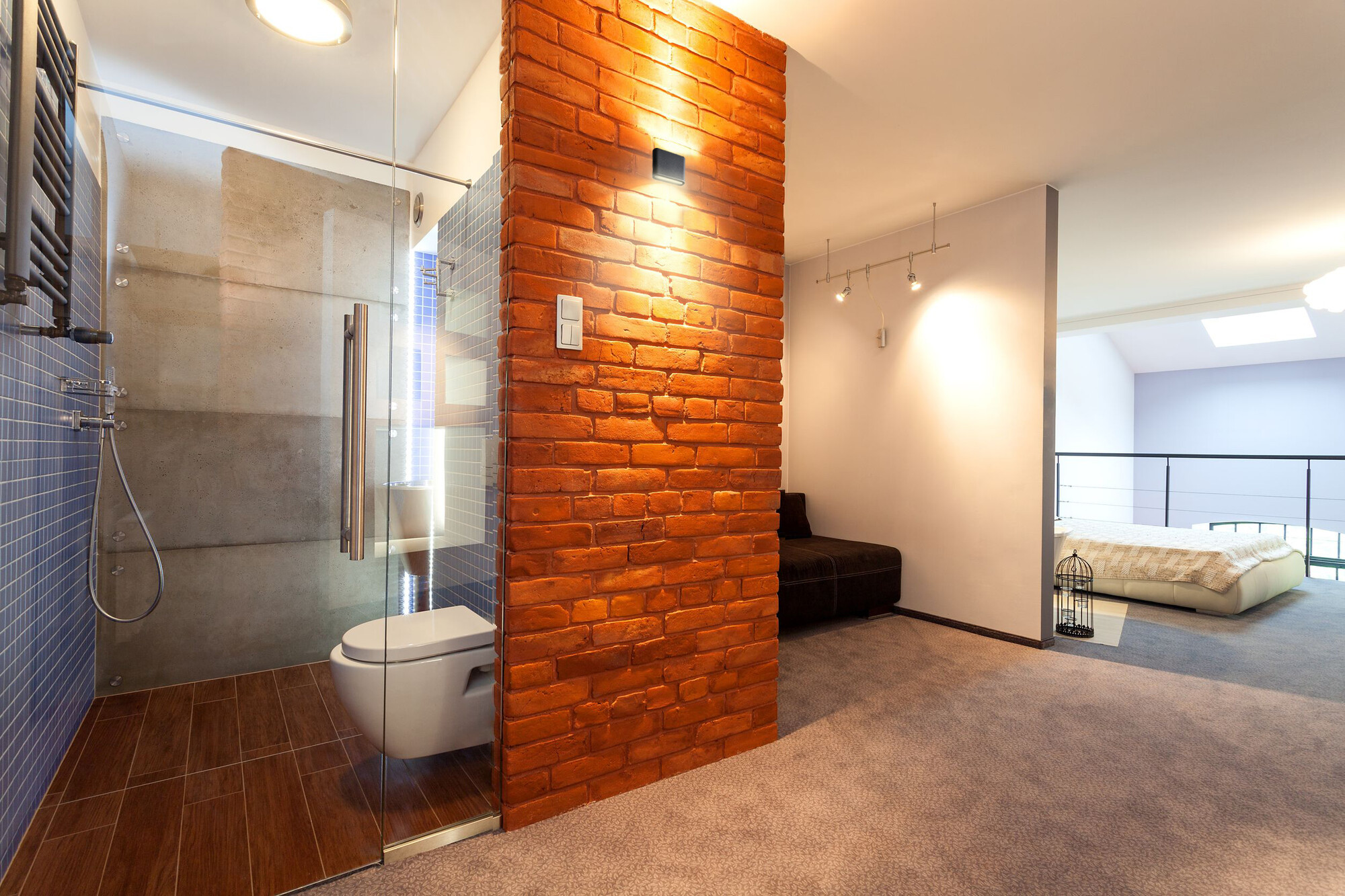

GARTO LED EL 8W-GR - KANLUX GARTO LED EL 8W-GR - KANLUX GARTO LED EL 8W-GR - KANLUX Aranżacja GARTO LED EL 8W-GR Aranżacja GARTO LED EL 8W-GR Aranżacja GARTO LED EL 8W-GR
