MODv2 LED 12W-WW

MODv2 LED 12W-WW Kanlux

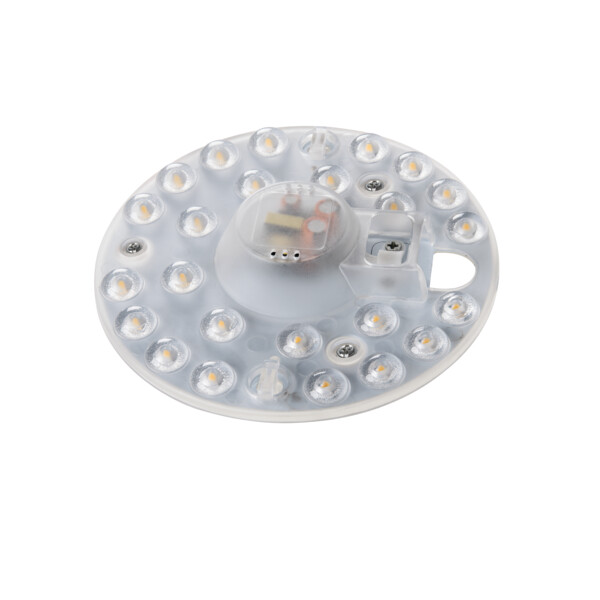

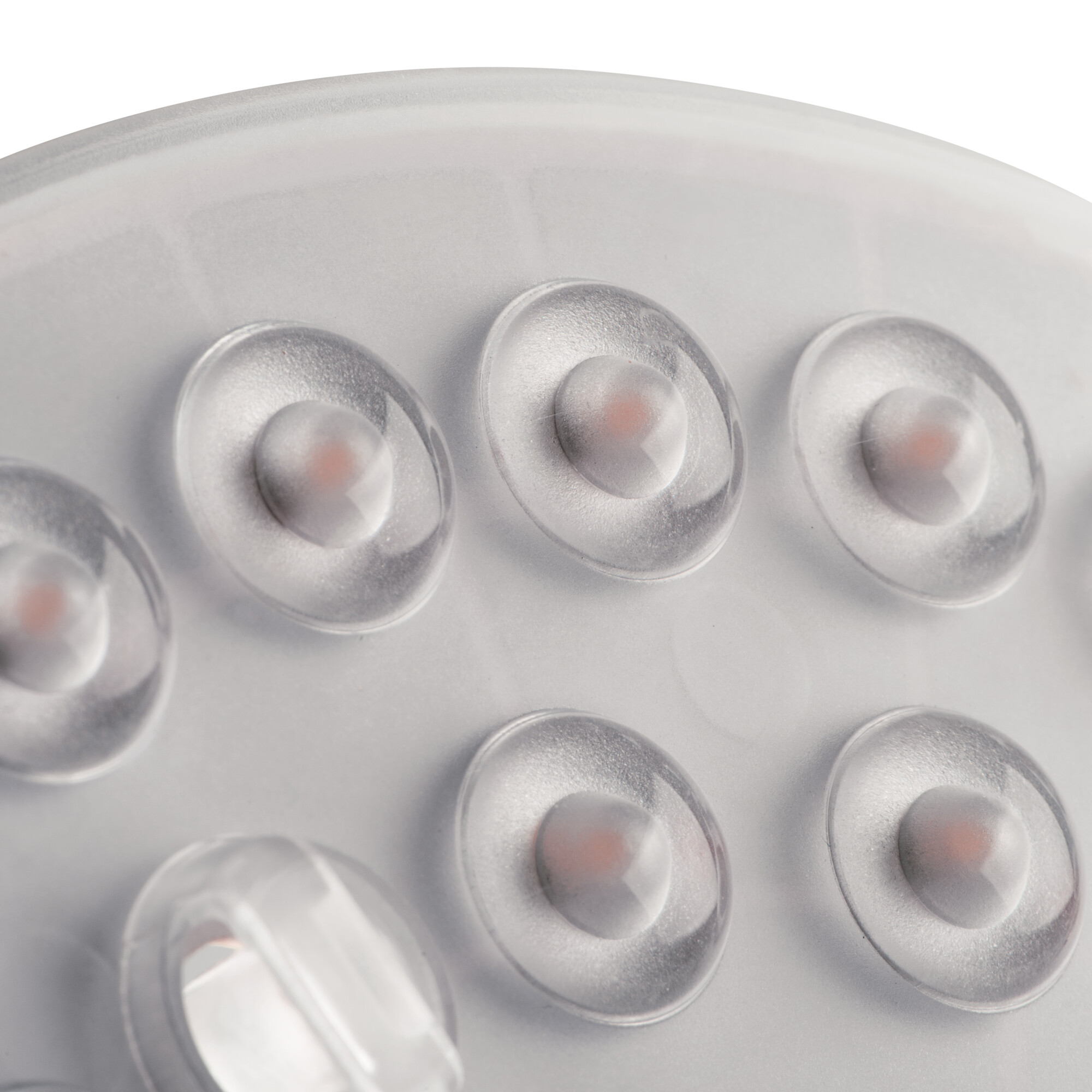

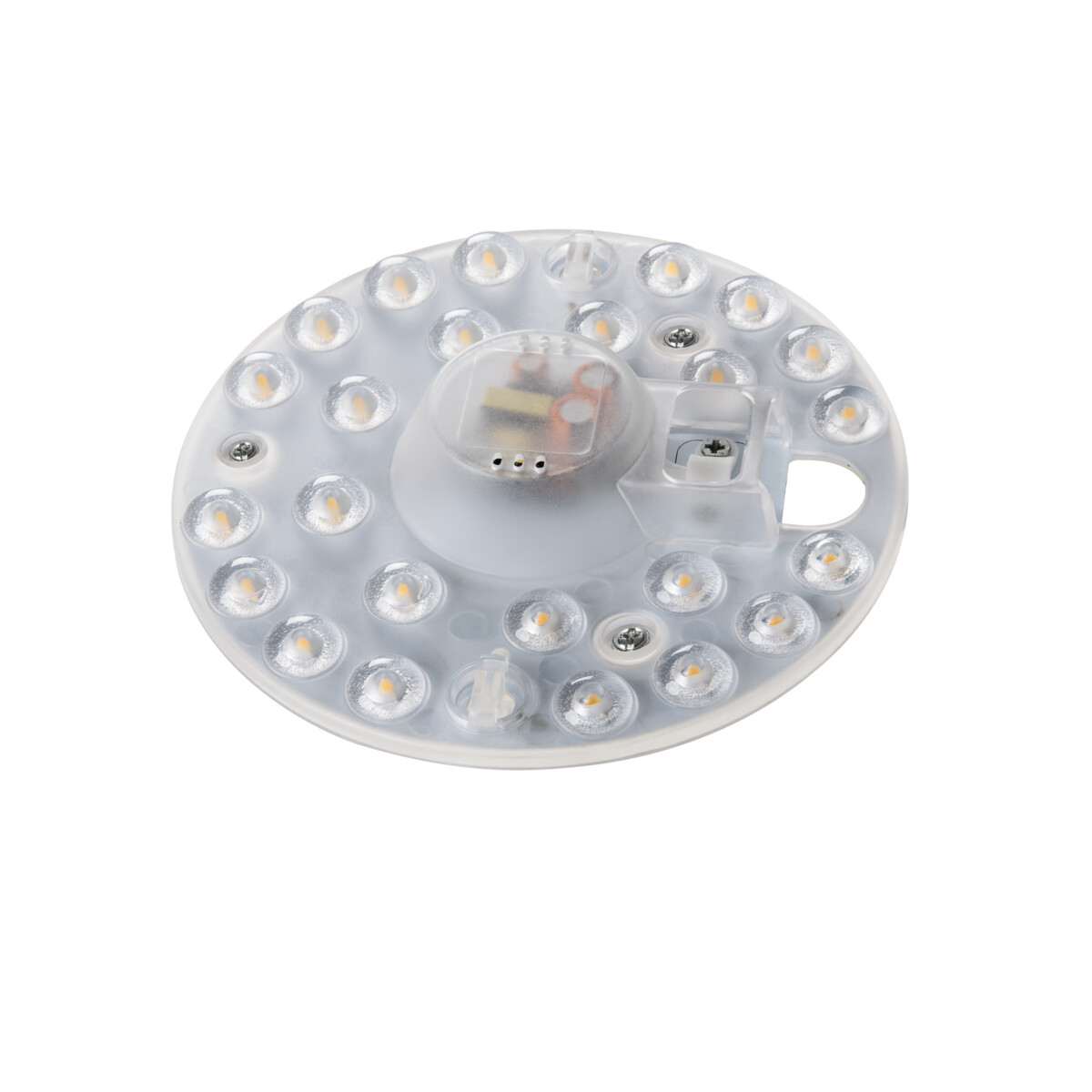

Miniatura MODv2 LED 12W-WW - KANLUX Miniatura MODv2 LED 12W-WW - KANLUX Miniatura aranżacji MODv2 LED 12W-WW Miniatura schematu MODv2 LED 12W-WW
Energy class F

LED light source MODv2 LED

MODv2 LED 12W-WW

Product code: 29300 logo KANLUX

Kanlux MOD LED is a professional series of LED modules designed for modification of lamps which used the old type of light bulbs. The module can be installed easily. Kanlux MOD LED are high-quality SMD LEDs, distinguished by energy efficiency and long lifetime.

Rated voltage [V] 220-240 AC
On-mode power Pon [W] 12
Useful luminous flux of the light source Φuse [lm] 1200
Colour temperature [K] 3000
Rated lamp-service life [h] 18000
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
MODv2 LED 12W-NW - KANLUX MODv2 LED 12W-NW - KANLUX
Energy class F LED light source MODv2 LED MODv2 LED 12W-NW Product code: 29301

logo KANLUX
MODv2 LED 19W-WW - KANLUX MODv2 LED 19W-WW - KANLUX
Energy class F LED light source MODv2 LED MODv2 LED 19W-WW Product code: 29302

logo KANLUX
MODv2 LED 19W-NW - KANLUX MODv2 LED 19W-NW - KANLUX
Energy class E LED light source MODv2 LED MODv2 LED 19W-NW Product code: 29303

Specification

General description
EAN13 5905339293008
Colour white
Lampshade material plastic

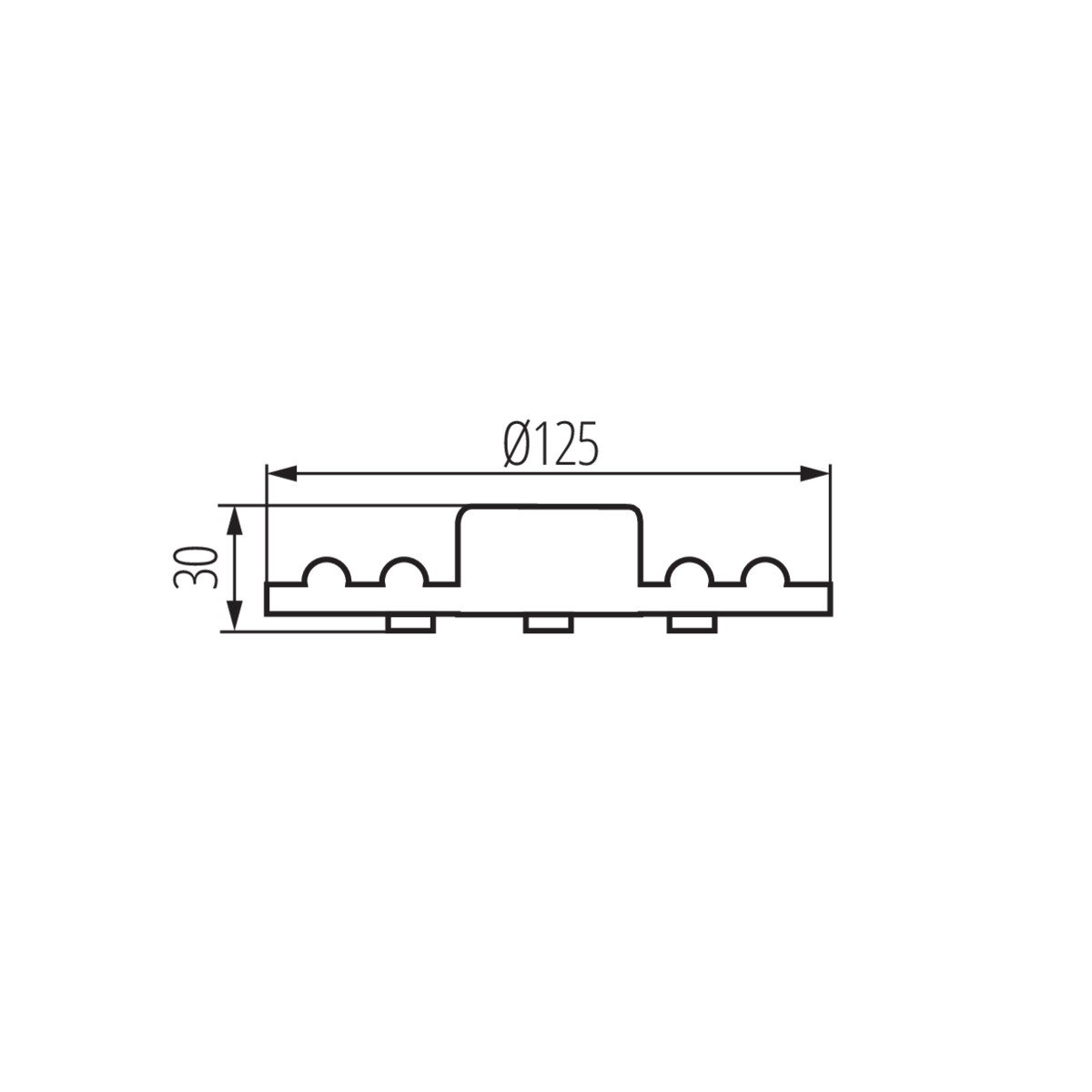

Weight and dimensions
Height [mm] 30
Width [mm] 125
Diameter [mm] 125
Depth [mm] 125
Weight 82g
Sales unit piece
Outer box 50
Energy class
F
Technical data
Show more ▾
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Light source Non-standard
Diode type LED SMD
Rated power [W] 12
On-mode power Pon [W] 12
Energy consumption in on-mode (kWh/1000h) 12
Total rated luminous flux [lm] 1200
Useful luminous flux of the light source Φuse [lm] 1200
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
Luminous efficiency of the lamp [lm/W] 100
Rated beam angle [°] 170
Claim of equivalent power [W] 82
Colour temperature [K] 3000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 80
Colour temperature Warm white
Number of on/off cycles ≥15000
Rated lamp-service life [h] 18000
Mercury content no, no
Survival factor ≥0.9
Compatible with a dimmer no, no
Lamp designed for decorative lighting Not applicable
Colour white
Additional information Light source (LS)

Materials

Specification
Family card PDF, Size: 414 KB
Technical card PDF, Size: 680.51 KB
Photometric data
File ldt - MODv2 LED 12W-WW LDT, Size: 15.42 KB
File ies - MODv2 LED 12W-WW IES, Size: 15.37 KB
Handling and installation
User manual PDF, Size: 1021.46 KB
Vertical energy label PDF, Size: 926.39 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 78.17 KB
External links
Karta informacyjna EPREL eprel.ec.europa.eu
