MODv2 LED 19W-NW

LED light source MODv2 LED

MODv2 LED 19W-NW

Product code: 29303 logo KANLUX

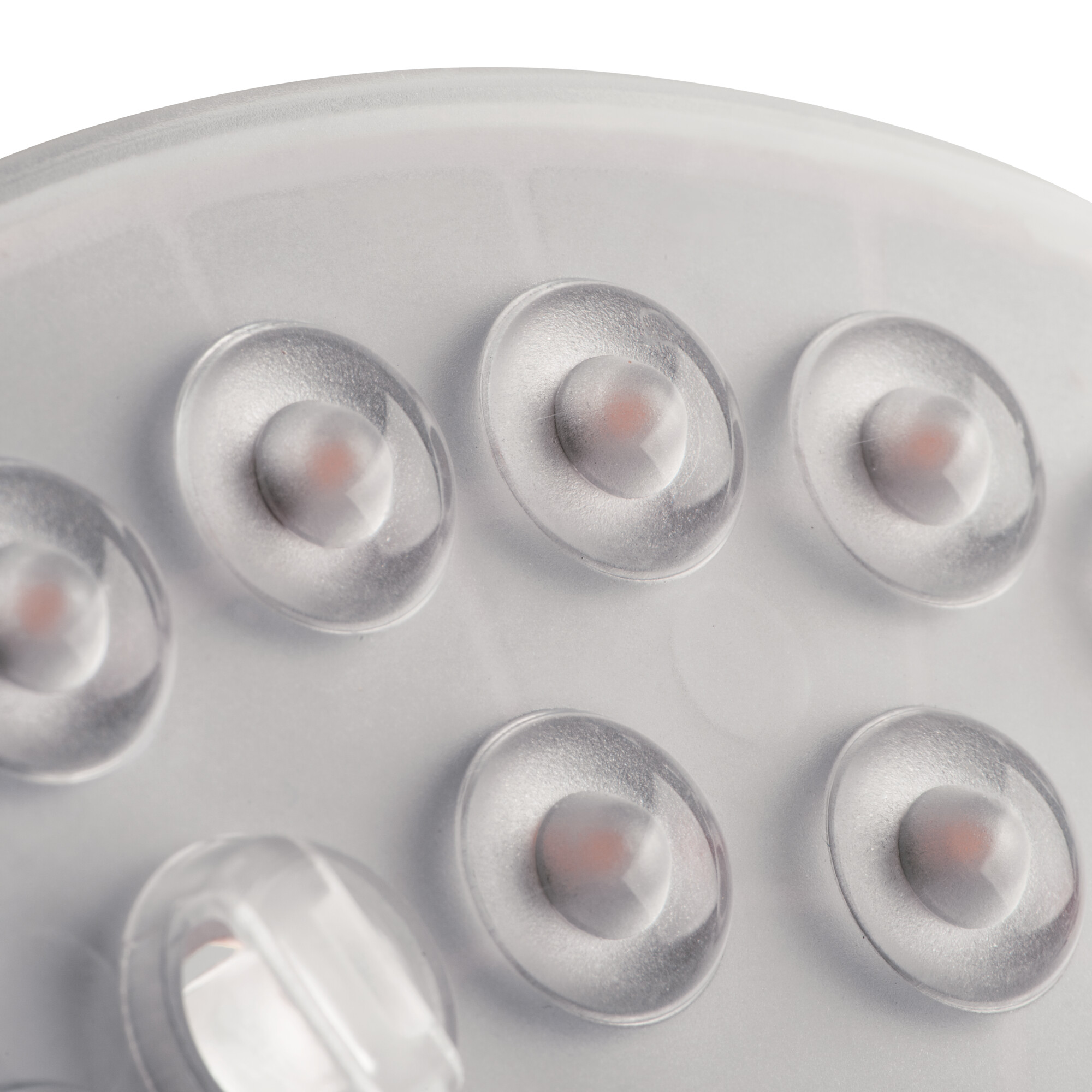

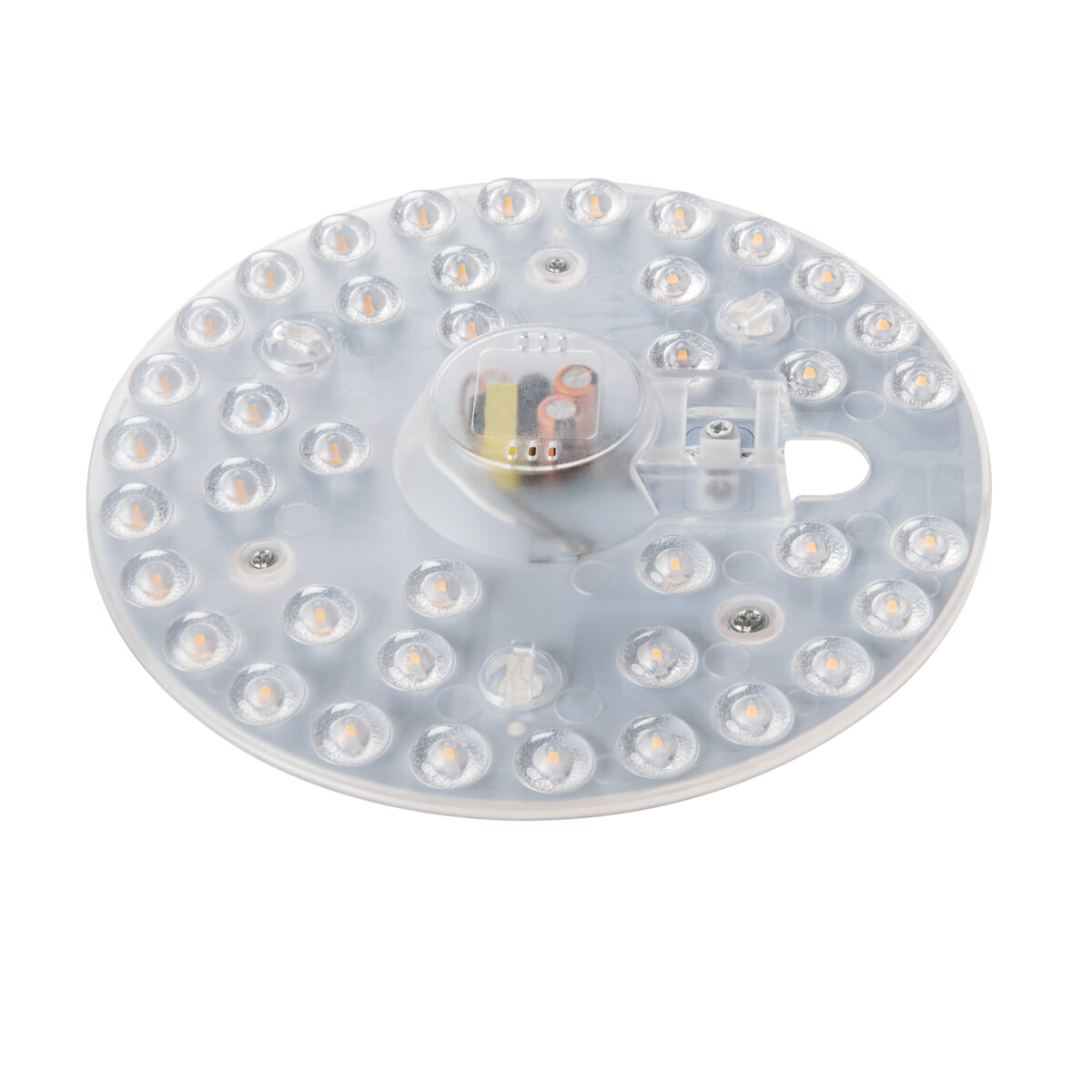

Kanlux MOD LED is a professional series of LED modules designed for modification of lamps which used the old type of light bulbs. The module can be installed easily. Kanlux MOD LED are high-quality SMD LEDs, distinguished by energy efficiency and long lifetime.

Rated voltage [V] 220-240 AC

On-mode power Pon [W] 19

Useful luminous flux of the light source Φuse [lm] 2100

Colour temperature [K] 4000

Rated lamp-service life [h] 18000

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

LED light source MODv2 LED MODv2 LED 12W-WW Product code: 29300

Compare

LED light source MODv2 LED MODv2 LED 12W-NW Product code: 29301

Compare

LED light source MODv2 LED MODv2 LED 19W-WW Product code: 29302

Compare

Specification

General description

EAN13 5905339293039

Colour white

Lampshade material plastic

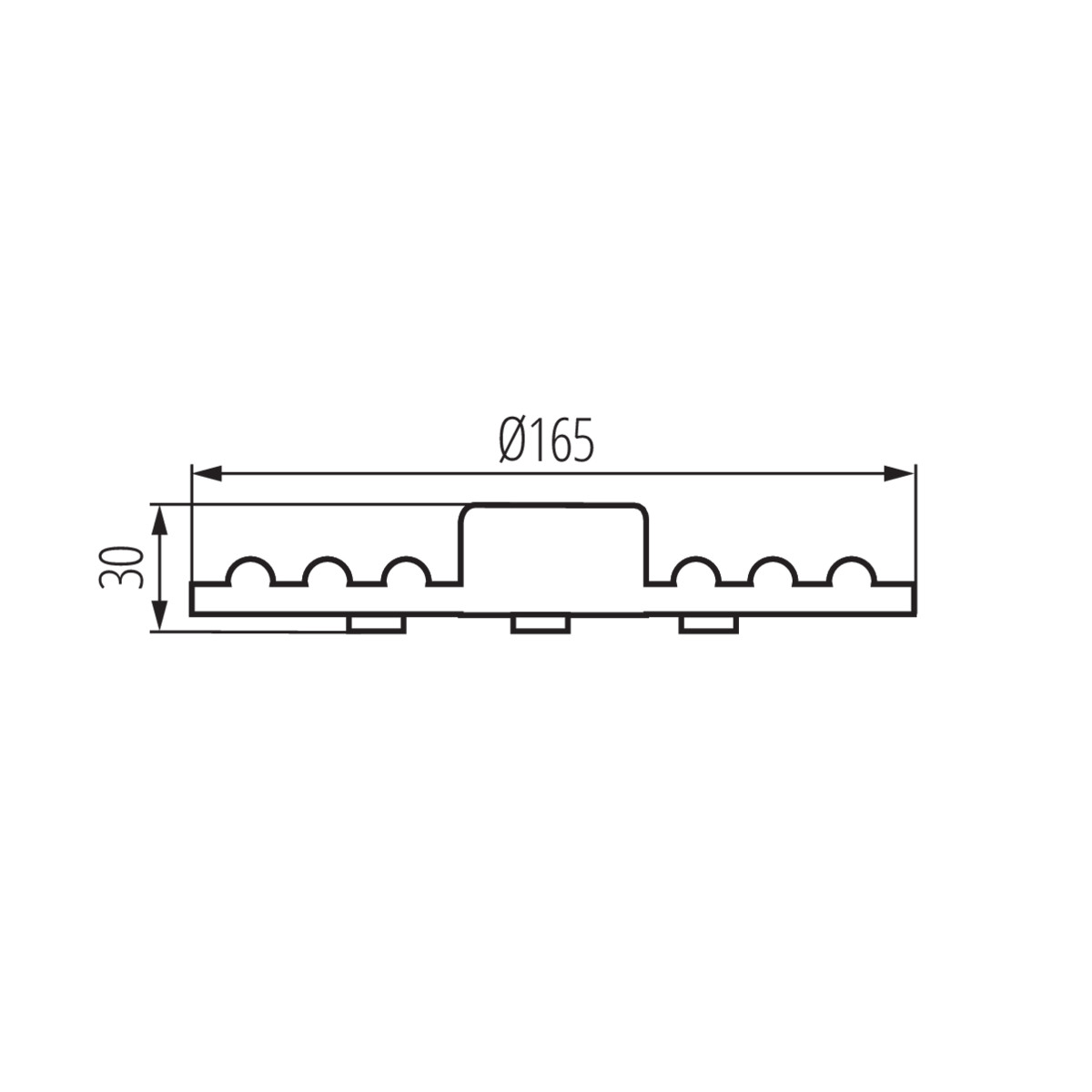

Weight and dimensions

Height [mm] 30

Width [mm] 165

Diameter [mm] 165

Depth [mm] 165

Weight 130g

Sales unit piece

Outer box 20

Energy class

Technical data

Show more ▾

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Light source Non-standard

Diode type LED SMD

Rated power [W] 19

On-mode power Pon [W] 19

Energy consumption in on-mode (kWh/1000h) 19

Total rated luminous flux [lm] 1900

Useful luminous flux of the light source Φuse [lm] 2100

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Luminous efficiency of the lamp [lm/W] 100

Rated beam angle [°] 170

Claim of equivalent power [W] 120

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 80

Colour temperature white

Number of on/off cycles ≥15000

Rated lamp-service life [h] 18000

Mercury content no, no

Survival factor ≥0.9

Compatible with a dimmer no, no

Lamp designed for decorative lighting Not applicable

Colour white

Additional information Light source (LS)

Materials

Specification

Family card PDF, Size: 414 KB

Technical card PDF, Size: 697.99 KB

Photometric data

File ldt - MODv2 LED 19W-NW LDT, Size: 15.32 KB

File ies - MODv2 LED 19W-NW IES, Size: 15.26 KB

Handling and installation

User manual PDF, Size: 1021.46 KB

Vertical energy label PDF, Size: 368.34 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 78.17 KB

External links

Karta informacyjna EPREL eprel.ec.europa.eu
