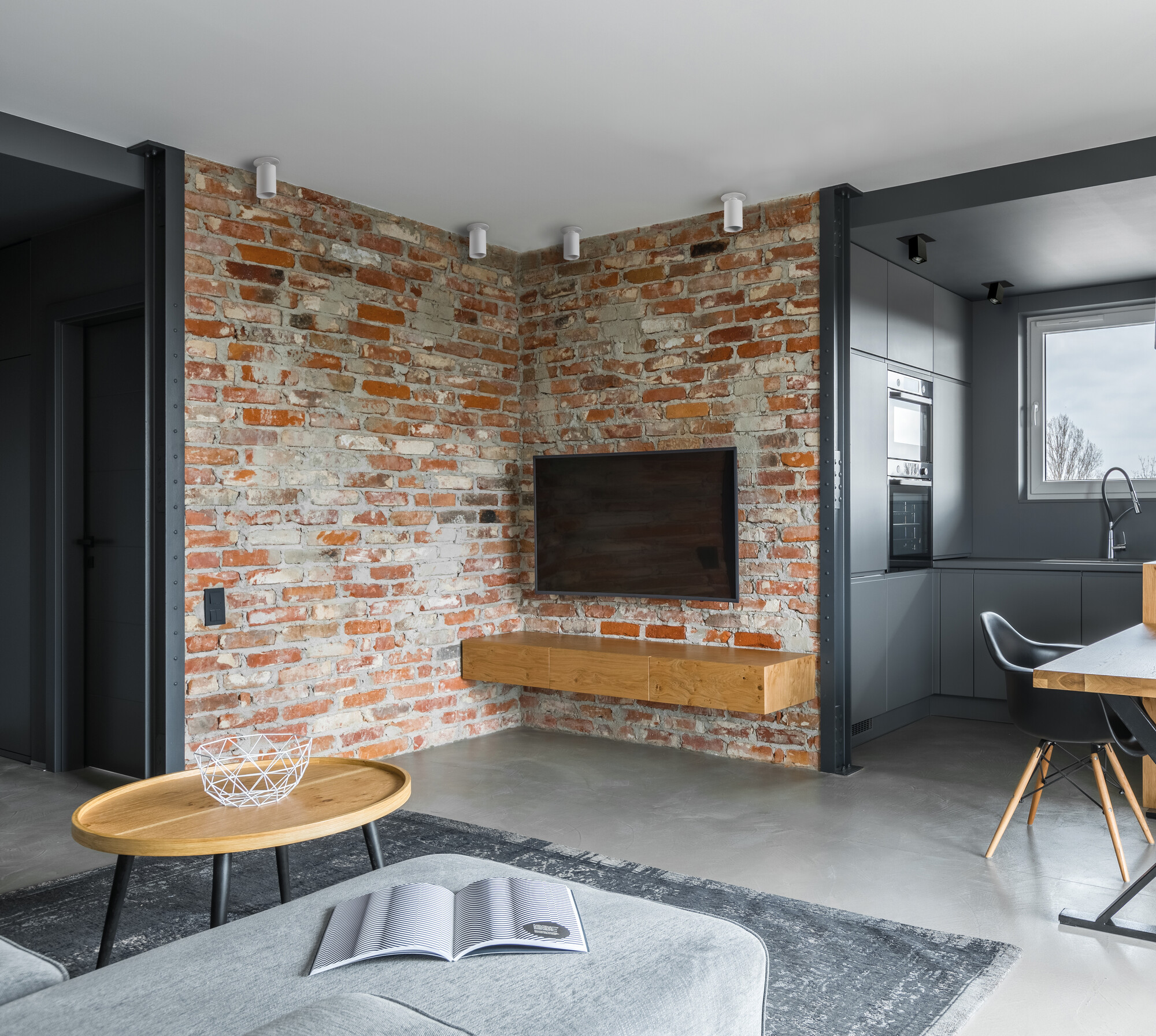

Miniatura aranżacji CHIRO GU10 DTO-W

Miniatura aranżacji CHIRO GU10 DTO-W

Miniatura zdjęcia dzień-noc CHIRO GU10 DTO-W

Miniatura schematu CHIRO GU10 DTO-W

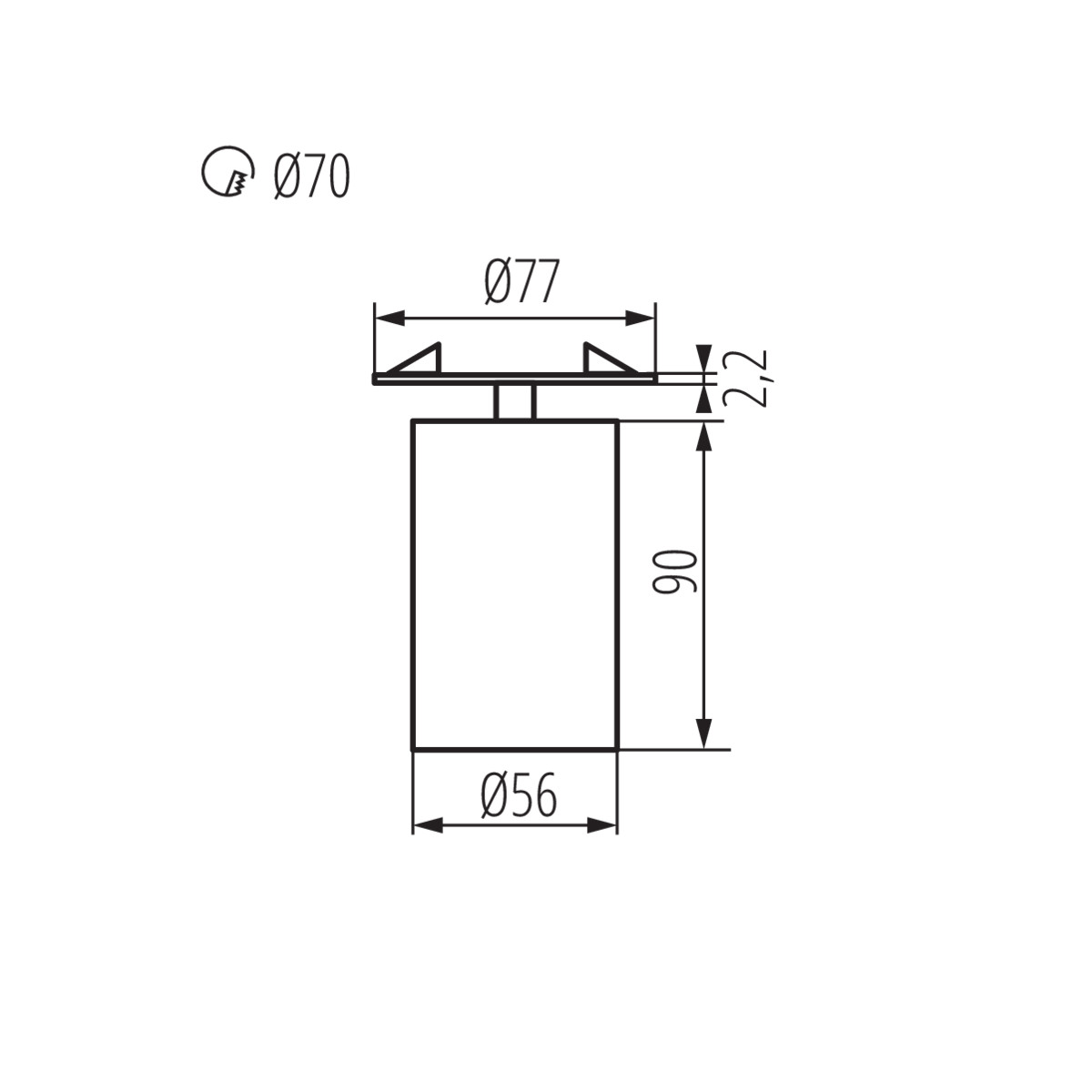

Miniatura rysunku użytkowego CHIRO GU10 DTO-W

Ceiling-mounted spotlight fitting CHIRO GU10

CHIRO GU10 DTO-W

Product code: 29310 logo KANLUX

Kanlux CHIRO GU10, is a completely new category of decorative lighting. It is the ceiling-mounted lamp which can be mounted in a suspended ceiling just like an typical spotlight fitting. Unique design and assembly of this lamp are its largest assets.

Rated voltage [V] 220-240 AC

Maximum power [W] max 10

Cap GU10

Lighting-fixture angle regulation [°] 90

IP class 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339293107

Colour white

Enclosure material aluminum alloy

Weight and dimensions

Weight 220g

Sales unit piece

Outer box 20

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Colour white

Maximum power [W] max 10

Show more ▾

Replaceable light source yes

Cap GU10

Class of protection against electric shock I

Place of assembly Recessed mount in the ceiling

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Lighting-fixture angle regulation in one axis

Lighting-fixture angle regulation [°] 90

The fixture is movable horizontally [°] 340

Wielkość otworu montażowego [mm] Ø70

The product is not suitable to be covered with a heat-insulating material

Necessity of using self-shielding lamps

Connection type Bolt terminal block

Range of sections of wires used [mm2] 0,75-1,5

Minimum distance from the illuminated object 0,5m

Light source included no

Light source PAR16

Shape round

Materials

Specification

Family card PDF, Size: 422.57 KB

Technical card PDF, Size: 437.4 KB

Drawings and 3D models

3ds MAX 3DS, Size:50.2 KB

Autocad 3D DWG, Size:110.74 KB

Material library MTL, Size:787 B

Object 3D OBJ, Size:129.74 KB

Filmbox FBX, Size:65.64 KB

Handling and installation

User manual PDF, Size: 1.11 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 77.05 KB
