GRUN NV LED-30-B-SE

GRUN NV LED-30-B-SE Kanlux
Miniatura GRUN NV LED-30-B-SE - MILEDO Miniatura GRUN NV LED-30-B-SE - MILEDO Miniatura GRUN NV LED-30-B-SE - MILEDO Miniatura GRUN NV LED-30-B-SE - MILEDO Miniatura schematu GRUN NV LED-30-B-SE
Energy class F

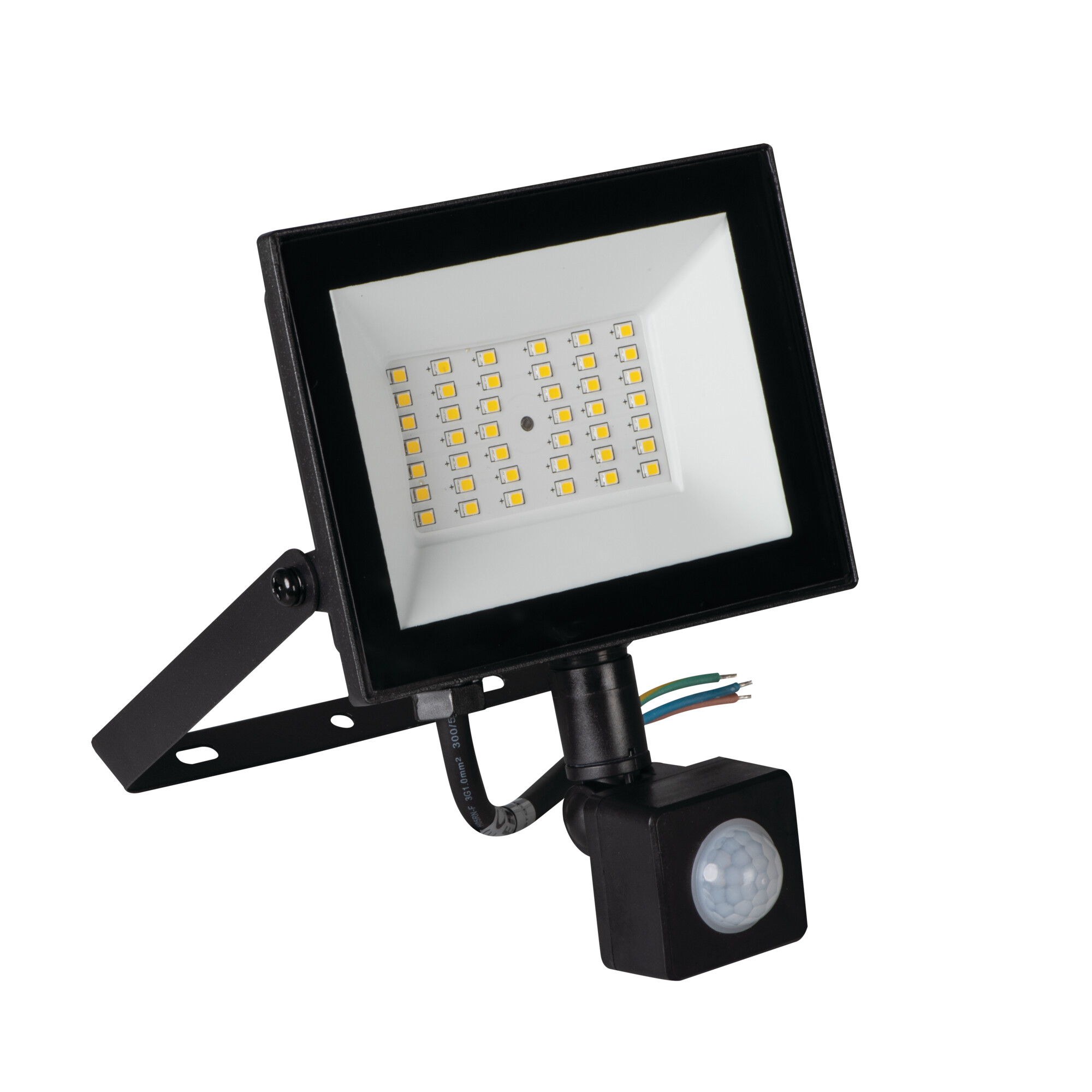

LED floodlight GRUN NV

GRUN NV LED-30-B-SE

Product code: 31399 logo MILEDO

Rated voltage [V] 220-240 AC
Maximum power [W] 30
Luminous flux of the light fitting [lm] 2650
Service life [h] 25000
Colour temperature [K] 4000
IP class 44
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo MILEDO
GRUN NV LED-10-B - MILEDO GRUN NV LED-10-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-10-B Product code: 31390

logo MILEDO
GRUN NV LED-20-B - MILEDO GRUN NV LED-20-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-20-B Product code: 31391

logo MILEDO
GRUN NV LED-30-B - MILEDO GRUN NV LED-30-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-30-B Product code: 31392

logo MILEDO
GRUN NV LED-50-B - MILEDO GRUN NV LED-50-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-50-B Product code: 31393

logo MILEDO
GRUN NV LED-100-B - MILEDO GRUN NV LED-100-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-100-B Product code: 31394

logo MILEDO
GRUN NV LED-150-B - MILEDO GRUN NV LED-150-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-150-B Product code: 31395

logo MILEDO
GRUN NV LED-200-B - MILEDO GRUN NV LED-200-B - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-200-B Product code: 31396

logo MILEDO
GRUN NV LED-10-B-SE - MILEDO GRUN NV LED-10-B-SE - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-10-B-SE Product code: 31397

logo MILEDO
GRUN NV LED-20-B-SE - MILEDO GRUN NV LED-20-B-SE - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-20-B-SE Product code: 31398

logo MILEDO
GRUN NV LED-50-B-SE - MILEDO GRUN NV LED-50-B-SE - MILEDO
Energy class F LED floodlight GRUN NV GRUN NV LED-50-B-SE Product code: 31400

Specification

General description
EAN13 8595665313999
Colour black
Enclosure material aluminum alloy
Lampshade material Tempered glass

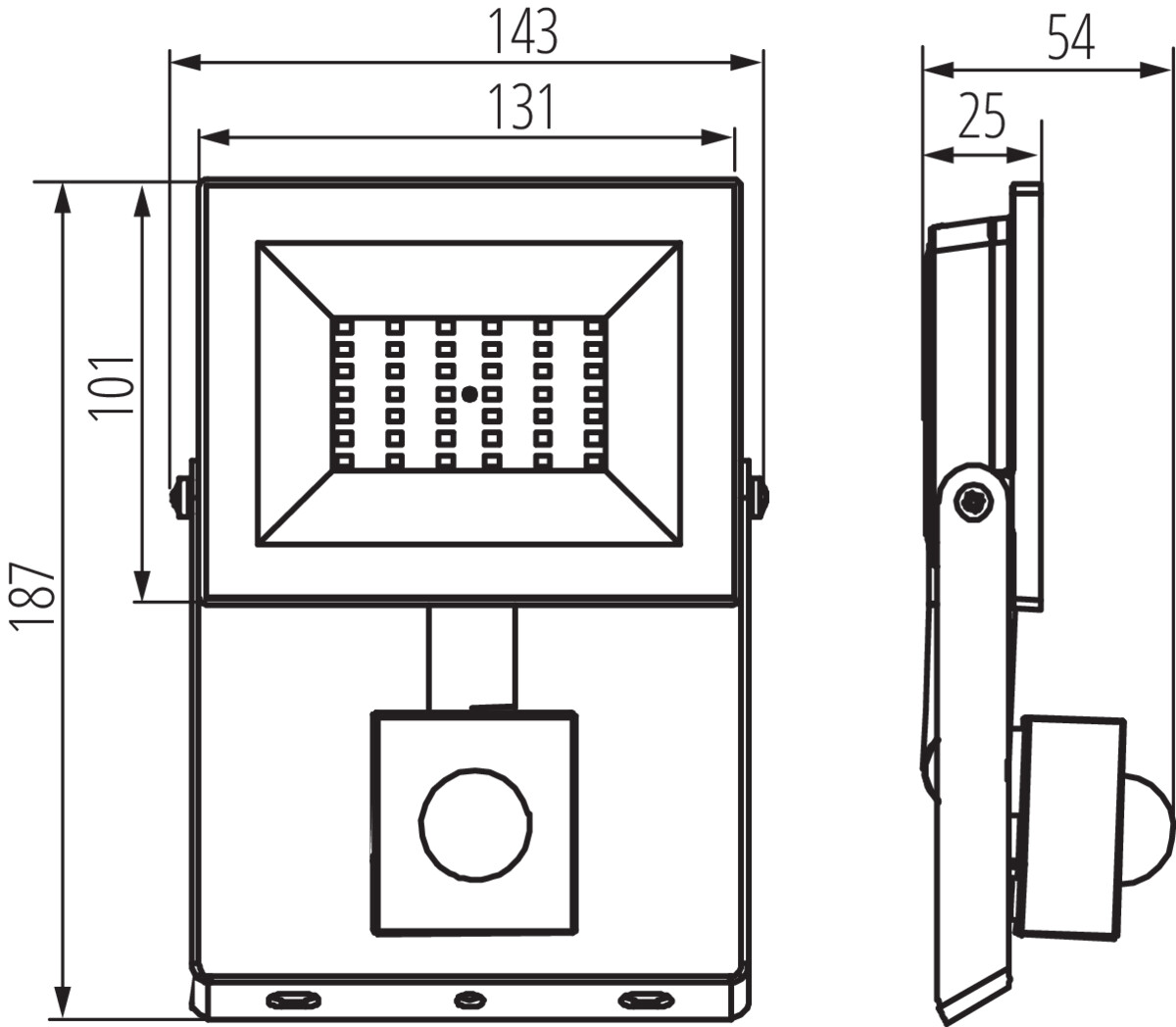

Weight and dimensions
Height [mm] 187
Width [mm] 143
Depth [mm] 54
Weight 382g
Sales unit piece
Outer box 20
Energy class
F
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Reflector type symmetrical
Show more ▾
Colour black
Maximum power [W] 30
Luminous flux of the light fitting [lm] 2650
Useful luminous flux of the light source Φuse [lm] 2500
Useful luminous flux of the light source Φuse [lm] w szerokim stożku (120°)
Lighting angle [°] 110
Number of on/off cycles ≥30000
Service life [h] 25000
Colour temperature [K] 4000
Colour uniformity [SDCM] 6
Colour-rendering index Ra 70
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1

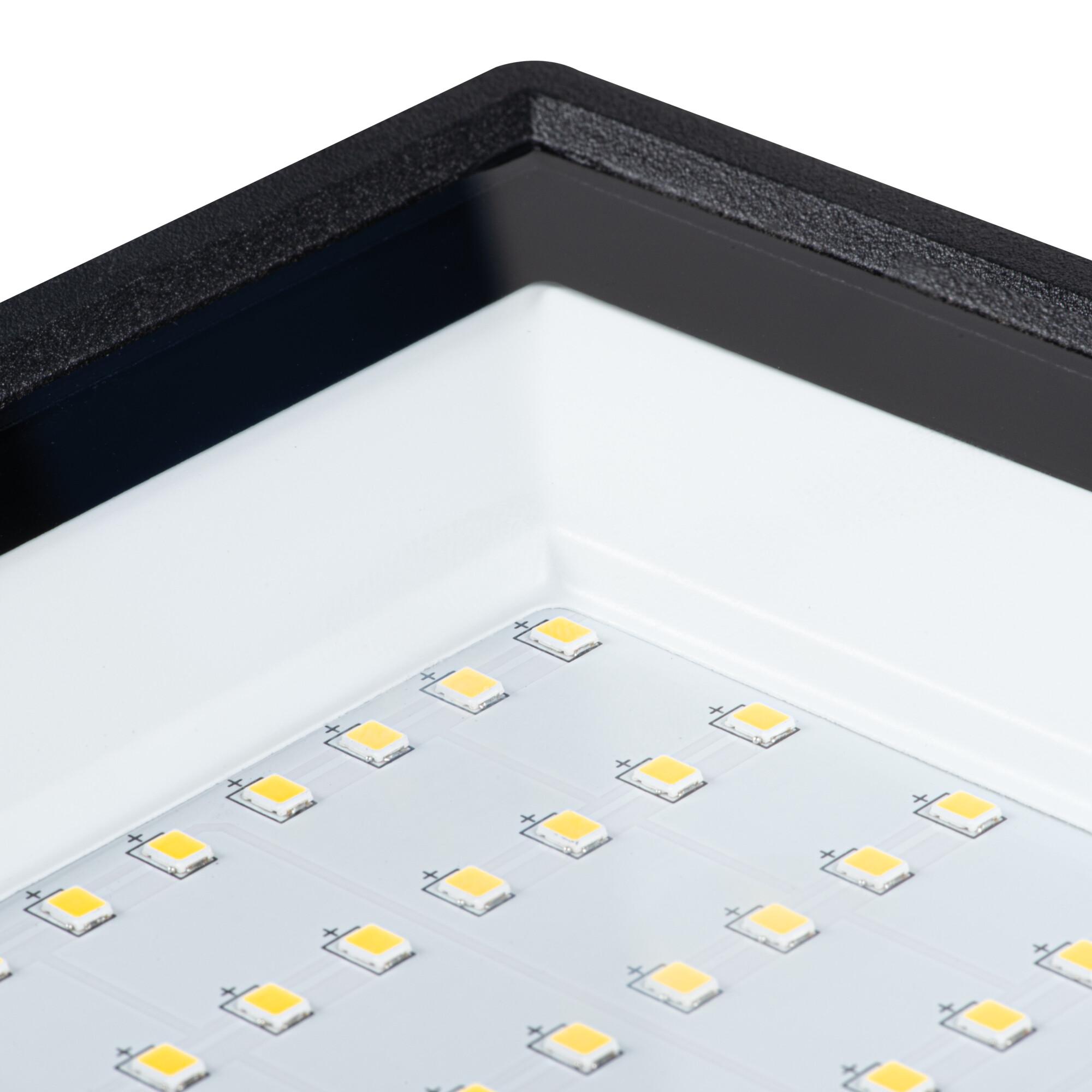

Diode type LED SMD
Compatible with a dimmer no, no
Colour temperature white
Class of protection against electric shock I
IP class 44
Ambient temperature range to which the product can be exposed -15÷35
Place of assembly surface mounted, wall mounted, ceiling mounted, surface mounted, wall mounted, ceiling mounted
The fixture is movable vertically [°] 130
Wire length [m] 0.15
Wire diameter [mm²] 1
Sensor range[m] max 10
sensor working angle [°] 120
Sensor-operation time [second-minute] 10-10
Sensor type PIR
Movement detection yes, yes
Sensitivity regulation
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Minimum distance from the illuminated object 0,5m, 0,5m
Beam angle [°] 110
Luminous efficiency of the lamp [lm/W] 88
On-mode power Pon [W] 30
Energy consumption in on-mode (kWh/1000h) 30
Peak luminous intensity [cd] 1118
Survival factor 0,9
Mercury content no, no

Materials

Specification
Family card PDF, Size: 698.73 KB
Technical card PDF, Size: 417.82 KB
Photometric data
File ldt - GRUN NV LED-30-B-SE LDT, Size: 8.99 KB
File ies - GRUN NV LED-30-B-SE IES, Size: 8.77 KB
Handling and installation
User manual PDF, Size: 3.48 MB
Vertical energy label PDF, Size: 886.24 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 790.65 KB
Catalogues, folders and leaflets
Catalog MILEDO PDF, Size: 18.03 MB
