TONIL II LED W

LED wall mounted fitting TONIL II LED

TONIL II LED W

Product code: 32523 logo KANLUX

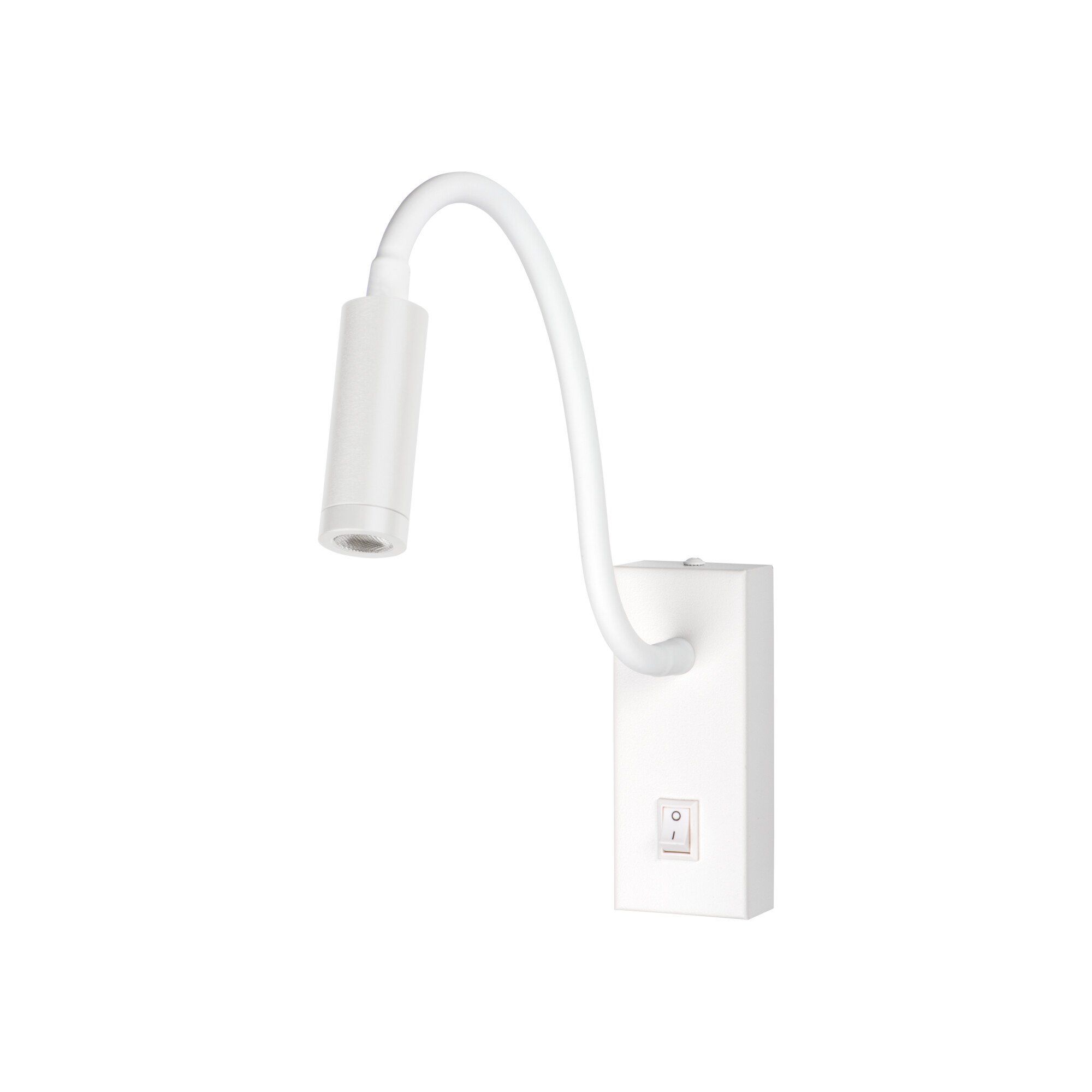

Kanlux TONIL LED II is a modest in form model with an integrated light source. Its flexible, rubber arm allows you to direct the lighting in the desired direction. At the same time, we can give it the desired shape.

Rated voltage [V] 220-240 AC

Maximum power [W] 3,3

IP class 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

LED wall mounted fitting TONIL II LED TONIL II LED B Product code: 32522

Compare

Specification

General description

EAN13 5905339325235

Colour white

Enclosure material aluminum alloy

Lampshade material plastic

Weight and dimensions

Height [mm] 121

Width [mm] 51

Length [mm] 370

Weight 320g

Sales unit piece

Outer box 50

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour white

Maximum power [W] 3,3

Integrated LED light source

Luminous flux of the light fitting [lm] 145

Lighting angle [°] 30

Number of on/off cycles ≥15000

Service life [h] 20000

Colour temperature [K] 3000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED SMD

Compatible with a dimmer no

Colour temperature Warm white

Class of protection against electric shock II

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly wall mounted

The fixture is movable horizontally [°] 360

The fixture is movable vertically [°] 360

Connection type Bolt terminal block

Range of sections of wires used [mm2] 0,5-1,5

Minimum distance from the illuminated object 0,2m

On switch

Luminous efficiency of the lamp [lm/W] 44

Useful luminous flux of the light source Φuse [lm] 145

Useful luminous flux of the light source Φuse [lm] in narrow cone (90°)

Mercury content no

Additional information Containing product (CP)

Materials

Specification

Technical card PDF, Size: 394.61 KB

Handling and installation

User manual PDF, Size: 1.12 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 775.4 KB

External links

Karta informacyjna EPREL eprel.ec.europa.eu
