SEMPRA EL-2I W-SR

Miniatura klipu filmowego SEMPRA EL-2I W-SR

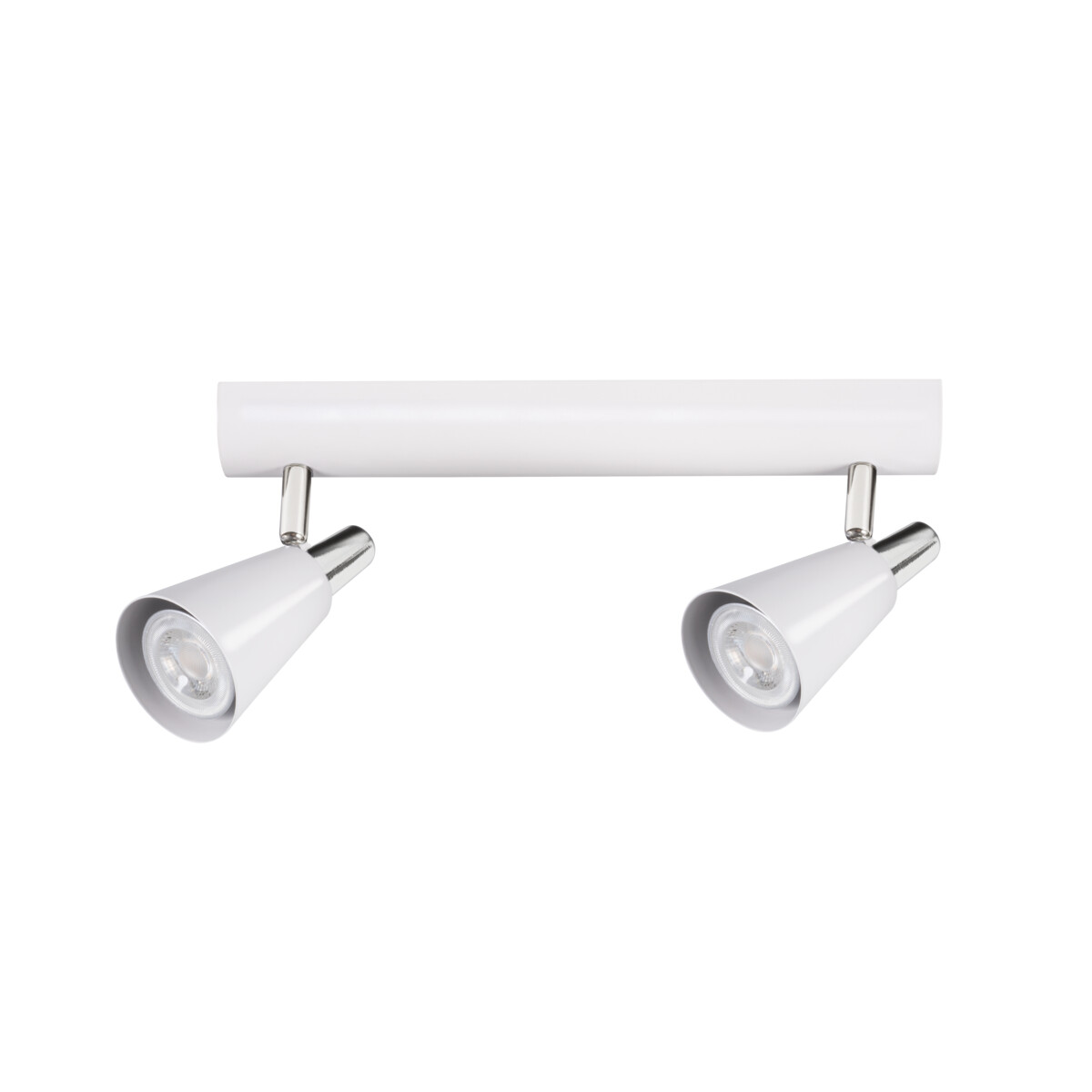

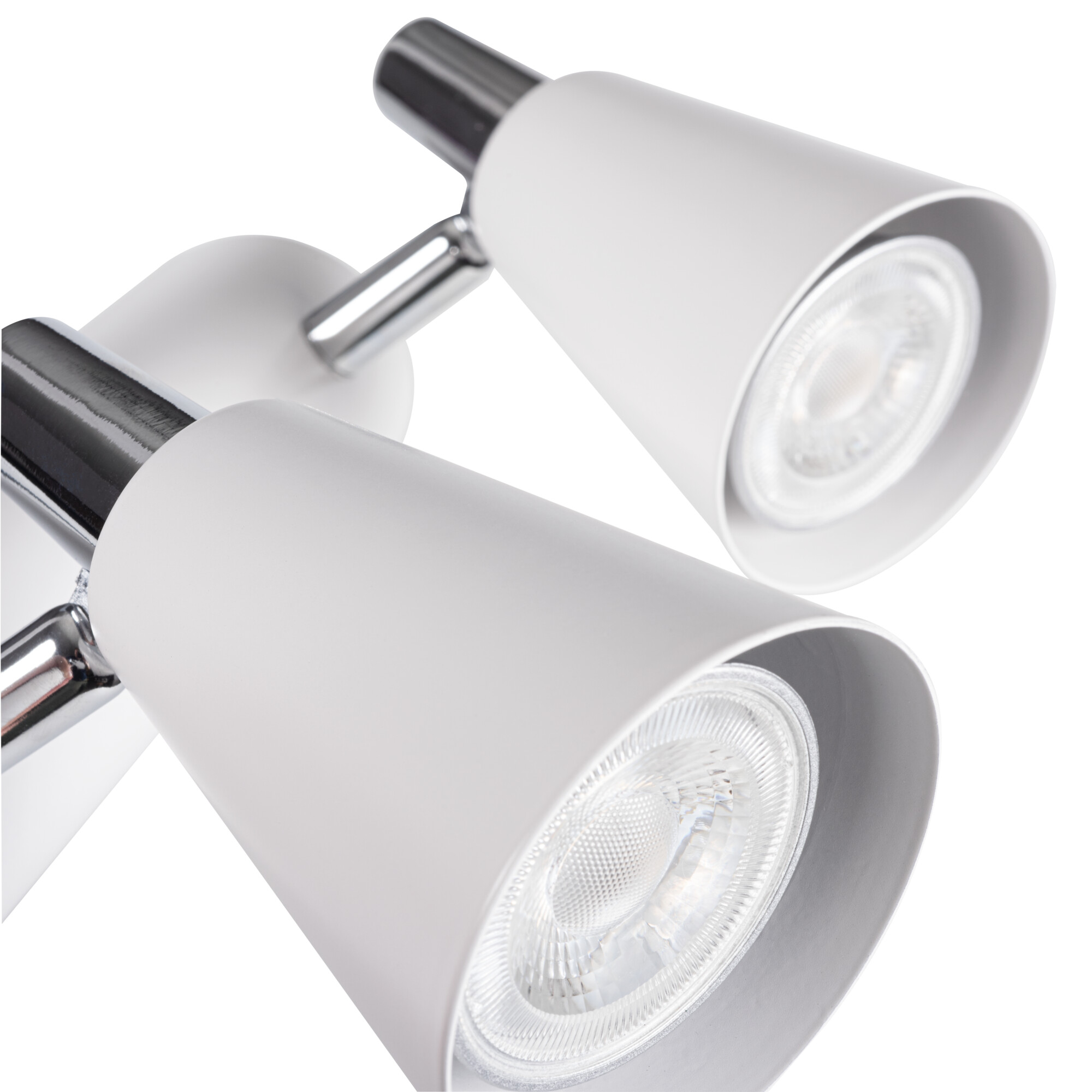

Wall & ceiling lighting fitting SEMPRA

SEMPRA EL-2I W-SR

Product code: 33092 logo KANLUX

Kanlux SEMPRA is a series of elegant spots in black and white or black and silver. Thanks to the original slat, on which the lampshades are mounted, all models will be perfect for both ceiling and wall applications - this gives us new possibilities of arranging room lighting. A very interesting solution is the possibility of vertical mounting of a luminaire with up to 4 light sources on the wall.

Rated voltage [V] 220-240 AC

Maximum power [W] 2 x max 10

Cap GU10

Light source PAR16

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339330925

Colour white

Enclosure material steel

Lampshade material steel

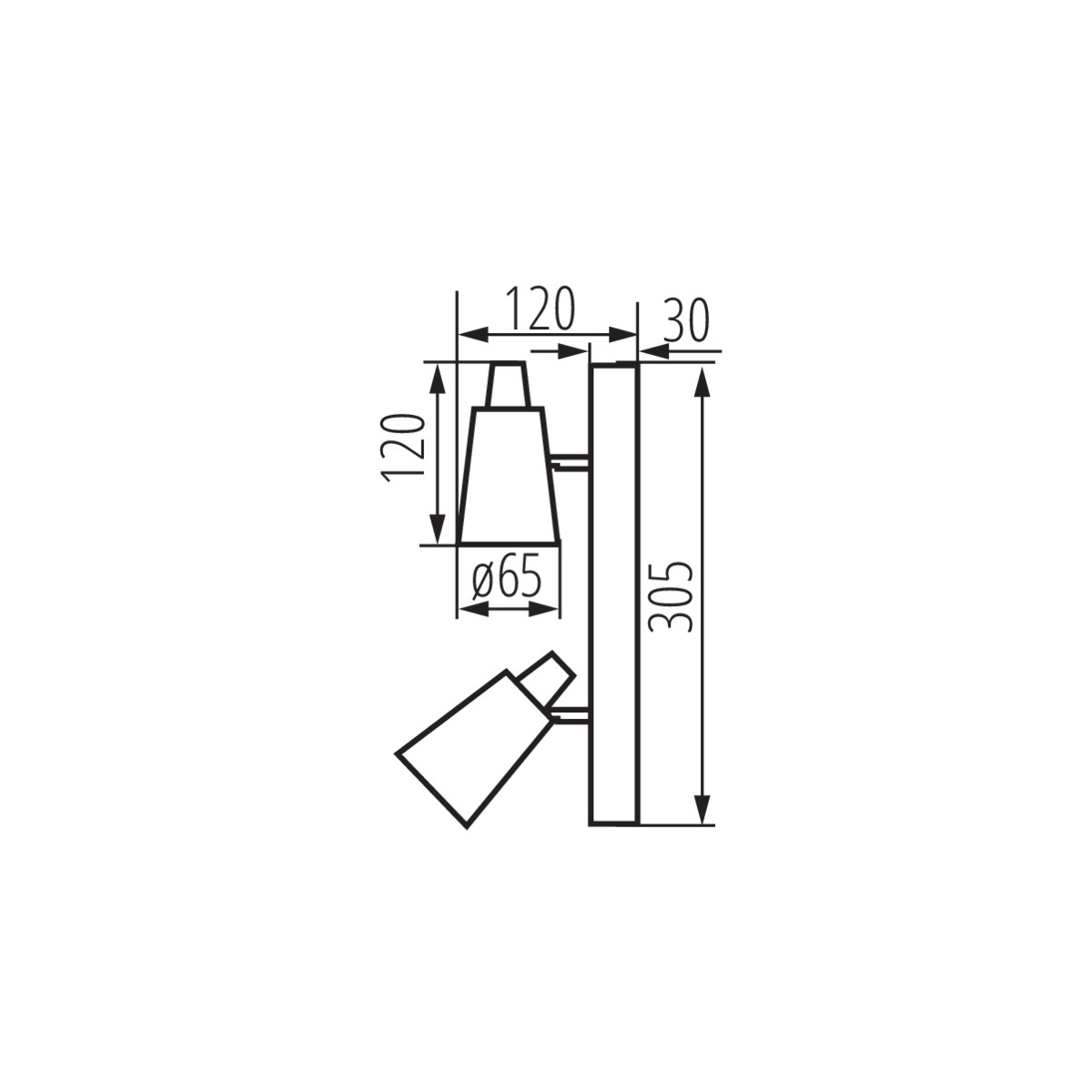

Weight and dimensions

Height [mm] 120

Length [mm] 305

Weight 534g

Sales unit piece

Outer box 6

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour white

Light source included no

Maximum power [W] 2 x max 10

Light source PAR16

Cap GU10

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly wall mounted, ceiling mounted

Lighting-fixture angle regulation [°] in two axes

The fixture is movable horizontally [°] 310

The fixture is movable vertically [°] 90

Connection type Bolt terminal block

Range of sections of wires used [mm2] 0,75÷1,5

Minimum distance from the illuminated object 0,5m

Shape inny

Materials

Specification

Family card PDF, Size: 440.07 KB

Technical card PDF, Size: 301.84 KB

Drawings and 3D models

3ds MAX 3DS, Size:283.96 KB

Autocad 3D DWG, Size:672.93 KB

Material library MTL, Size:787 B

Object 3D OBJ, Size:848.29 KB

Filmbox FBX, Size:302.84 KB

Handling and installation

User manual PDF, Size: 1.04 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 809.48 KB

Catalogues, folders and leaflets

Product card SEMPRA PDF, Size: 6.15 MB
