T8 LED GLASSv4 18W-CW

160

Miniatura T8 LED GLASSv4 18W-CW - KANLUX

Miniatura aranżacji T8 LED GLASSv4 18W-CW

Miniatura schematu T8 LED GLASSv4 18W-CW

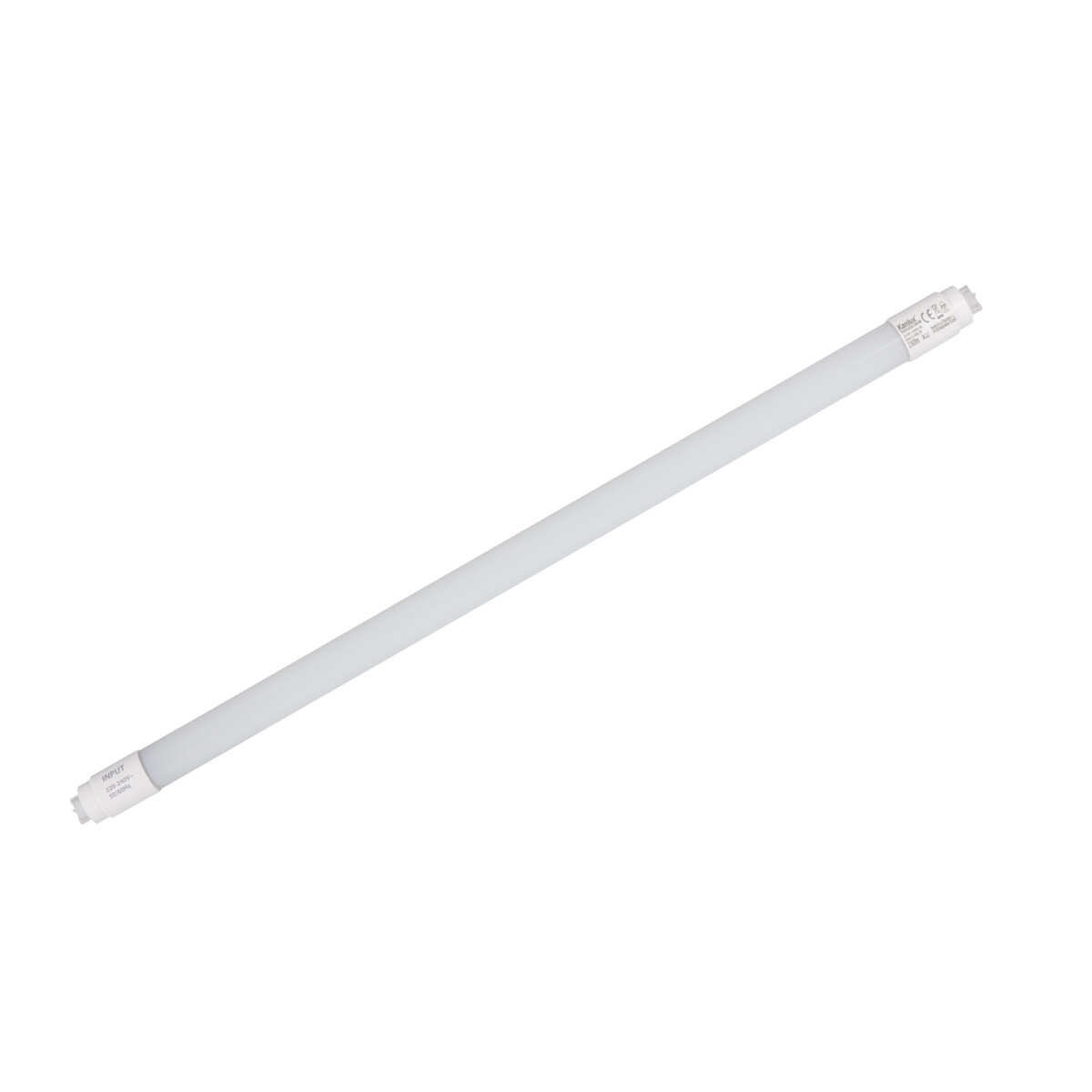

LED light source T8 LED GLASSv4

T8 LED GLASSv4 18W-CW

Product code: 33213 logo KANLUX

Kanlux T8 LED GLASS is a well-known and proven line of fluorescent lamps based on high-performance LED diodes, which are placed in a milky, glass body, thanks to which they evenly emit light. High-quality workmanship and care for the best-class components are the most important features of Kanlux T8 LED GLASSv4. In addition, these unique LED lamps have a 3-year warranty and a luminous efficacy of up to 160 lumens from Watt.

Product presentation

Rated voltage [V] 220-240 AC

On-mode power Pon [W] 18

Useful luminous flux of the light source Φuse [lm] 2880

Colour temperature [K] 6500

Cap G13

Rated lamp-service life [h] 30000

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

160

LED light source T8 LED GLASSv4 T8 LED GLASSv4 9W-NW Product code: 33210

Compare

160

LED light source T8 LED GLASSv4 T8 LED GLASSv4 9W-CW Product code: 33211

Compare

160

LED light source T8 LED GLASSv4 T8 LED GLASSv4 18W-NW Product code: 33212

Compare

160

LED light source T8 LED GLASSv4 T8 LED GLASSv4 22W-NW Product code: 33218

Compare

160

LED light source T8 LED GLASSv4 T8 LED GLASSv4 22W-CW Product code: 33219

Compare

Together better

Select complementary products

STARTER T8 LED T8 LED STARTER Product code: 26069

Compare

Specification

General description

Warranty [years] 3

EAN13 5905339332134

Colour white

Lampshade material glass

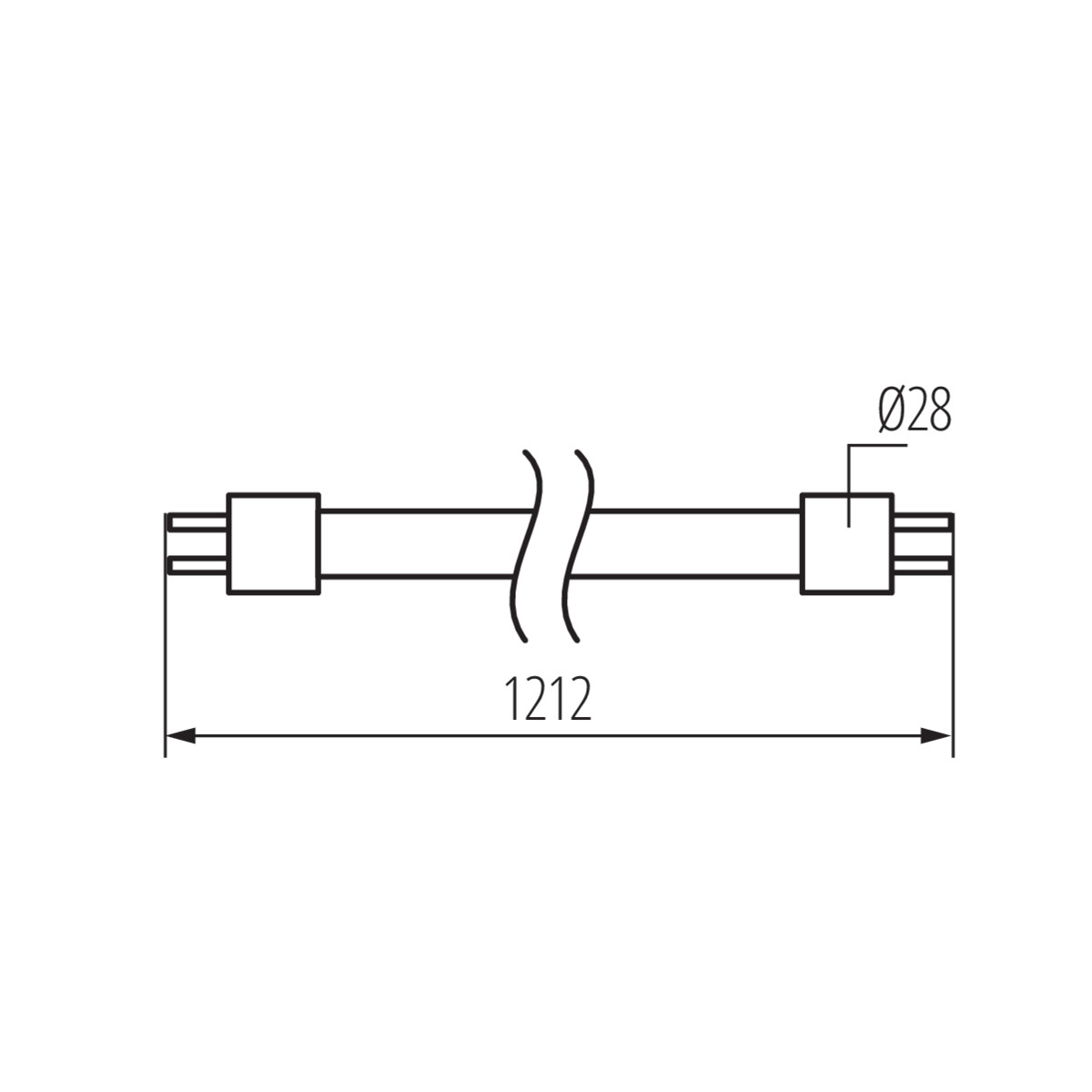

Weight and dimensions

Height [mm] 1212

Width [mm] 28

Diameter [mm] 28

Depth [mm] 28

Weight 204g

Sales unit piece

Outer box 25

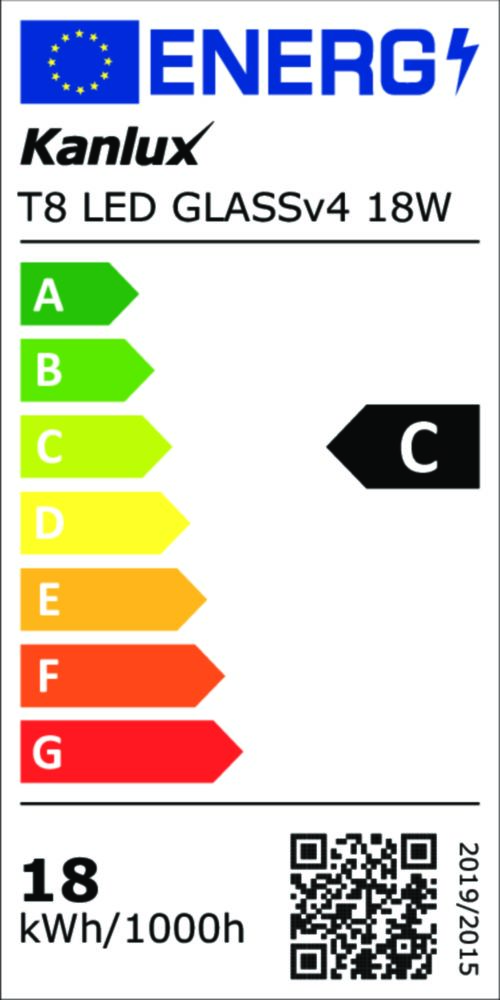

Energy class

Additional features

One-way fluorescent LED-power supply
3 years Warranty under the terms of the warranty statement, available on our website

Technical data

Show more ▾

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Light source T8 LED

Diode type LED SMD

Rated power [W] 18

On-mode power Pon [W] 18

Energy consumption in on-mode (kWh/1000h) 18

Lamp rated current [mA] 87

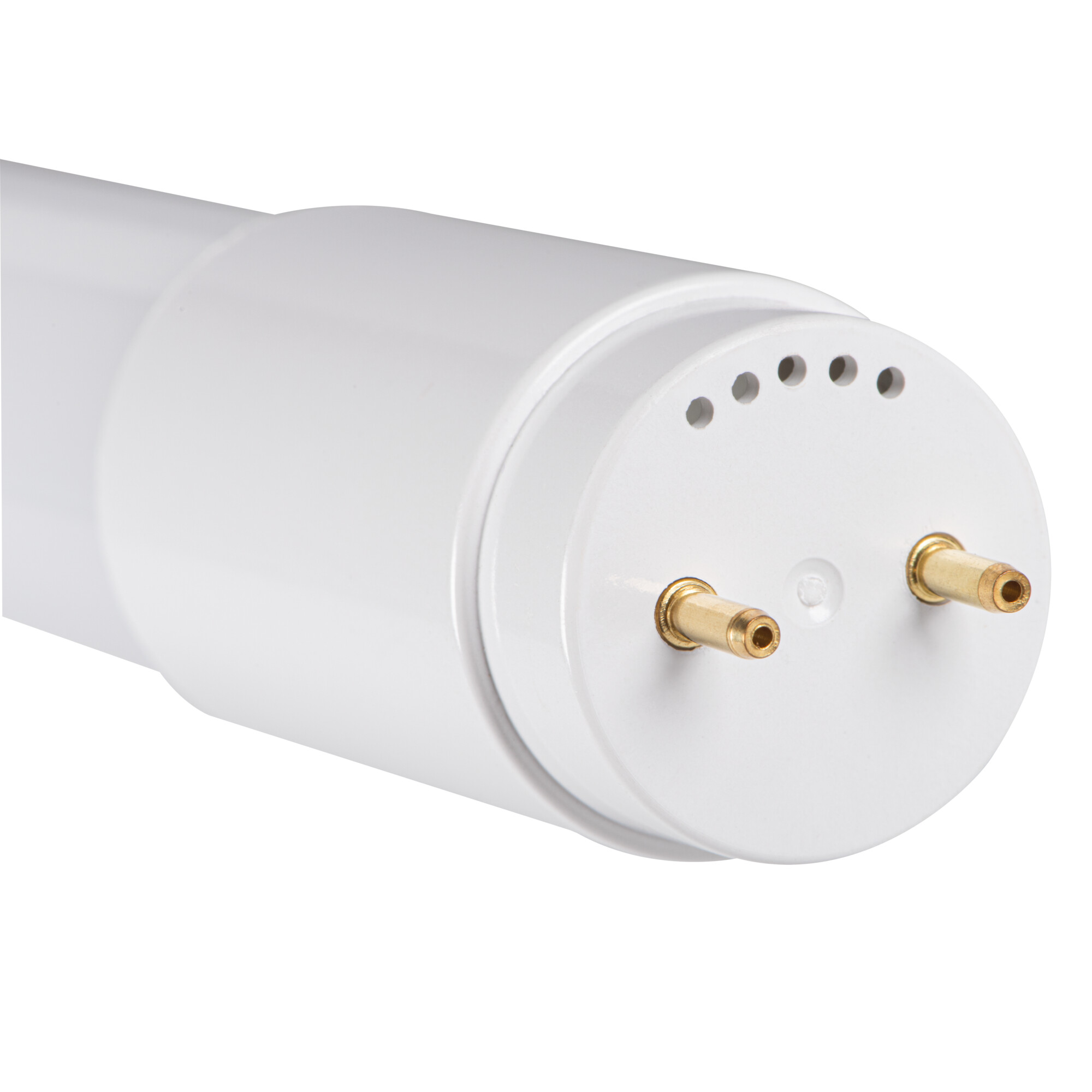

Cap G13

Total rated luminous flux [lm] 2880

Useful luminous flux of the light source Φuse [lm] 2880

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Luminous efficiency of the lamp [lm/W] 160

Rated beam angle [°] 220

Claim of equivalent power [W] 171

Colour temperature [K] 6500

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Colour temperature cold white

Number of on/off cycles ≥30000

Rated lamp-service life [h] 30000

Mercury content no, no

Survival factor ≥0.9

Compatible with a dimmer no, no

Lamp designed for decorative lighting no

Colour white

Shape linear

Power supply of T8 LED fluorescent lamps Unilateral, Unilateral

Ambient temperature range to which the product can be exposed -10÷40

Replacement LED light switch not included, not included, not included

Materials

Specification

Family card PDF, Size: 476.34 KB

Technical card PDF, Size: 847.96 KB

Support material PDF, Size: 1.65 MB

Photometric data

File ldt - T8 LED GLASSv4 18W-CW LDT, Size: 9.63 KB

File ies - T8 LED GLASSv4 18W-CW IES, Size: 9.46 KB

Handling and installation

User manual PDF, Size: 642.42 KB

Vertical energy label PDF, Size: 499.12 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 843.96 KB

Warranty Statement PDF, Size: 197.08 KB
