Light bulbs LED

T8 LED GLASSv5 12W-CW

185
T8 LED GLASSv5 12W-CW Kanlux
Miniatura T8 LED GLASSv5 12W-CW - KANLUX Miniatura T8 LED GLASSv5 12W-CW - KANLUX Miniatura aranżacji T8 LED GLASSv5 12W-CW Miniatura schematu T8 LED GLASSv5 12W-CW
Energy class B

LED light source T8 LED GLASSv5

T8 LED GLASSv5 12W-CW

Product code: 33217 logo KANLUX

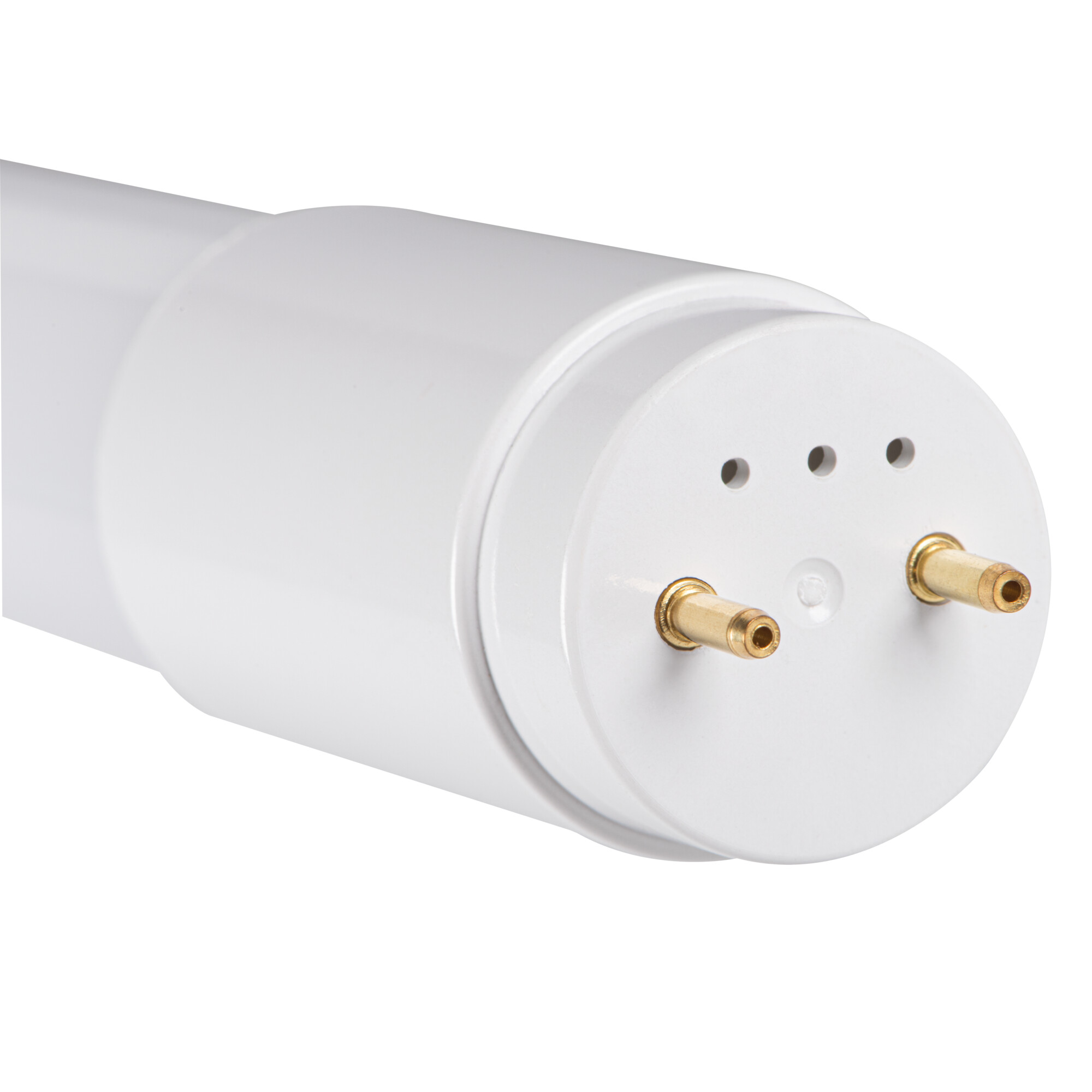

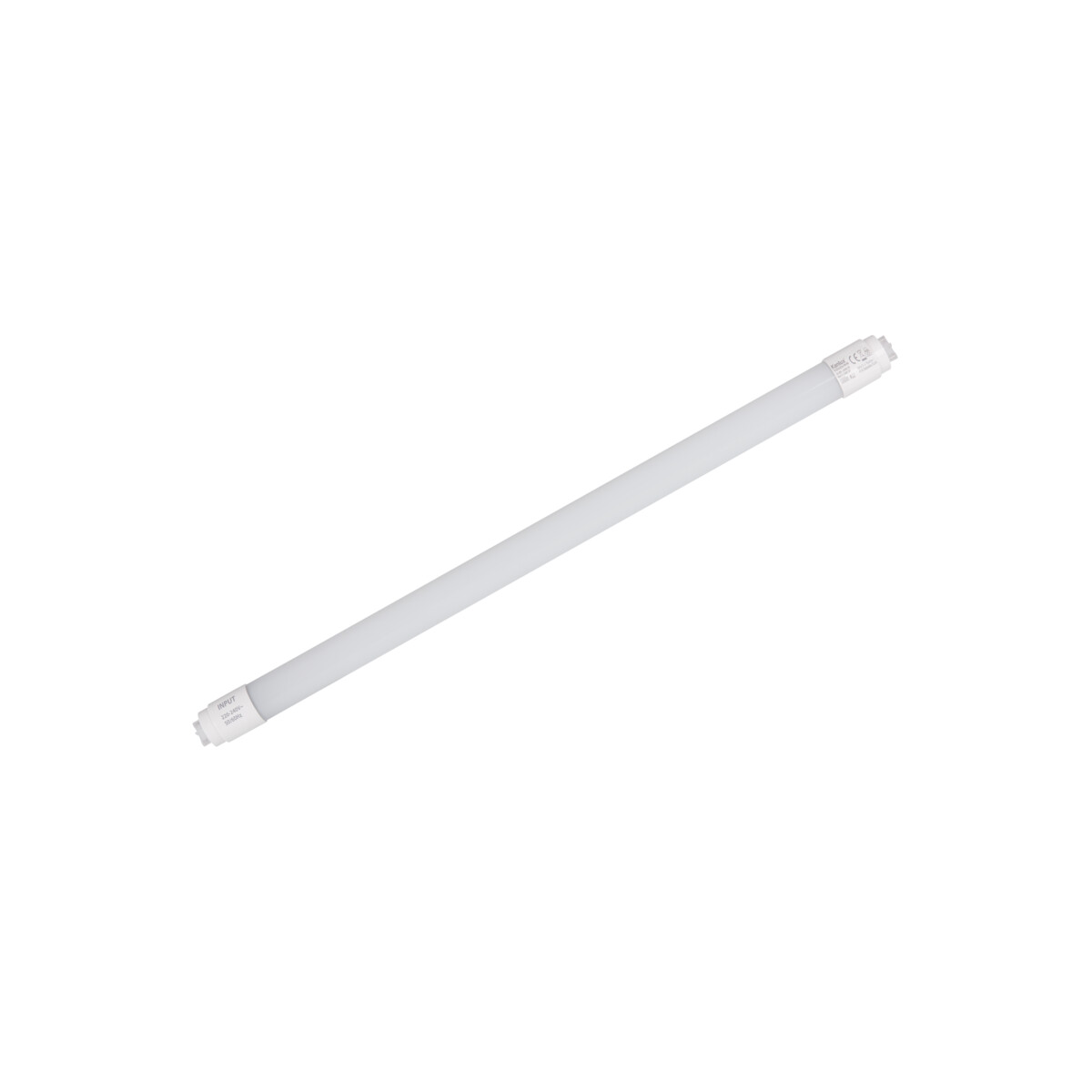

Kanlux T8 LED GLASS v5 is another version of the well-known line of LED tubes. They are based on high-efficiency LEDs, which are placed in a milky glass body and emit light evenly. High quality finish and care for the best-class components of T8 LED GLASSv5 tubes that's 4-Year warranty and luminous efficiency of up to 185 lumens per Watt.

Product presentation
Rated voltage [V] 220-240 AC
On-mode power Pon [W] 12
Useful luminous flux of the light source Φuse [lm] 2220
Colour temperature [K] 6500
Cap G13
Rated lamp-service life [h] 40000
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
185
T8 LED GLASSv5 12W-NW - KANLUX T8 LED GLASSv5 12W-NW - KANLUX
Energy class B LED light source T8 LED GLASSv5 T8 LED GLASSv5 12W-NW Product code: 33216

Together better

Select complementary products
logo KANLUX
T8 LED STARTER - KANLUX
STARTER T8 LED T8 LED STARTER Product code: 26069

Specification

General description
Warranty [years] 4
EAN13 5905339332172
Colour white
Lampshade material glass

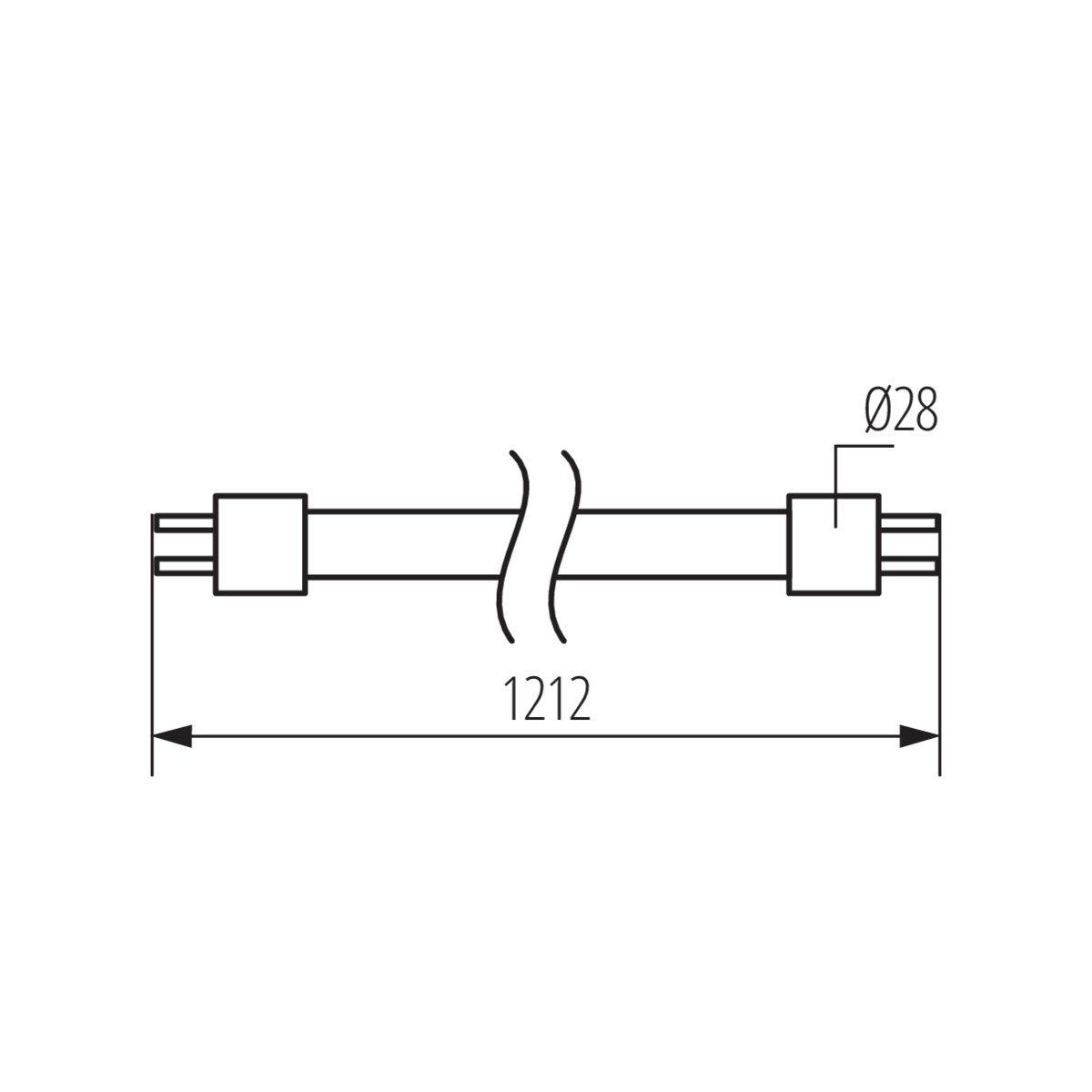

Weight and dimensions
Height [mm] 1212
Width [mm] 28
Diameter [mm] 28
Depth [mm] 28
Weight 200g
Sales unit piece
Outer box 25
Energy class
B
Additional features
  • 4 years Warranty under the terms of the warranty statement, available on our website
Technical data
Show more ▾
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Light source T8 LED
Diode type LED SMD
Rated power [W] 12
On-mode power Pon [W] 12
Energy consumption in on-mode (kWh/1000h) 12
Cap G13
Total rated luminous flux [lm] 2220
Useful luminous flux of the light source Φuse [lm] 2220
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
Luminous efficiency of the lamp [lm/W] 185
Rated beam angle [°] 200
Claim of equivalent power [W] 137
Colour temperature [K] 6500
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 80
Colour temperature cold white
Number of on/off cycles ≥50000
Rated lamp-service life [h] 40000
Mercury content no, no
Survival factor 0,9
Compatible with a dimmer no, no
Lamp designed for decorative lighting no
Colour white
Shape linear
Power supply of T8 LED fluorescent lamps Unilateral, Unilateral
Ambient temperature range to which the product can be exposed -10÷40
Replacement LED light switch not included, not included, not included

Materials

Specification
Family card PDF, Size: 461.31 KB
Technical card PDF, Size: 1.67 MB
Support material PDF, Size: 1.65 MB
Photometric data
File ldt - T8 LED GLASSv5 12W-CW LDT, Size: 9.7 KB
File ies - T8 LED GLASSv5 12W-CW IES, Size: 9.49 KB
Handling and installation
Vertical energy label PDF, Size: 892.74 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 855.42 KB
Warranty Statement PDF, Size: 191.99 KB
