L48 9W/M 24 IP00-RGBW

L48 9W/M 24 IP00-RGBW Kanlux
Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura L48 9W/M 24 IP00-RGBW - KANLUX Miniatura aranżacji L48 9W/M 24 IP00-RGBW Miniatura schematu L48 9W/M 24 IP00-RGBW
Energy class F

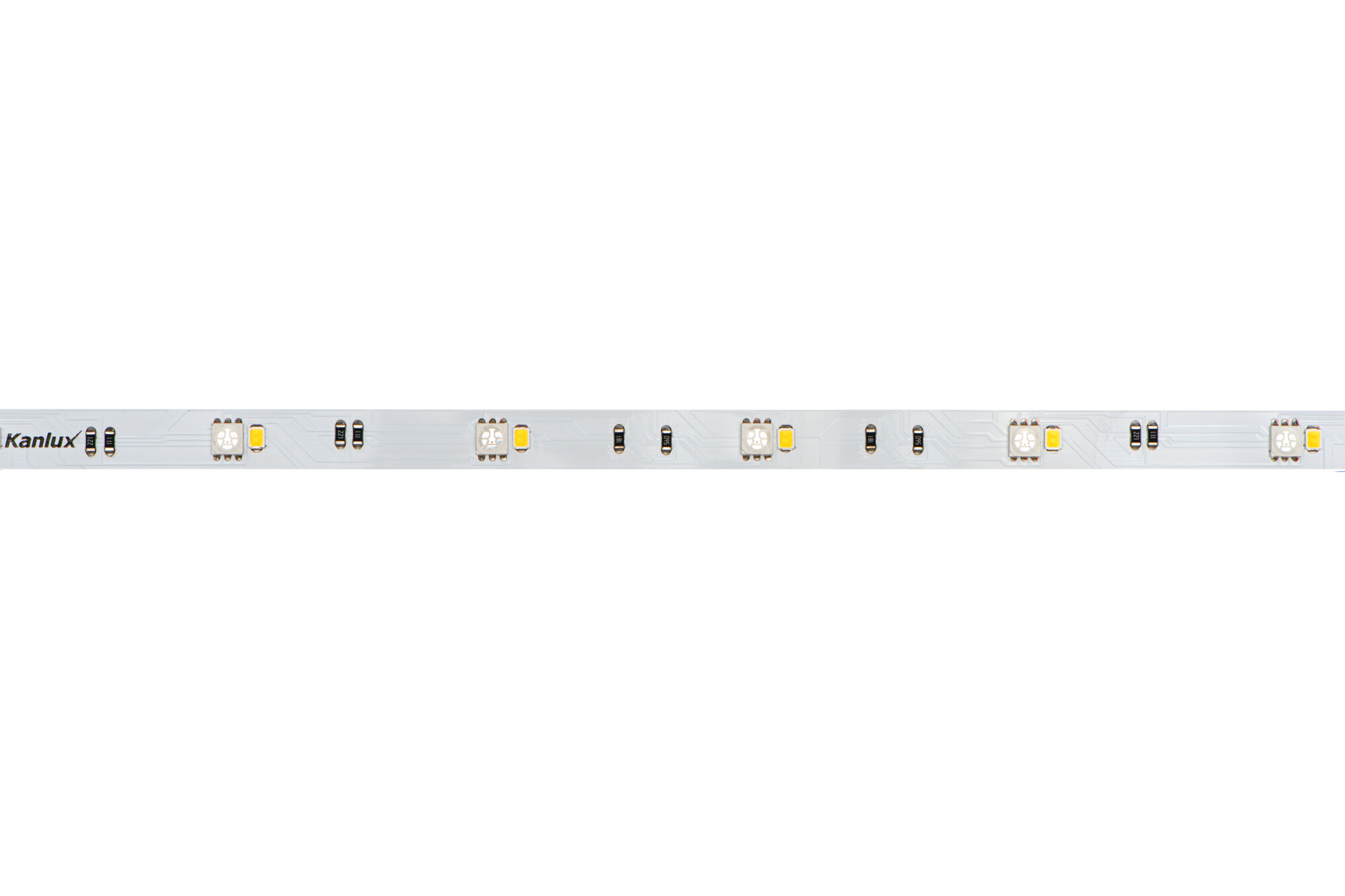

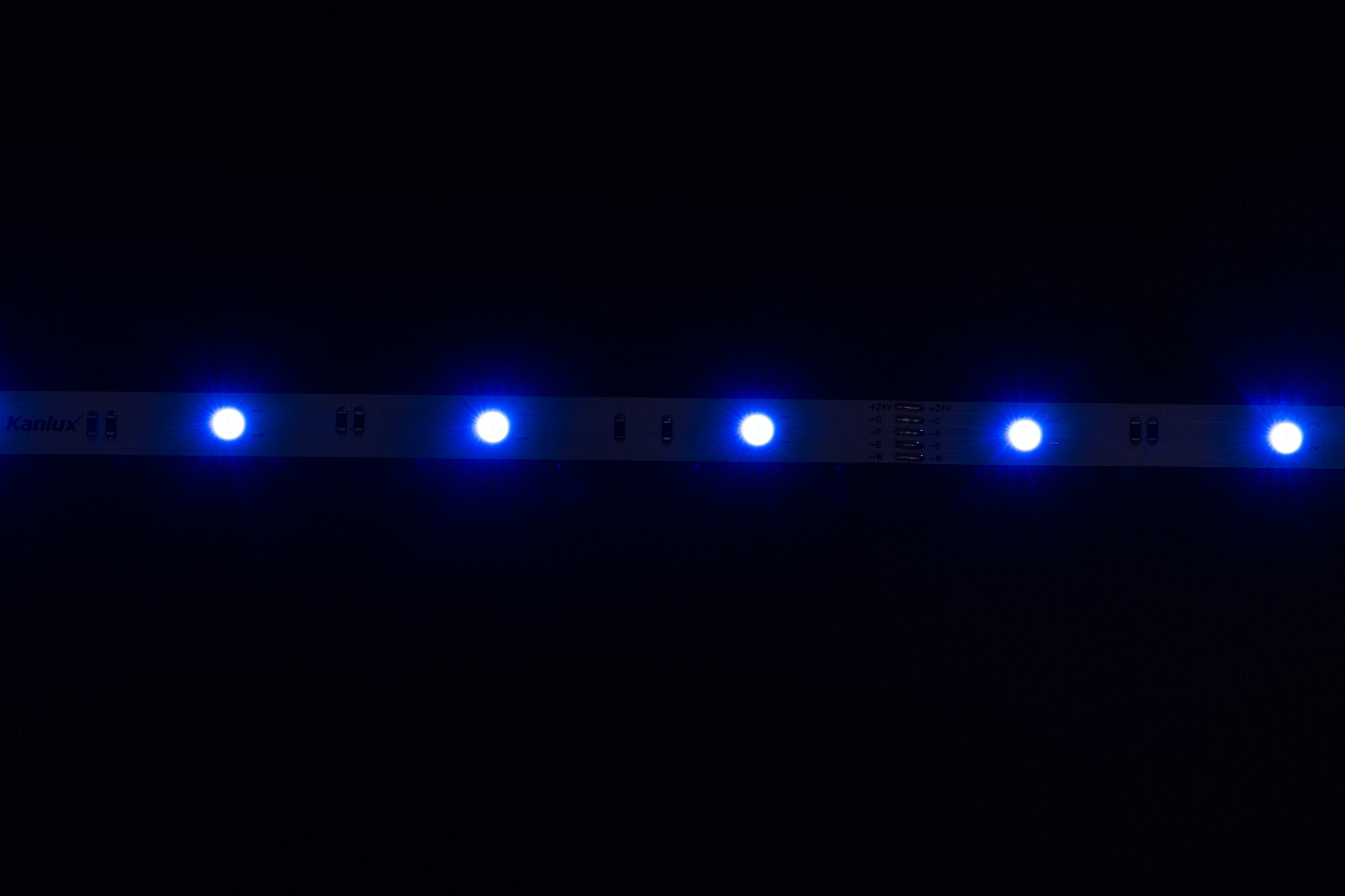

LED tape LED STRIP L48 RGBW

L48 9W/M 24 IP00-RGBW

Product code: 33318 logo KANLUX

Kanlux L48 is a tape that allows you to change the color of the light freely. You will conjure up any light installations and create your dream atmosphere. You can choose between two versions of IP00 and IP65. The IP65 version is designed for places where it can be exposed to moisture, it does not differ significantly in size from the IP00 version - this is important for installation in aluminum profiles, which will not be a problem.

Product presentation
Rated voltage [V] 24 DC
On-mode power Pon [W] 0,5m =2,3 (W)
Useful luminous flux of the light source Φuse [lm] 0,5m = 240 (W)
Colour temperature [K] RGB + 4000(W)
Rated lamp-service life [h] 30000
Length [mm] 5000
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
We will adapt to your needs Configurator
logo KANLUX
L48 9W/M 24 IP65-RGBW - KANLUX L48 9W/M 24 IP65-RGBW - KANLUX
Energy class F LED tape LED STRIP L48 RGBW L48 9W/M 24 IP65-RGBW Product code: 33319

Together better

Select complementary products
logo KANLUX
PROFILO C - KANLUX PROFILO C - KANLUX
Aluminium profile PROFILO C PROFILO C Product code: 19162

logo KANLUX
STOPPER D - KANLUX
End cap for aluminium profiles STOPPER STOPPER D Product code: 19183

logo KANLUX
CTRL 12/24V RGBW CCT - KANLUX
Controller for LED tapes CTRL 12/24V RGBW CCT CTRL 12/24V RGBW CCT Product code: 22148

logo KANLUX
PROFILO J 2M - KANLUX PROFILO J 2M - KANLUX
Aluminium profile PROFILO J PROFILO J 2M Product code: 26545

logo KANLUX
PROFILO K 2m - KANLUX PROFILO K 2m - KANLUX
Aluminium profile PROFILO K PROFILO K 2m Product code: 26549

logo KANLUX
PROFILO K-W - KANLUX PROFILO K-W - KANLUX
Aluminium profile PROFILO K PROFILO K-W Product code: 26550

logo KANLUX
PROFILO I 2m - KANLUX PROFILO I 2m - KANLUX
Aluminium profile PROFILO I PROFILO I 2m Product code: 26555

logo KANLUX
PROFILO G - KANLUX PROFILO G - KANLUX
Aluminium profile PROFILO G PROFILO G Product code: 26558

logo KANLUX
PROFILO H - KANLUX PROFILO H - KANLUX
Aluminium profile PROFILO H PROFILO H Product code: 26560

logo KANLUX
SHADE J/K-W - KANLUX SHADE J/K-W - KANLUX
Lampshade for aluminium profiles SHADE SHADE J/K-W Product code: 26565

logo KANLUX
SHADE J/K-FR 2m - KANLUX
Lampshade for aluminium profiles SHADE SHADE J/K-FR 2m Product code: 26566

logo KANLUX
SHADE B/F-FR 2M - KANLUX
Lampshade for aluminium profiles SHADE SHADE B/F-FR 2M Product code: 26570

logo KANLUX
SHADE CK C/D/E/I-FR - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK C/D/E/I-FR Product code: 26576

logo KANLUX
SHADE CK C/D/E/I-FR2M - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK C/D/E/I-FR2M Product code: 26577

logo KANLUX
SHADE-U H-FR 2m - KANLUX
Lampshade for aluminium profiles SHADE SHADE-U H-FR 2m Product code: 26583

logo KANLUX
SHADE-U H-W - KANLUX
Lampshade for aluminium profiles SHADE SHADE-U H-W Product code: 26584

logo KANLUX
SHADE-U H-W 2m - KANLUX
Lampshade for aluminium profiles SHADE SHADE-U H-W 2m Product code: 26585

logo KANLUX
SHADE-O H-W 2m - KANLUX
Lampshade for aluminium profiles SHADE SHADE-O H-W 2m Product code: 26587

logo KANLUX
STOPPER J - KANLUX
End cap for aluminium profiles STOPPER STOPPER J Product code: 26588

logo KANLUX
STOPPER K - KANLUX
End cap for aluminium profiles STOPPER STOPPER K Product code: 26589

logo KANLUX
STOPPER F - KANLUX
End cap for aluminium profiles STOPPER STOPPER F Product code: 26590

logo KANLUX
STOPPER-U H - KANLUX
End cap for aluminium profiles STOPPER STOPPER-U H Product code: 26593

logo KANLUX
HANDLE B/F - KANLUX
Bracket for aluminium profiles HANDLE HANDLE B/F Product code: 26596

logo KANLUX
HANDLE G - KANLUX
Bracket for aluminium profiles HANDLE HANDLE G Product code: 26598

logo KANLUX
SPRING I - KANLUX
Bracket for aluminium profiles SPRING I Product code: 26601

logo KANLUX
STOPPER I-W - KANLUX
End cap for aluminium profiles STOPPER STOPPER I-W Product code: 26603

logo KANLUX
POWELED P 24V 150W - KANLUX
CV power supply unit POWELED POWELED P 24V 150W Product code: 28964

logo KANLUX
POWELED P 24V 200W - KANLUX
CV power supply unit POWELED POWELED P 24V 200W Product code: 28966

Specification

General description
Warranty [years] 3
EAN13 5905339333186
Weight and dimensions
Height [mm] 5000
Width [mm] 10
Length [mm] 5000
Depth [mm] 2
Weight 66g
Sales unit piece
Outer box 25
Energy class
F
Additional features
  • 3 years Warranty under the terms of the warranty statement, available on our website
  • Proper controller and remote (CTRL 12/24V 10A RGBW 22143, REMOTE RGBW 22146) avaliable in Kanlux offer are required for correct operation.
Technical data
Rated voltage [V] 24 DC
Rated power [W] 1m = 9
On-mode power Pon [W] 0,5m =2,3 (W)
Show more ▾
Class of protection against electric shock III
IP class 00
Luminous flux of the light fitting [lm] 1m = max 600 (RGBW)
Colour temperature [K] RGB + 4000(W)
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 80
Mercury content no, no
Diode type LED SMD
Number of on/off cycles ≥30000
Rated lamp-service life [h] 30000
Colour temperature RGBW
Connection type Free cable ends
Minimum distance from the illuminated object 0,1m, 0,1m
Ambient temperature range to which the product can be exposed 5÷25
Possibility of cutting LED strips into segments [cm] 25
Useful luminous flux of the light source Φuse [lm] 0,5m = 240 (W)
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
Energy consumption in on-mode (kWh/1000h) 0,5m = 3
Claim of equivalent power [W] 0,5m = 24
Survival factor ≥0.9

Materials

Specification
Family card PDF, Size: 452.49 KB
Technical card PDF, Size: 748.12 KB
Support material PDF, Size: 10.53 MB
Photometric data
File ldt - L48 9W_M 24 IP00-RGBW LDT, Size: 15.21 KB
File ies - L48 9W_M 24 IP00-RGBW IES, Size: 15.15 KB
Handling and installation
User manual PDF, Size: 1.06 MB
Vertical energy label PDF, Size: 71.21 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 904.64 KB
Warranty Statement PDF, Size: 312.78 KB
Catalogues, folders and leaflets
Product folder PDF, Size: 9.3 MB
LED STRIPS folder PDF, Size: 3.5 MB
