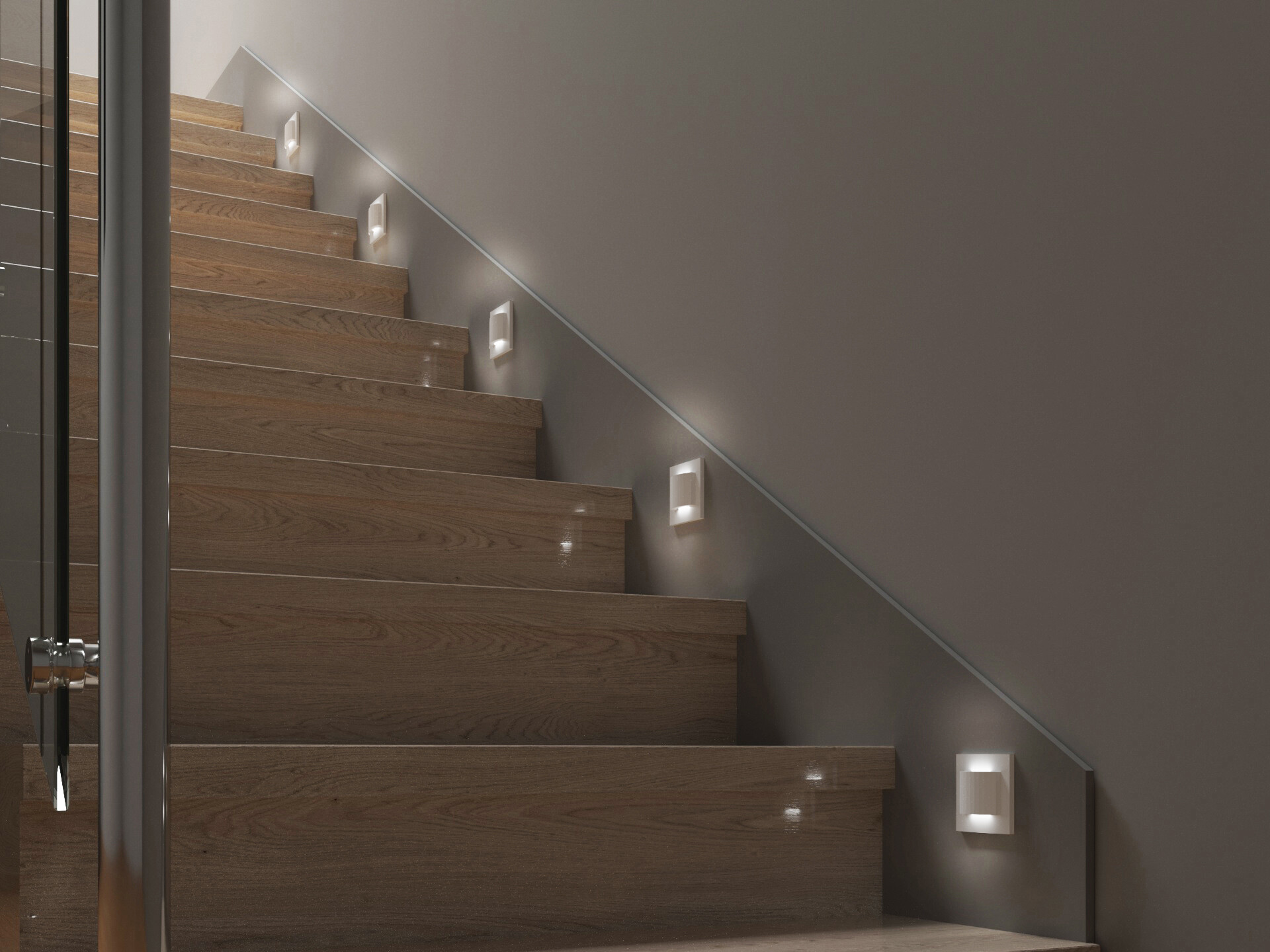

Miniatura aranżacji ERINUS LED LL GR-NW

Miniatura aranżacji ERINUS LED LL GR-NW

Miniatura zdjęcia dzień-noc ERINUS LED LL GR-NW

Miniatura schematu ERINUS LED LL GR-NW

Miniatura rysunku użytkowego ERINUS LED LL GR-NW

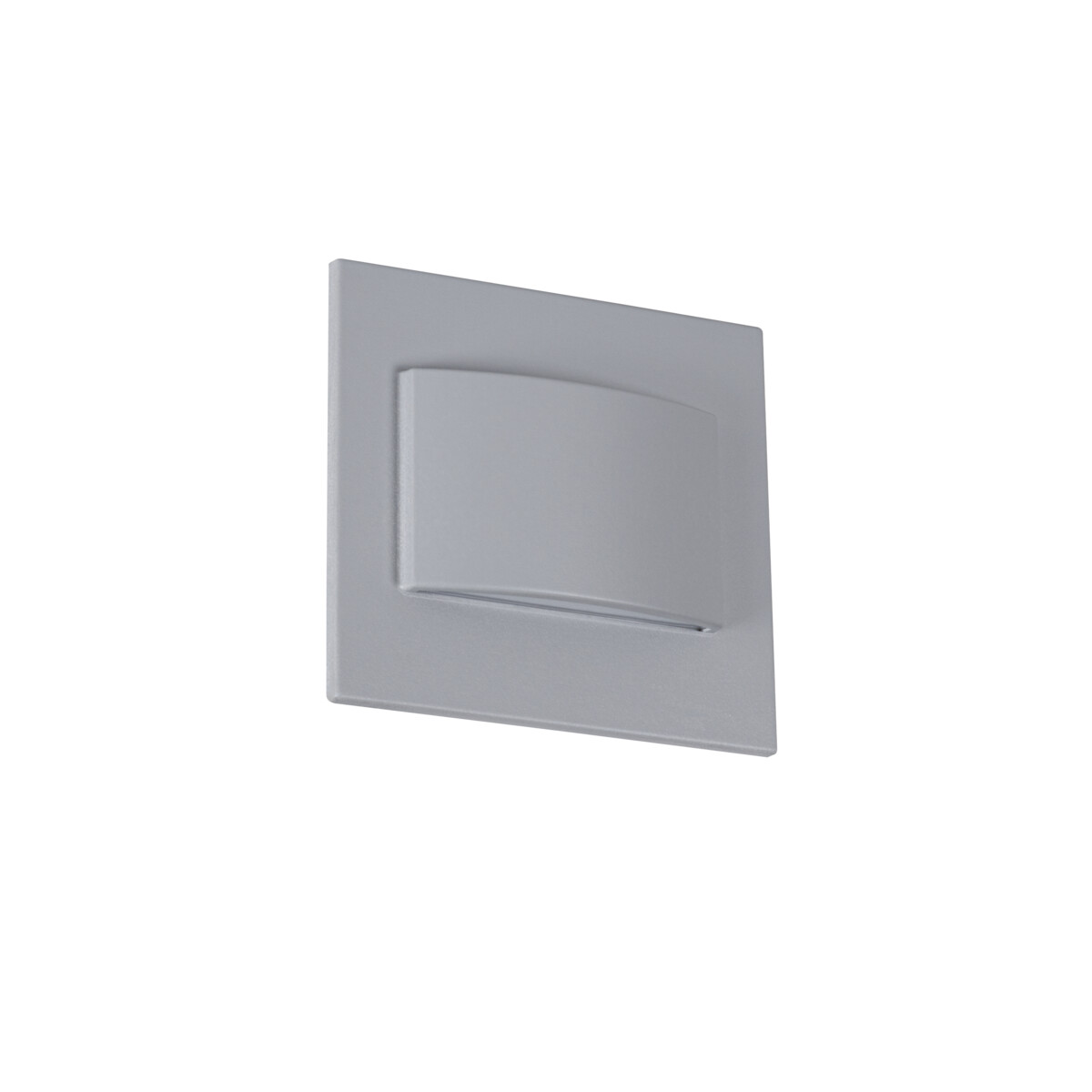

Staircase LED light fitting ERINUS LED

ERINUS LED LL GR-NW

Product code: 33331 logo KANLUX

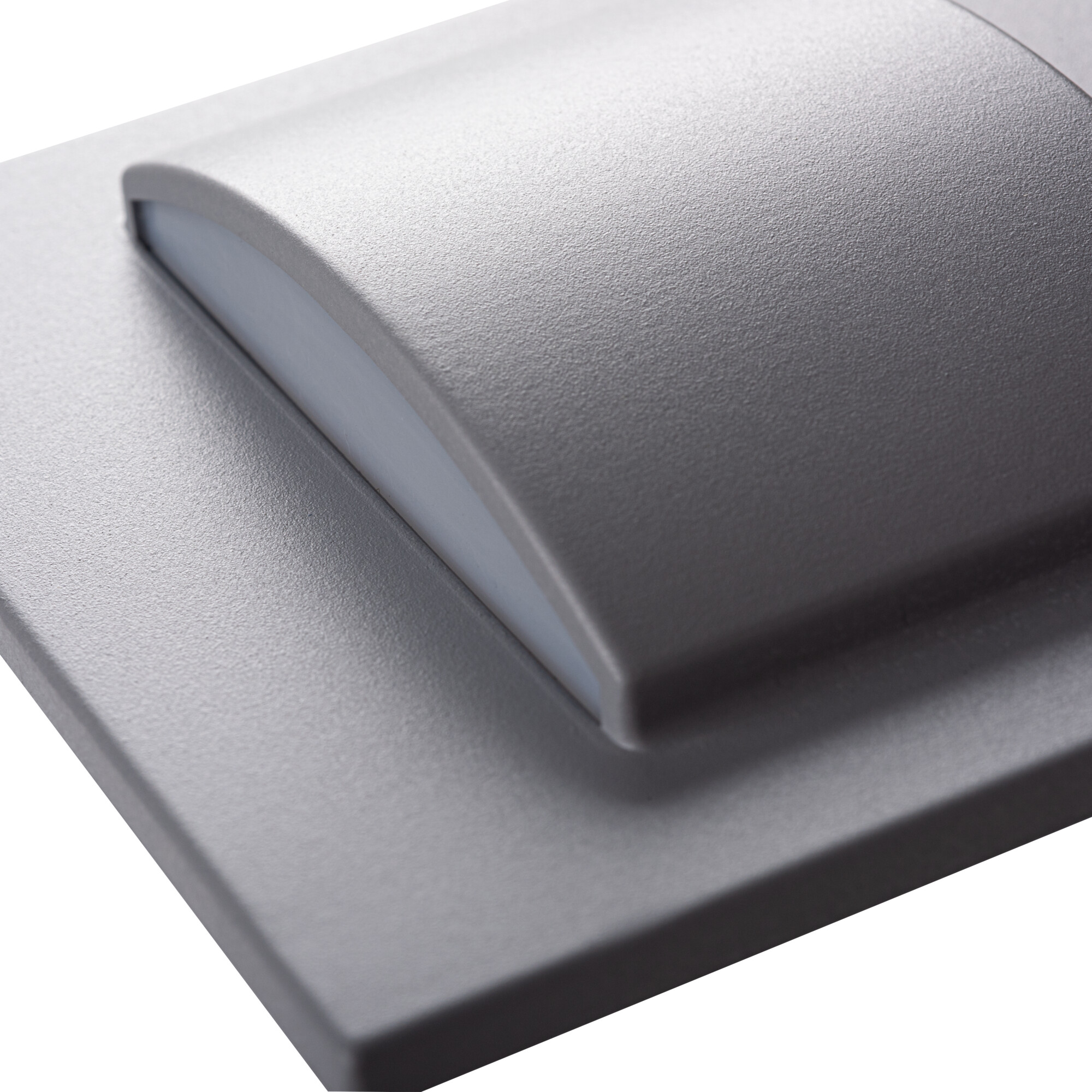

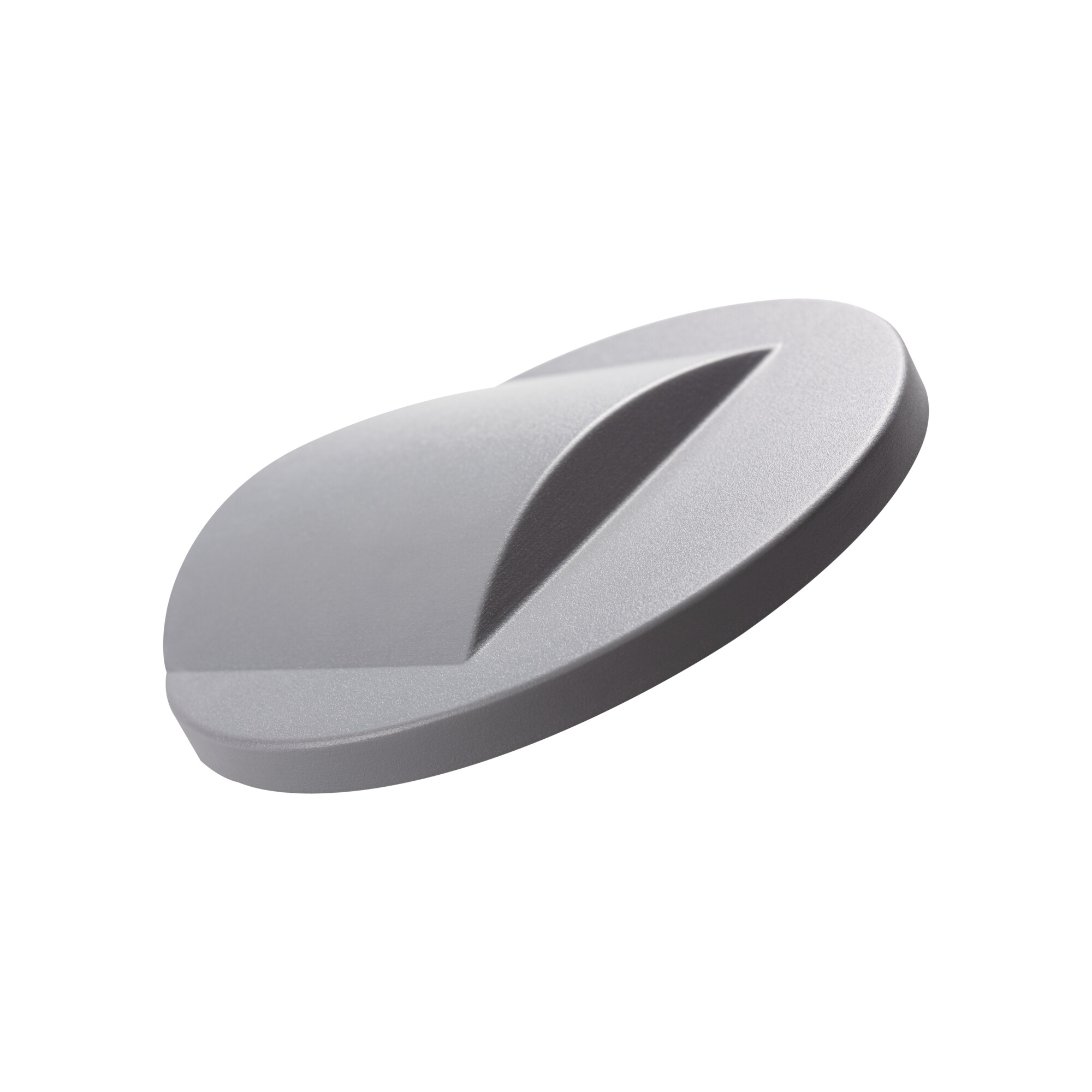

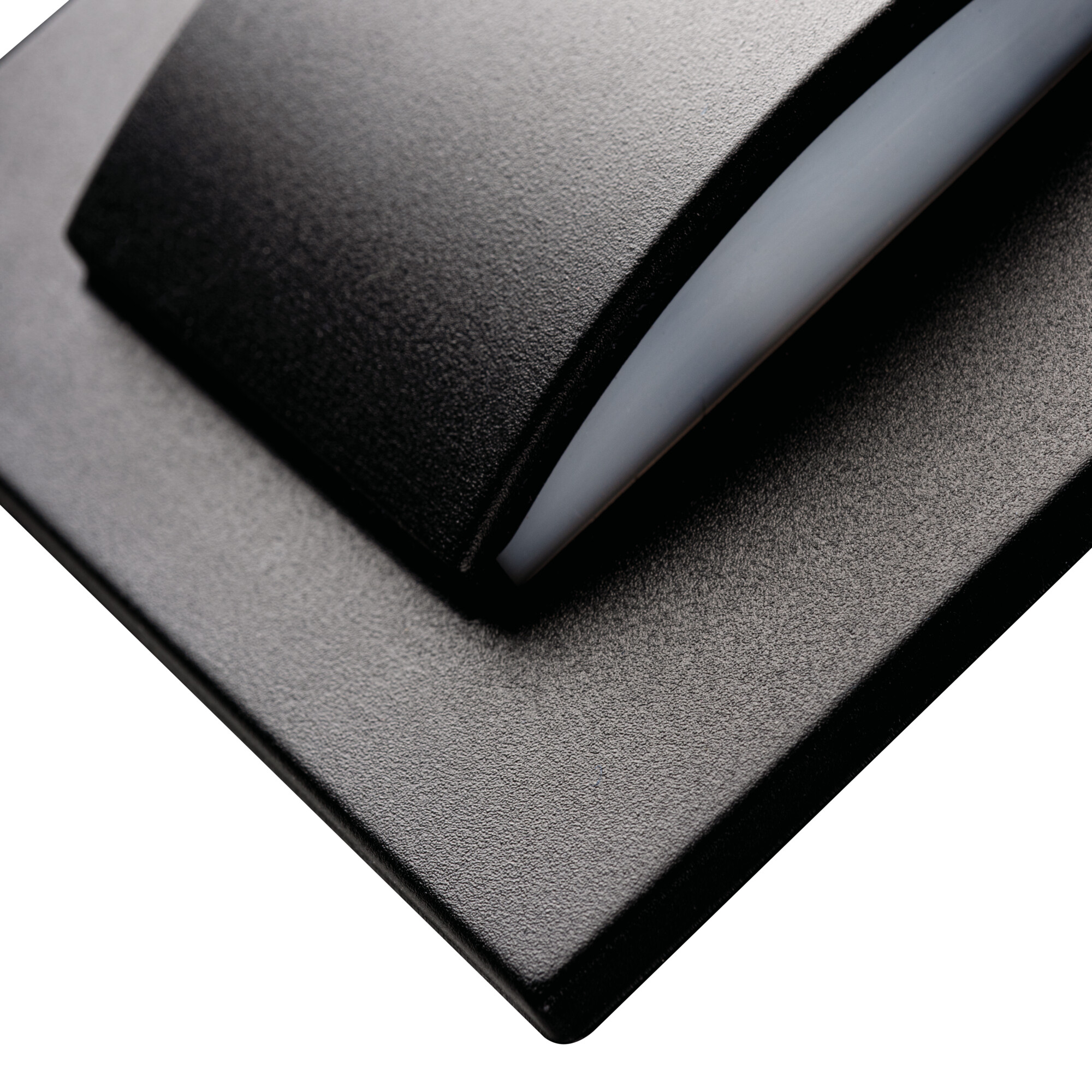

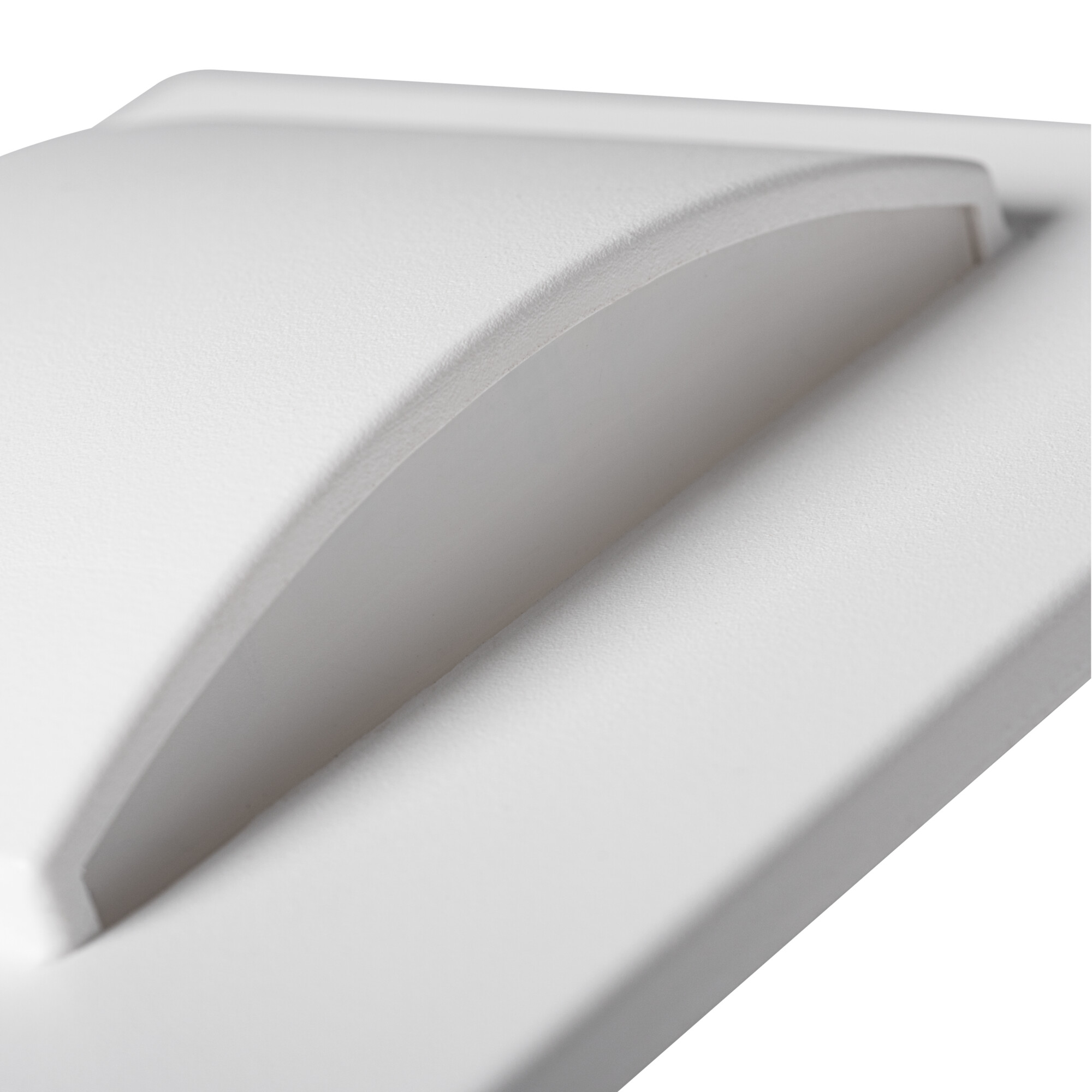

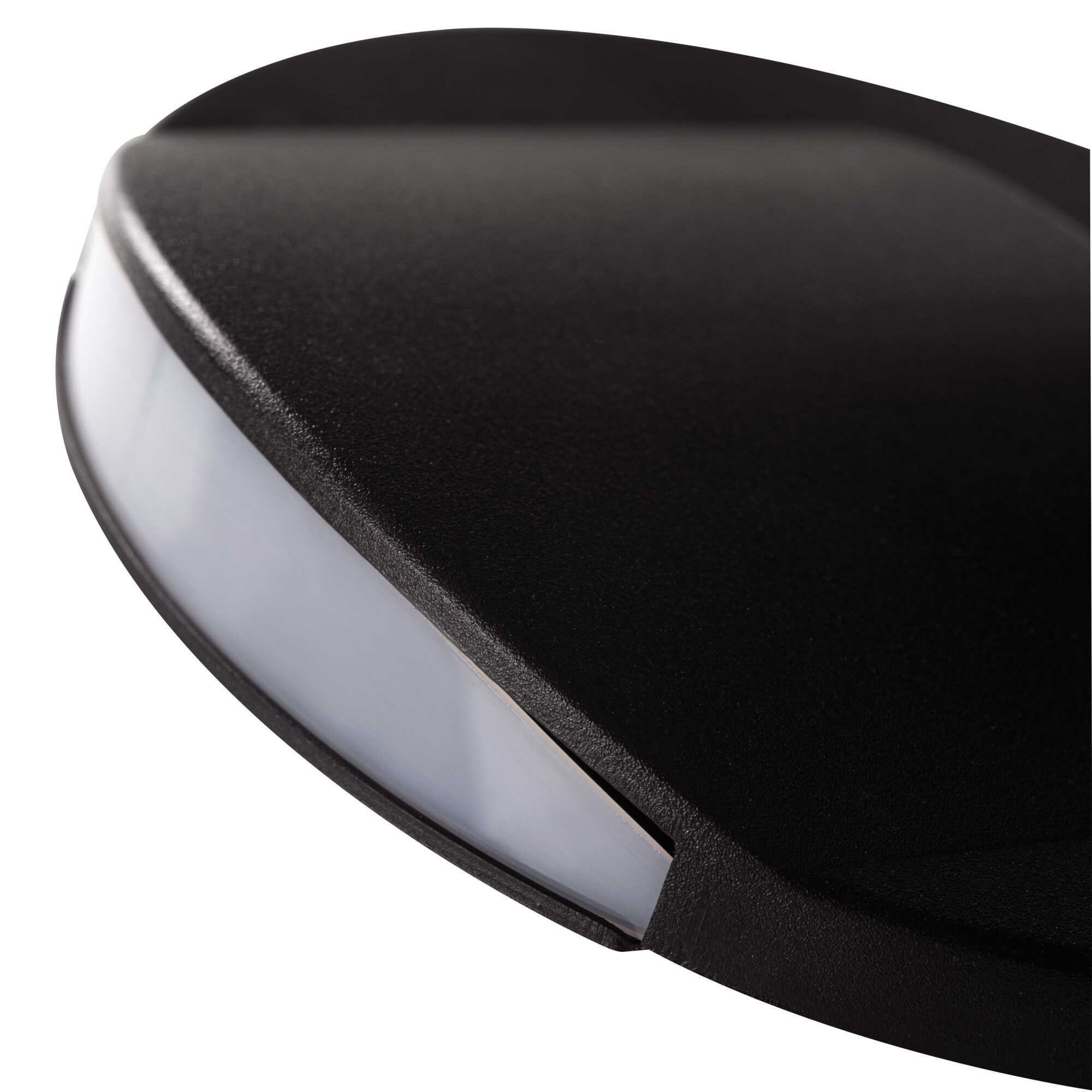

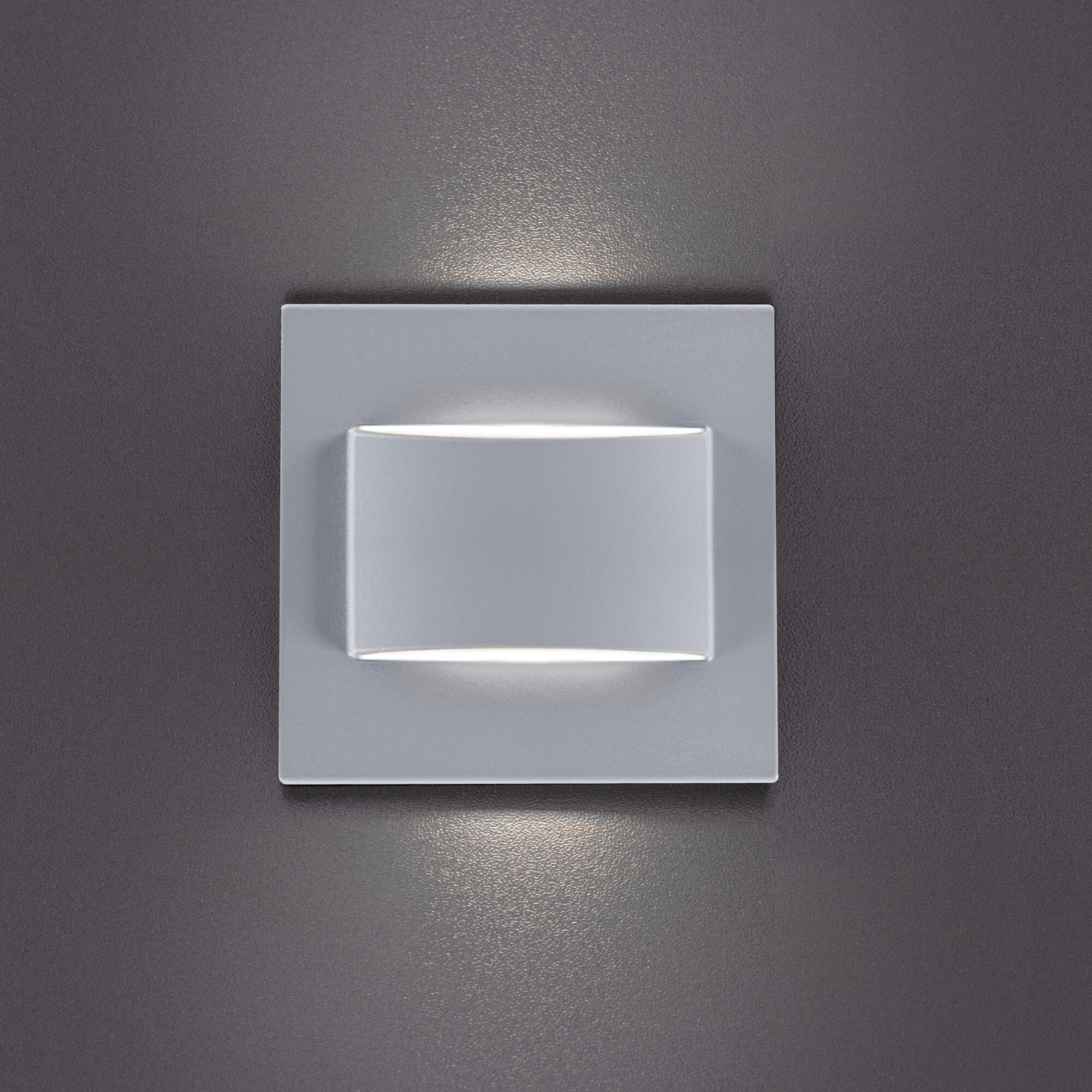

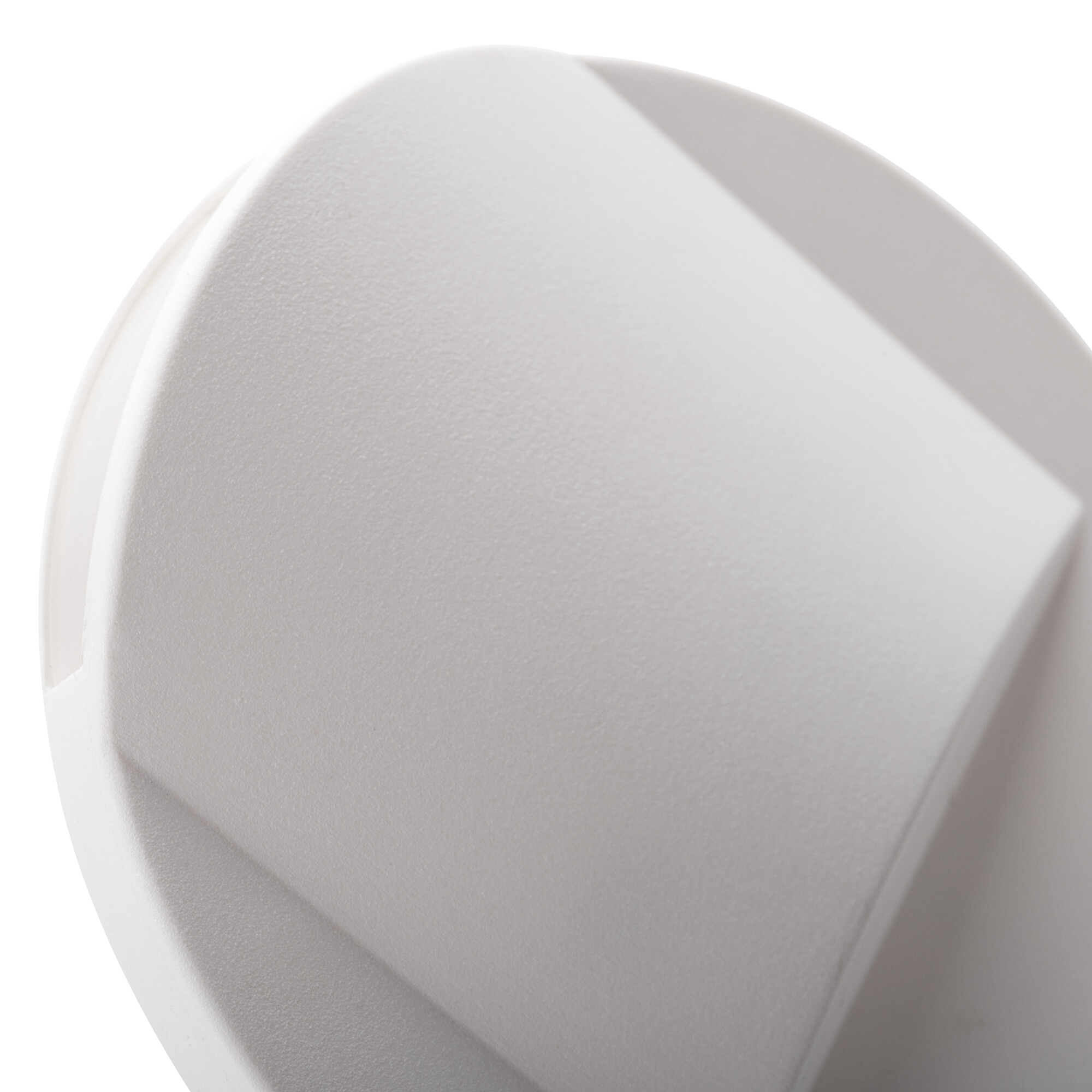

Kanlux ERINUS is a unique series of premium stairwaf fittings made of plastic. These luminaires are characterized by exceptional lightness due to the materials from which they were made, and at the same time they are made with great precision and attention to detail. Kanlux ERINUS are very thin, so they flush with the wall line and make it a discreet decoration. We have three colors to choose (white, black and gray), two colors of light (warm and neutral light) and three different models of luminaires. The Kanlux ERINUS L is a square luminaire glowing in one direction, the LL model shines in both directions, and the Kanlux ERINUS O is a round luminaire glowing in one direction.

Product presentation

Rated voltage [V] 12 DC

Maximum power [W] 1.5

Luminous flux of the light fitting [lm] 30

Colour temperature [K] 4000

Service life [h] 30000

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

Warranty [years] 2

EAN13 5905339333315

Colour grey

Enclosure material plastic

Lampshade material plastic

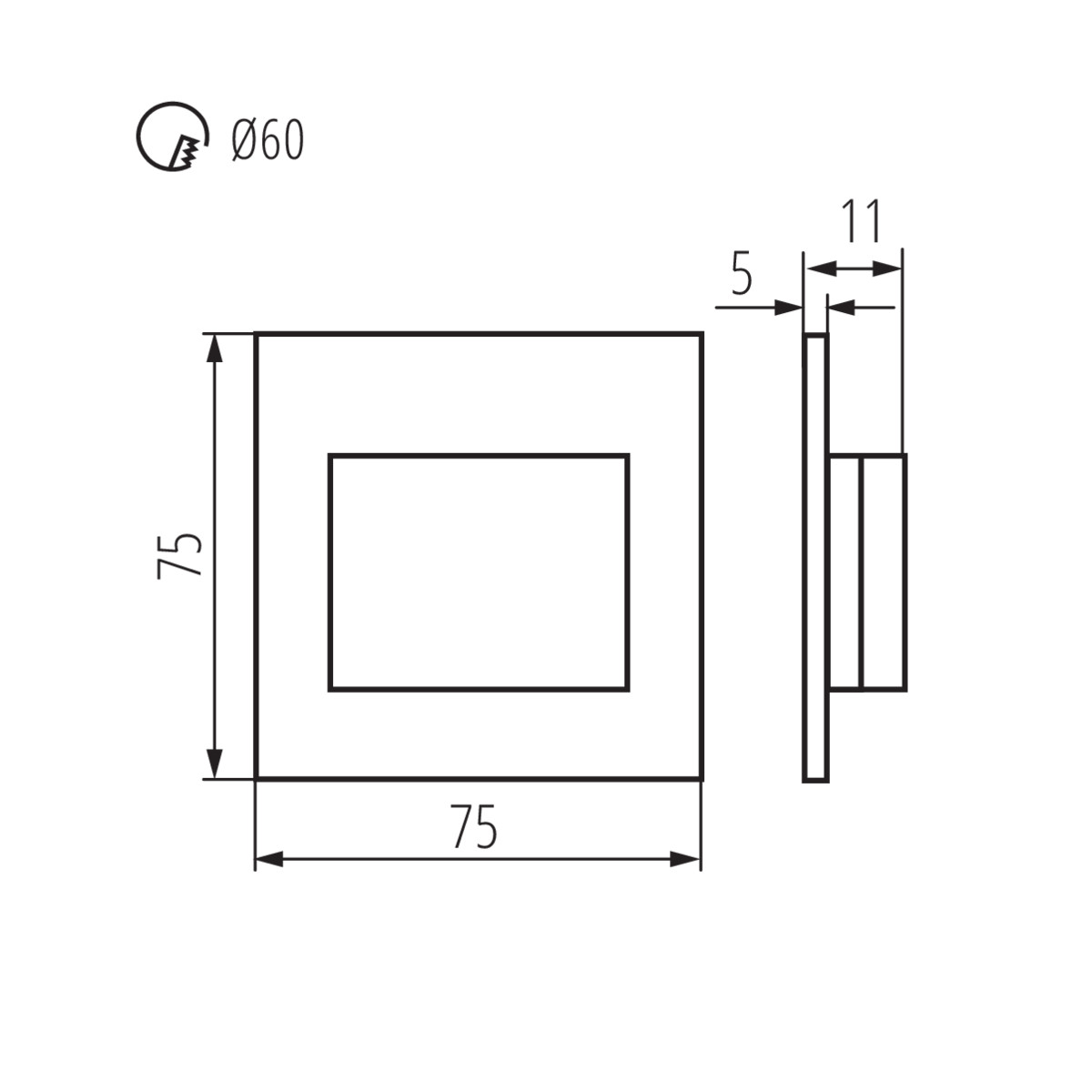

Weight and dimensions

Height [mm] 75

Width [mm] 16

Length [mm] 75

Weight 26g

Sales unit piece

Outer box 100

Technical data

Rated voltage [V] 12 DC

Show more ▾

Colour grey

Maximum power [W] 1.5

Integrated LED light source

Luminous flux of the light fitting [lm] 30

Number of on/off cycles ≥15000

Service life [h] 30000

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 80

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock III

IP class 20

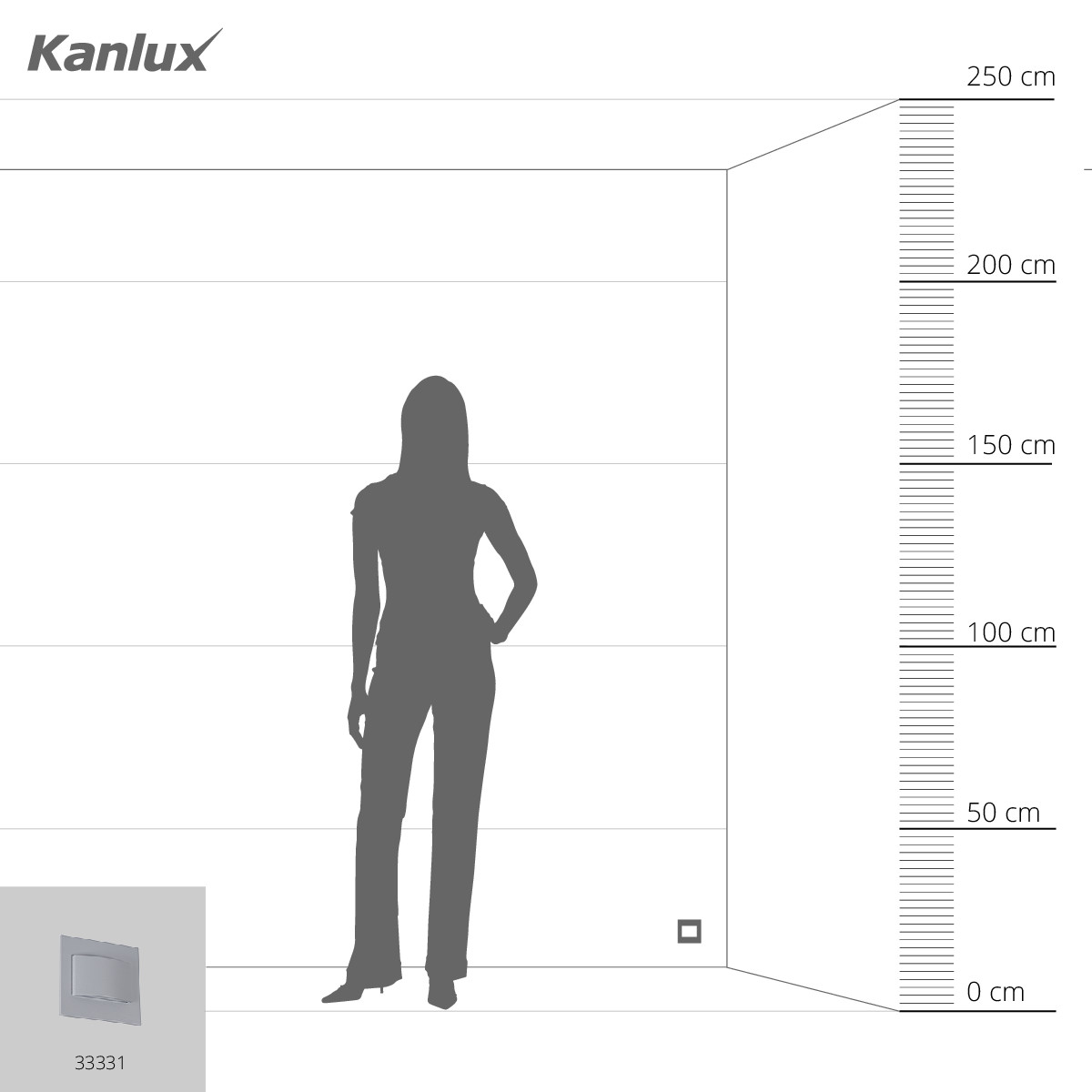

Place of assembly Recessed mount in the wall

To be built into the wall

Assembly-hole dimensions [mm] 60

Wymagana średnica puszki montażowej [Omm] 60

Connection type Free cable ends

Minimum distance from the illuminated object 0,1m

Diode type LED SMD

Ambient temperature range to which the product can be exposed 5÷25

Luminous efficiency of the lamp [lm/W] 20

Shape square

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 412.66 KB

Technical card PDF, Size: 657.72 KB

Support material PDF, Size: 3.63 MB

Handling and installation

User manual PDF, Size: 1.01 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 845.3 KB

Films

Catalogues, folders and leaflets

Stairway luminaries folder PDF, Size: 3.63 MB
