FL AGOR HI 240W NW

150

LED floodlight FL AGOR HI

FL AGOR HI 240W NW

Product code: 33476 logo KANLUX

Kanlux AGOR HI floodlights have two high power options: 240W and 300W. These floodlights are available in two versions: FL AGOR HI (symmetrical), FL AGOR / A HI (asymmetrical) with a 5-year warranty. Kanlux AGOR LED HI is a professional product, we took care of protection against overvoltage (6kV), high tightness (IP 65) and resistance to mechanical damage (IK08). An additional advantage is very high efficiency: up to 150lm / W. Luminaires are designed to illuminate larger industrial, commercial and recreational areas. An additional safety accessory is a protective grid.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 240

Luminous flux of the light fitting [lm] 36000

Service life [h] 50000

Colour temperature [K] 4000

IP class 65

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

150

LED floodlight FL AGOR HI FL AGOR/A HI 240W NW Product code: 33477

Compare

150

LED floodlight FL AGOR HI FL AGOR HI 300W NW Product code: 33478

Compare

150

LED floodlight FL AGOR HI FL AGOR/A HI 300W NW Product code: 33479

Compare

Accessory for floodlights FL AGOR HI FL AGOR HI GRID 240W Product code: 33482

Compare

Accessory for floodlights FL AGOR HI FL AGOR HI GRID 300W Product code: 33483

Compare

Together better

Select complementary products

Accessory for floodlights FL AGOR HI FL AGOR HI GRID 240W Product code: 33482

Compare

Accessory for floodlights FL AGOR HI FL AGOR HI GRID 240W Product code: 33482

Compare

Accessory for floodlights FL AGOR HI FL AGOR HI GRID 300W Product code: 33483

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339334763

Colour black

Enclosure material aluminum alloy

Protective glass material Tempered glass

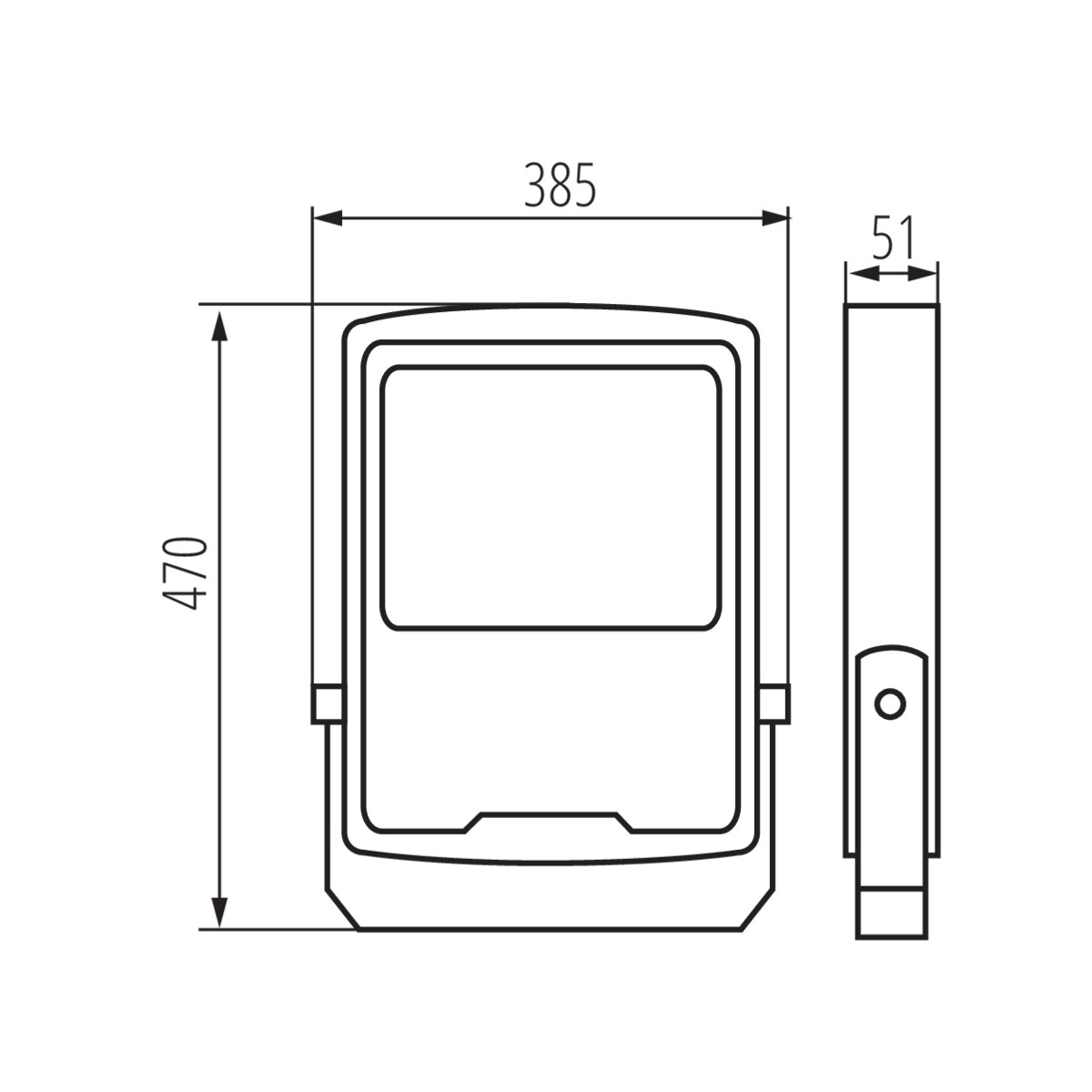

Weight and dimensions

Height [mm] 470

Width [mm] 385

Depth [mm] 51

Weight 5712g

Sales unit piece

Outer box 3

Energy class

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour black

Power factor 0.98

Maximum power [W] 240

Integrated LED light source

Luminous flux of the light fitting [lm] 36000

Useful luminous flux of the light source Φuse [lm] 28800

Useful luminous flux of the light source Φuse [lm] w szerokim stożku (120°)

Lighting angle [°] 90

Number of on/off cycles ≥50000

Service life [h] 50000

Colour temperature [K] 4000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 70

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤0,5

Diode type LED SMD

Compatible with a dimmer no, no

Colour temperature white

Class of protection against electric shock I

IP class 65

Ambient temperature range to which the product can be exposed -20÷45

Place of assembly wall mounted, ceiling mounted, surface mounted, wall mounted, ceiling mounted, surface mounted

The fixture is movable vertically [°] 180

IK class 08

Connection type Free cable ends

Wire type H05RN-F

Wire length [m] 0.28

Wire diameter [mm²] 1

Movement detection no, no

Minimum distance from the illuminated object 1m, 1m

Beam angle [°] 90

Luminous efficiency of the lamp [lm/W] 150

On-mode power Pon [W] 240

Energy consumption in on-mode (kWh/1000h) 240

Peak luminous intensity [cd] 17045

Survival factor 0,9

Mercury content no, no

Materials

Specification

Family card PDF, Size: 702.1 KB

Technical card PDF, Size: 653.4 KB

Support material PDF, Size: 7.07 MB

Drawings and 3D models

3ds MAX 3DS, Size:2.9 MB

Autocad 3D DWG, Size:5.53 MB

Material library MTL, Size:1.13 KB

Object 3D OBJ, Size:9.14 MB

Filmbox FBX, Size:2.56 MB

3ds MAX 3DS, Size:4.25 MB

Autocad 3D DWG, Size:7.75 MB

Material library MTL, Size:1.13 KB

Object 3D OBJ, Size:13.75 MB

Filmbox FBX, Size:3.99 MB

Photometric data

File ldt - FL AGOR HI 240W NW LDT, Size: 2.82 KB

File ies - FL AGOR HI 240W NW IES, Size: 2.46 KB

Handling and installation

User manual PDF, Size: 3.35 MB

Vertical energy label PDF, Size: 890.79 KB

Approvals and certificates

Declaration of Conformity PDF, Size: 798.73 KB

Warranty Statement PDF, Size: 98.5 KB
