VIMO EL 27 SE-BR

Miniatura VIMO EL 27 SE-BR - KANLUX

Miniatura VIMO EL 27 SE-BR - KANLUX

Miniatura VIMO EL 27 SE-BR - KANLUX

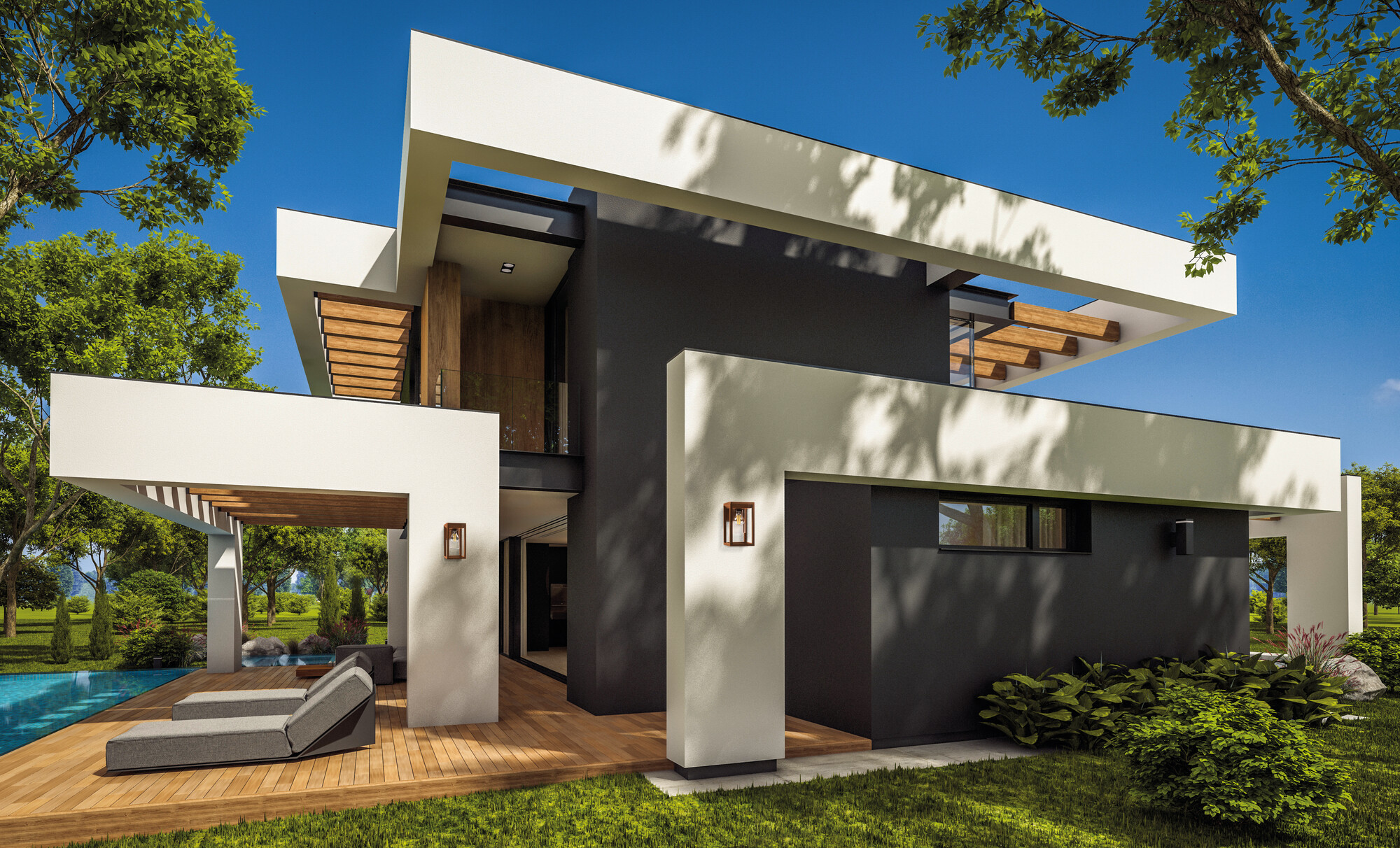

Miniatura aranżacji VIMO EL 27 SE-BR

Miniatura schematu VIMO EL 27 SE-BR

Miniatura rysunku użytkowego VIMO EL 27 SE-BR

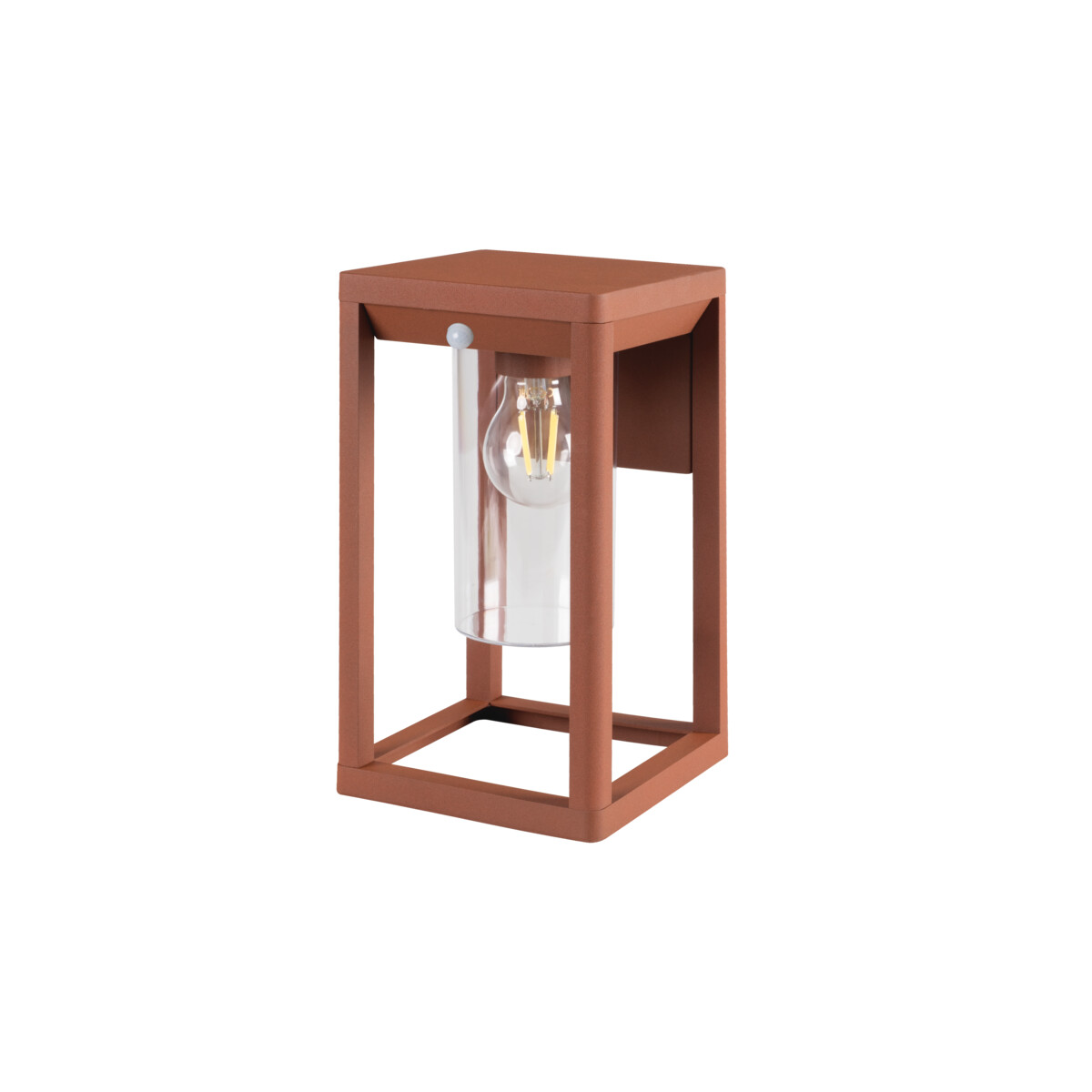

Garden light fitting with replaceable light source VIMO

VIMO EL 27 SE-BR

Product code: 34983 logo KANLUX

Kanlux VIMO luminaires series is characterised by a unique shape bringing to mind lanterns. These garden lamps with a replaceable light source are available in two colours: matte black and bronze (copper). Kanlux VIMO consists of two sizes of posts and a wall lamp, including a version with a motion sensor. This unconventional shape and IP44 tightness class will make Kanlux VIMO lamps look great in every garden or house environment.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] max 15

Light source LED

Cap E27

IP class 44

Colour brown

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339349835

Colour brown

Enclosure material aluminum alloy

Lampshade material PC

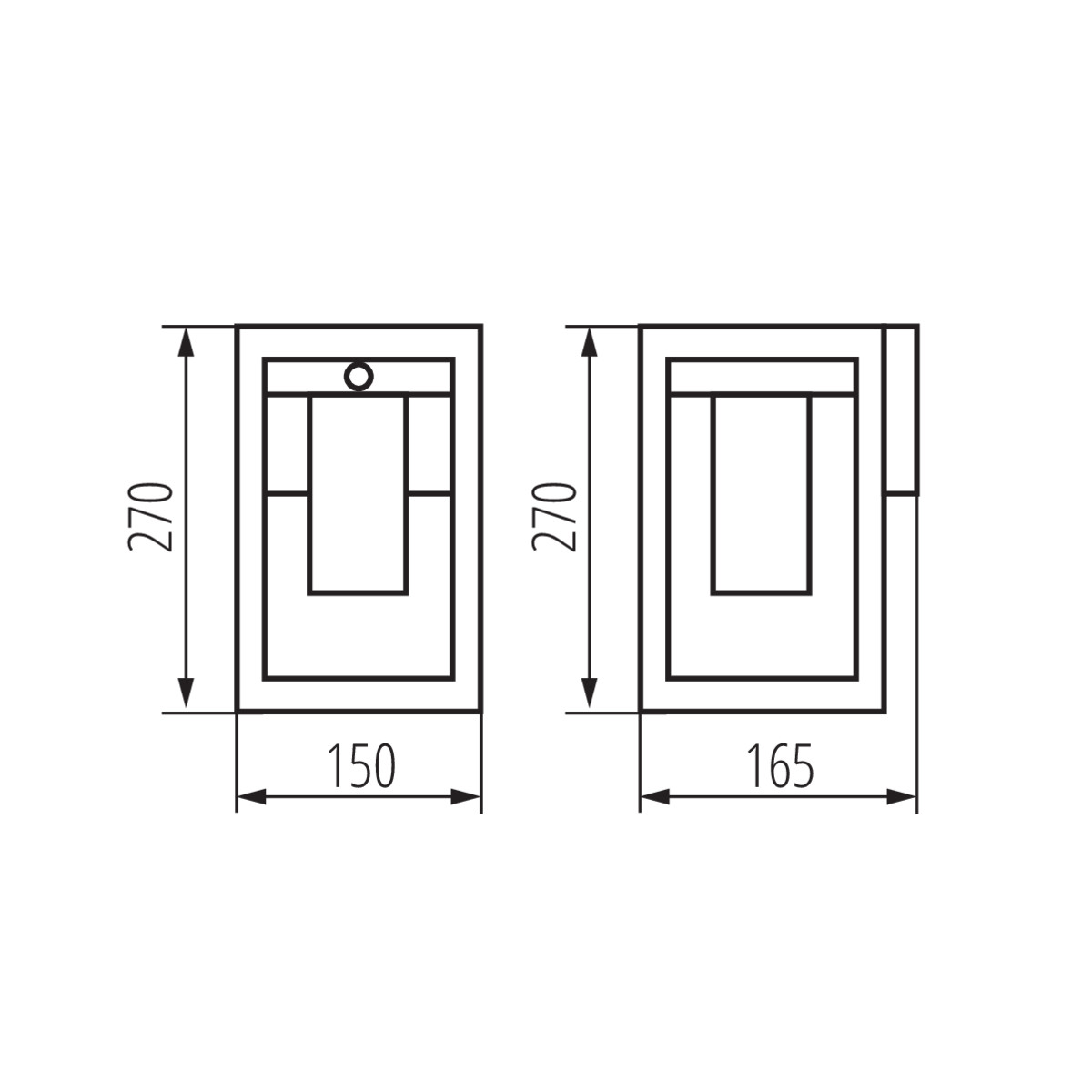

Weight and dimensions

Height [mm] 270

Width [mm] 165

Length [mm] 150

Weight 1200g

Sales unit piece

Outer box 6

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour brown

Maximum power [W] max 15

Light source included no

Light source LED

Replaceable light source yes

Cap E27

Class of protection against electric shock I

IP class 44

Ambient temperature range to which the product can be exposed -20÷40

Place of assembly wall mounted

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1,5÷2,5

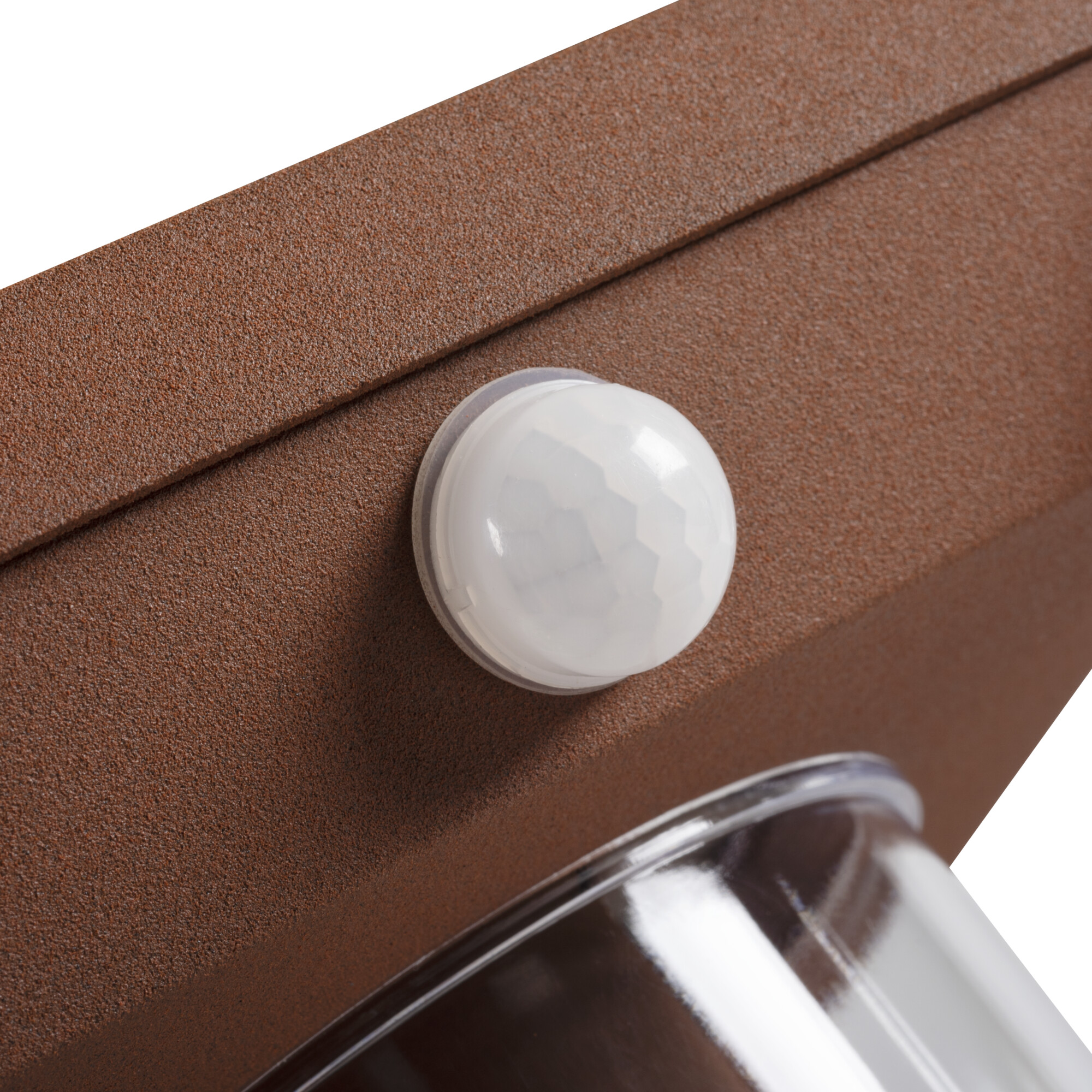

Sensor range[m] max 6

sensor working angle [°] 100

Sensor-operation time [second-minute] 10-7

Sensor type PIR

Movement detection yes

Sensitivity regulation

Illumination-level setpoint by which the sensor detects movement [lx] 10-2000

Minimum distance from the illuminated object 0,5m

Materials

Specification

Family card PDF, Size: 521.6 KB

Technical card PDF, Size: 594.34 KB

Support material PDF, Size: 5.65 MB

Handling and installation

User manual PDF, Size: 1.36 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 828.54 KB
