Kanlux Oświetlenie

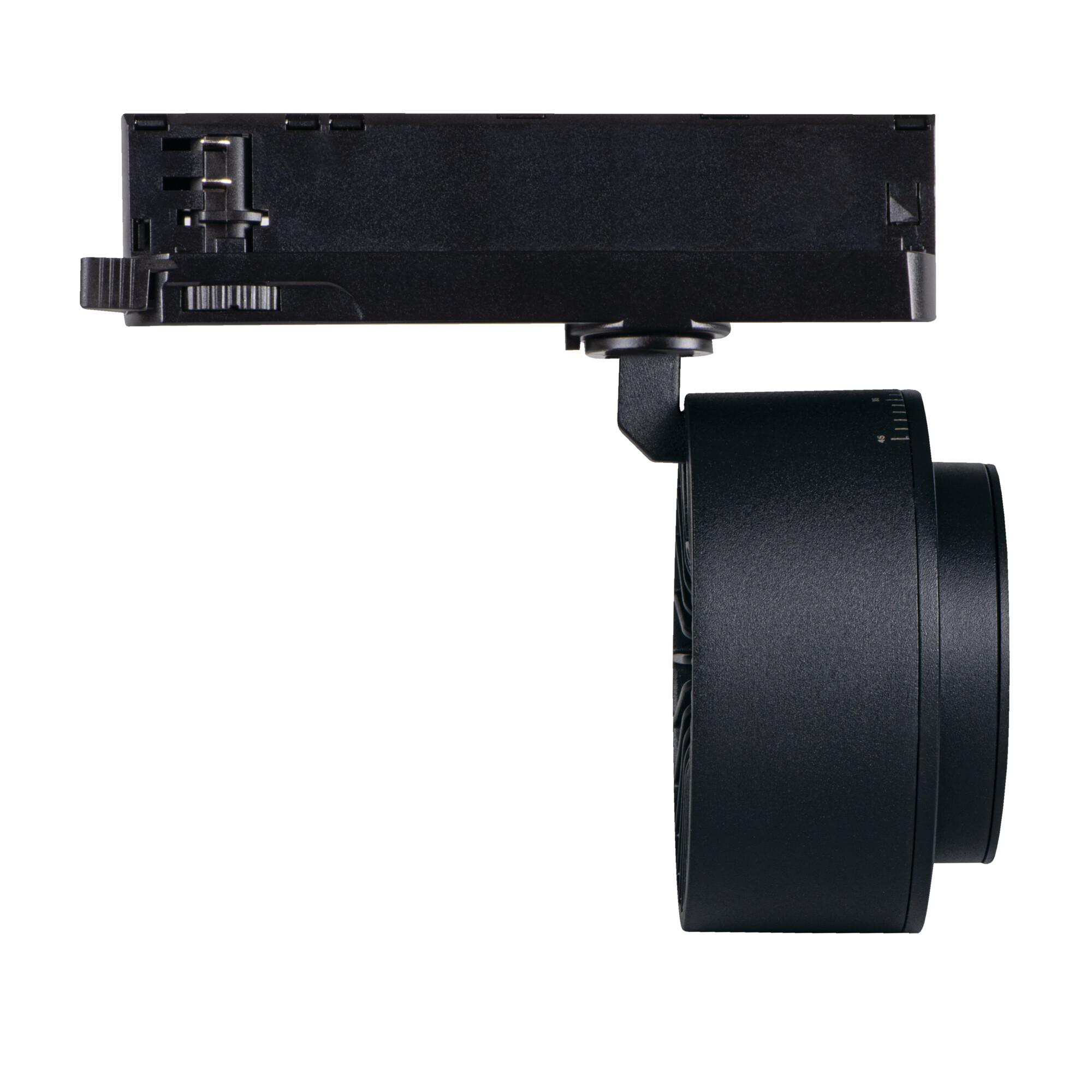

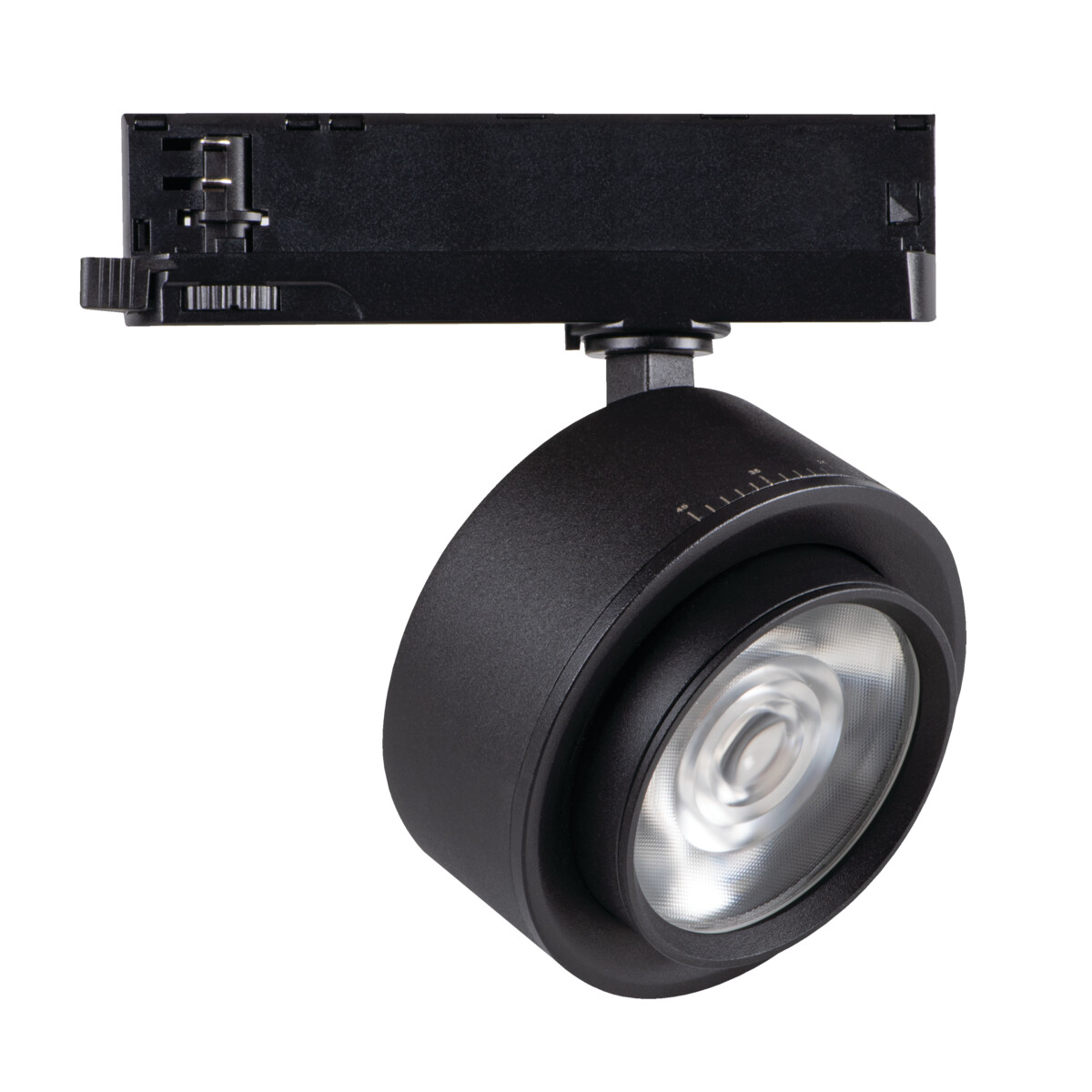

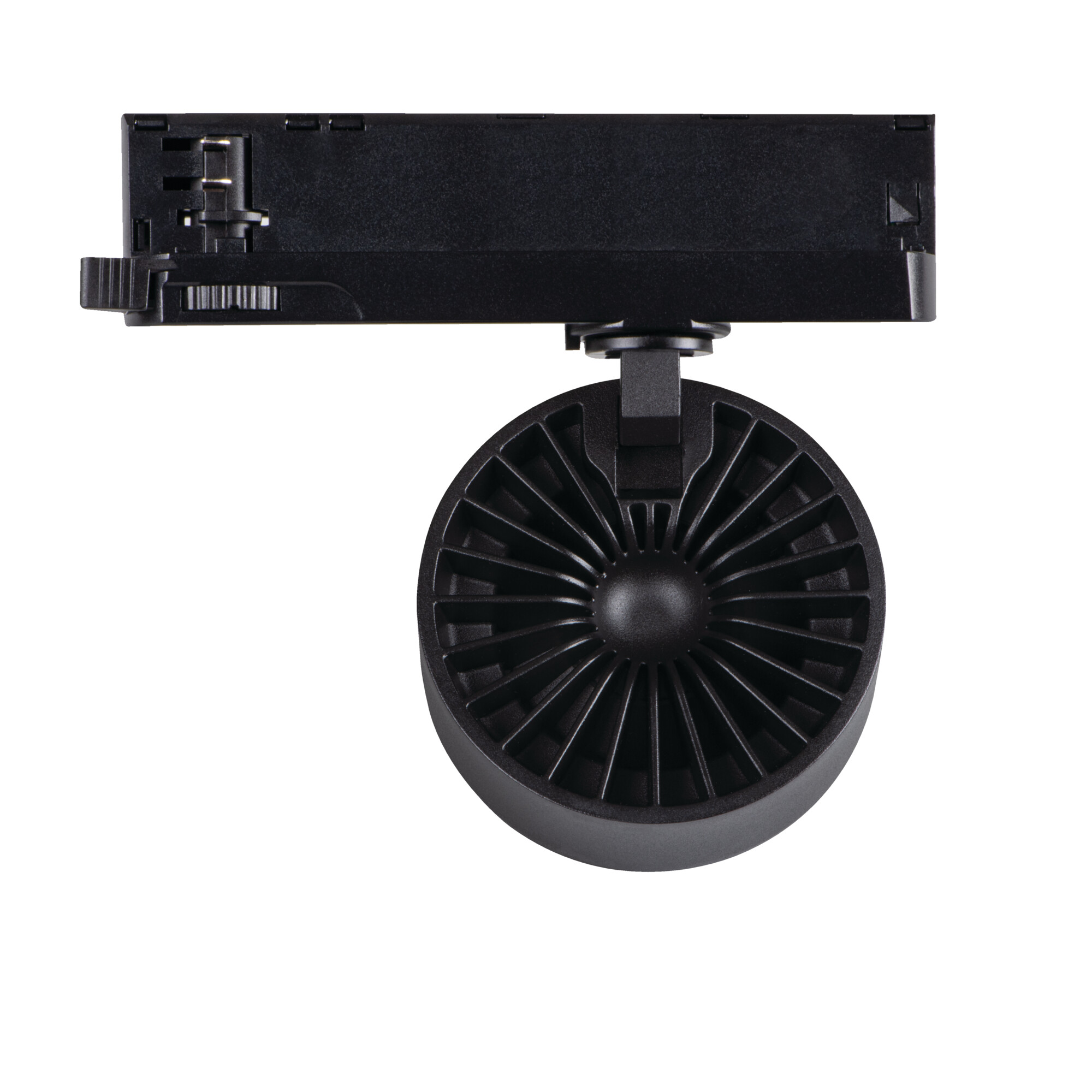

Rail-mounted projector BTL LED

BTL 18W-940-B

Product code: 35653 logo KANLUX

Kanlux BTL LED is a new design of luminaires adapted to the Kanlux TEAR system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter. Kanlux BTL are luminaires in the directional version with a lens and lighting angle adjustment in the range from 15⁰ to 45⁰. Optionally, a diffuser with a honeycomb structure that reduces glare can be used. In Kanlux BTL we can choose the power (18W 28W 38W), the color of the housing (white or black) and the color of light (warm or neutral). The Kanlux BTL series of luminaires has a high color rendering index Ra 90+, and their high quality is confirmed by a 5-year warranty.

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1750
Service life [h] 50000
Colour temperature [K] 4000
IP class 20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
Warranty [years] 5
EAN13 5905339356536
Enclosure material aluminum alloy

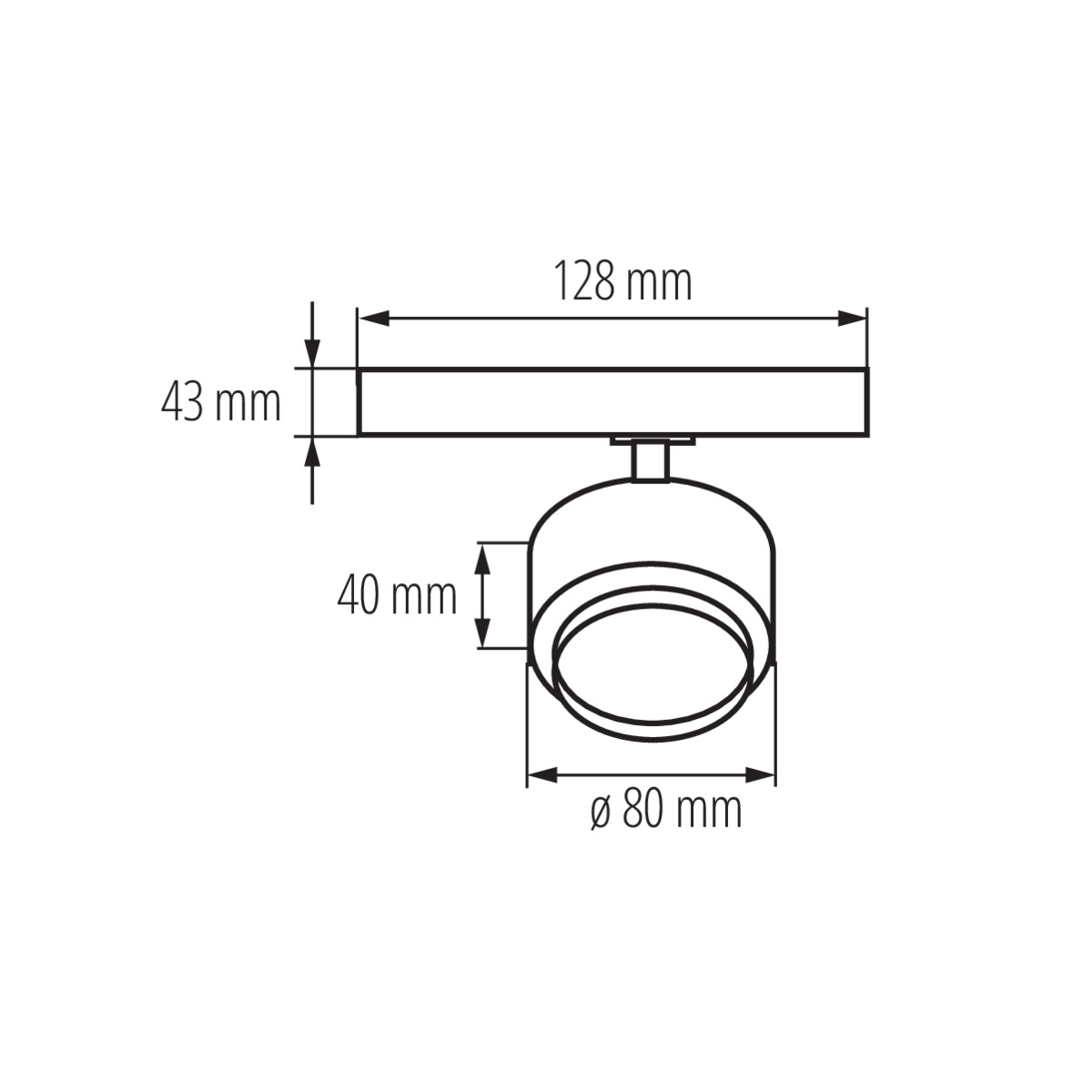

Weight and dimensions
Weight 332g
Sales unit piece
Outer box 30
Additional features
  • 5 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1750
Show more ▾
Lighting angle [°] 15-45
Number of on/off cycles ≥30000
Service life [h] 50000
Colour temperature [K] 4000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 90
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED COB
Colour temperature white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5+25
The fixture is movable horizontally [°] 340
The fixture is movable vertically [°] 90
Luminous efficiency of the lamp [lm/W] 97

Materials

Handling and installation
Catalogues, folders and leaflets
