BTL 38W-930-W

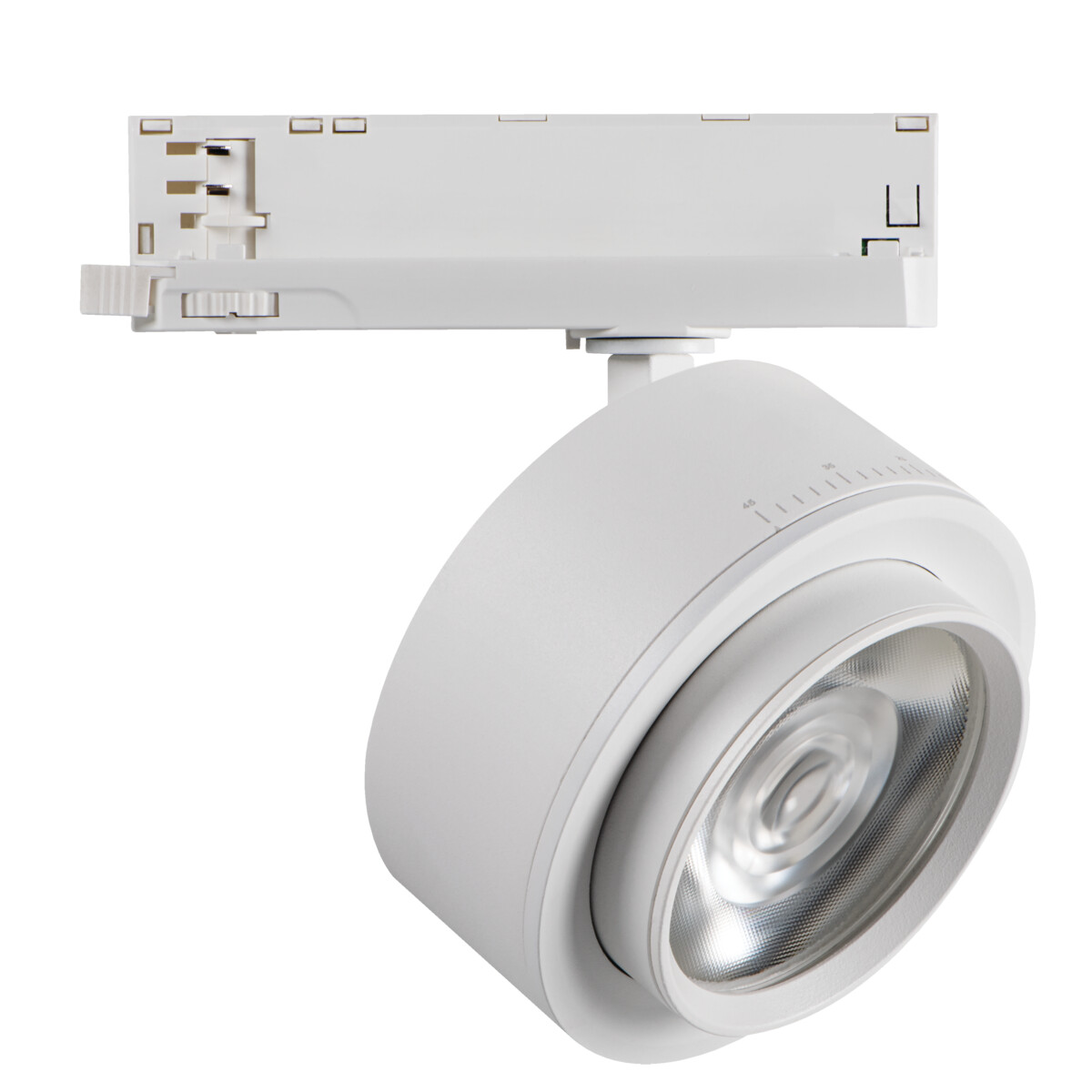

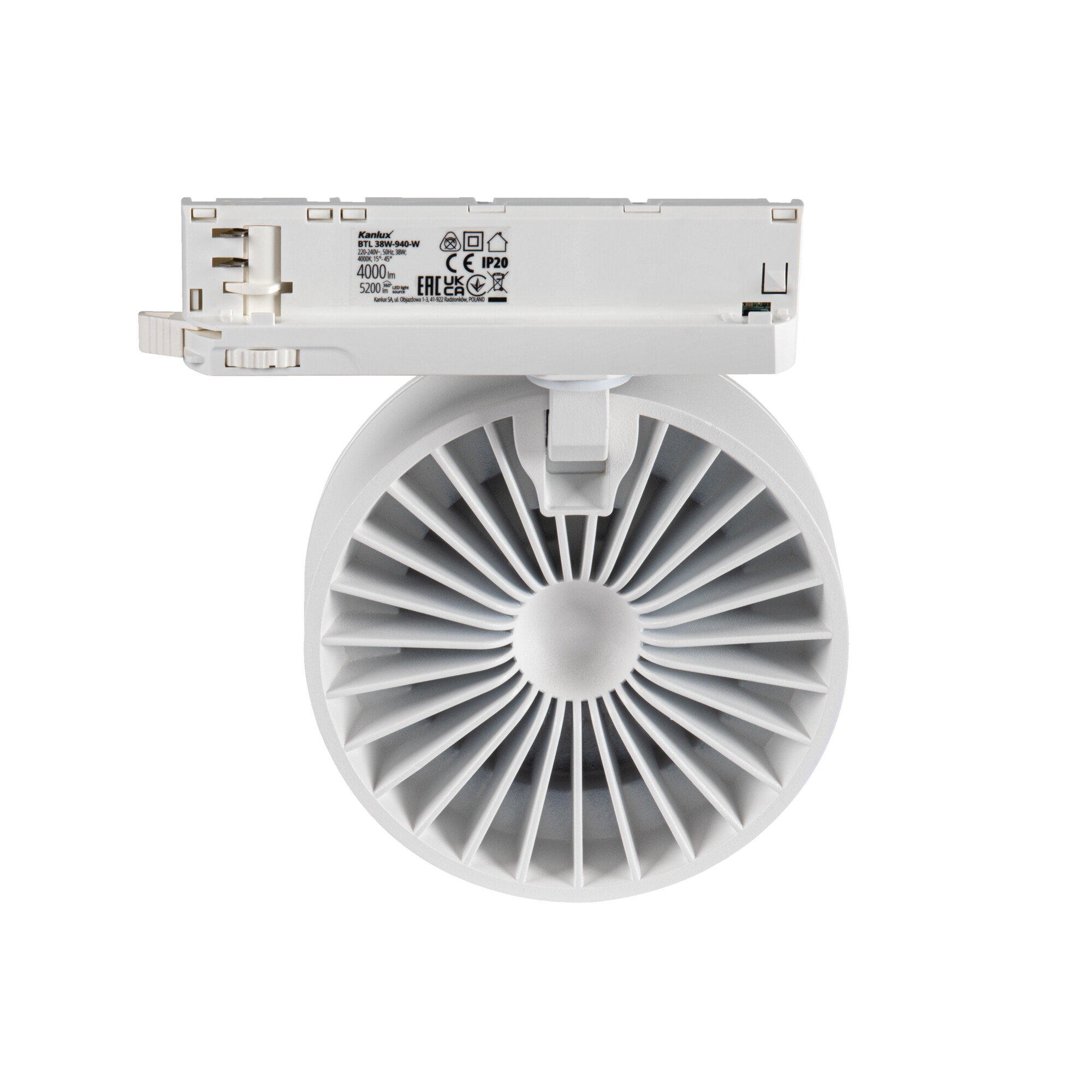

Rail-mounted projector BTL LED

BTL 38W-930-W

Product code: 35658 logo KANLUX

Kanlux BTL LED is a new design of luminaires adapted to the Kanlux TEAR system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter. Kanlux BTL are luminaires in the directional version with a lens and lighting angle adjustment in the range from 15⁰ to 45⁰. Optionally, a diffuser with a honeycomb structure that reduces glare can be used. In Kanlux BTL we can choose the power (18W 28W 38W), the color of the housing (white or black) and the color of light (warm or neutral). The Kanlux BTL series of luminaires has a high color rendering index Ra 90+, and their high quality is confirmed by a 5-year warranty.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 38

Luminous flux of the light fitting [lm] 4000

Service life [h] 50000

Colour temperature [K] 3000

IP class 20

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

Rail-mounted projector BTL LED BTL 18W-930-B Product code: 35651

Compare

Rail-mounted projector BTL LED BTL 18W-940-W Product code: 35652

Compare

Rail-mounted projector BTL LED BTL 18W-940-B Product code: 35653

Compare

Rail-mounted projector BTL LED BTL 28W-930-W Product code: 35654

Compare

Rail-mounted projector BTL LED BTL 28W-940-W Product code: 35656

Compare

Rail-mounted projector BTL LED BTL 28W-940-B Product code: 35657

Compare

Rail-mounted projector BTL LED BTL 38W-930-B Product code: 35659

Compare

Rail-mounted projector BTL LED BTL 38W-940-W Product code: 35660

Compare

Rail-mounted projector BTL LED BTL 38W-940-B Product code: 35661

Compare

Specification

General description

Warranty [years] 5

EAN13 5905339356581

Colour white

Enclosure material aluminum alloy

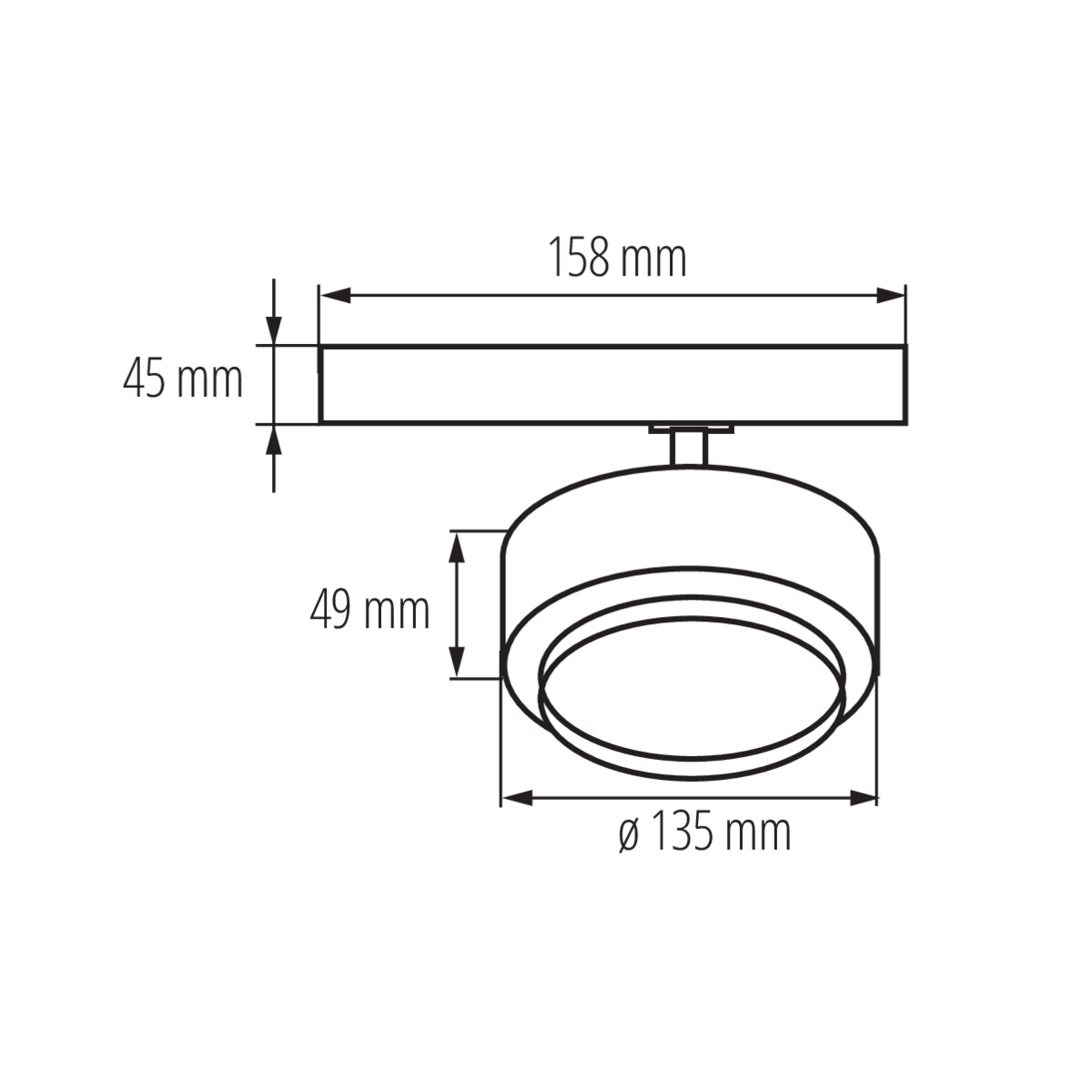

Weight and dimensions

Weight 788g

Sales unit piece

Outer box 12

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Colour white

Maximum power [W] 38

Show more ▾

Integrated LED light source

Luminous flux of the light fitting [lm] 4000

Lighting angle [°] 15-45

Number of on/off cycles ≥30000

Service life [h] 50000

Colour temperature [K] 3000

Colour uniformity [SDCM] ≤6

Colour-rendering index Ra 90

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED COB

Compatible with a dimmer no

Colour temperature Warm white

Class of protection against electric shock II

IP class 20

Ambient temperature range to which the product can be exposed 5+25

Place of assembly na szynę TEAR

The fixture is movable horizontally [°] 340

The fixture is movable vertically [°] 90

Minimum distance from the illuminated object 0,5m

Luminous efficiency of the lamp [lm/W] 105

Additional information Containing product (CP)
