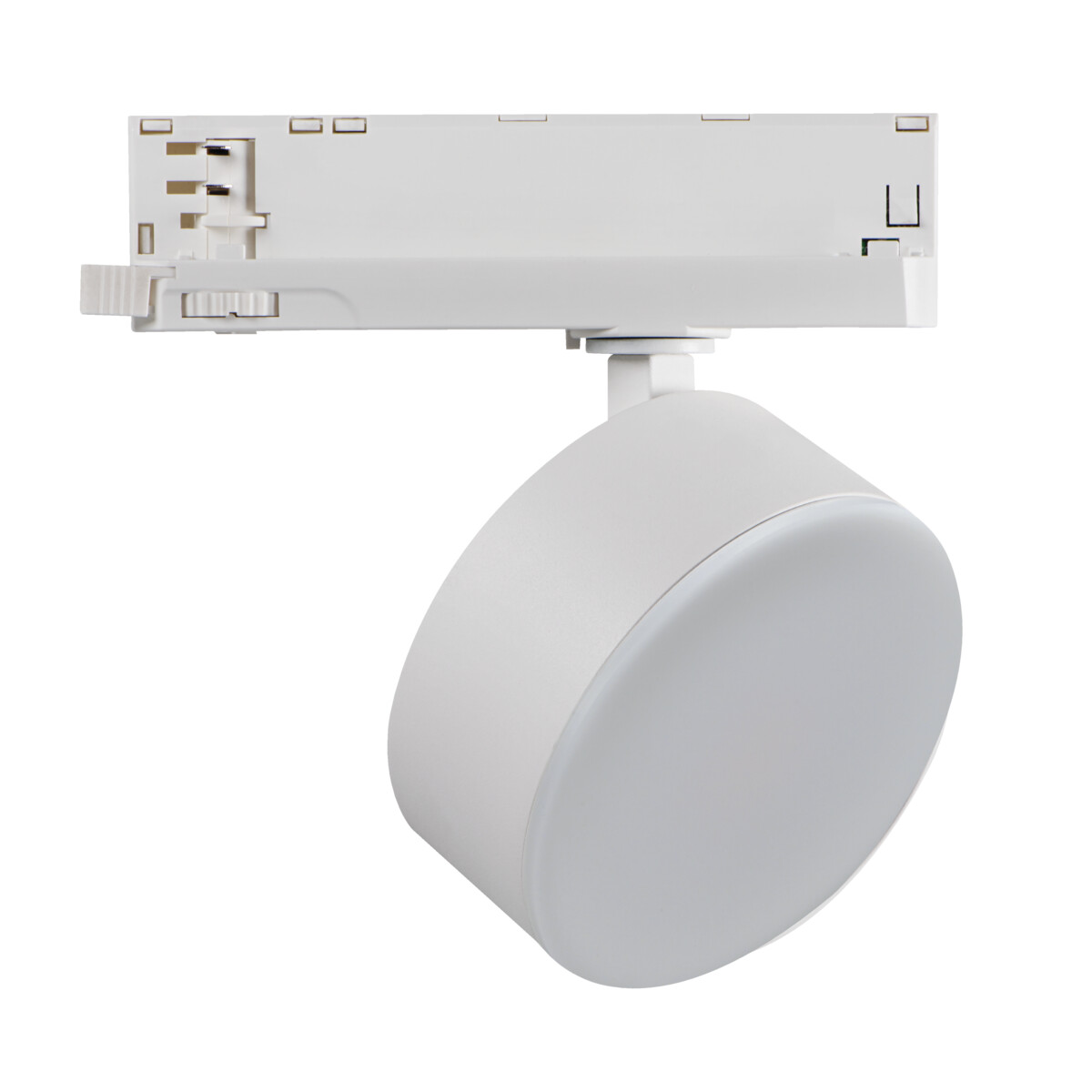

Rail-mounted projector BTLW LED

BTLW 18W-930-W

Product code: 35662 logo KANLUX

Kanlux BTLW LED is a new design of luminaires adapted to the Kanlux TEAR rail system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter. Kanlux BTLW are characterized by a milky lamp diffusing light, providing a wide viewing angle of 120⁰. They are available in 18W, two housing colors (white or black) and two light colors. They are perfect for home conditions, as general lighting and wherever a wide lighting beam angle of the luminaire is needed

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1450
Service life [h] 50000
Colour temperature [K] 3000
IP class 20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
Warranty [years] 5
EAN13 5905339356628
Enclosure material aluminum alloy

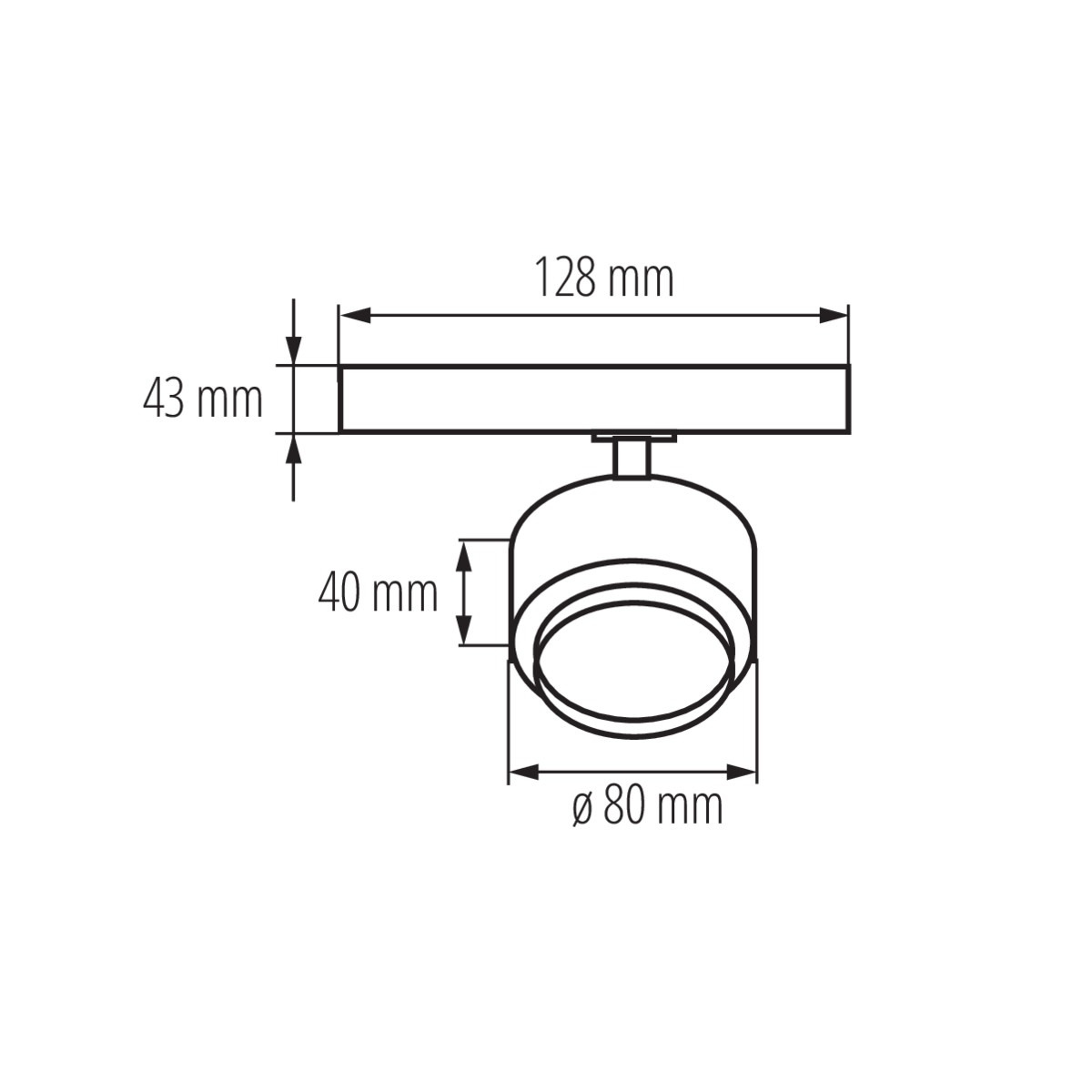

Weight and dimensions
Weight 260g
Sales unit piece
Outer box 30
Additional features
  • 5 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1450
Show more ▾
Lighting angle [°] 120
Number of on/off cycles ≥30000
Service life [h] 50000
Colour temperature [K] 3000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 90
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED COB
Colour temperature Warm white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5+25
The fixture is movable horizontally [°] 340
The fixture is movable vertically [°] 90
Luminous efficiency of the lamp [lm/W] 81
