BTLW 18W-930-B

BTLW 18W-930-B Kanlux
Miniatura BTLW 18W-930-B - KANLUX Miniatura aranżacji BTLW 18W-930-B Miniatura aranżacji BTLW 18W-930-B Miniatura aranżacji BTLW 18W-930-B Miniatura schematu BTLW 18W-930-B

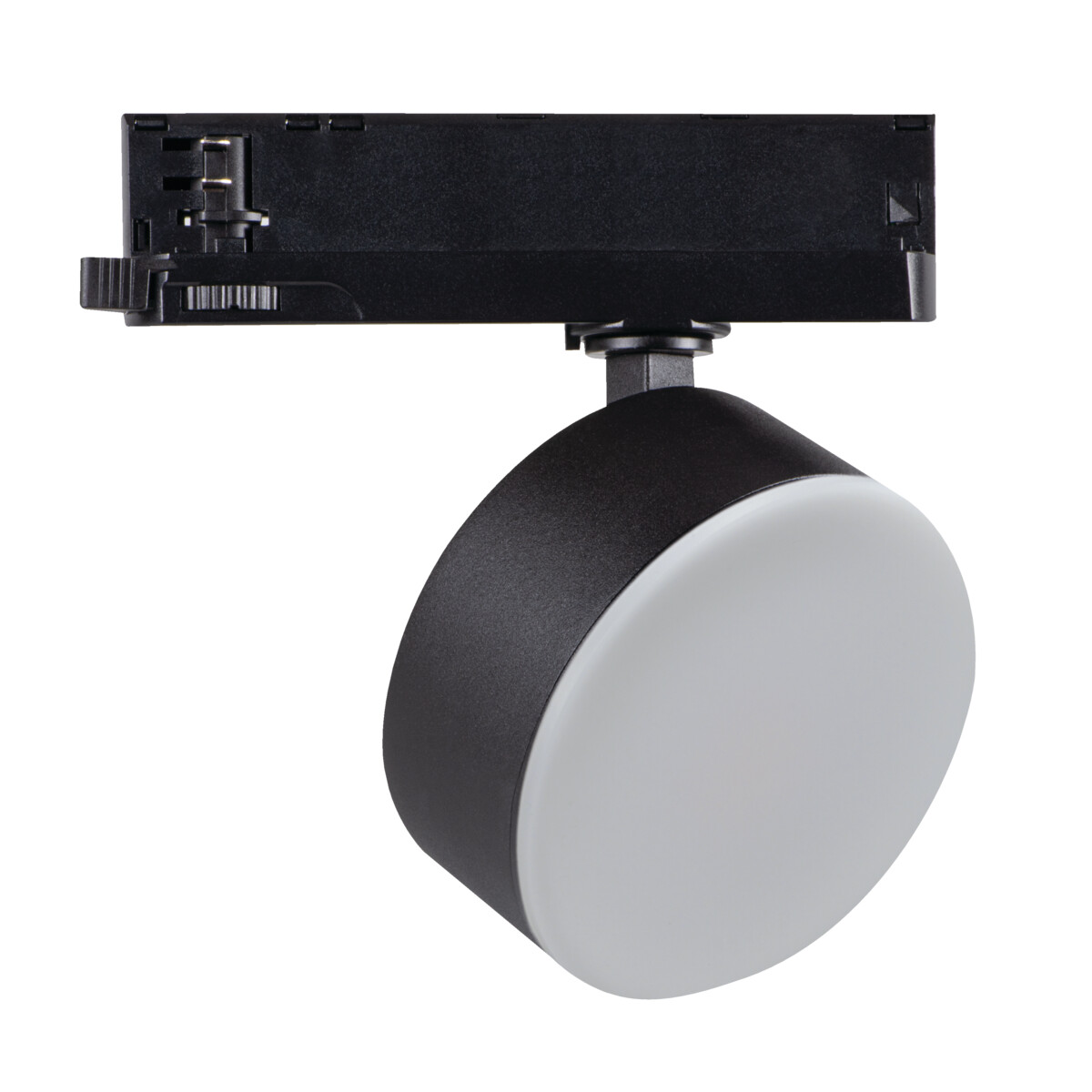

Rail-mounted projector BTLW LED

BTLW 18W-930-B

Product code: 35663 logo KANLUX

Kanlux BTLW LED is a new design of luminaires adapted to the Kanlux TEAR rail system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter. Kanlux BTLW are characterized by a milky lamp diffusing light, providing a wide viewing angle of 120⁰. They are available in 18W, two housing colors (white or black) and two light colors. They are perfect for home conditions, as general lighting and wherever a wide lighting beam angle of the luminaire is needed

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1400
Service life [h] 50000
Colour temperature [K] 3000
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
BTLW 18W-930-W - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-930-W Product code: 35662

logo KANLUX
BTLW 18W-940-W - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-940-W Product code: 35664

logo KANLUX
BTLW 18W-940-B - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-940-B Product code: 35665

Specification

General description
Warranty [years] 5
EAN13 5905339356635
Colour black
Enclosure material aluminum alloy

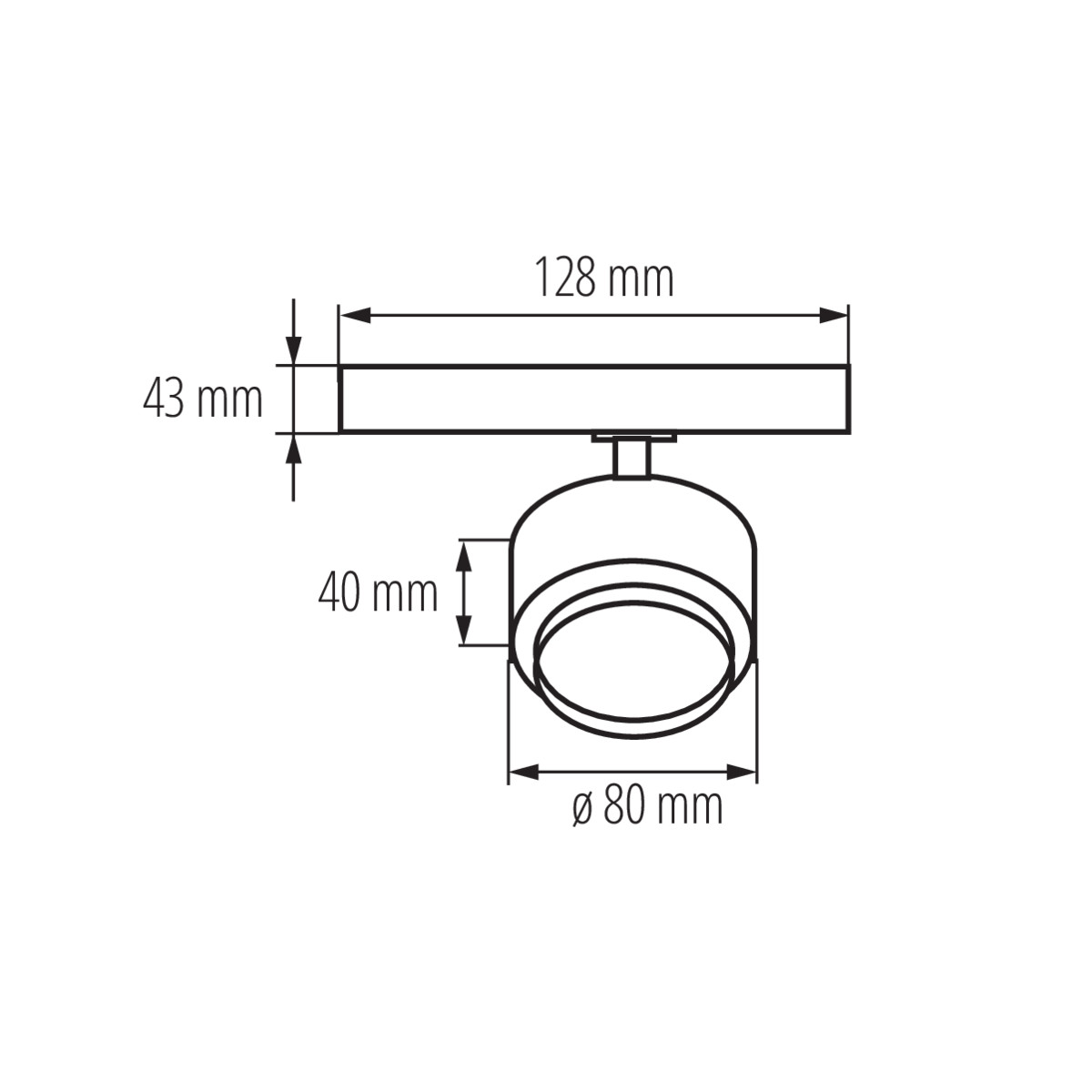

Weight and dimensions
Weight 260g
Sales unit piece
Outer box 30
Additional features
  • 5 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour black
Maximum power [W] 18
Show more ▾
Integrated LED light source
Luminous flux of the light fitting [lm] 1400
Lighting angle [°] 120
Number of on/off cycles ≥30000
Service life [h] 50000
Colour temperature [K] 3000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 90
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED COB
Compatible with a dimmer no
Colour temperature Warm white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5+25
Place of assembly na szynę TEAR
The fixture is movable horizontally [°] 340
The fixture is movable vertically [°] 90
Minimum distance from the illuminated object 0,5m
Luminous efficiency of the lamp [lm/W] 78

Materials

Specification
Family card PDF, Size: 353.13 KB
Technical card PDF, Size: 611.65 KB
Support material PDF, Size: 4.16 MB
Drawings and 3D models
3ds MAX 3DS, Size:191.1 KB
Autocad 3D DWG, Size:472.97 KB
Material library MTL, Size:605 B
Object 3D OBJ, Size:643.79 KB
Filmbox FBX, Size:265.79 KB
Photometric data
File ldt - BTLW 18W-930-B LDT, Size: 2.82 KB
File ies - BTLW 18W-930-B IES, Size: 2.47 KB
Handling and installation
User manual PDF, Size: 1.46 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 813.56 KB
Catalogues, folders and leaflets
Track lights 2024 folder PDF, Size: 5.94 MB
