BTLW 18W-940-W

BTLW 18W-940-W Kanlux
Miniatura BTLW 18W-940-W - KANLUX Miniatura aranżacji BTLW 18W-940-W Miniatura aranżacji BTLW 18W-940-W Miniatura schematu BTLW 18W-940-W

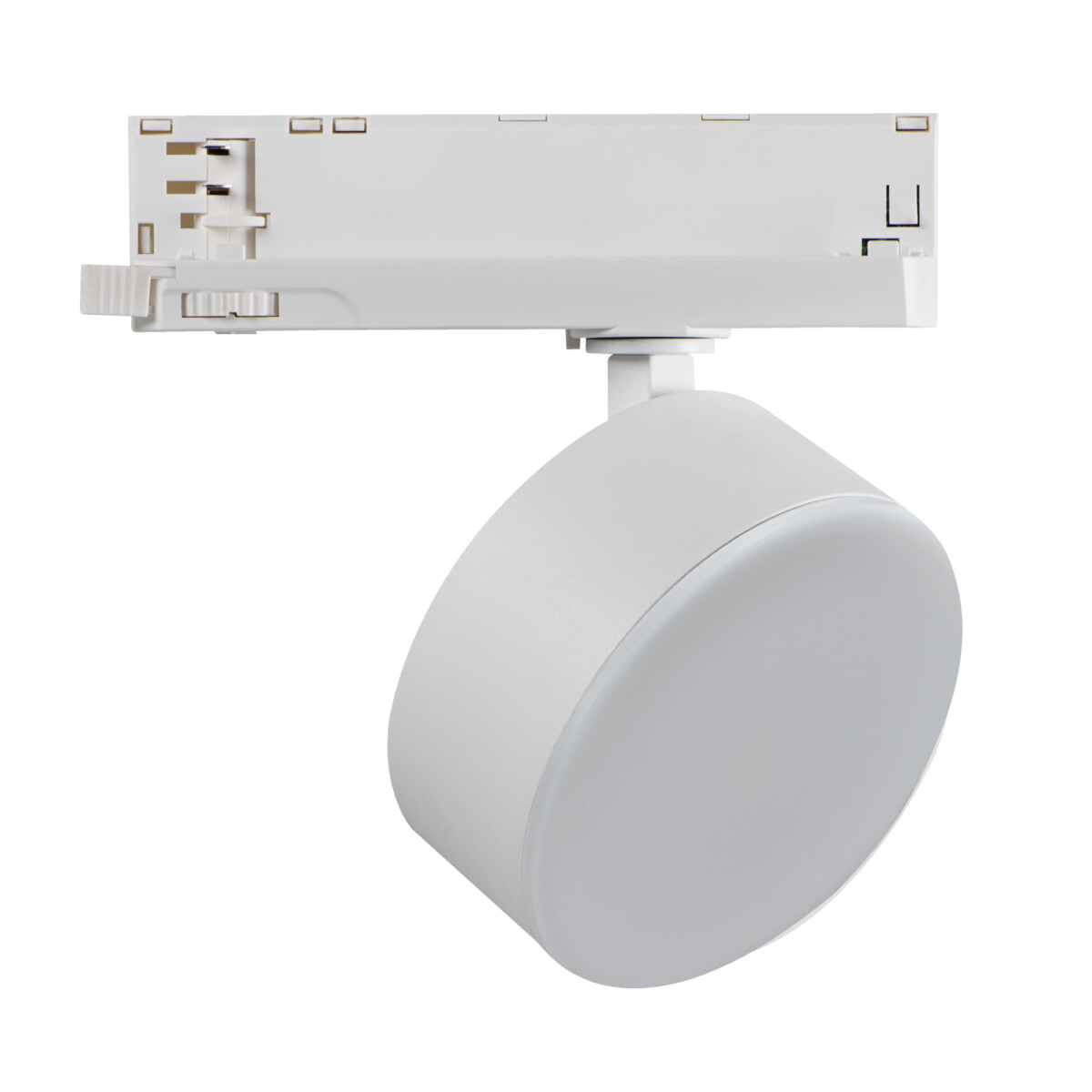

Rail-mounted projector BTLW LED

BTLW 18W-940-W

Product code: 35664 logo KANLUX

Kanlux BTLW LED is a new design of luminaires adapted to the Kanlux TEAR rail system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter. Kanlux BTLW are characterized by a milky lamp diffusing light, providing a wide viewing angle of 120⁰. They are available in 18W, two housing colors (white or black) and two light colors. They are perfect for home conditions, as general lighting and wherever a wide lighting beam angle of the luminaire is needed

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] 18
Luminous flux of the light fitting [lm] 1450
Service life [h] 50000
Colour temperature [K] 4000
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
BTLW 18W-930-W - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-930-W Product code: 35662

logo KANLUX
BTLW 18W-930-B - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-930-B Product code: 35663

logo KANLUX
BTLW 18W-940-B - KANLUX
Rail-mounted projector BTLW LED BTLW 18W-940-B Product code: 35665

Specification

General description
Warranty [years] 5
EAN13 5905339356642
Colour white
Enclosure material aluminum alloy
Weight and dimensions
Weight 260g
Sales unit piece
Outer box 30
Additional features
  • 5 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Maximum power [W] 18
Show more ▾
Integrated LED light source
Luminous flux of the light fitting [lm] 1450
Lighting angle [°] 120
Number of on/off cycles ≥30000
Service life [h] 50000
Colour temperature [K] 4000
Colour uniformity [SDCM] ≤6
Colour-rendering index Ra 90
Lamp-ignition time [s] ≤0,5
Lamp-heating time [s] ≤1
Diode type LED COB
Compatible with a dimmer no
Colour temperature white
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5+25
Place of assembly na szynę TEAR
The fixture is movable horizontally [°] 340
The fixture is movable vertically [°] 90
Minimum distance from the illuminated object 0,5m
Luminous efficiency of the lamp [lm/W] 81
Additional information Containing product (CP)

Materials

Specification
Family card PDF, Size: 353.13 KB
Technical card PDF, Size: 512.84 KB
Support material PDF, Size: 4.16 MB

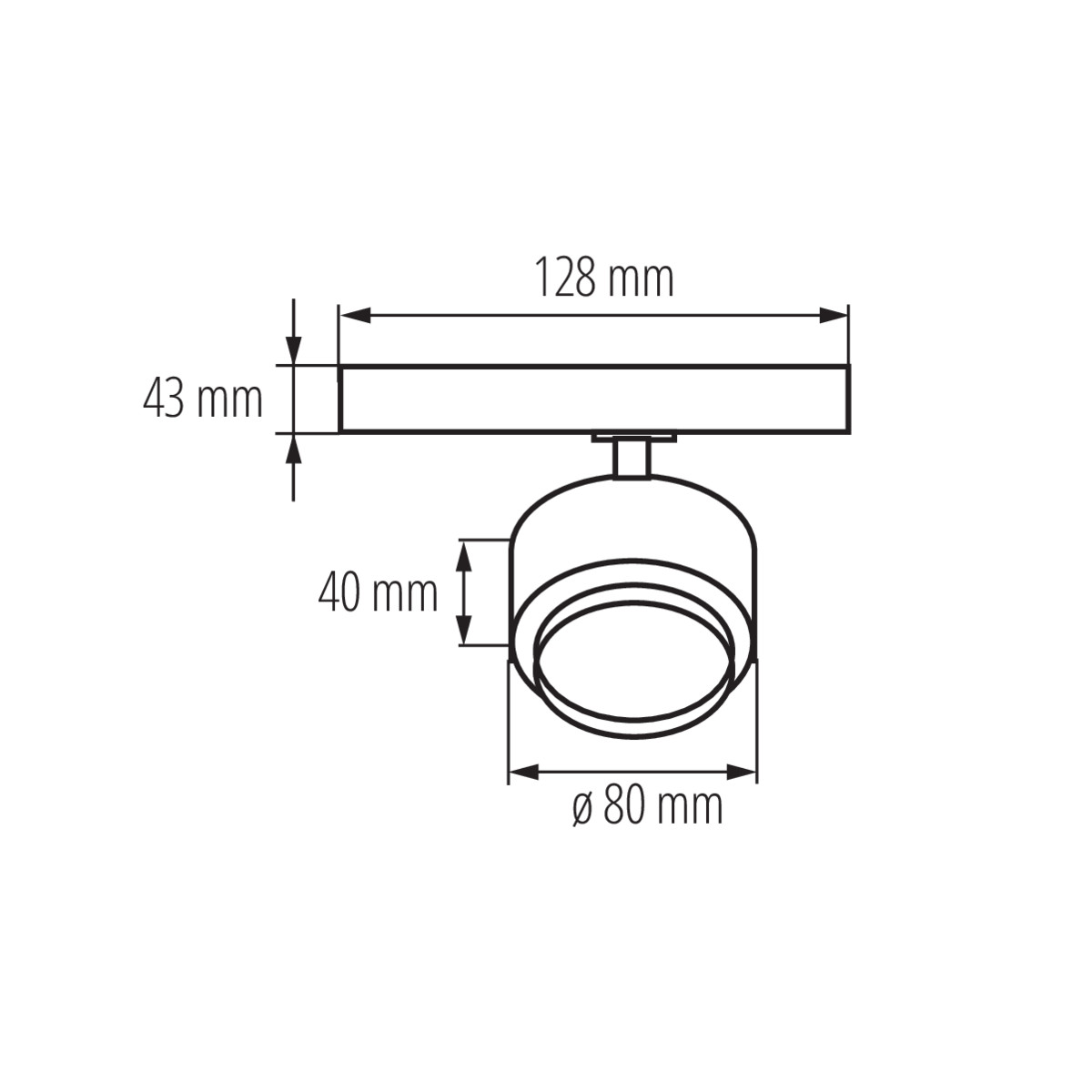

Drawings and 3D models
3ds MAX 3DS, Size:191.1 KB
Autocad 3D DWG, Size:472.97 KB
Material library MTL, Size:605 B
Object 3D OBJ, Size:643.79 KB
Filmbox FBX, Size:265.87 KB
Photometric data
File ldt - BTLW 18W-940-W LDT, Size: 2.82 KB
File ies - BTLW 18W-940-W IES, Size: 2.47 KB
Handling and installation
User manual PDF, Size: 1.46 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 813.56 KB
Catalogues, folders and leaflets
Track lights 2024 folder PDF, Size: 5.94 MB

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.

OPRAWA LED BTLW 18W-940-W

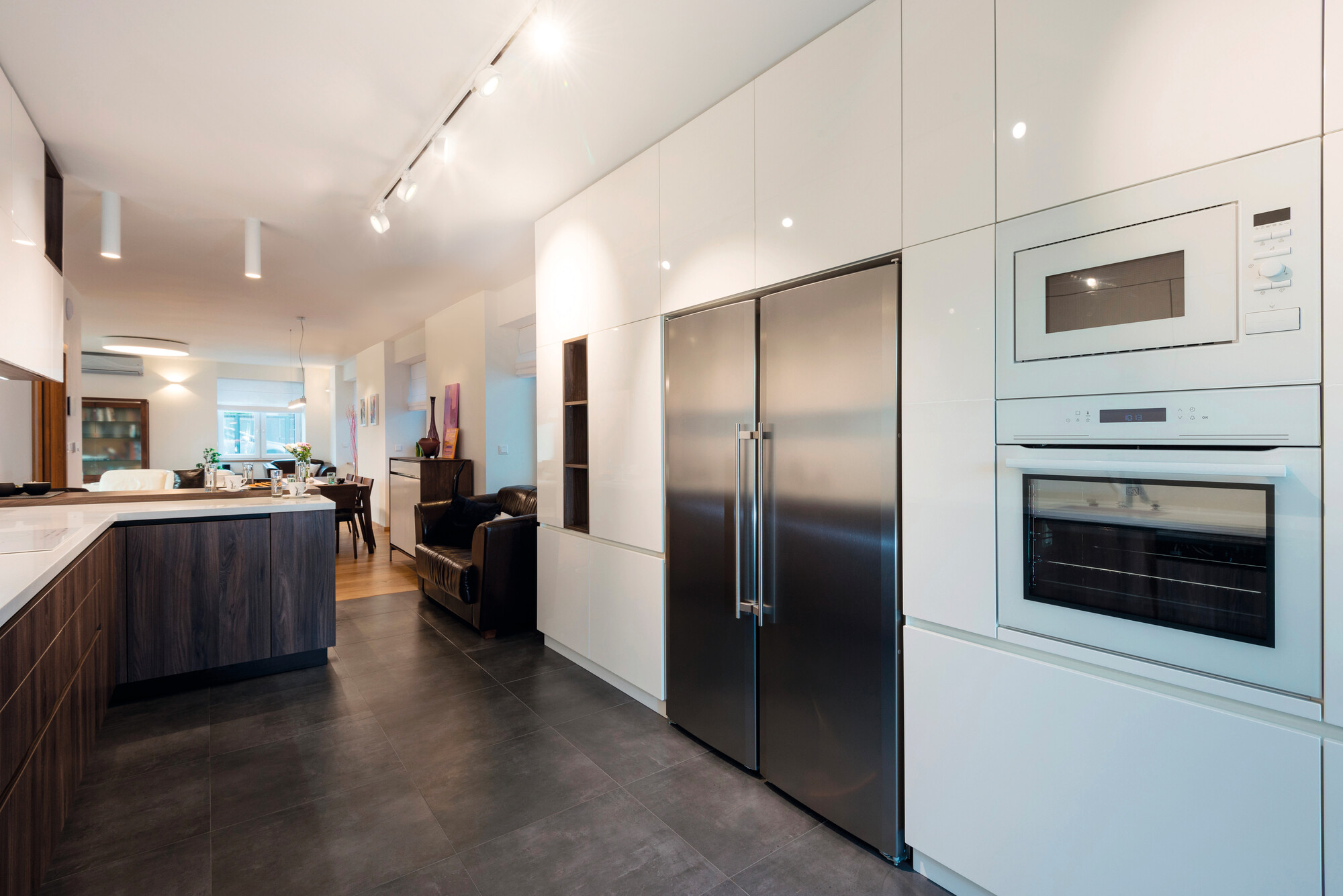

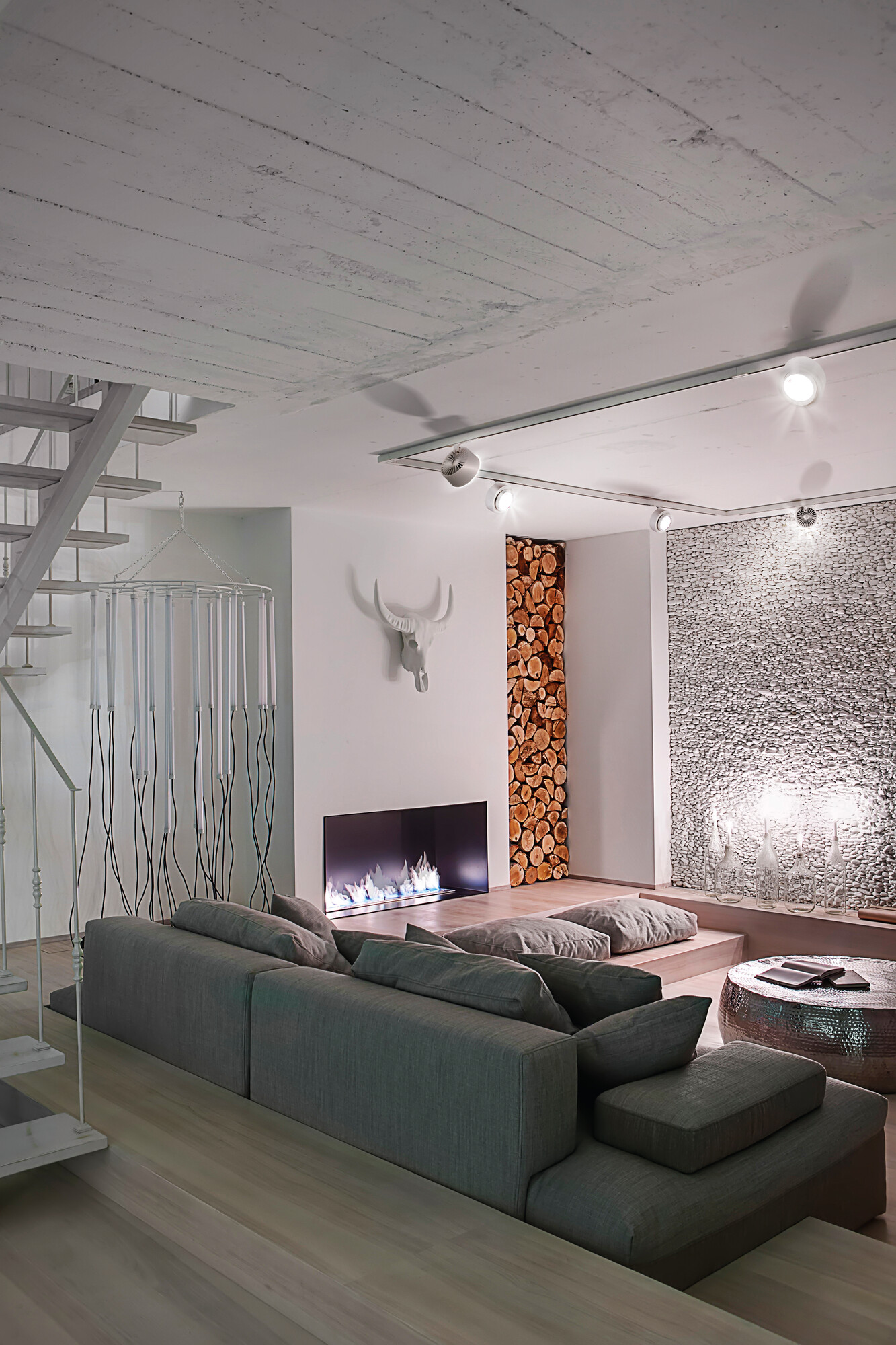

Aranżacja BTLW 18W-940-W Aranżacja BTLW 18W-940-W
