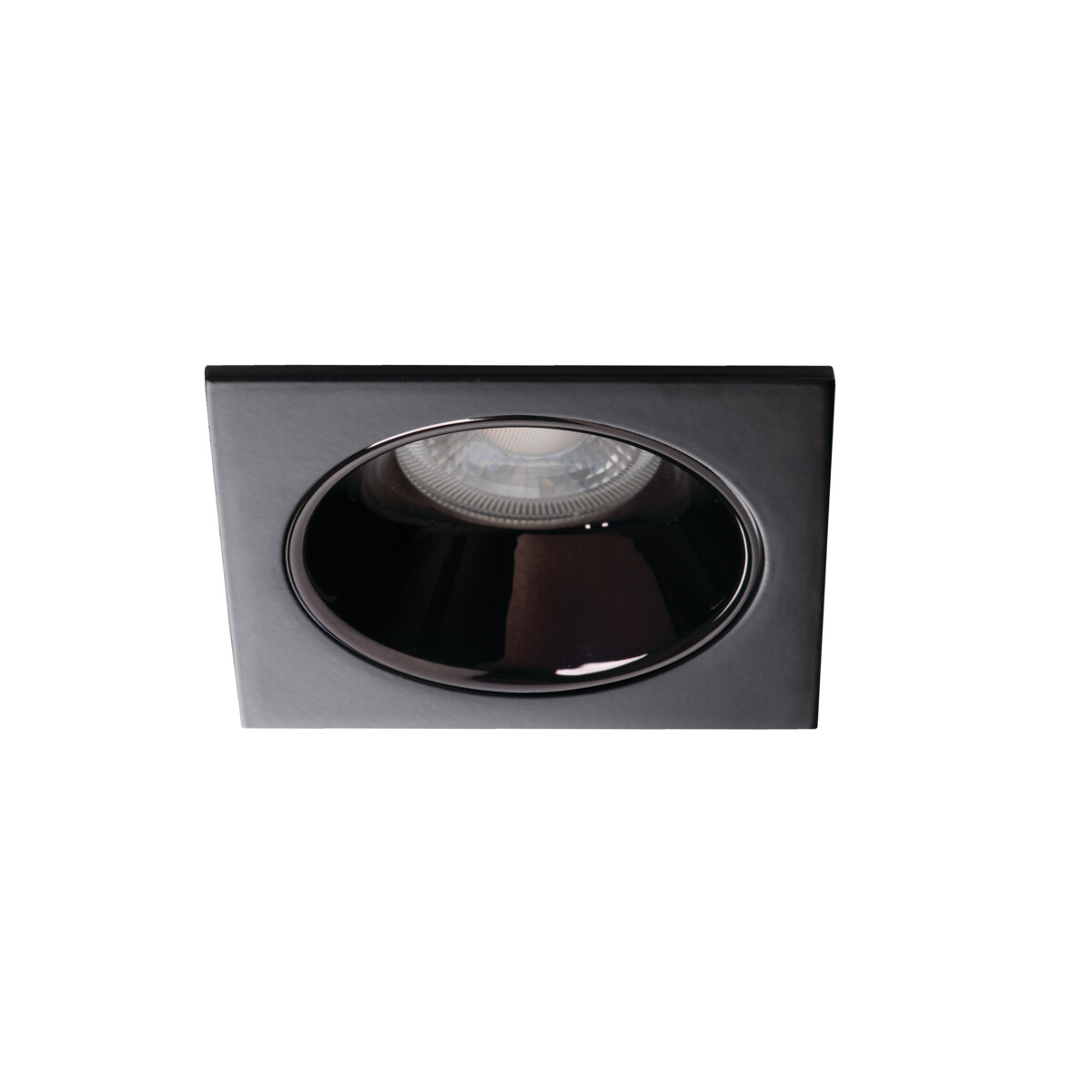

Ring for spotlight fittings GLOZO DSL

GLOZO DSL B/B

Product code: 36215 logo KANLUX

Kanlux GLOZO is a large family of decorative rings. They have a modular housing: a base in two shapes and colors and a reflector in 4 colors in mat or mirror finish. It gives us a lot of possibilities to arrange the combination of the same or different color solutions.

Product presentation
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Maximum power [W] max 10
Cap Gx5,3/GU10
IP class 20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Together better

Select complementary products

Specification

General description
Warranty [years] 2
EAN13 5905339362155
Colour black
Enclosure material aluminum alloy

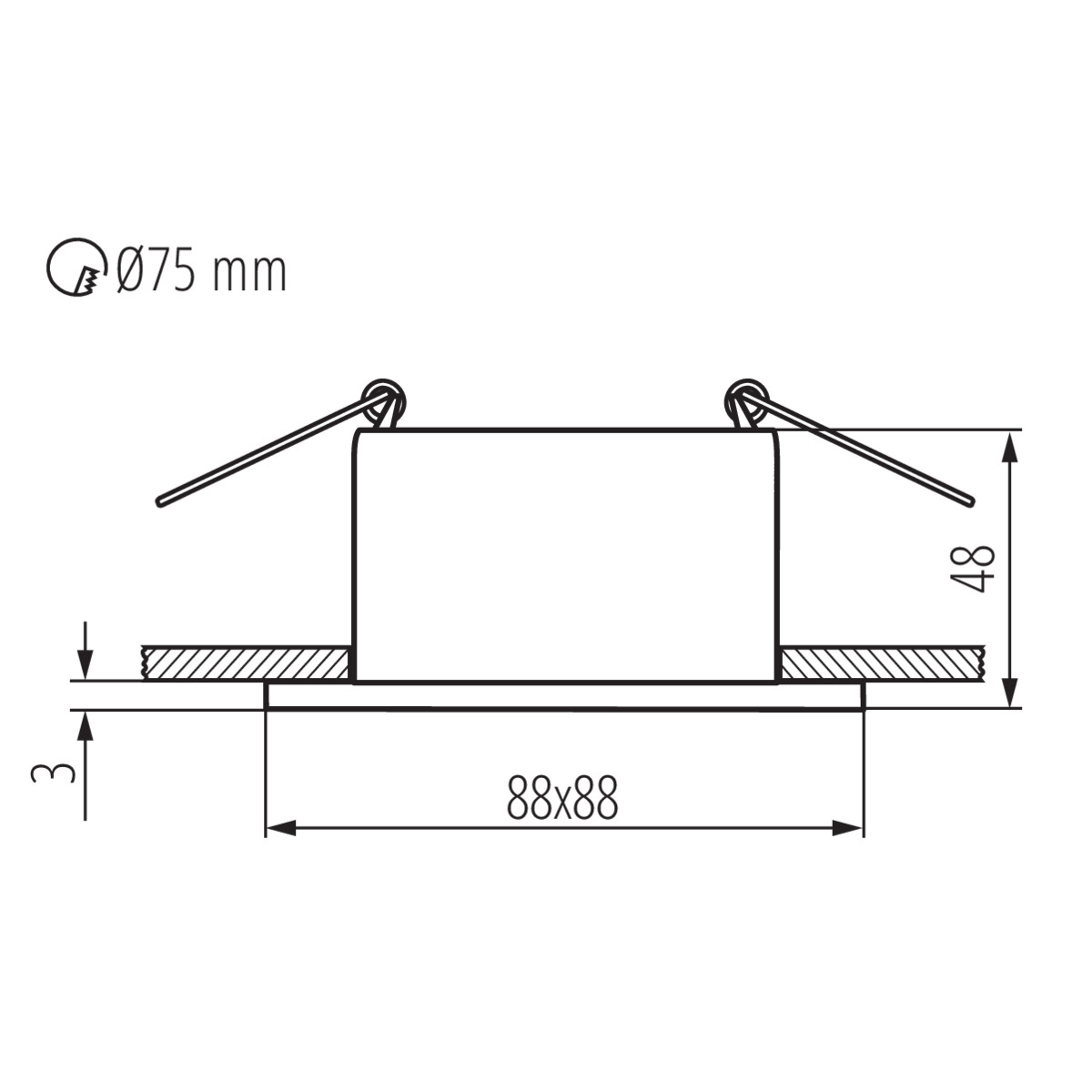

Weight and dimensions
Height [mm] 48
Width [mm] 88
Length [mm] 88
Weight 82g
Sales unit piece
Outer box 50
Additional features
  • Decorative ring without a ceramic frame
Technical data
Rated voltage [V] 12 AC; 12 DC; 220-240 AC
Decorative ring without a ceramic frame
Show more ▾
Colour black
Maximum power [W] max 10
Replaceable light source yes
Cap Gx5,3/GU10
Class of protection against electric shock II/III
Place of assembly Recessed mount in the ceiling
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Lighting-fixture angle regulation none
Wielkość otworu montażowego [mm] Ø75
The product is not suitable to be covered with a heat-insulating material
Minimum distance from the illuminated object 0,5m
Light source included no
Light source MR16/PAR16
Shape square
