LAVEN EL 28 SE-GR

Miniatura LAVEN EL 28 SE-GR - KANLUX

Miniatura LAVEN EL 28 SE-GR - KANLUX

Miniatura LAVEN EL 28 SE-GR - KANLUX

Miniatura schematu LAVEN EL 28 SE-GR

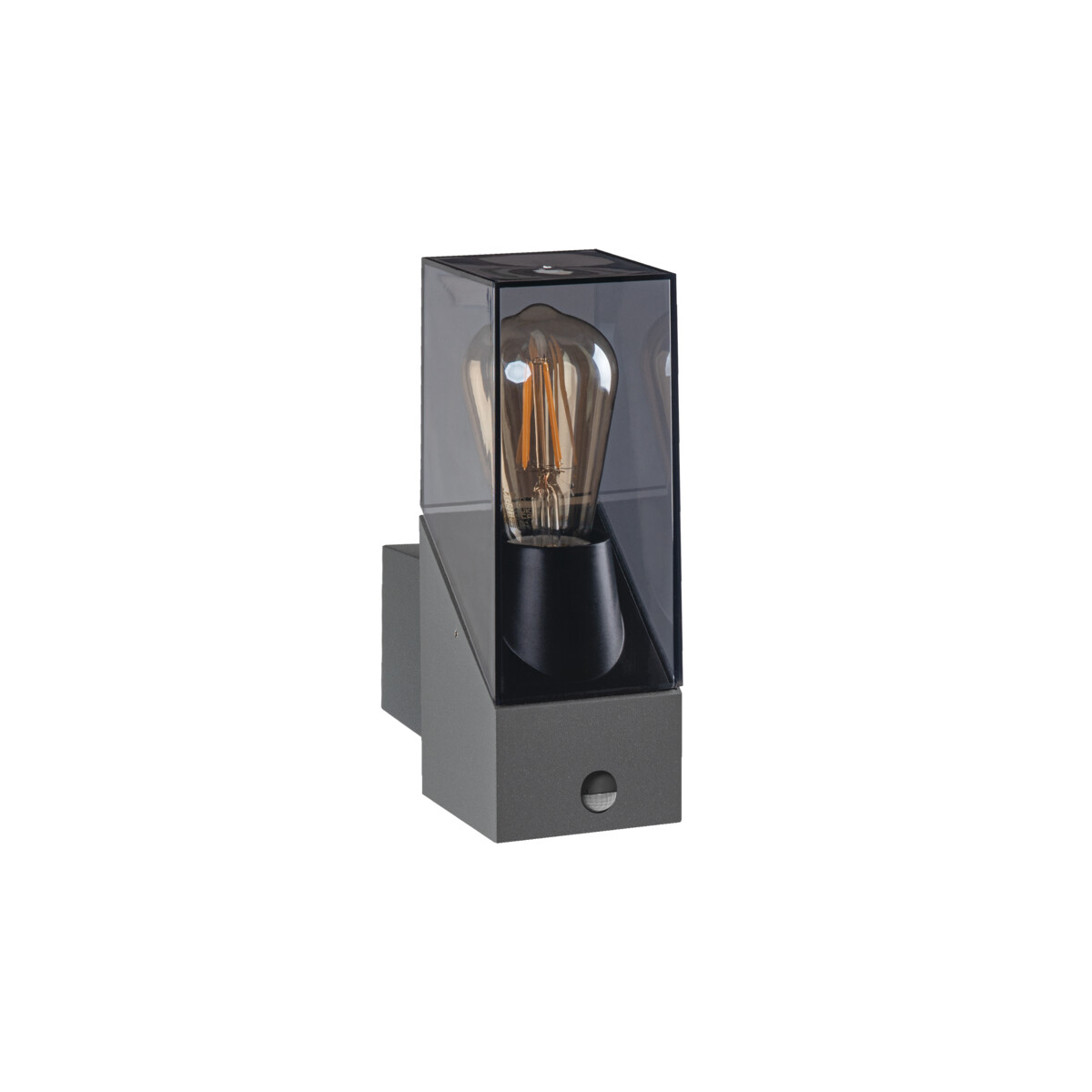

Garden light fitting with replaceable light source LAVEN

LAVEN EL 28 SE-GR

Product code: 36547 logo KANLUX

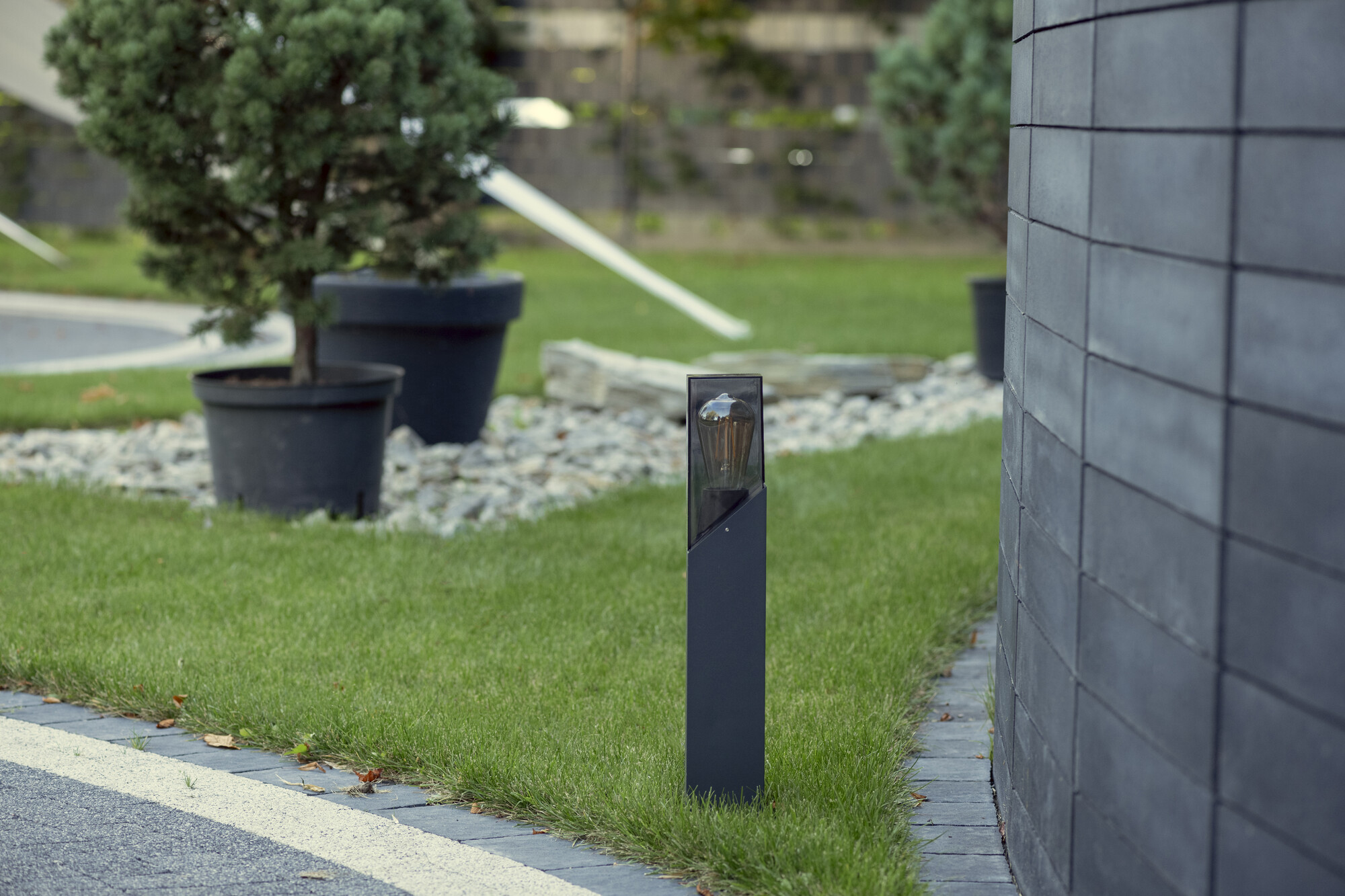

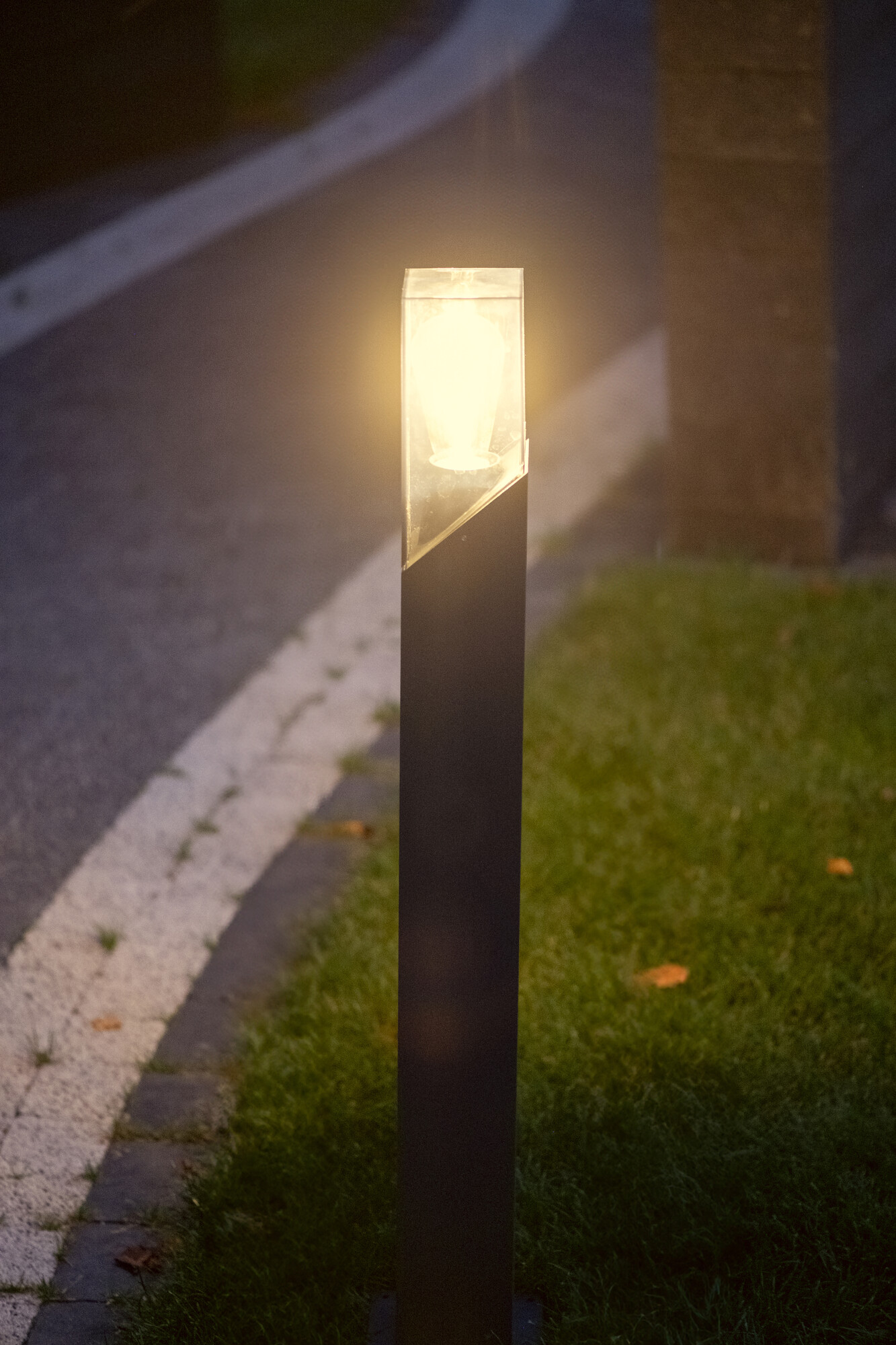

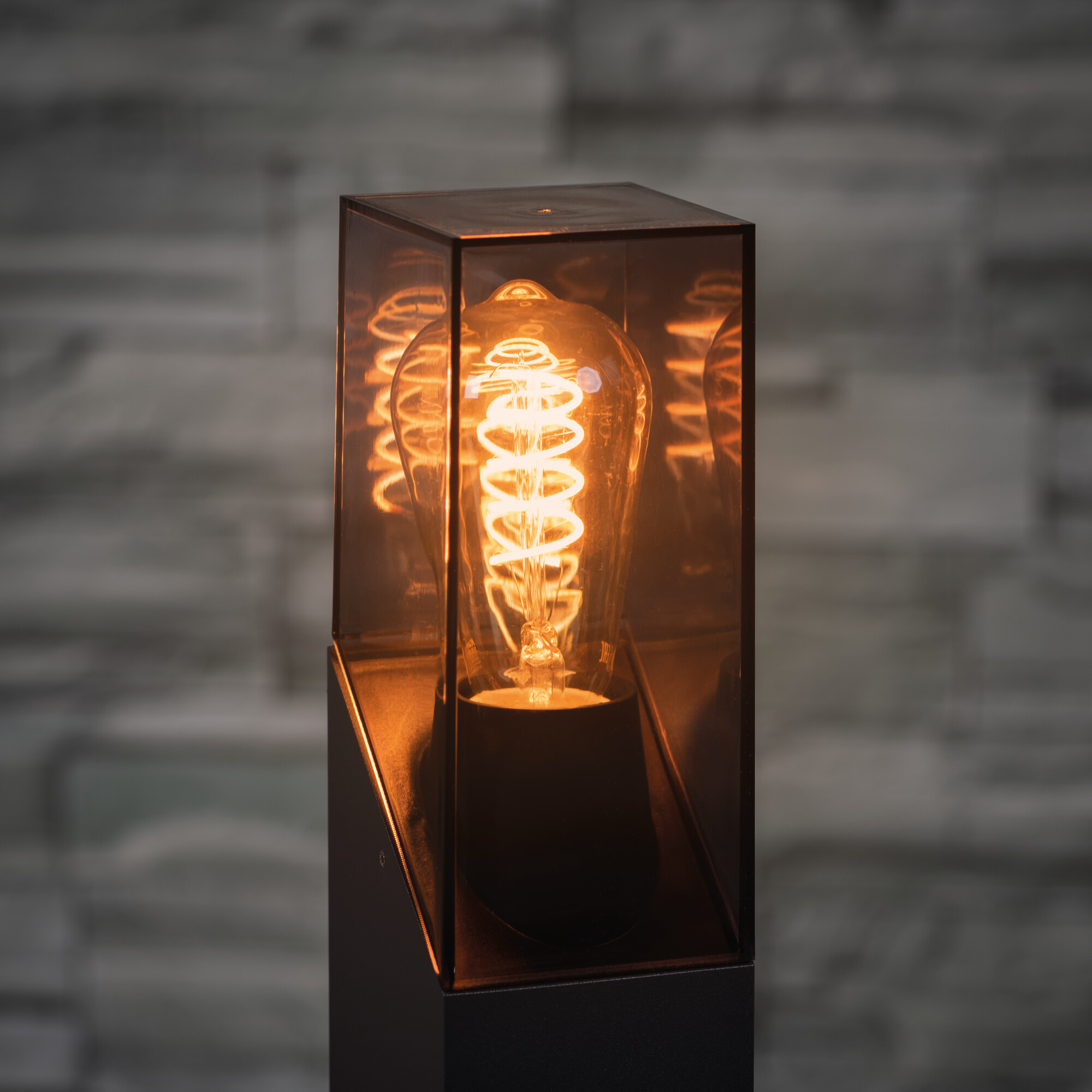

Kanlux LAVEN is exceptionally elegant outdoor lighting. Those garden lamps are a unique design based on a smoked lampshade connected to the rest of the luminaire with a diagonal rope. Their unique style is emphasised by filament LED light sources - especially in a warm colour. The flange at the base of the Kanlux LAVEN posts makes it easier to fix the lamp in the ground. In the family of those luminaires, there are two posts: 50 and 80 cm, and two wall-mounted luminaires, one of which (SE) has a built-in motion and twilight sensor.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] max 10

Light source LED

Cap E27

IP class 44

Colour graphite

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339365477

Colour graphite

Enclosure material aluminum alloy

Lampshade material PC

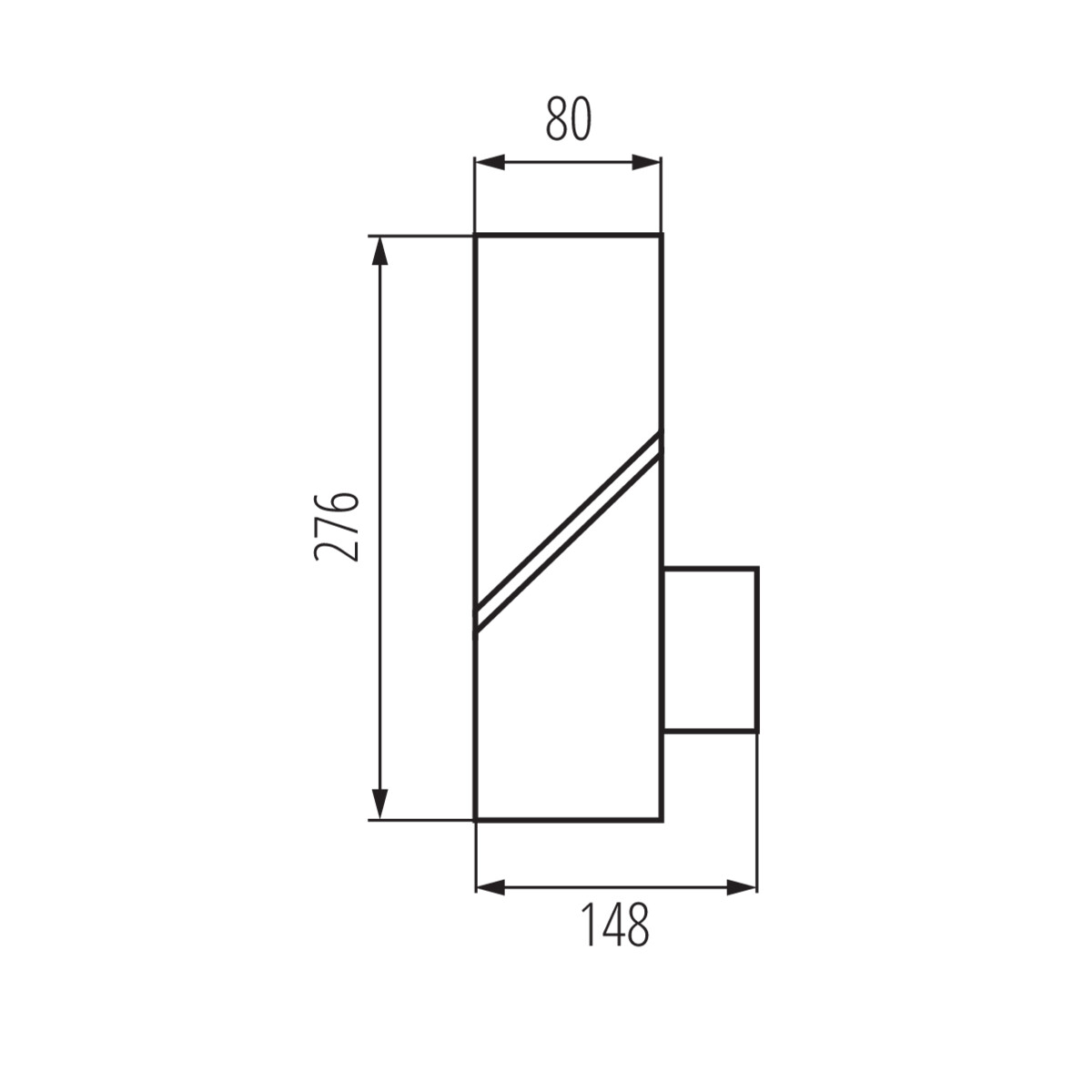

Weight and dimensions

Height [mm] 276

Width [mm] 80

Length [mm] 148

Weight 770g

Sales unit piece

Outer box 8

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour graphite

Maximum power [W] max 10

Light source included no

Light source LED

Replaceable light source yes

Cap E27

Class of protection against electric shock I

IP class 44

Ambient temperature range to which the product can be exposed -20+35

Place of assembly wall mounted

Connection type Bolt terminal block

Range of sections of wires used [mm2] 0,5-1

Sensor range[m] max 12

sensor working angle [°] 110

Sensor-operation time [second-minute] 10-5

Sensor type PIR

Movement detection yes

Sensitivity regulation

Illumination-level setpoint by which the sensor detects movement [lx] 10-2000

RAL 7016

Minimum distance from the illuminated object 0,2m

Materials

Specification

Family card PDF, Size: 370.72 KB

Technical card PDF, Size: 52.38 KB

Support material PDF, Size: 9.31 MB

Photometric data

File ldt - LAVEN EL 28 SE-GR - XLED LDT, Size: 3.57 KB

File ldt - LAVEN EL 28 SE-GR - IQ-LED LDT, Size: 15.04 KB

File ies - LAVEN EL 28 SE-GR - XLED A60 10W-WW-M IES, Size: 3.38 KB

File ies - LAVEN EL 28 SE-GR - XLED A60 10W-NW-M IES, Size: 3.38 KB

File ies - LAVEN EL 28 SE-GR - IQ-LED A60 9,6W-WW IES, Size: 14.85 KB

File ies - LAVEN EL 28 SE-GR - IQ-LED A60 9,6W-NW IES, Size: 14.85 KB

File ies - LAVEN EL 28 SE-GR - IQ-LED A60 9,6W-CW IES, Size: 14.85 KB

Handling and installation

User manual PDF, Size: 1.17 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 784.69 KB

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.
