BLINGO 34W 4080 60CW

120

Miniatura BLINGO 34W 4080 60CW - KANLUX

Miniatura BLINGO 34W 4080 60CW - KANLUX

Miniatura BLINGO 34W 4080 60CW - KANLUX

Miniatura schematu BLINGO 34W 4080 60CW

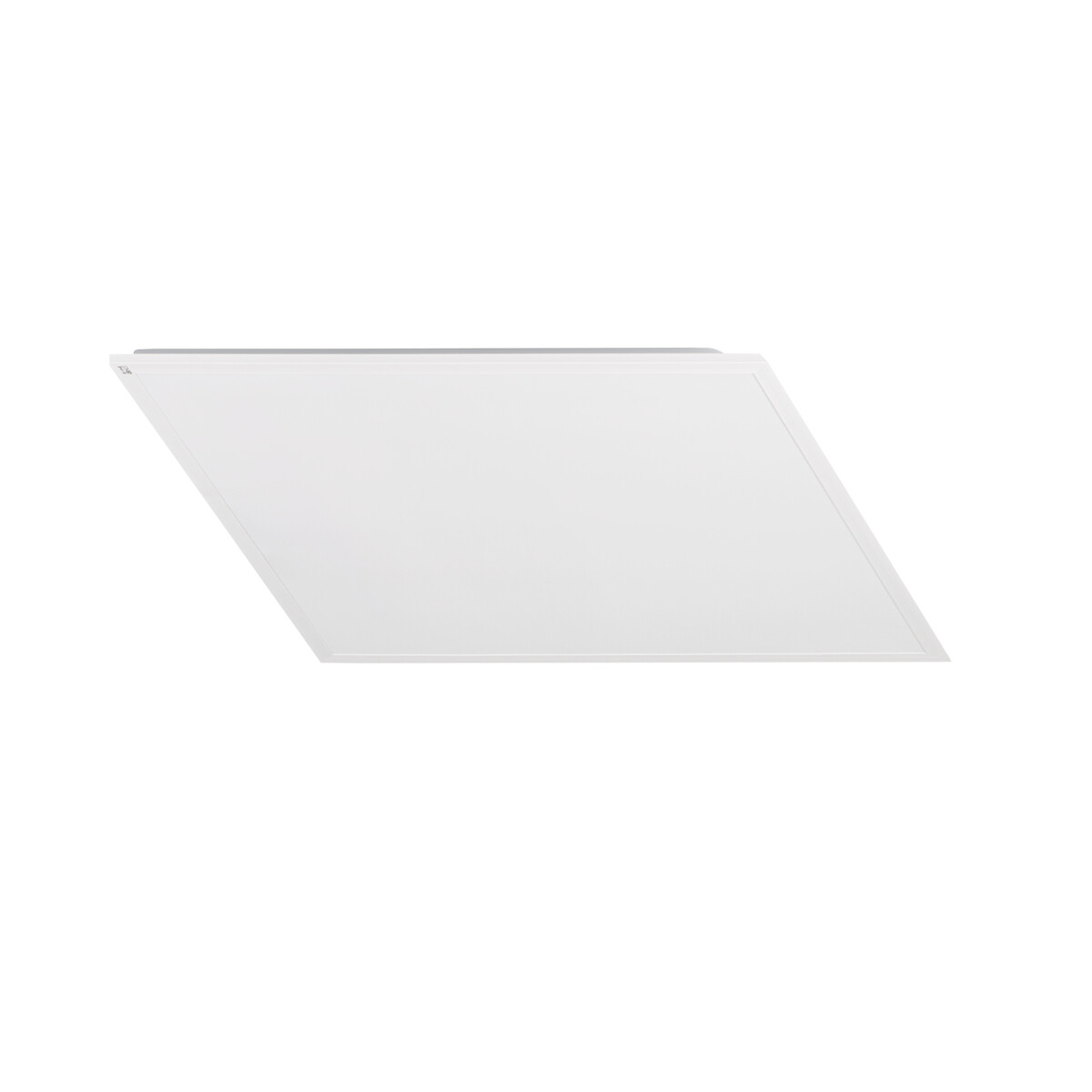

Recessed-mounted LED panel BLINGO LED

BLINGO 34W 4080 60CW

Product code: 37172 logo KANLUX

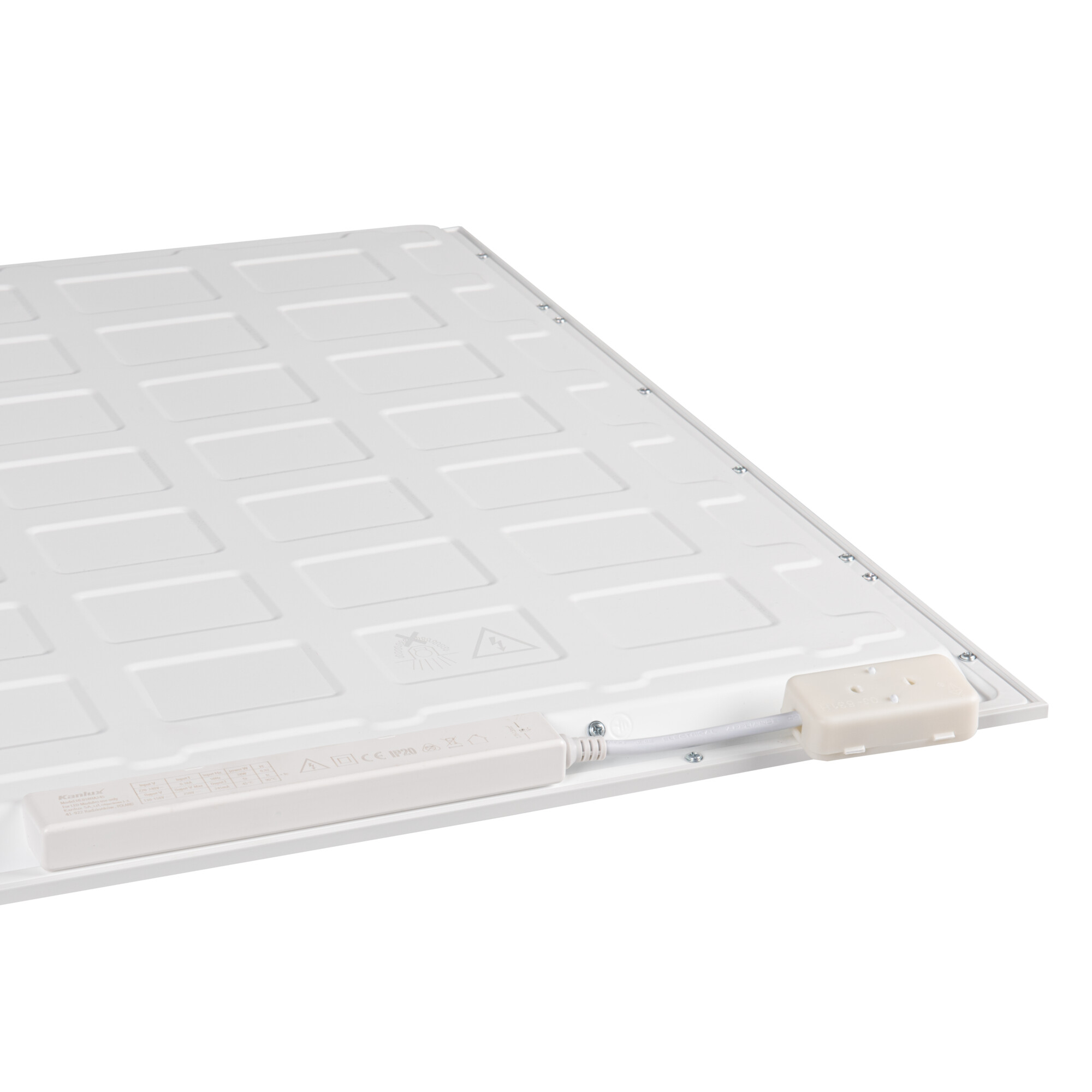

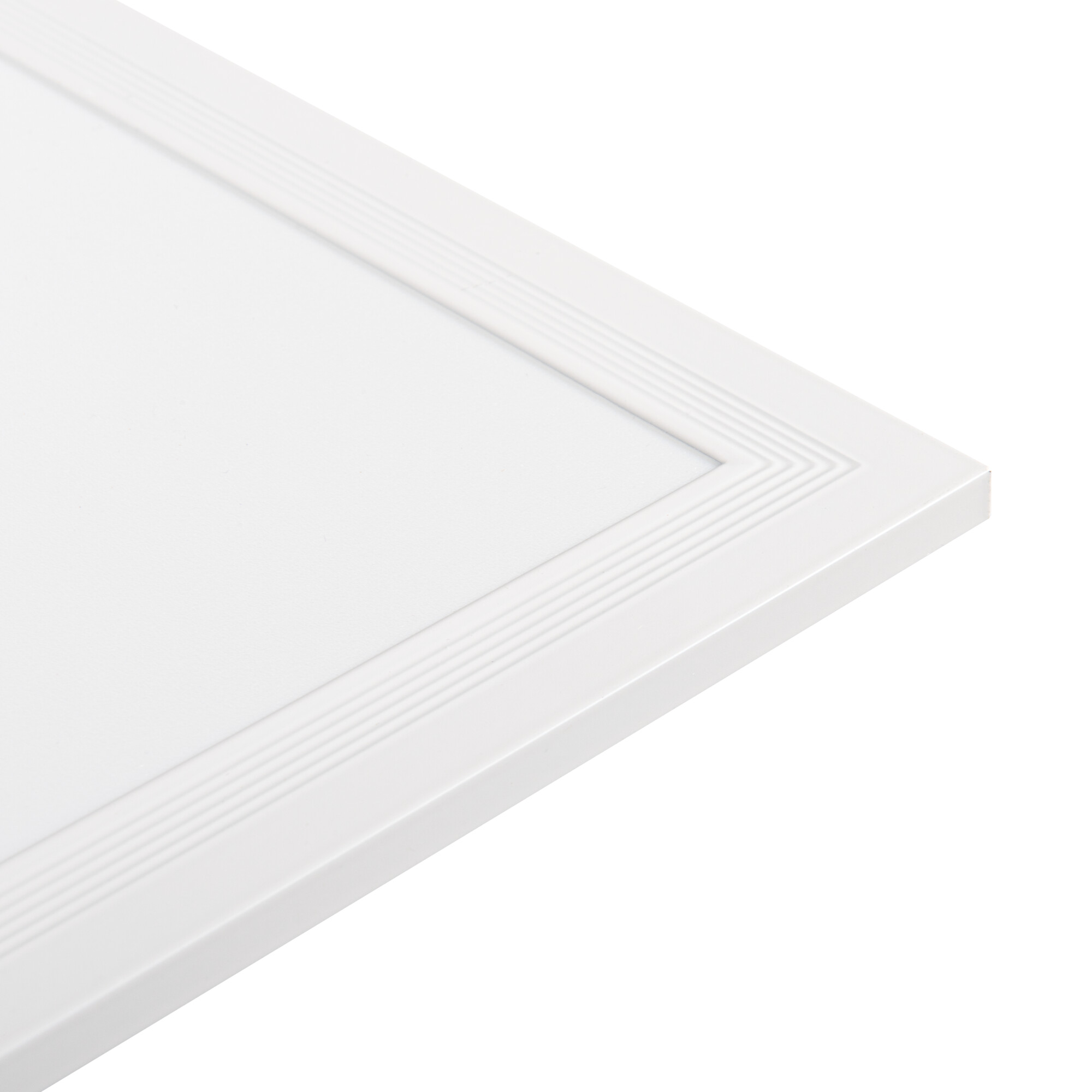

Kanlux BLINGO LED v2 are backlight panels. They are equipped with a junction box with a quick connector, which allows for pass-through connection of panels and speeds up their installation. In the new models of the well-known Kanlux BLINGO LED v2 panels, we have introduced an integrated power supply, thanks to which we can place them in an appropriate Kanlux ADTR frame and perform surface-mounting of the panels. BLINGO LED v2 panels have a grooved frame and higher luminous efficiency than their previous versions (Kanlux BLINGO LED).

Product presentation

Maximum power [W] 34

Luminous flux of the light fitting [lm] 4080

Luminous efficiency of the lamp [lm/W] 120

Rated voltage [V] 220-240 AC

Colour white

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Specification

General description

Warranty [years] 5

EAN13 5905339371720

Colour white

Enclosure material steel

Lampshade material plastic

Panel/frame material steel

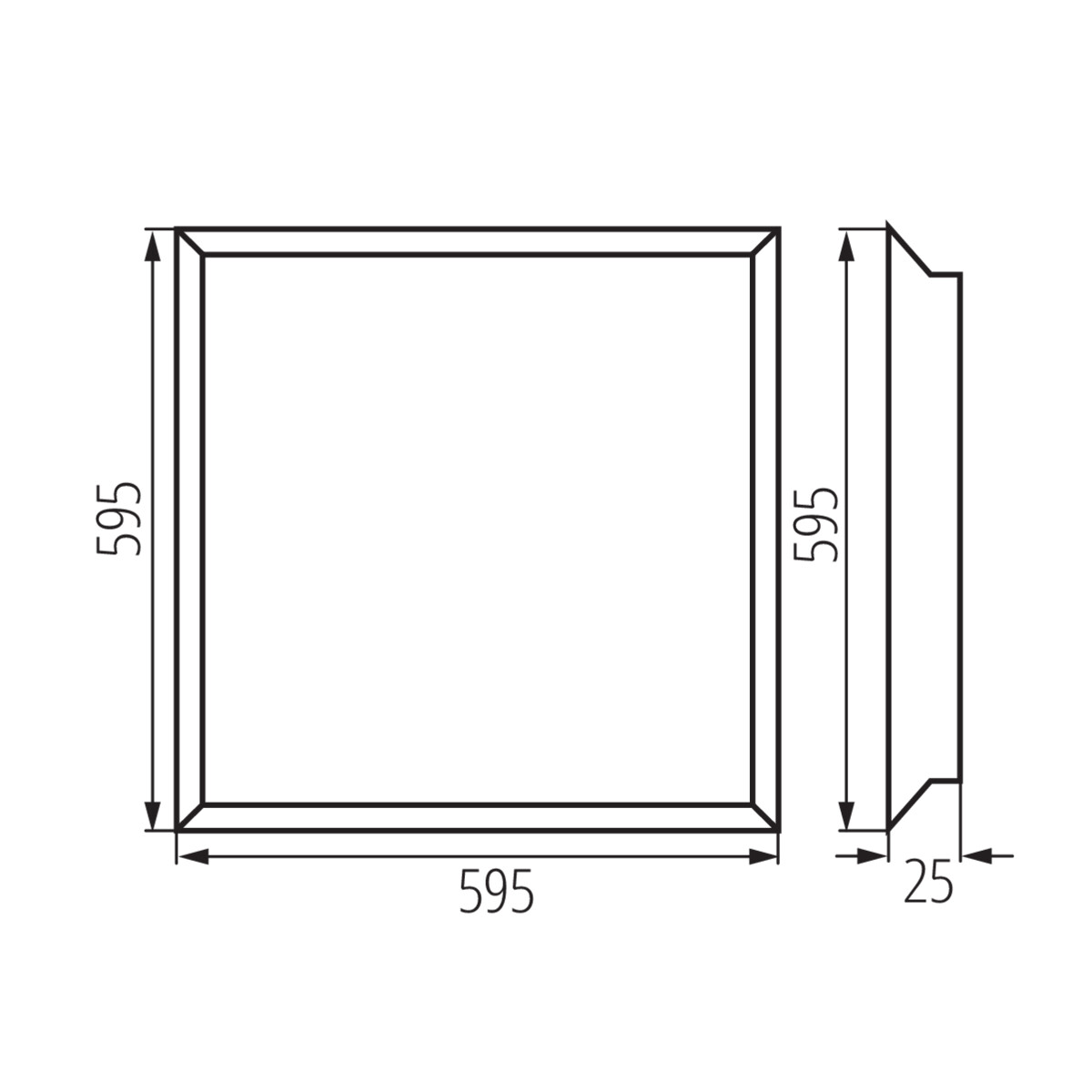

Weight and dimensions

Height [mm] 25

Width [mm] 595

Length [mm] 595

Weight 1370g

Sales unit piece

Outer box 5

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Show more ▾

Colour white

Maximum power [W] 34

Integrated LED light source

Luminous flux of the light fitting [lm] 4080

Luminous efficiency of the lamp [lm/W] 120

Lighting angle [°] 115

Number of on/off cycles ≥50000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L70B50

Colour temperature [K] 6500

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Diode type LED SMD

Compatible with a dimmer no

Colour temperature cold white

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly Recessed mount in the ceiling

The product is not suitable to be covered with a heat-insulating material

Range of sections of wires used [mm2] 1-2,5

Feeder included yes

Minimum distance from the illuminated object 0,5m

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Shape kwadratowy

Materials

Specification

Family card PDF, Size: 744.64 KB

Technical card PDF, Size: 660.86 KB

Support material PDF, Size: 3.88 MB

Photometric data

File ldt - BLINGO 34W 4080 60CW LDT, Size: 2.85 KB

File ies - BLINGO 34W 4080 60CW IES, Size: 2.49 KB

Handling and installation

User manual PDF, Size: 1.17 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 905.75 KB

PZH approval PDF, Size: 823.02 KB

Warranty Statement PDF, Size: 99.06 KB
