PLAVE LED CCT

PLAVE LED CCT Kanlux
Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura PLAVE LED CCT - KANLUX Miniatura aranżacji PLAVE LED CCT Miniatura aranżacji PLAVE LED CCT Miniatura aranżacji PLAVE LED CCT Miniatura aranżacji PLAVE LED CCT Miniatura schematu PLAVE LED CCT

Oprawa oświetleniowa LED z wentylatorem PLAVE LED CCT

PLAVE LED CCT

Product code: 38033 logo KANLUX

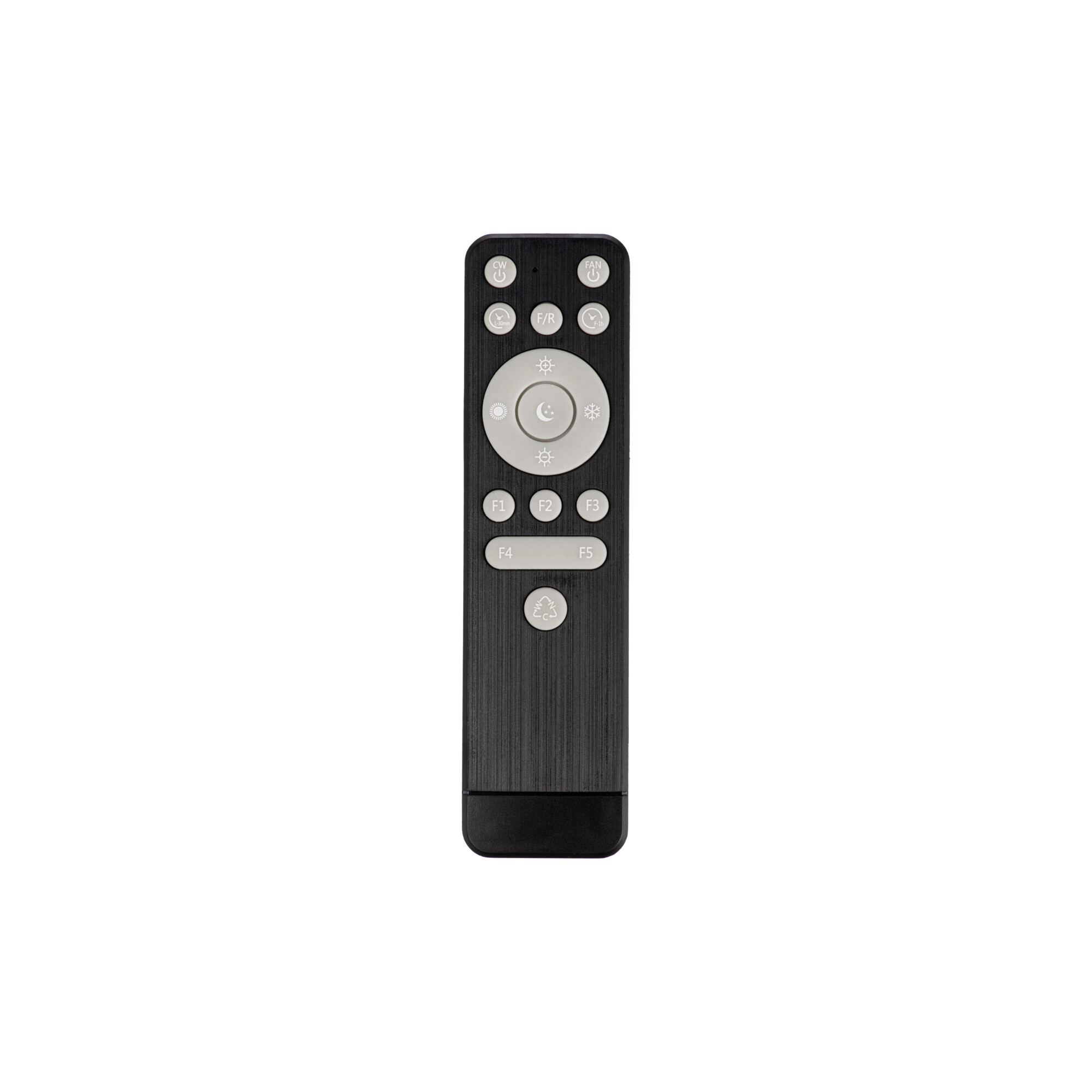

We present the modern Kanlux PLAVE ceiling lamp, which will not only illuminate your rooms, but will also adapt to your mood and needs. This versatile ceiling fixture allows you to adjust the color and intensity of light, so you can create the perfect atmosphere for any occasion. Additionally, the night lighting mode provides gentle lighting in the dark, perfect for a bedroom or corridor. What's more, Kanlux PLAVE has a built-in fan with five-stage airflow power regulation, ensuring air circulation in the room. Controlling all functions is extremely simple thanks to the included remote control, which allows convenient operation of the lamp. What's more, Kanlux PLAVE is friendly to your wallet, consuming a maximum of about 60W at full light intensity and maximum fan speed.

Product presentation
Rated voltage [V] 220-240 AC
Maximum power [W] max 48
Luminous flux of the light fitting [lm] 1100/2100/1100
Service life [h] 25000
Colour temperature [K] 3000(WW)/4000(NW)/6500(CW)
IP class 20
Scroll down to the full specification
Ask a question
Go to dictionary

Specification

General description
EAN13 5905339380333
Colour black/white
Enclosure material plastic
Lampshade material plastic
Weight and dimensions
Height [mm] 150
Diameter [mm] 485
Weight 1648g
Sales unit piece
Outer box 2
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Show more ▾
Colour black/white
Maximum power [W] max 48
Integrated LED light source
Luminous flux of the light fitting [lm] 1100/2100/1100
Lighting angle [°] 150
Number of on/off cycles ≥20000
Service life [h] 25000
Colour temperature [K] 3000(WW)/4000(NW)/6500(CW)
Colour uniformity [SDCM] 6
Colour-rendering index Ra 80
Mercury content no
Diode type LED SMD
Compatible with a dimmer no
Class of protection against electric shock II
IP class 20
Ambient temperature range to which the product can be exposed 5÷25
Place of assembly ceiling mounted
Connection type Bolt terminal block
Range of sections of wires used [mm2] 1,5
Possibility of dimming only with help of an internal electronic system yes
Minimum distance from the illuminated object 0,5m
Additional information Containing product (CP)
Time switch yes
Sound pressure [dB] max 39
Air-flow volume rate [m3/h] 33,6
Engine rotation 980
Motor-power consumption [W] max 15
Control remote control, infrared, remote control, infrared

Materials

Specification
Family card PDF, Size: 428.81 KB
Technical card PDF, Size: 1.27 MB
Support material PDF, Size: 2.46 MB
Photometric data
File ldt - PLAVE LED CCT - ww LDT, Size: 2.88 KB
File ldt - PLAVE LED CCT - nw LDT, Size: 2.87 KB
File ldt - PLAVE LED CCT - cw LDT, Size: 2.87 KB
File ies - PLAVE LED CCT - ww IES, Size: 2.52 KB
File ies - PLAVE LED CCT - nw IES, Size: 2.52 KB
File ies - PLAVE LED CCT - cw IES, Size: 2.52 KB
Handling and installation
User manual PDF, Size: 1.53 MB
Approvals and certificates
Declaration of Conformity PDF, Size: 885.12 KB
Films
Kanlux PLAVE LED CCT On Youtube

Before downloading the materials made available through this website in order to use them for further marketing or commercial purposes, please contact the Kanlux SA headquarters by sending an inquiry to kanlux@kanlux.pl concerning the conditions under which you will be able to use the Kanlux SA trademark or Kanlux SA materials protected by copyright. The use of materials downloaded from this website without our consent is illegal and violates our rights.
