AMPLINE 4LED 2-150-W

Miniatura aranżacji AMPLINE 4LED 2-150-W

T8 LED tube linear fittings AMPLINE 4LED

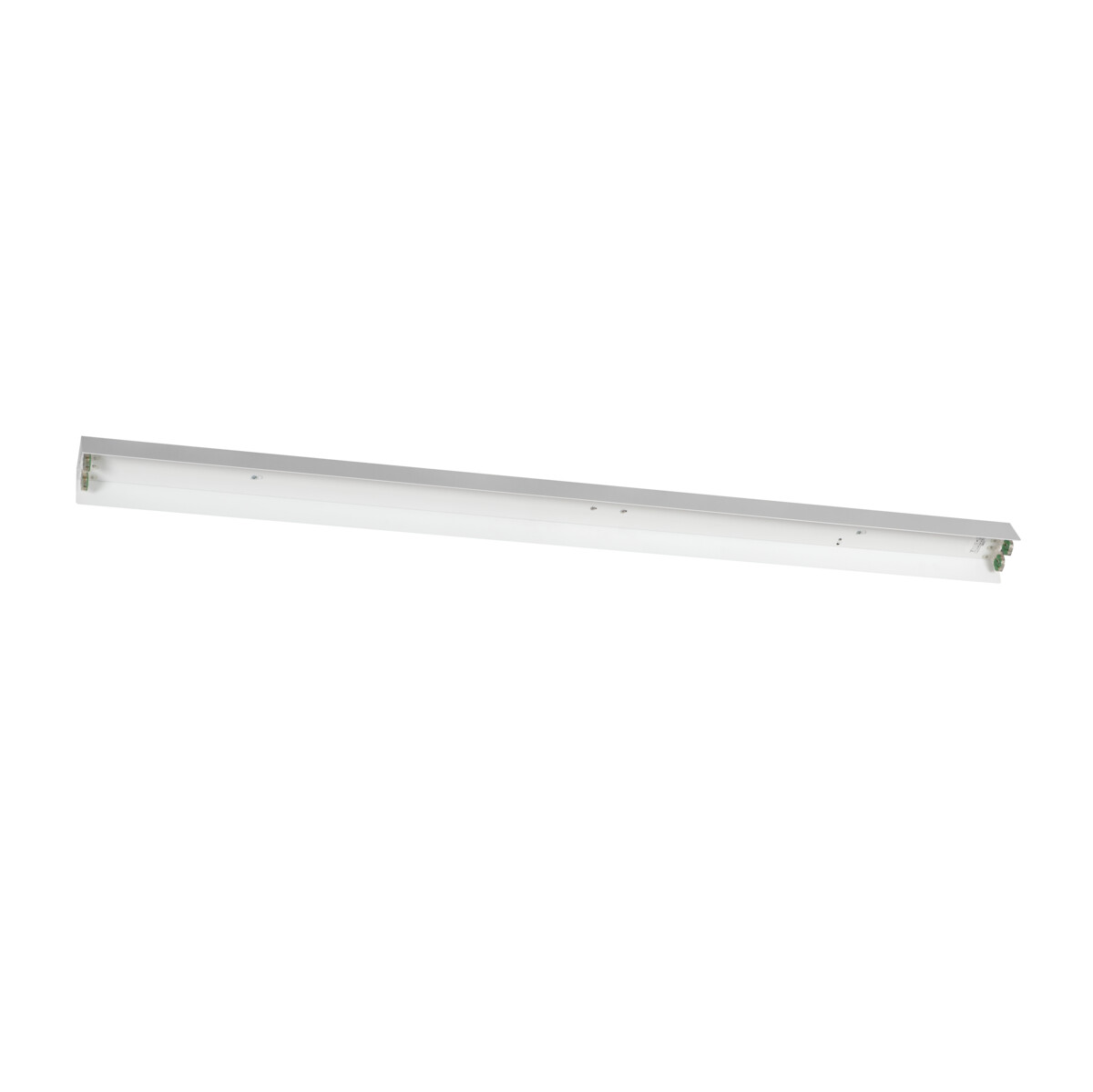

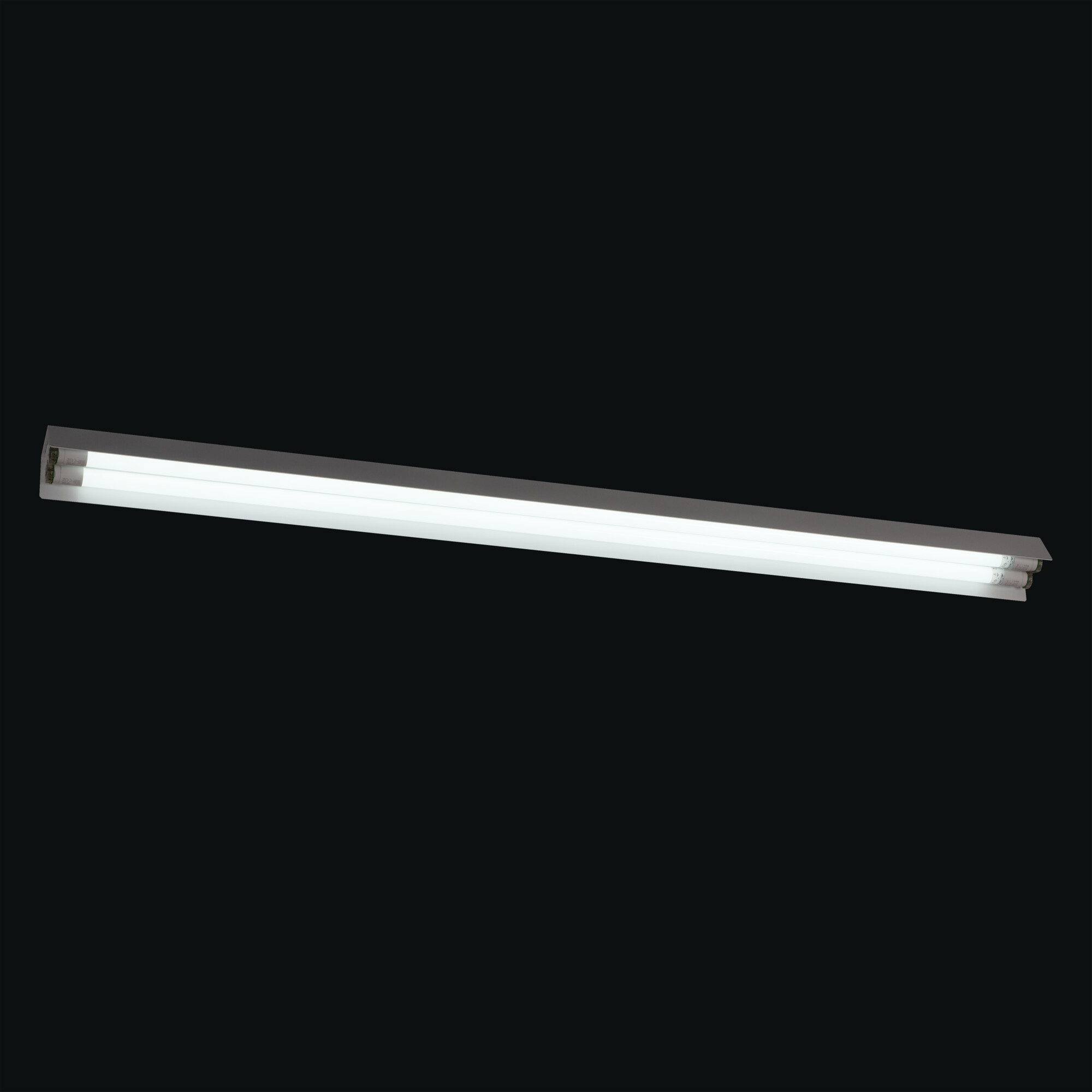

AMPLINE 4LED 2-150-W

Product code: 38036 logo KANLUX Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 2 x max 24

Light source T8 LED

Cap G13

IP class 20

Colour white

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

T8 LED tube linear fittings AMPLINE 4LED AMPLINE 4LED 1-150-W Product code: 38035

Compare

Accessory for LED tube linear fittings AMPLINE 4LED AMPLINE 4LED ENDCAP-W Product code: 38037

Compare

Accessory for LED tube linear fittings AMPLINE 4LED AMPLINE 4LED FIX-W Product code: 38038

Compare

Specification

General description

Warranty [years] 2

EAN13 5905339380364

Colour white

Enclosure material steel

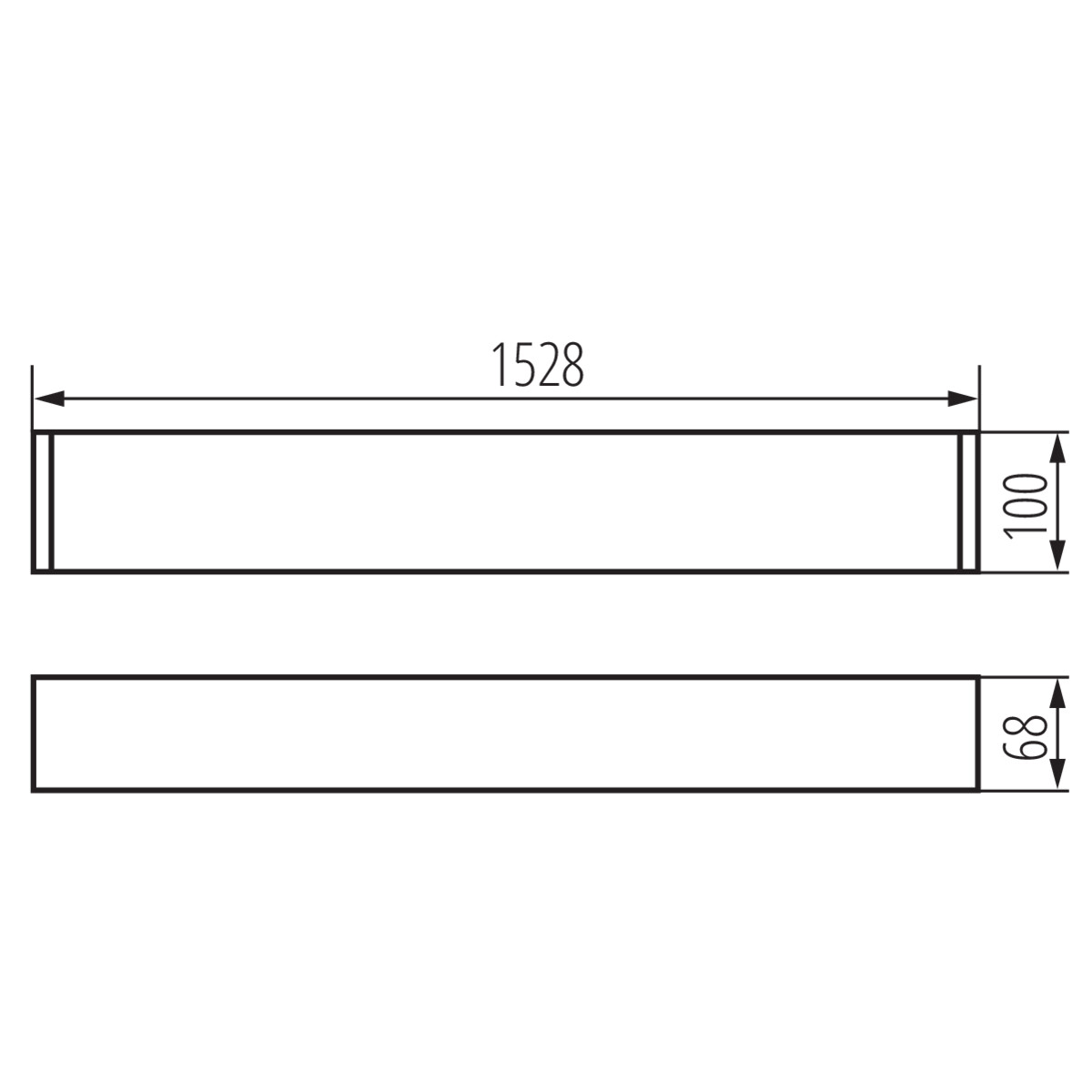

Weight and dimensions

Height [mm] 68

Width [mm] 100

Length [mm] 1528

Weight 2418g

Sales unit piece

Outer box 1

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Shade type louvre

Show more ▾

Colour white

Maximum power [W] 2 x max 24

Light source T8 LED

Light source included no

Cap G13

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly ceiling mounted

Connection type Self-clamping block

Range of sections of wires used [mm2] 1,5-2,5

Power supply of T8 LED fluorescent lamps Unilateral

Fixture lighting direction down

Minimum distance from the illuminated object 0,5m

Replaceable light source yes

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 295.95 KB

Technical card PDF, Size: 941.09 KB

Support material PDF, Size: 2.97 MB

Handling and installation

User manual PDF, Size: 1.79 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 804.26 KB
