Batten and linear fittings Integrated LED

ALD-MS-NW-RST-B-NT

Linear LED luminaire ALD-MS-NT

ALD-MS-NW-RST-B-NT

Product code: 38048 logo KANLUX Product presentation

Maximum power [W] 16

Luminous flux of the light fitting [lm] 2300

Service life [h] 50000

Colour black

Shade type louvre

Colour temperature [K] 4000

Scroll down to the full specification

Configurator Ask a question

Compare

Go to dictionary

Specification

General description

EAN13 5905339380487

Colour black

Enclosure material aluminum alloy

Lampshade material plastic

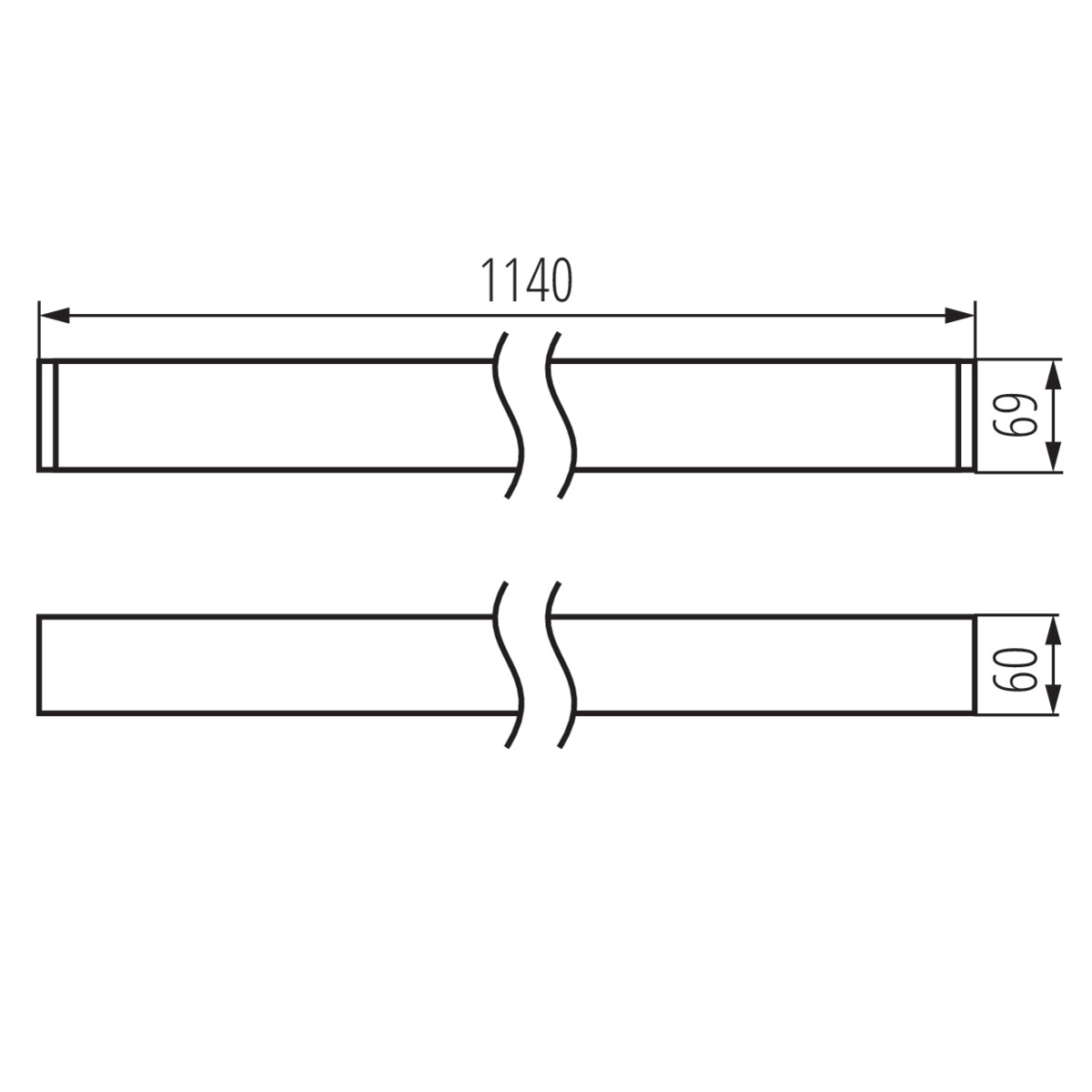

Weight and dimensions

Height [mm] 69

Width [mm] 60

Length [mm] 1140

Weight 2042g

Sales unit piece

Outer box 1

Additional features

5 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Shade type louvre

Show more ▾

Colour black

Maximum power [W] 16

Integrated LED light source

Luminous flux of the light fitting [lm] 2300

Luminous efficiency of the lamp [lm/W] 144

Lighting angle [°] X85/Y85

Number of on/off cycles ≥30000

Service life [h] 50000

Luminous flux retention factor at the end of rated service life L90B10

Colour temperature [K] 4000

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Lamp-ignition time [s] ≤0,5

Lamp-heating time [s] ≤1

Diode type LED SMD

Compatible with a dimmer DALI

Class of protection against electric shock I

IP class 20

Ambient temperature range to which the product can be exposed 5÷25

Place of assembly ceiling mounted

Connection type Self-clamping block

Range of sections of wires used [mm2] 0,5÷2,5

Fixture lighting direction down

Minimum distance from the illuminated object 0,5m

Explanation of markings and signs used (NT) - do nadbudowania na suficie,(Z) - do zawieszenia na suficie

Materials

Specification

Family card PDF, Size: 518.99 KB

Technical card PDF, Size: 555.75 KB

Support material PDF, Size: 6.82 MB

Handling and installation

User manual PDF, Size: 1.81 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 928.24 KB

Warranty Statement PDF, Size: 534.92 KB
