MAH PRO Y 38W 12R-NW

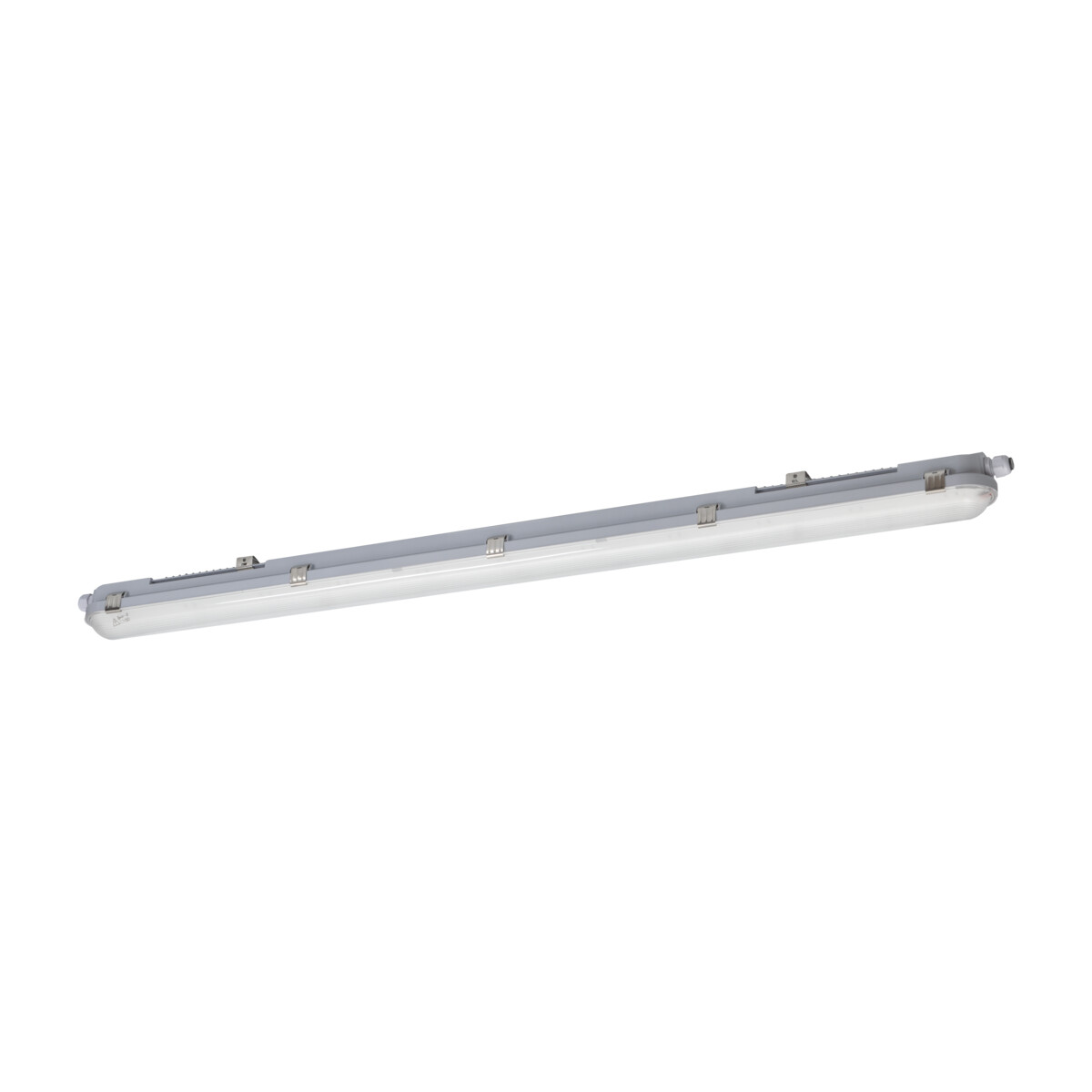

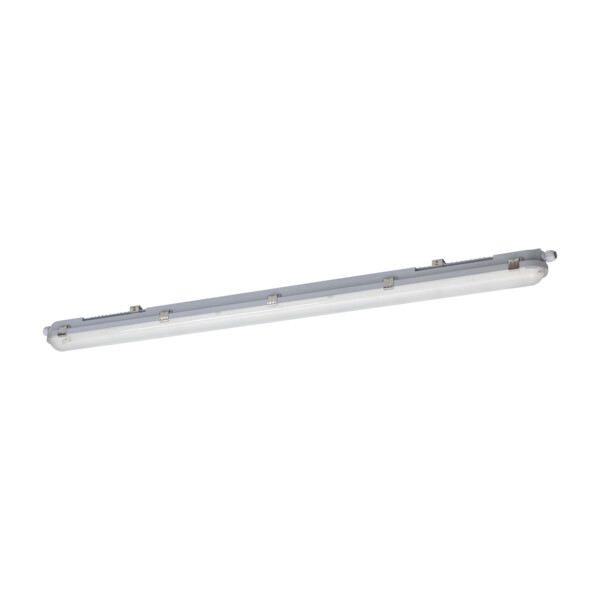

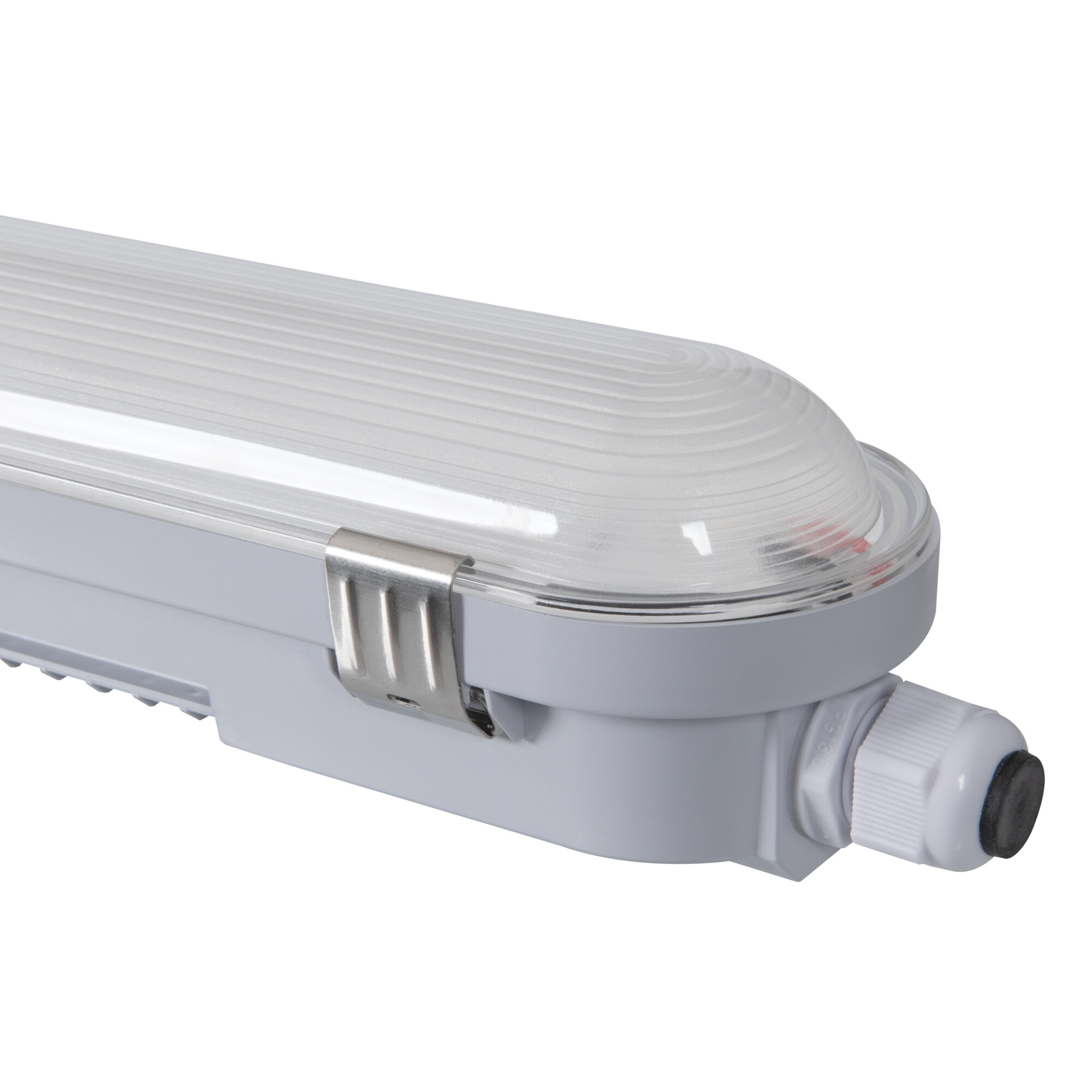

LED dustproof lighting fitting MAH PRO Y

MAH PRO Y 38W 12R-NW

Product code: 38142 logo KANLUX

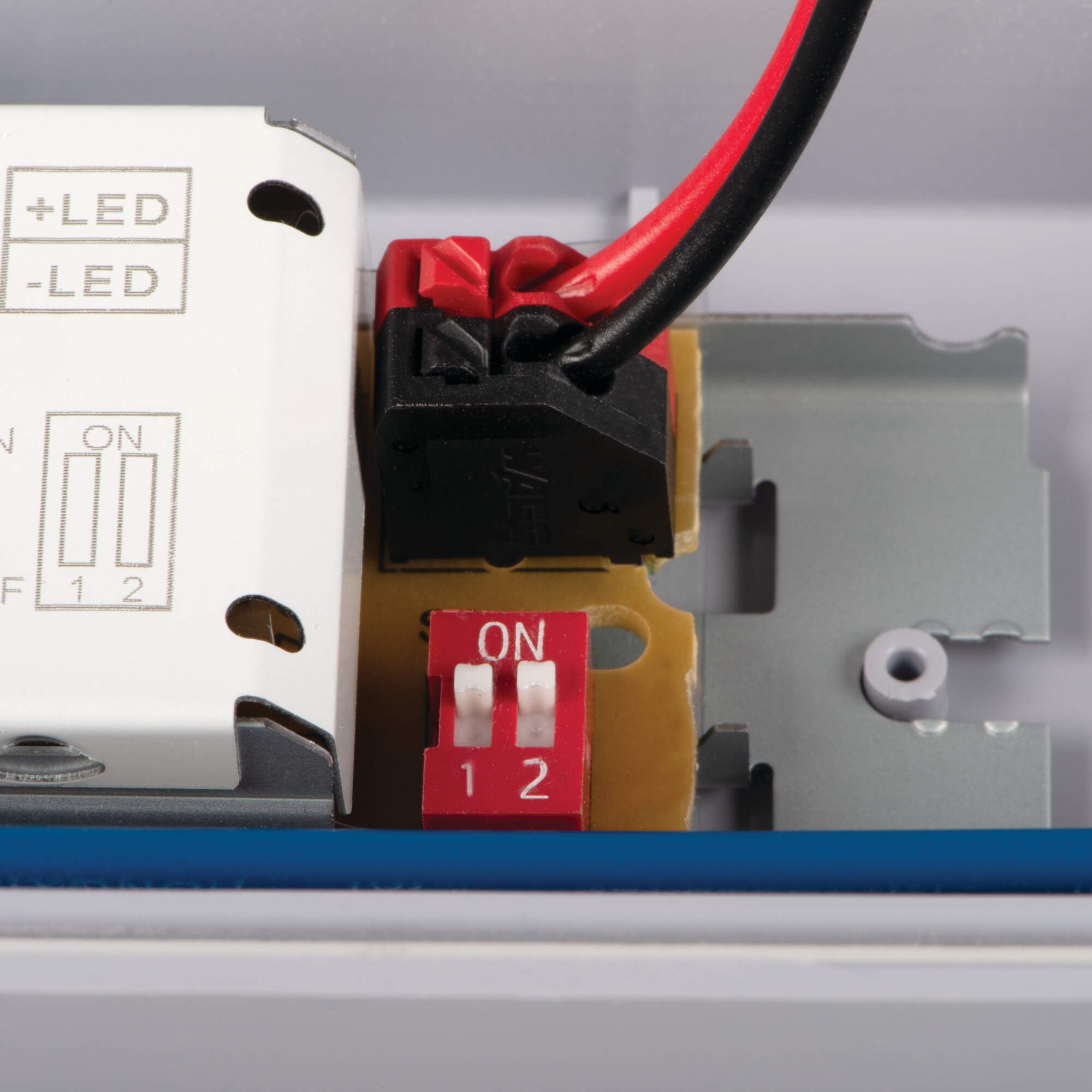

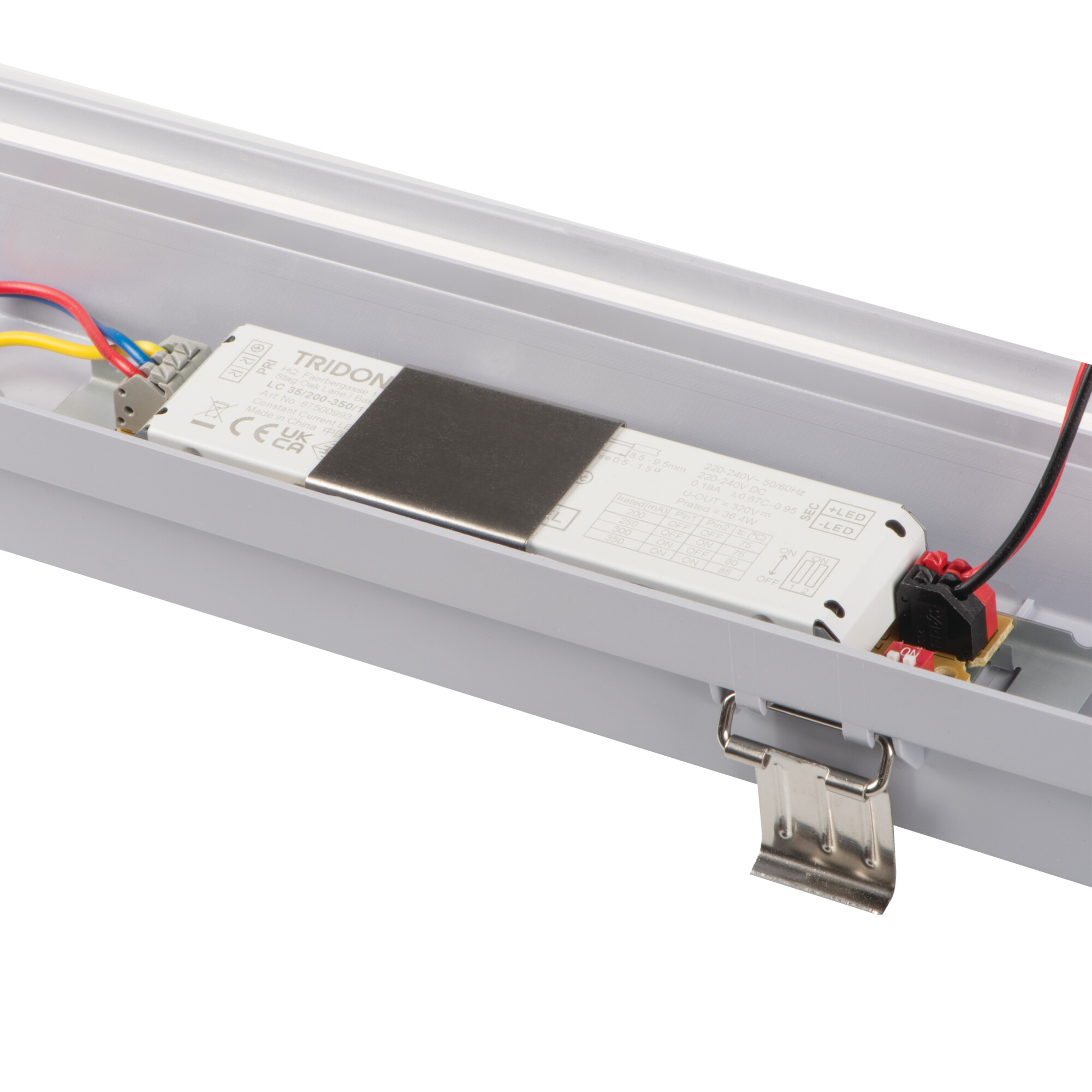

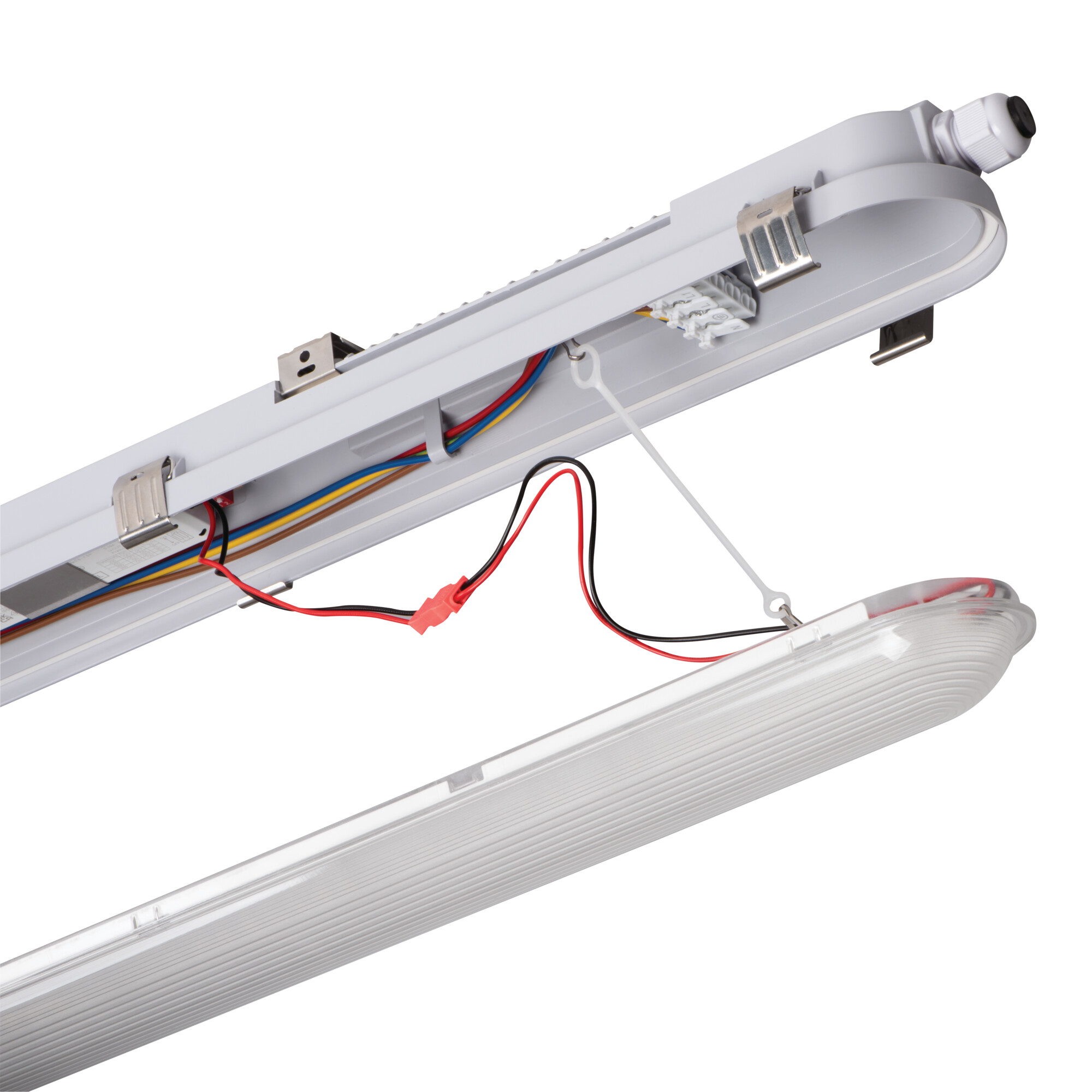

Kanlux MAH PRO 7Y luminaires are the latest series of hermetic luminaires, characterized by an opening housing, designed with the highest quality and functionality in mind. Equipped with branded components, including the TRIDONIC power supply and Everlight LEDs, they enable a warranty of up to 7 years. These fixtures are synonymous with reliability. With a luminous efficiency of up to 170lm/W and an IP65 parameter, they provide excellent lighting in all conditions. Additionally, thanks to the ability to adjust the power and light flux, as well as the option of replacing the power supply and adding a motion sensor, they are extremely versatile in their use. Easy installation via quick connectors and through wiring makes installation quick and hassle-free. An additional advantage is high protection against mechanical damage IK08. This is an irreplaceable series for those who require excellent quality and reliability in all conditions.

Product presentation

Rated voltage [V] 220-240 AC

Maximum power [W] 38 / 34,5 / 27,5 / 22

Luminous flux of the light fitting [lm] 6100 / 5600 / 4550 / 3750

Service life [h] 100000

Colour temperature [K] 4000

IP class 65

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

LED dustproof lighting fitting MAH PRO Y MAH PRO Y 52W 15R-NW Product code: 38143

Compare

Together better

Select complementary products

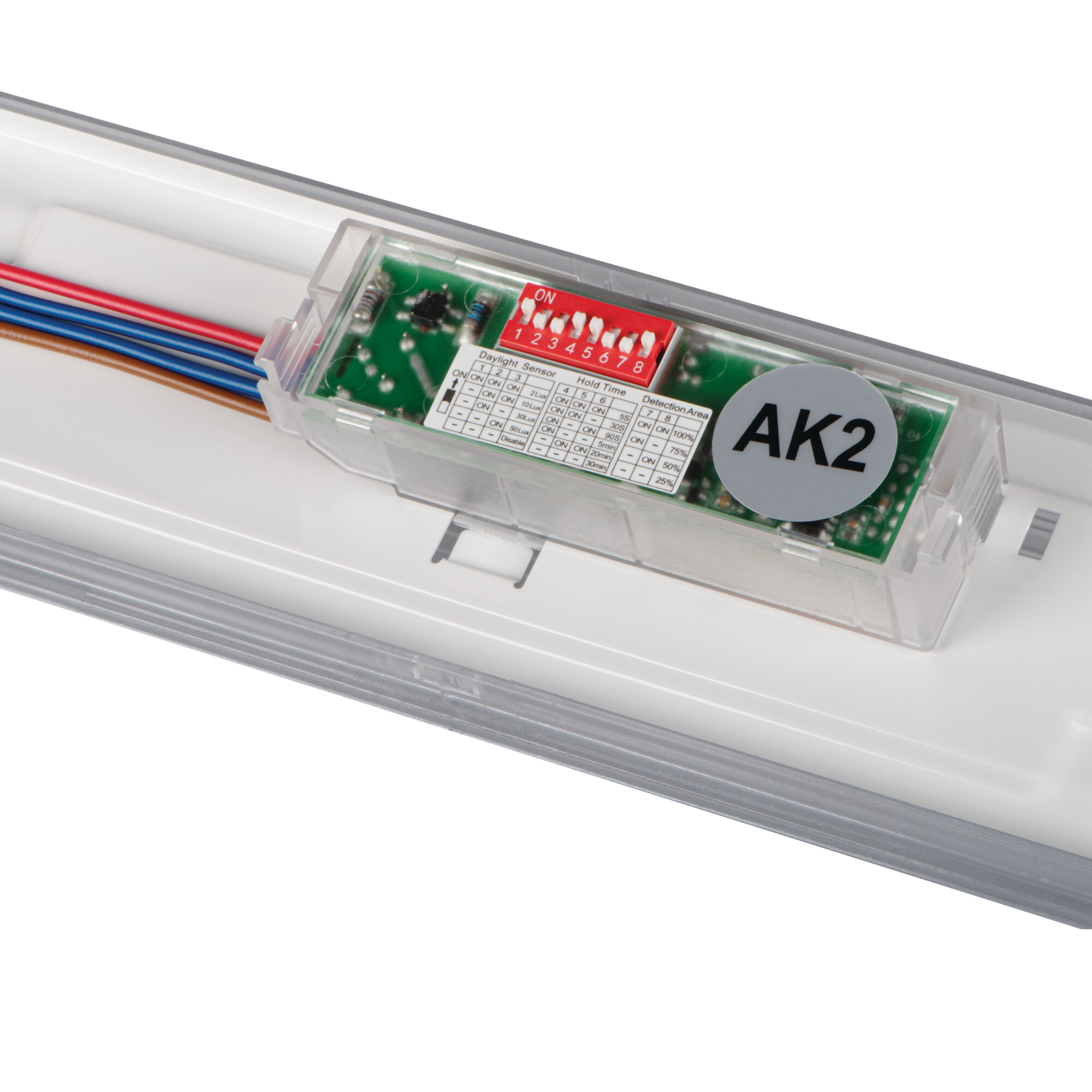

MW motion sensor MAH PRO SENSOR MAH PRO SENSOR Product code: 38144

Compare

MW motion sensor MAH PRO SENSOR MAH PRO SENSOR Product code: 38144

Compare

Accessory for dust-proof light fittings MAH PRO ZAPINKI CL-MAH PRO-INOX 1.2m Product code: 38145

Compare

Accessory for dust-proof light fittings MAH PRO ZAPINKI CL-MAH PRO-INOX 1.5m Product code: 38146

Compare

Specification

General description

Warranty [years] 7

EAN13 5905339381422

Colour grey

Enclosure material PC

Lampshade material PC

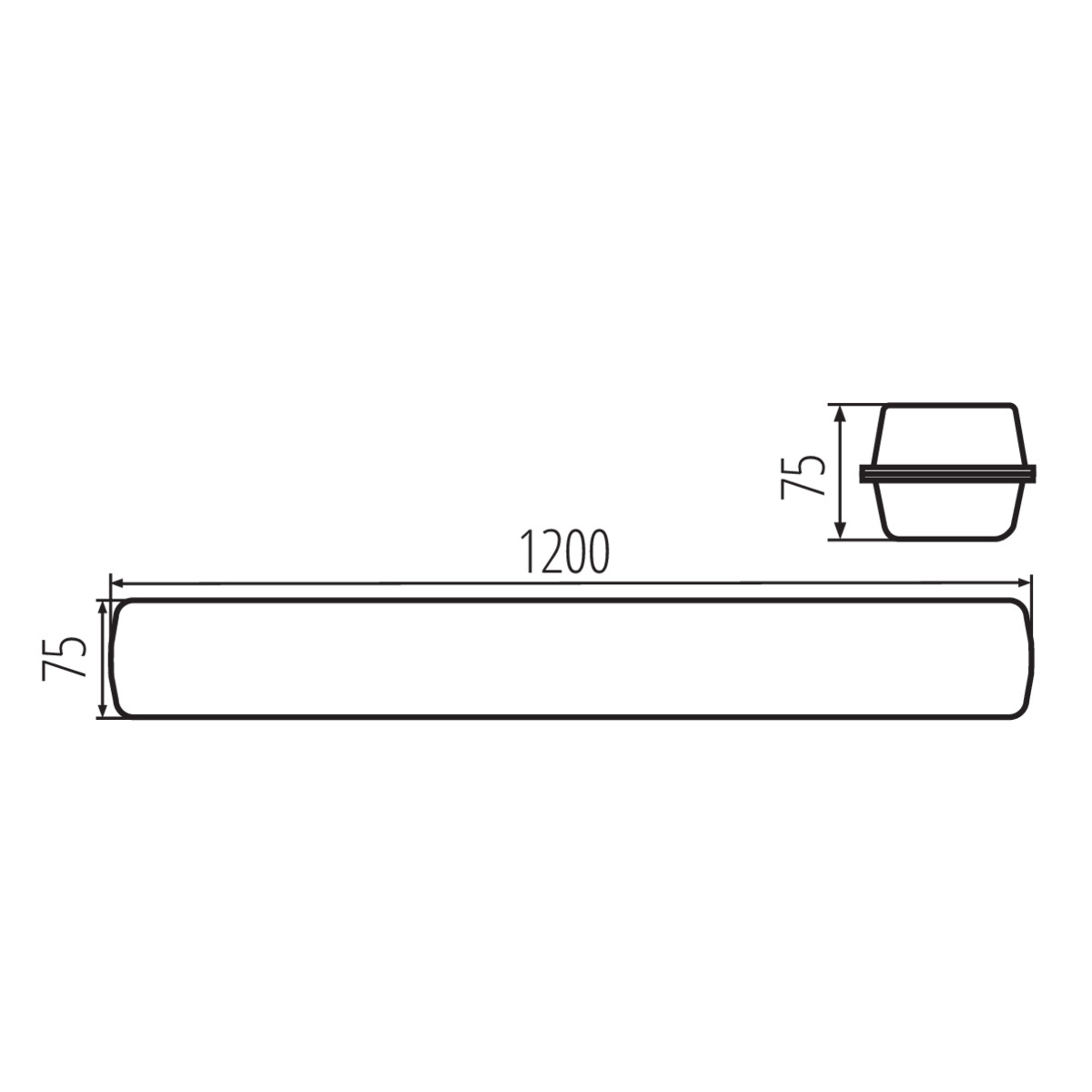

Weight and dimensions

Height [mm] 75

Width [mm] 75

Length [mm] 1200

Weight 1370g

Sales unit piece

Outer box 12

Additional features

7 years Warranty under the terms of the warranty statement, available on our website

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Shade type grooved

Show more ▾

Colour grey

Maximum power [W] 38 / 34,5 / 27,5 / 22

Integrated LED light source

Luminous flux of the light fitting [lm] 6100 / 5600 / 4550 / 3750

Lighting angle [°] 110

Number of on/off cycles ≥80000

Service life [h] 100000

Luminous flux retention factor at the end of rated service life L70B50

Colour temperature [K] 4000

Colour uniformity [SDCM] 6

Colour-rendering index Ra 80

Diode type LED SMD

Compatible with a dimmer no

Colour temperature white

Class of protection against electric shock I

IP class 65

Ambient temperature range to which the product can be exposed -20÷40

Place of assembly ceiling mounted, wall mounted

IK class 08

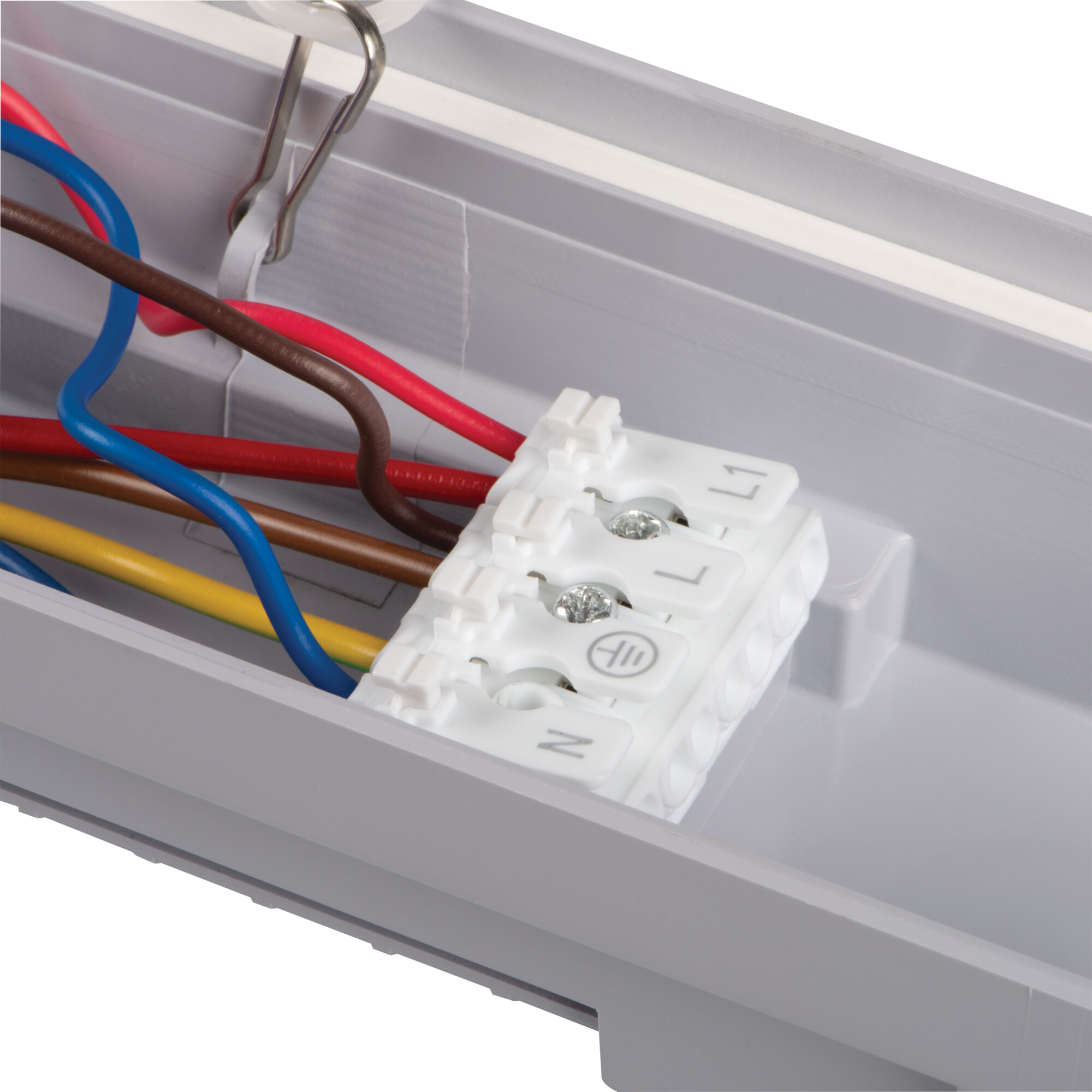

Connection type Self-clamping block

Range of sections of wires used [mm2] 1÷2,5

Number of chokes 2

Possibility of fixture-loop-through connection

Minimum distance from the illuminated object 0,5m

Useful luminous flux of the light source Φuse [lm] 6720

Useful luminous flux of the light source Φuse [lm] in sphere (360°)

Additional information Containing product (CP)

Shape rectangular

Materials

Specification

Family card PDF, Size: 414.9 KB

Technical card PDF, Size: 448.2 KB

Support material PDF, Size: 3.62 MB

Photometric data

File ldt - MAH PRO Y 38W 12R-NW LDT, Size: 9.3 KB

File ies - MAH PRO Y 38W 12R-NW - 3750lm IES, Size: 8.89 KB

File ies - MAH PRO Y 38W 12R-NW - 4550lm IES, Size: 8.89 KB

File ies - MAH PRO Y 38W 12R-NW - 5600lm IES, Size: 8.89 KB

File ies - MAH PRO Y 38W 12R-NW - 6100lm IES, Size: 8.89 KB

Handling and installation

User manual PDF, Size: 1.23 MB

Approvals and certificates

Declaration of Conformity PDF, Size: 853.71 KB

PZH approval PDF, Size: 850.84 KB

Warranty Statement PDF, Size: 98.89 KB

UKCA certificate PDF, Size: 518.54 KB

External links

Karta informacyjna EPREL eprel.ec.europa.eu
