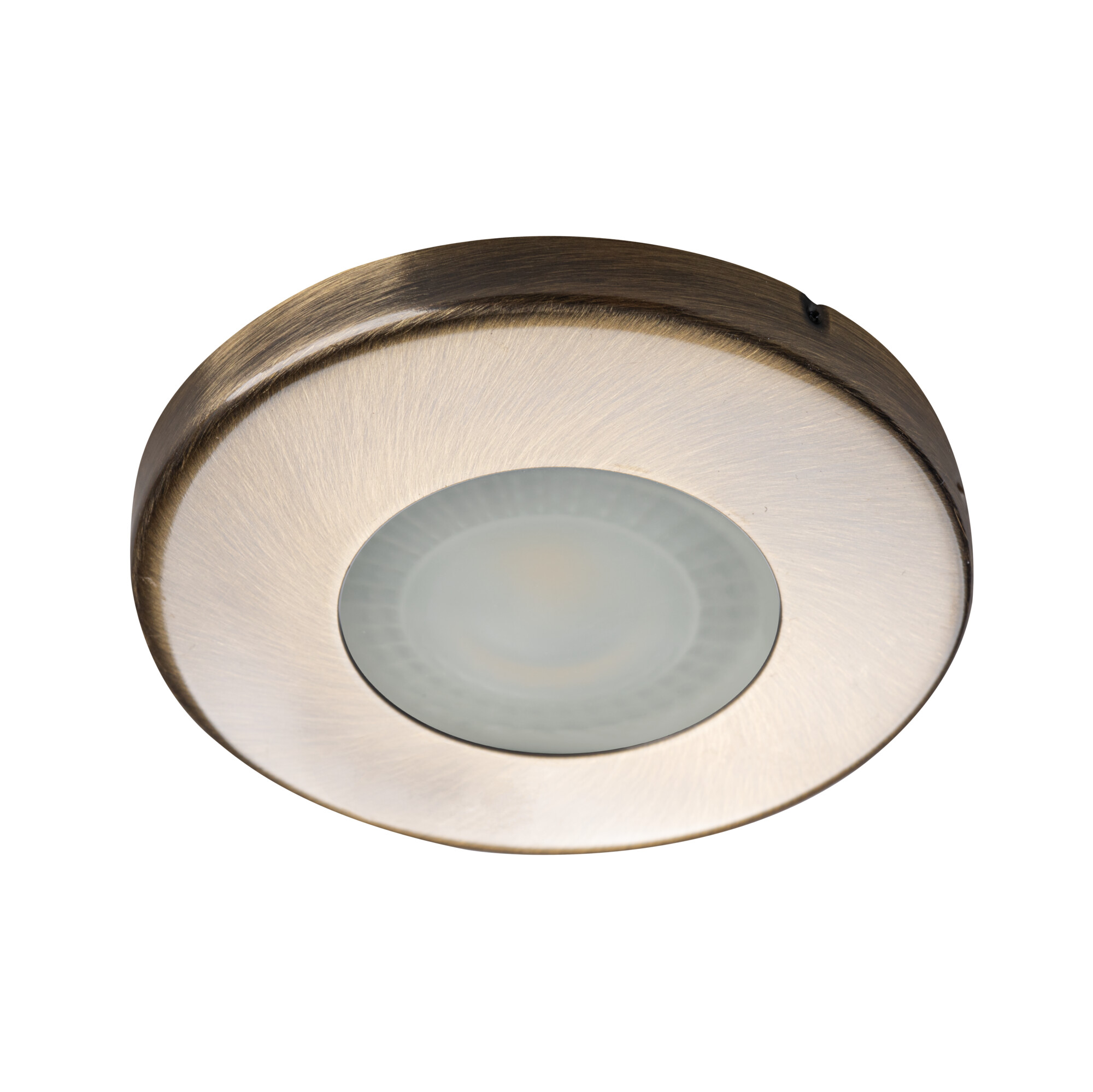

Ceiling-mounted spotlight fitting MARIN

MARIN CT-S80-AB

Product code: 4710 logo KANLUX

Kanlux MARIN means small and tight ceiling holders to be used in places with increased humidity. They can easily be placed in a bathroom above a mirror, in a kitchen or in a laundry.


Rated voltage [V] 12 AC; 12 DC
Maximum power [W] max 10
Cap Gx5,3
IP class 44/20
Scroll down to the full specification

Do you want to maintain consistency?

See products from the same series

Specification

General description
Warranty [years] 2
EAN13 5905339047106
Colour matt brass
Enclosure material steel
Weight and dimensions
Height [mm] 37
Diameter [mm] 85
Weight 100g
Sales unit piece
Outer box 50
Additional features
  • better resistance to moisture and dust
  • designed for use in areas with a higher humidity level, e.g. bathrooms
Technical data
Rated voltage [V] 12 AC; 12 DC
Colour matt brass
Show more ▾
Maximum power [W] max 10
Replaceable light source yes
Cap Gx5,3
Class of protection against electric shock III
Place of assembly Recessed mount in the ceiling
IP class 44/20
Lighting-fixture angle regulation none

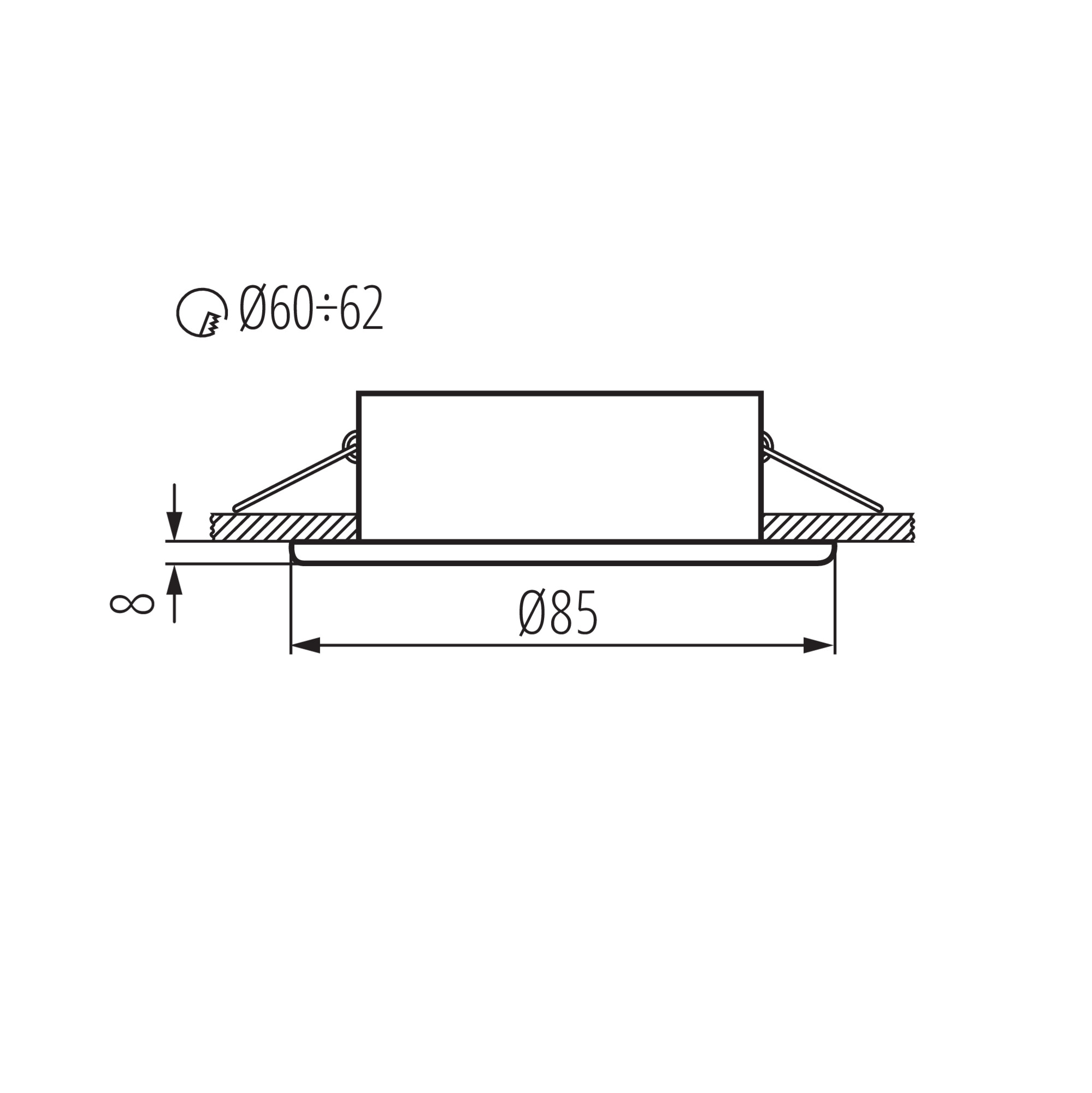

Wielkość otworu montażowego [mm] Ø60-62
The product is not suitable to be covered with a heat-insulating material
Necessity of using self-shielding lamps
Connection type Free cable ends
Wire length [m] 0.12
Wire diameter [mm²] 0.75
Minimum distance from the illuminated object 0,5m
Light source included no
Light source MR16
Shape round
