SLICK JQ-L-W

SLICK JQ-L-W Kanlux
Miniatura SLICK JQ-L-W - KANLUX Miniatura schematu SLICK JQ-L-W

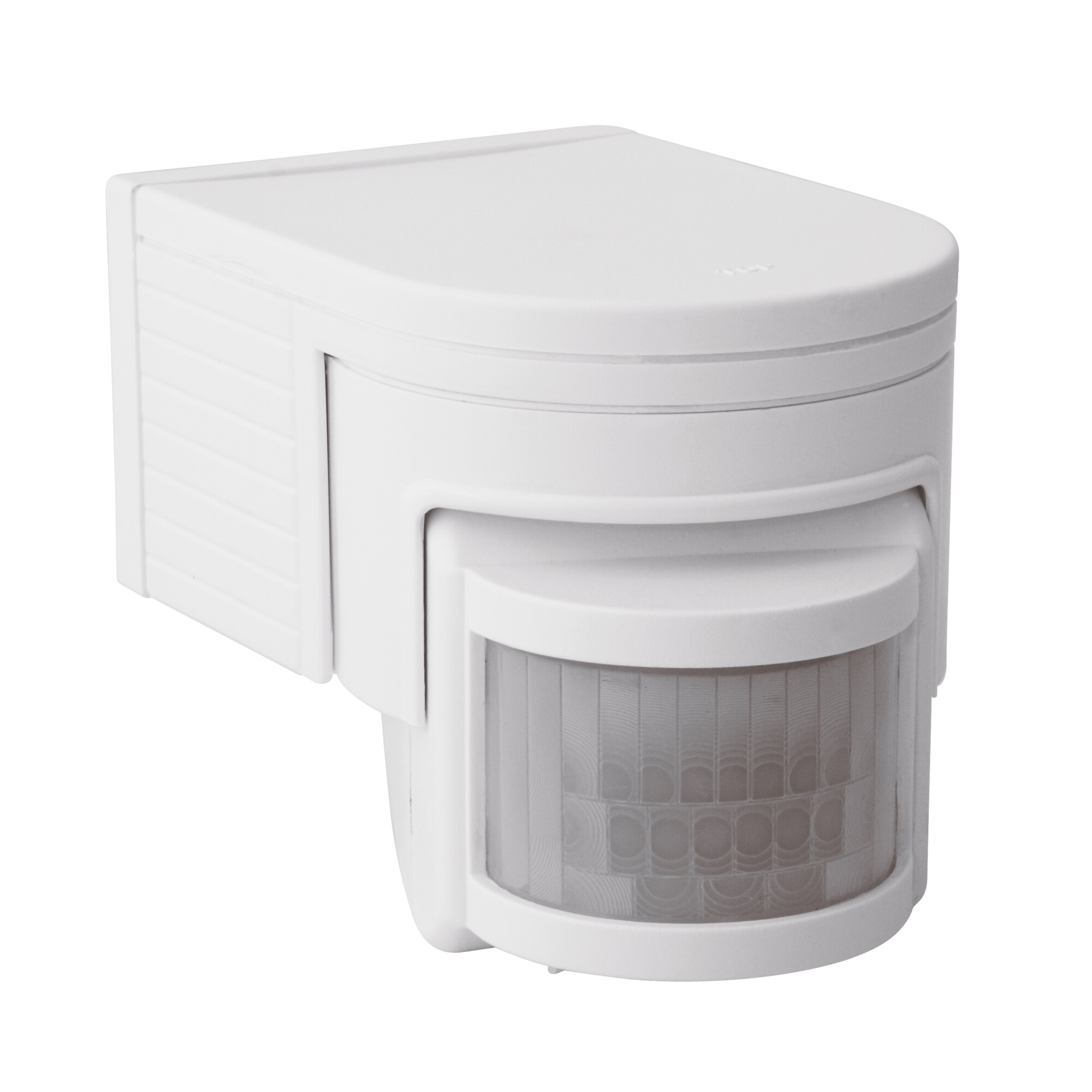

PIR motion sensor SLICK JQ

SLICK JQ-L-W

Product code: 8390 logo KANLUX

Kanlux SLICK JQ is a motion detector whose maximum detection range comes to 12 metres. You can set adjustments of the lighting time and light intensity level at which the detector works.

Rated voltage [V] 220-240 AC
Sensor type PIR
sensor working angle [°] H160/V20
IP class 44
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
SLICK JQ-L-B - KANLUX
PIR motion sensor SLICK JQ SLICK JQ-L-B Product code: 8391

Specification

General description
EAN13 5905339083906
Colour white
Material plastic
Weight and dimensions
Height [mm] 85
Width [mm] 125
Diameter [mm] 85
Length [mm] 77
Weight 260g
Sales unit piece
Outer box 50
Additional features
  • Maximum movement detection up to 12m
  • Maximum horizontal angle of operation of the motion sensor – 160°
  • Light on time adjustable from 8s to 10min
  • Capability to set the light intensity of the environment in which the device works
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Colour white
Maximum power [VA] 1200
Show more ▾
IP class 44
Place of assembly wall mounted
Class of protection against electric shock II
Sensor range[m] max 12
sensor working angle [°] H160/V20
Minimum operating time[s] 8
Maximum operating time [min] 10
Sensor-operation time [second-minute] 8-10
Sensor type PIR
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Micro-interval between relay contacts
Ambient temperature range to which the product can be exposed -10÷40
Connection type Bolt terminal block
Range of sections of wires used [mm2] 1÷2,5

Materials

Specification
Family card PDF, Size: 335.26 KB
Technical card PDF, Size: 195.97 KB
Handling and installation
User manual PDF, Size: 383.16 KB
Approvals and certificates
Declaration of Conformity PDF, Size: 752.58 KB
