ALER MINI-B

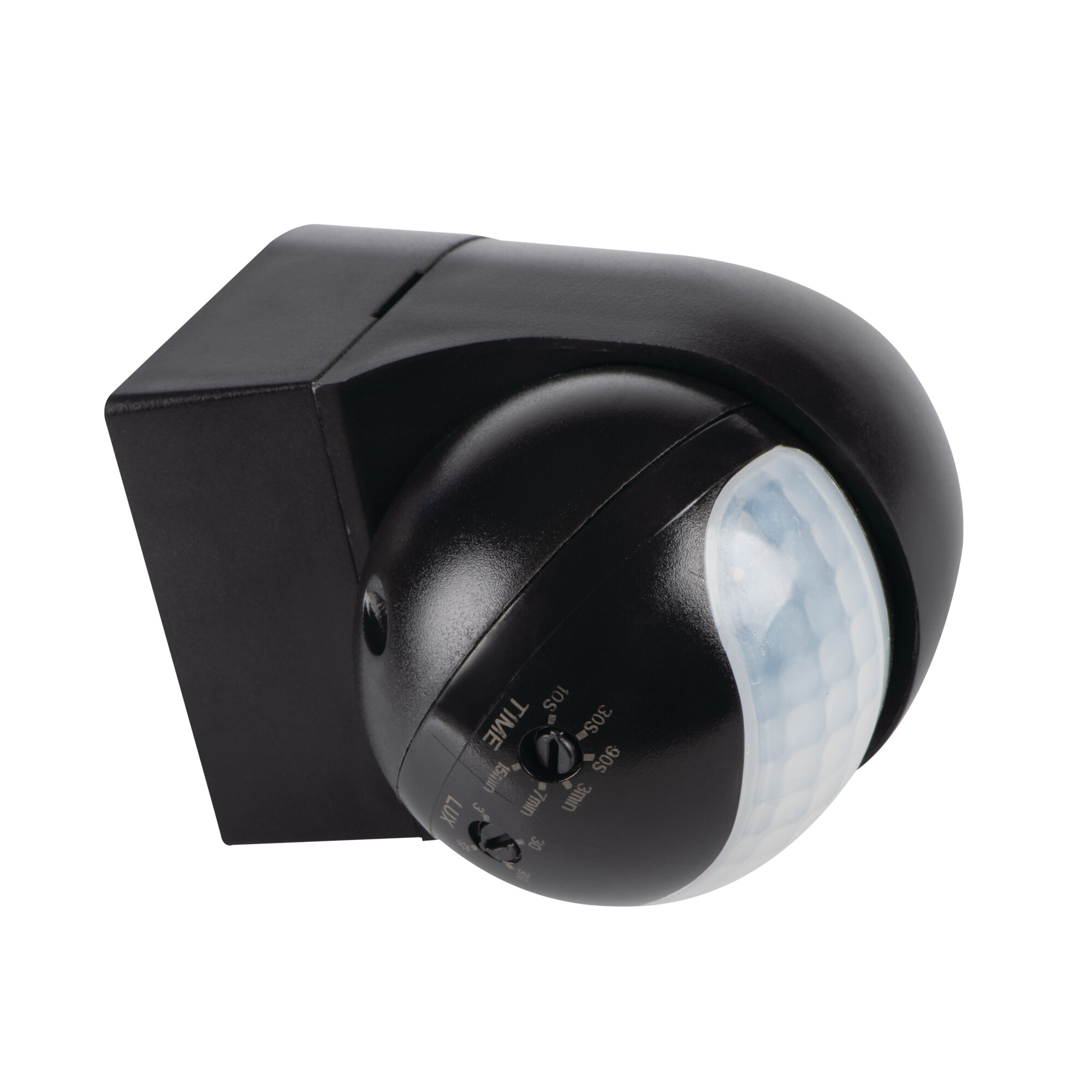

PIR motion sensor ALER MINI

ALER MINI-B

Product code: 23459 logo KANLUX

Rated voltage [V] 220-240 AC

Sensor type PIR

sensor working angle [°] H140/V45

IP class 44

Scroll down to the full specification

Ask a question

Compare

Go to dictionary

Do you want to maintain consistency?

See products from the same series

PIR motion sensor ALER MINI ALER MINI-W Product code: 23450

Compare

NEW

PIR motion sensor ALER MINI ALER MINI-B/B Product code: 23456

Compare

Specification

General description

Warranty [years] 2

EAN13 5905339234599

Colour black

Material plastic

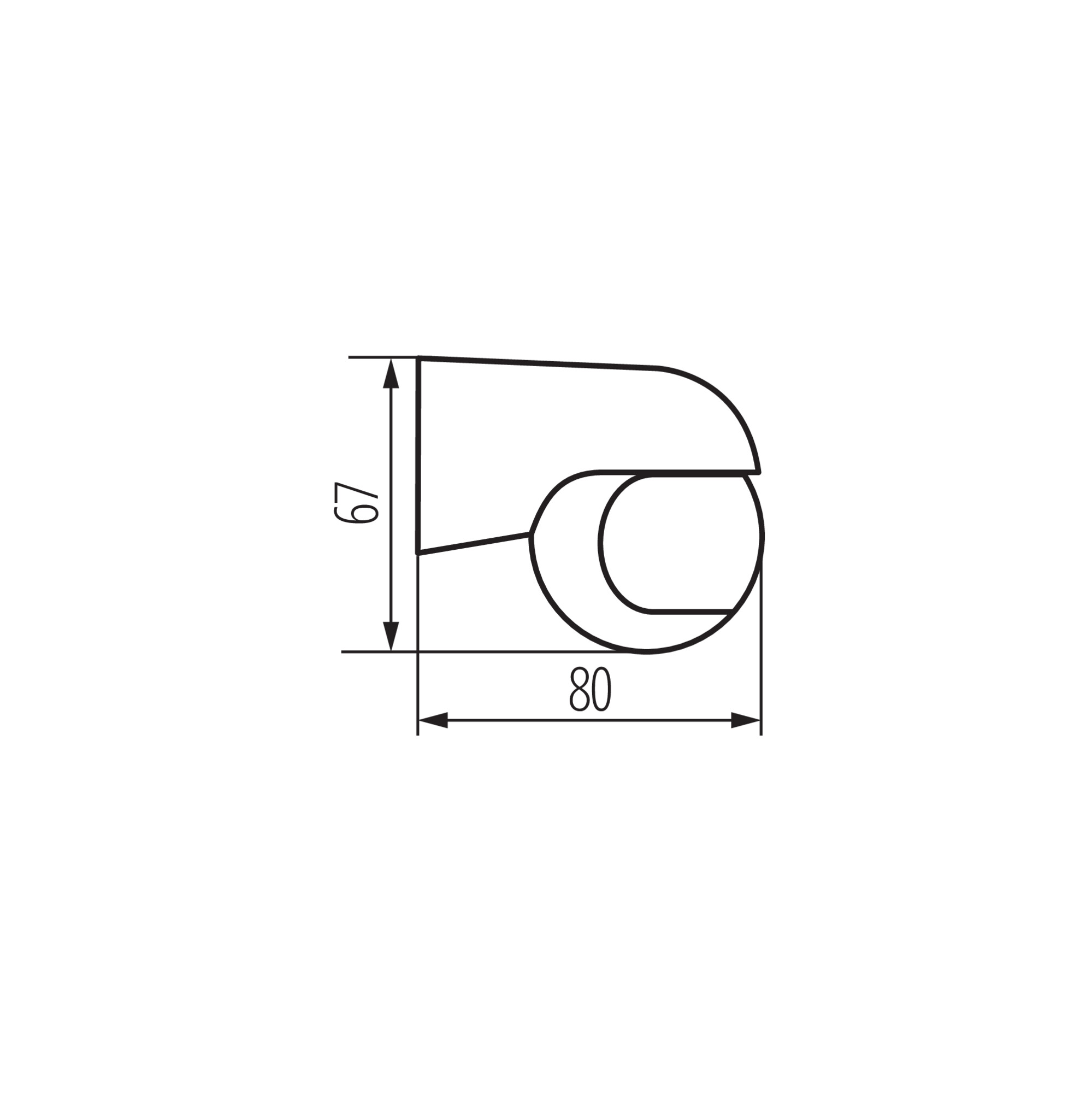

Weight and dimensions

Height [mm] 67

Width [mm] 80

Length [mm] 80

Weight 100g

Sales unit piece

Outer box 50

Technical data

Rated voltage [V] 220-240 AC

Rated frequency [Hz] 50

Colour black

Maximum power [VA] 800

Show more ▾

IP class 44

Place of assembly wall mounted

Class of protection against electric shock II

Sensor range[m] max 8

sensor working angle [°] H140/V45

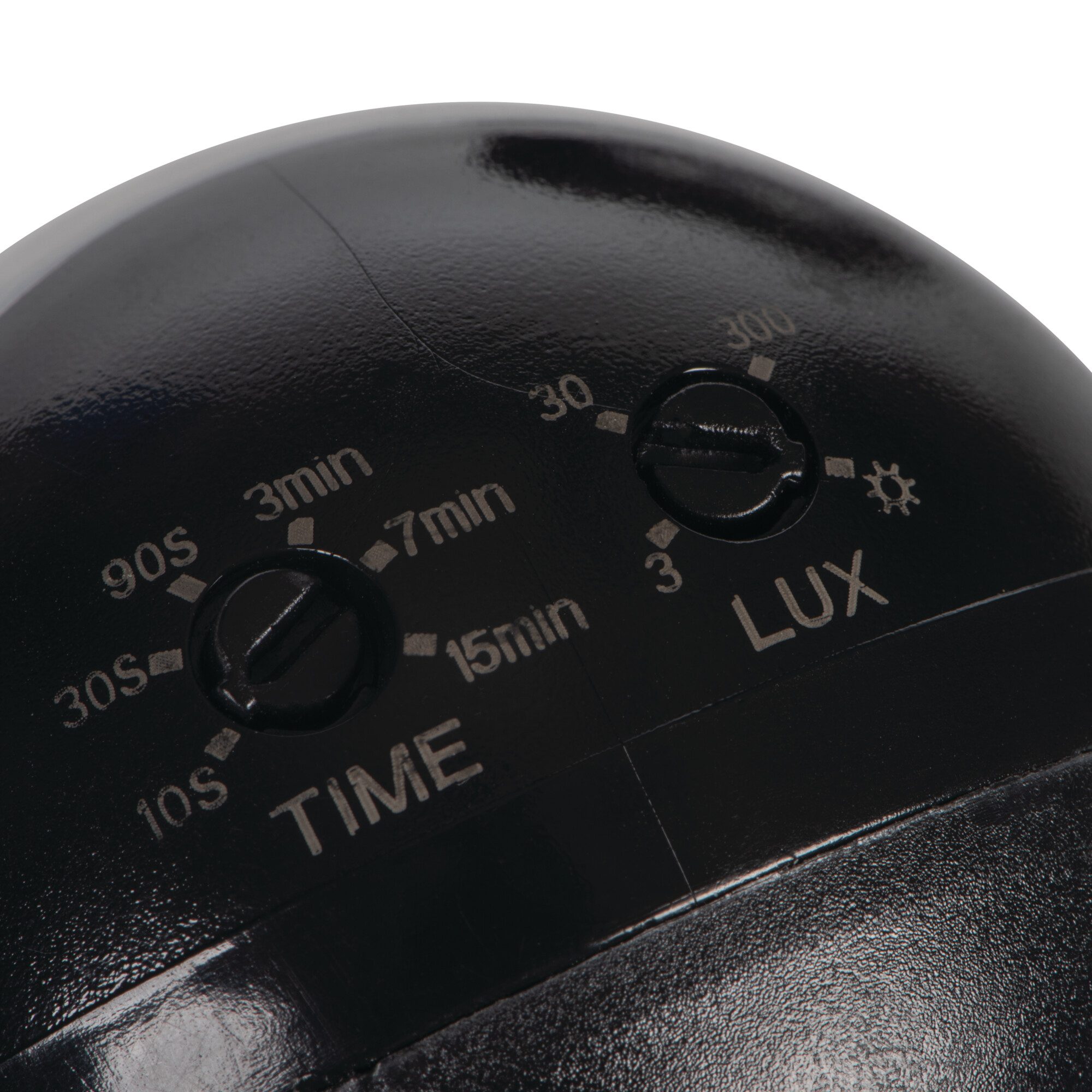

Minimum operating time[s] 10

Maximum operating time [min] 15

Sensor-operation time [second-minute] 10-15

Sensor type PIR

Illumination-level setpoint by which the sensor detects movement [lx] 3-2000

Micro-interval between relay contacts

Ambient temperature range to which the product can be exposed -20÷40

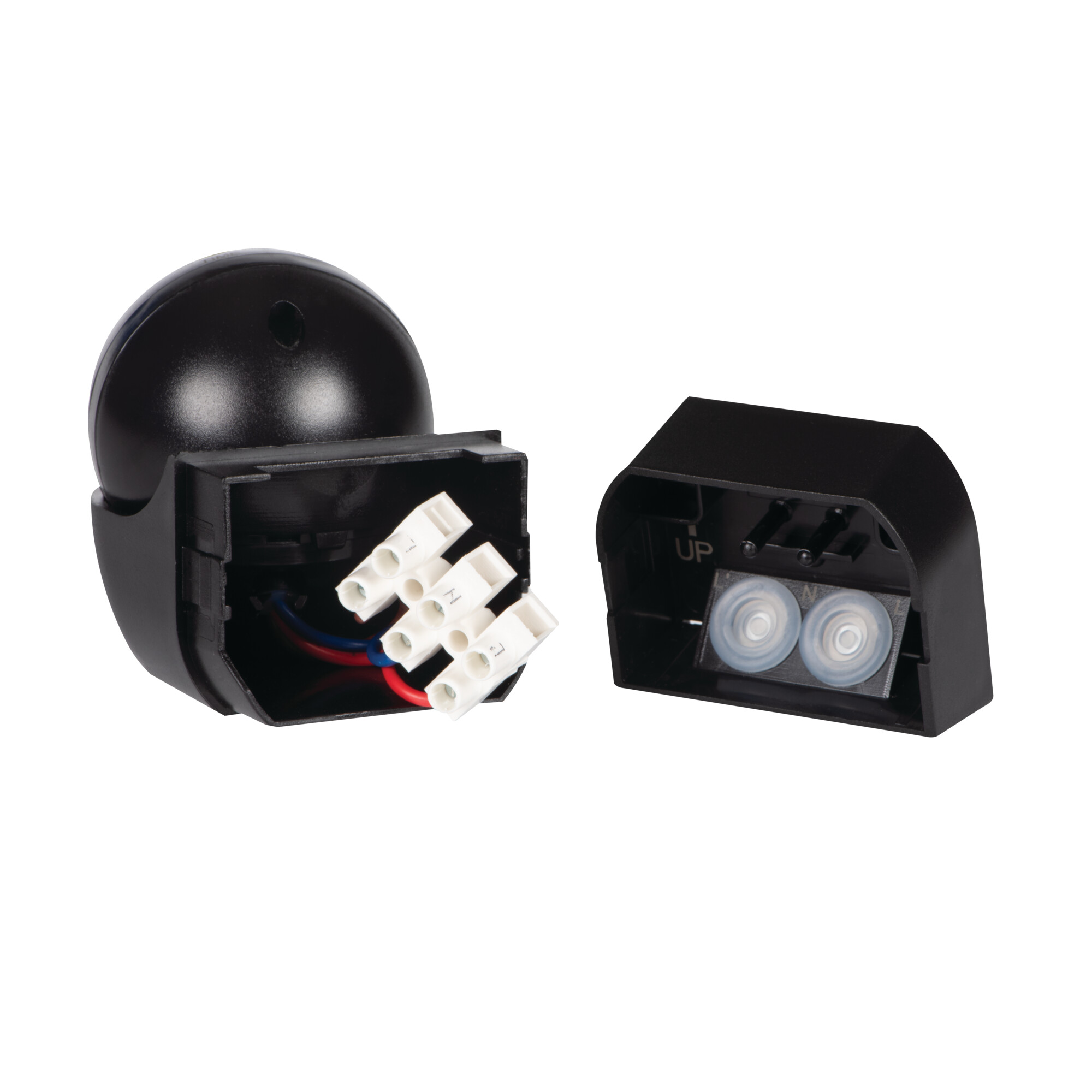

Connection type Bolt terminal block

Range of sections of wires used [mm2] 1÷2,5

Producent

Kanlux S.A.
ul. Objazdowa 1-3
41-922 Radzionków
Polska kanlux@kanlux.com www.kanlux.com

Materials

Specification

Family card PDF, Size: 399.8 KB

Technical card PDF, Size: 600.25 KB
