PIR motion sensor MERGE-WT

MERGE-WT-O-W

Product code: 37370 logo KANLUX

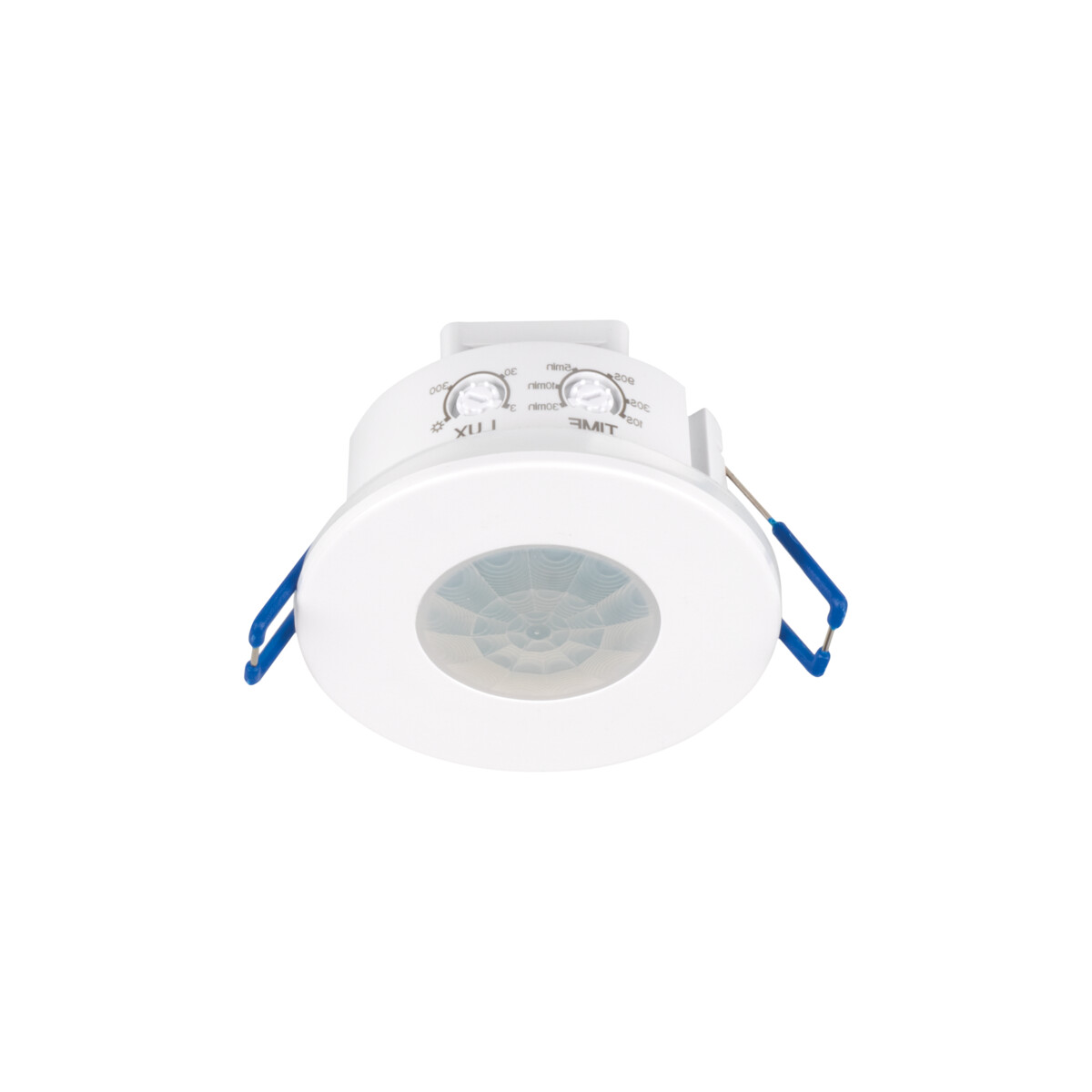

Compact infrared motion sensor MERGE-WT. The maximum detection range is 8 meters, and the horizontal detection angle is 360 degrees. You can adjust the lighting duration and the light intensity level at which the sensor operates. The sensor's advantage is its high IP65 rating.


Rated voltage [V] 220-240 AC
Sensor type PIR
sensor working angle [°] H360
Scroll down to the full specification

Specification

General description
EAN13 5905339373700
Material plastic

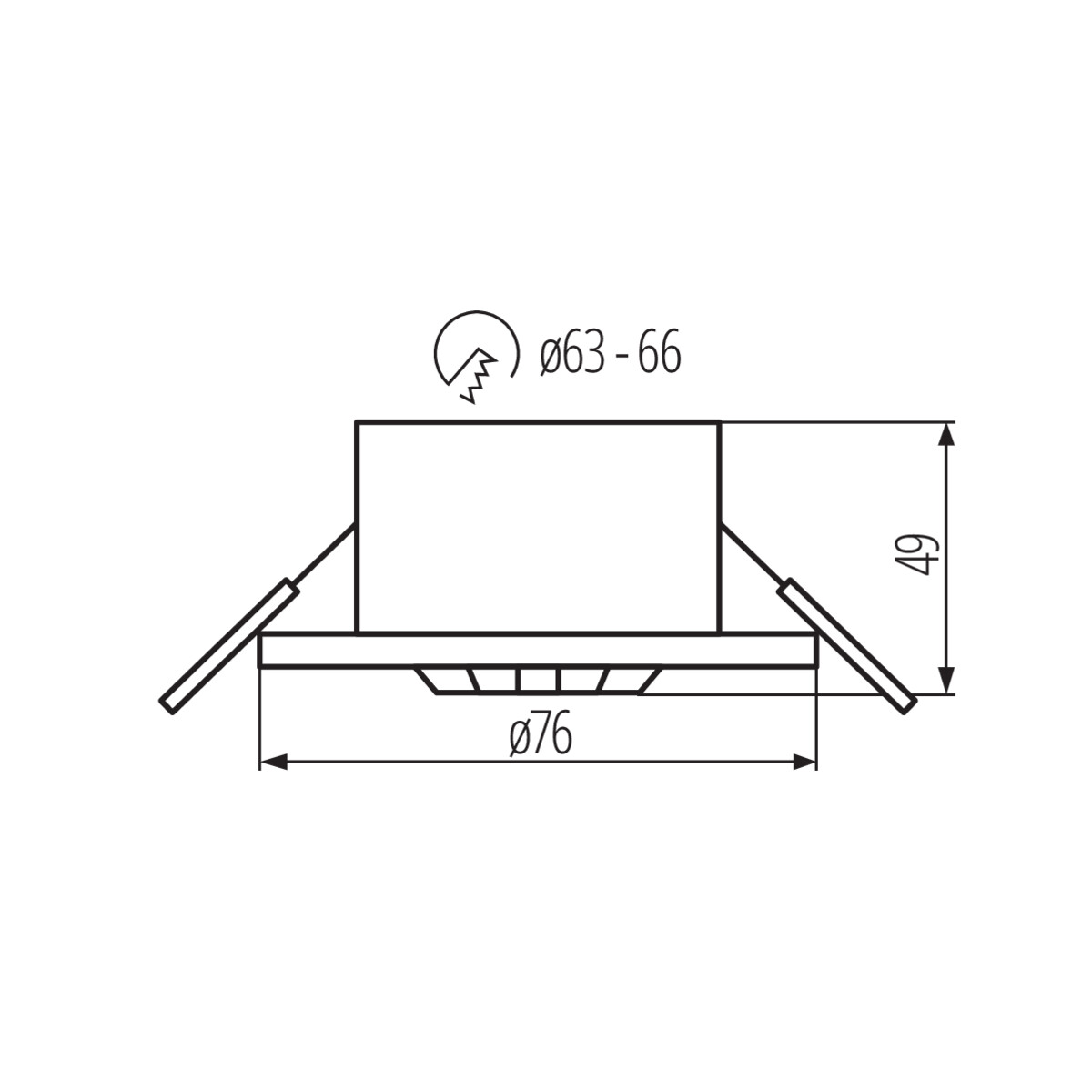

Weight and dimensions
Height [mm] 49
Diameter [mm] 76
Weight 70g
Sales unit piece
Outer box 50
Technical data
Rated voltage [V] 220-240 AC
Rated frequency [Hz] 50
Maximum power [VA] 1200
IP class 65/20
Show more ▾
Class of protection against electric shock II
Sensor range[m] max 8
sensor working angle [°] H360
Minimum operating time[s] 10
Maximum operating time [min] 30

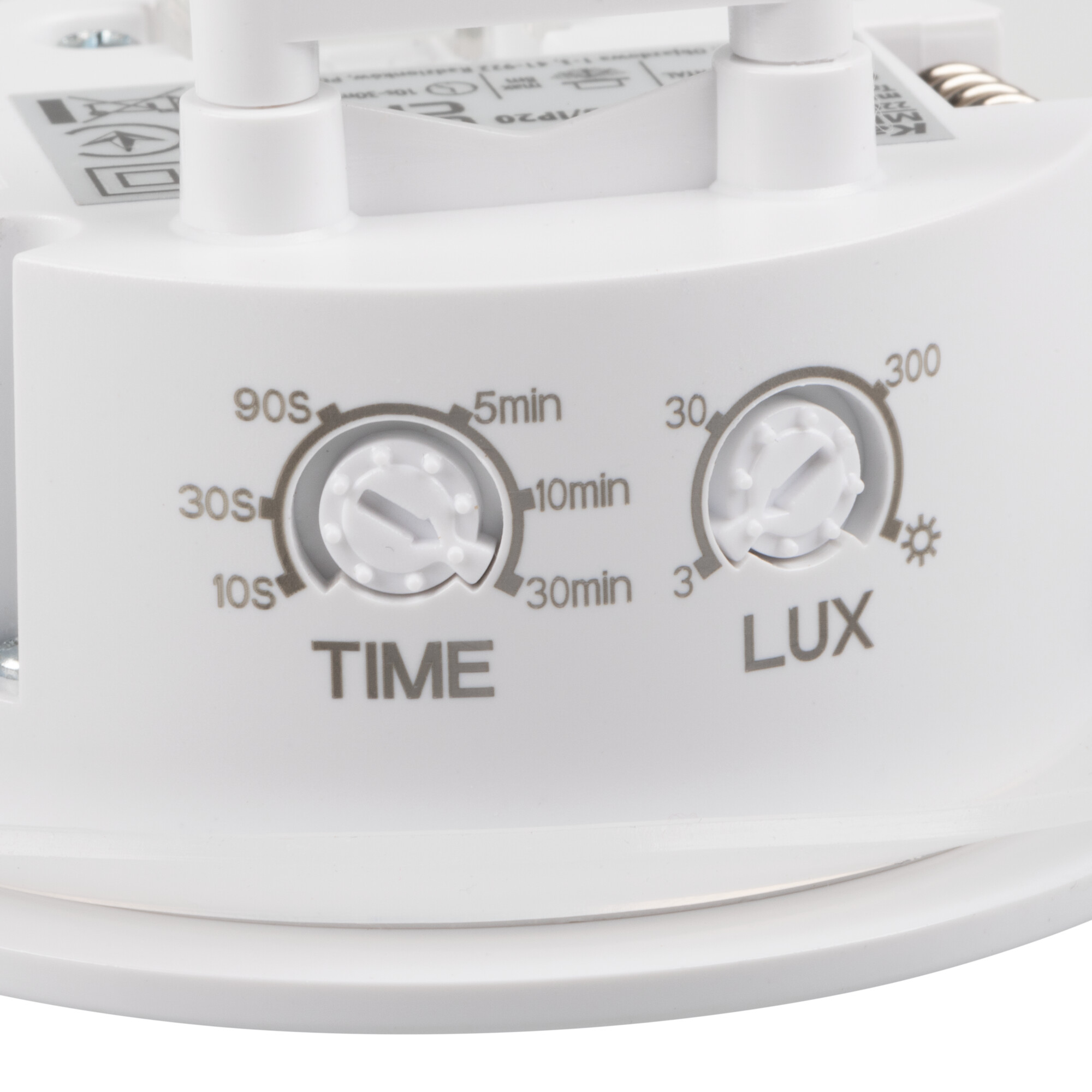

Sensor-operation time [second-minute] 10-30
Sensor type PIR
Illumination-level setpoint by which the sensor detects movement [lx] 3-2000
Ambient temperature range to which the product can be exposed -20÷40

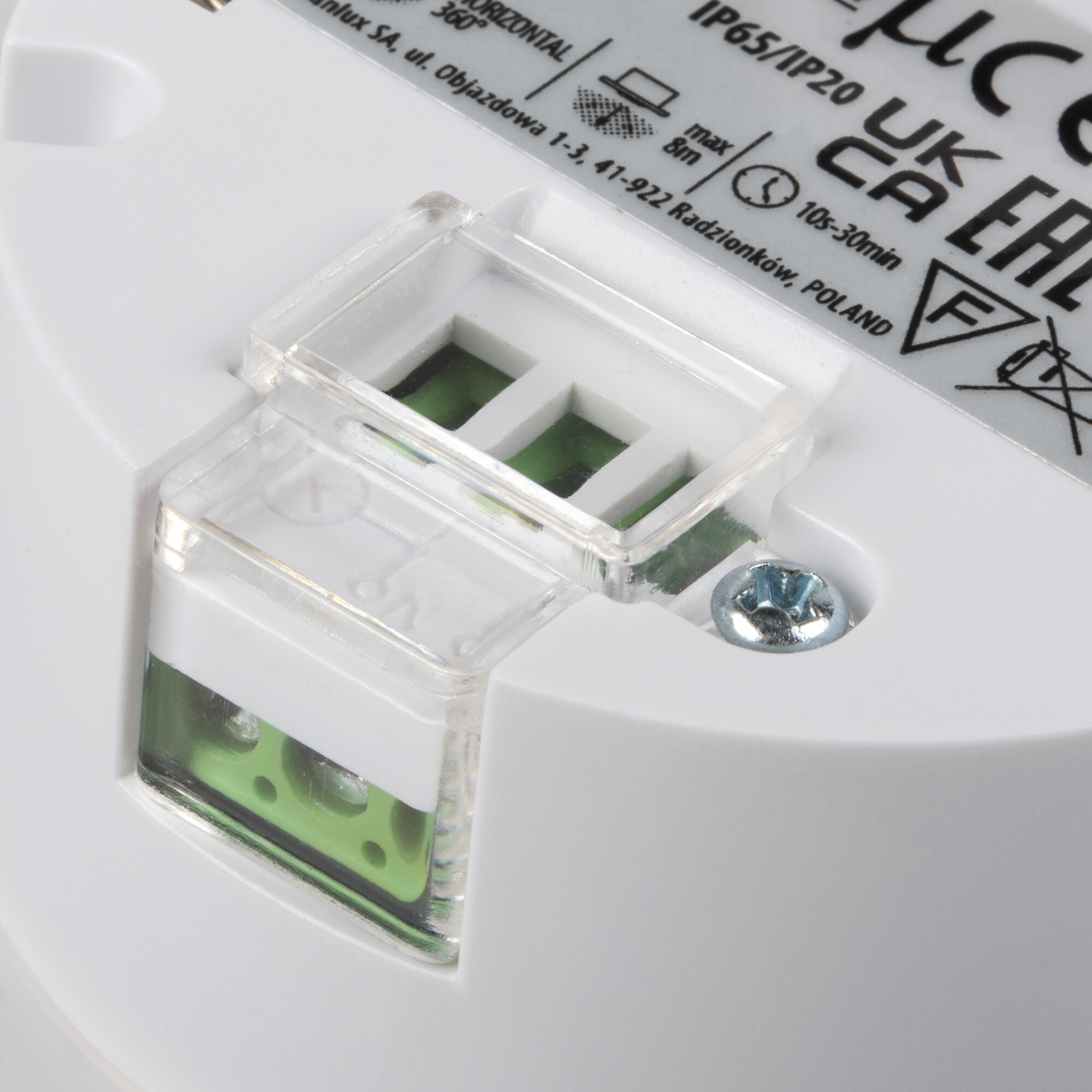

Connection type Terminal block
Range of sections of wires used [mm2] 0,75÷1,5
