LCOB 15W/M 24 IP00RGB

LCOB 15W/M 24 IP00RGB Kanlux
Miniatura LCOB 15W/M 24 IP00RGB - KANLUX Miniatura LCOB 15W/M 24 IP00RGB - KANLUX Miniatura LCOB 15W/M 24 IP00RGB - KANLUX Miniatura LCOB 15W/M 24 IP00RGB - KANLUX Miniatura LCOB 15W/M 24 IP00RGB - KANLUX Miniatura aranżacji LCOB 15W/M 24 IP00RGB Miniatura aranżacji LCOB 15W/M 24 IP00RGB Miniatura aranżacji LCOB 15W/M 24 IP00RGB Miniatura schematu LCOB 15W/M 24 IP00RGB

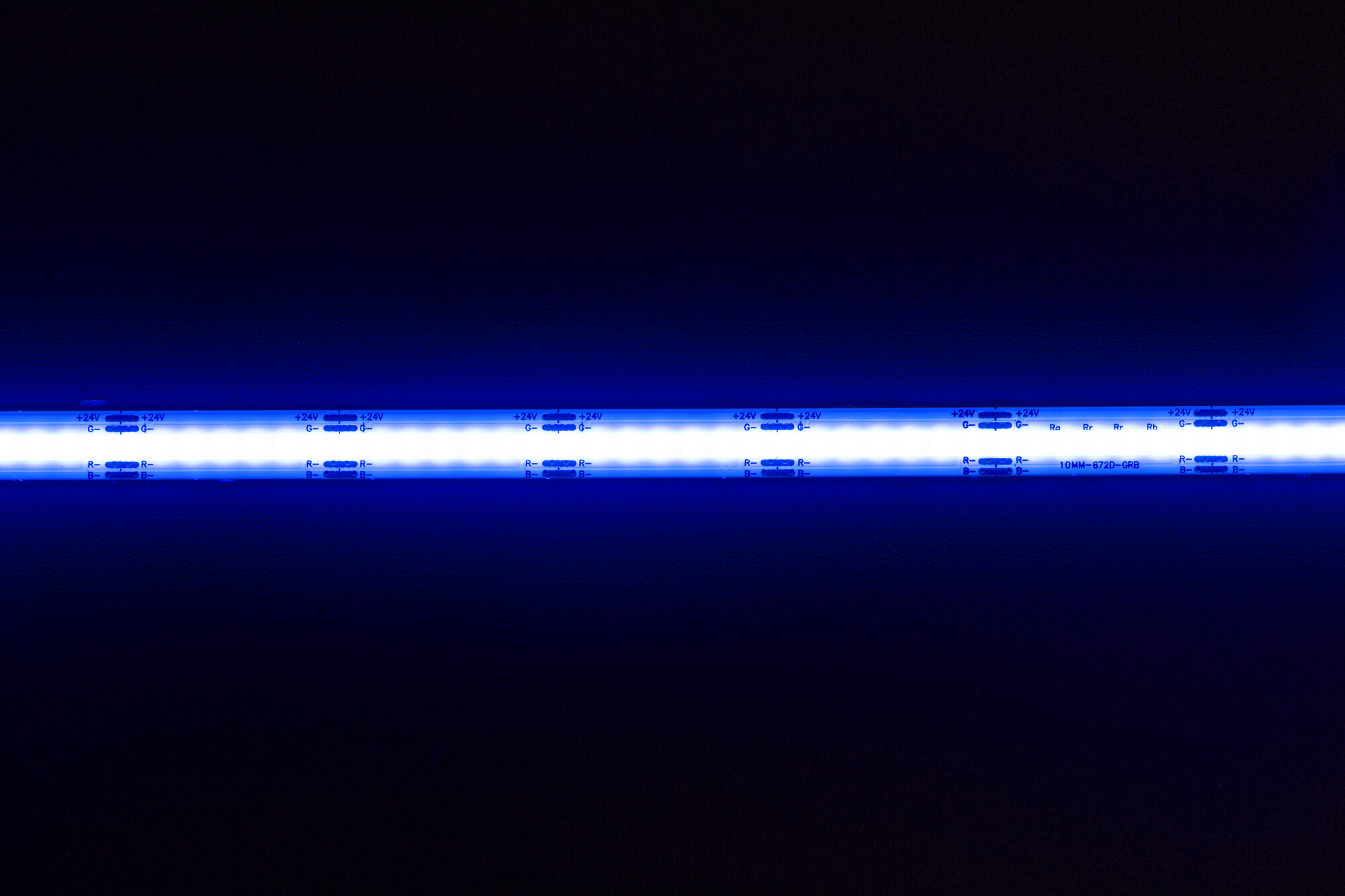

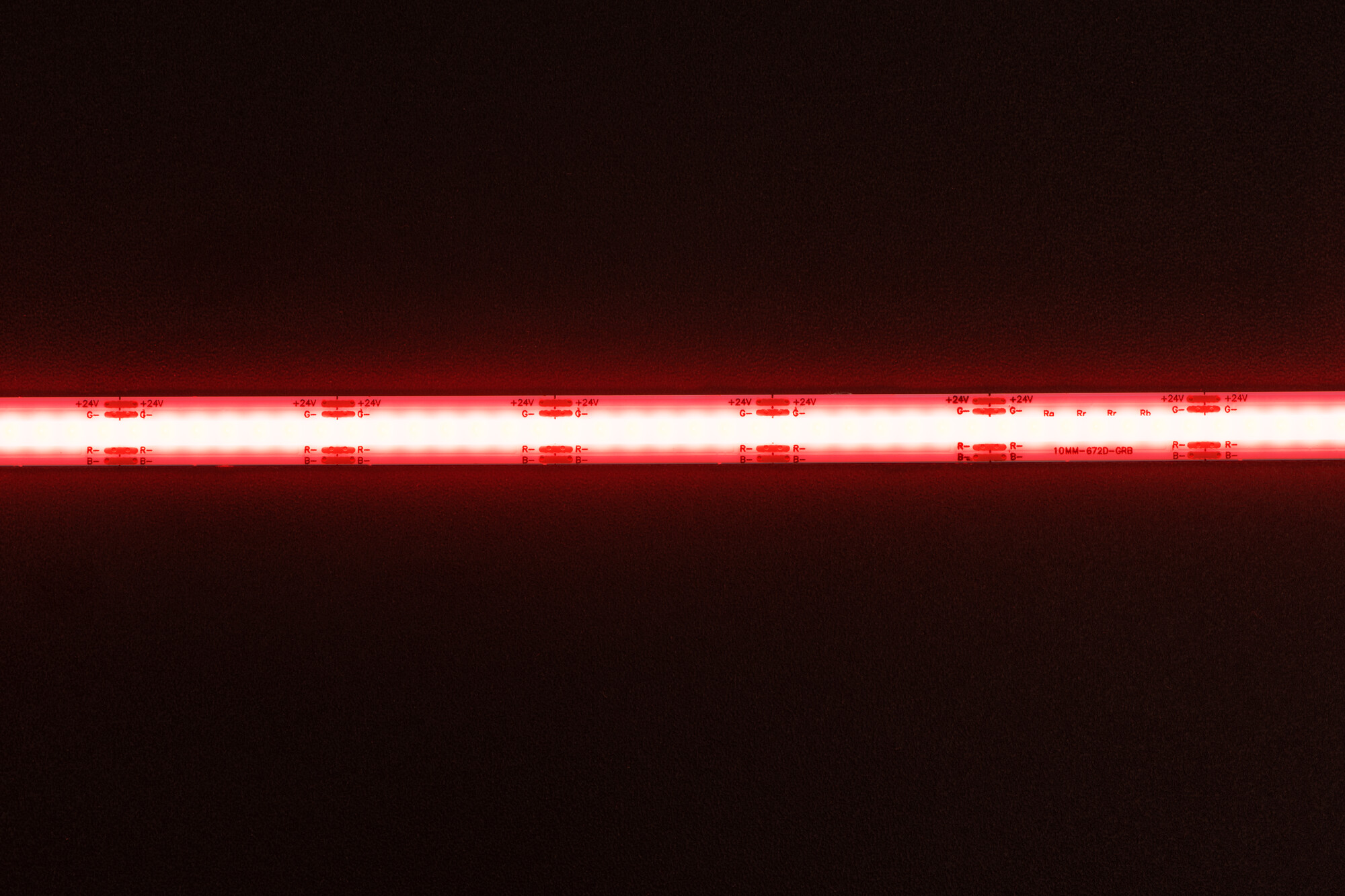

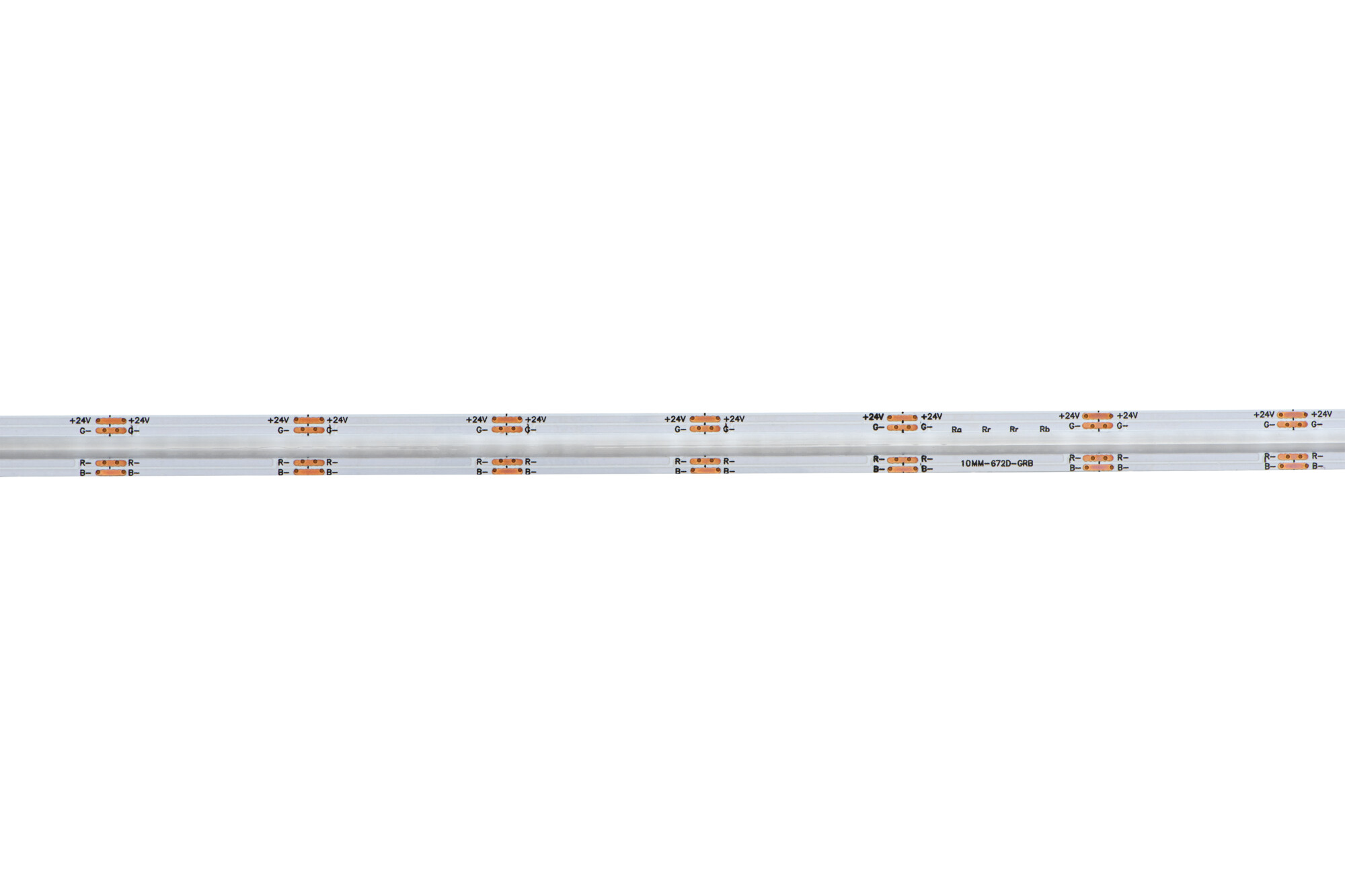

LED light source LCOB 15W/M RGB

LCOB 15W/M 24 IP00RGB

Product code: 38430 logo KANLUX

The Kanlux LCOB 15W/M 24 RGB strip is a perfect solution for modern interiors, where both aesthetics and functionality matter. Thanks to advanced COB technology, the strip provides a uniform, continuous light line without visible light points, regardless of the depth of the profile and the transparency of the lampshade. The RGB strip allows you to obtain dynamic light effects and a variety of colors, which gives you wide arrangement possibilities. The Kanlux LCOB 15W/M 24 RGB operates at 24V, which ensures stability and safety of work, as well as uniform lighting along the entire length. Its installation is facilitated by the self-adhesive 3M tape, guaranteeing permanent attachment. The tape is covered by a 3-year warranty, which ensures long-term and reliable use.

Rated voltage [V] 24 DC
On-mode power Pon [W] 0,5m = max 7,5
Useful luminous flux of the light source Φuse [lm] 0,5m = max 235
Colour temperature [K] RGB
Rated lamp-service life [h] 30000
Length [mm] 5000
Scroll down to the full specification
Ask a question
Go to dictionary

Do you want to maintain consistency?

See products from the same series
logo KANLUX
LCOB 15W/M 24 IP65RGB - KANLUX LCOB 15W/M 24 IP65RGB - KANLUX
LED light source LCOB 15W/M RGB LCOB 15W/M 24 IP65RGB Product code: 38431

Together better

Select complementary products
logo KANLUX
REMOTE 8 RGBW/CCT-W - KANLUX
Remote controls for LED strips CTRL 12/24V RGBW CCT REMOTE 8 RGBW/CCT-W Product code: 22139

logo KANLUX
PROFILO J - KANLUX PROFILO J - KANLUX
Aluminium profile PROFILO J PROFILO J Product code: 26544

logo KANLUX
PROFILO J 2M - KANLUX PROFILO J 2M - KANLUX
Aluminium profile PROFILO J PROFILO J 2M Product code: 26545

logo KANLUX
PROFILO J-W 2M - KANLUX PROFILO J-W 2M - KANLUX
Aluminium profile PROFILO J PROFILO J-W 2M Product code: 26547

logo KANLUX
PROFILO K - KANLUX PROFILO K - KANLUX
Aluminium profile PROFILO K PROFILO K Product code: 26548

logo KANLUX
PROFILO K 2m - KANLUX PROFILO K 2m - KANLUX
Aluminium profile PROFILO K PROFILO K 2m Product code: 26549

logo KANLUX
PROFILO K-W 2m - KANLUX PROFILO K-W 2m - KANLUX
Aluminium profile PROFILO K PROFILO K-W 2m Product code: 26551

logo KANLUX
PROFILO F - KANLUX PROFILO F - KANLUX
Aluminium profile PROFILO F PROFILO F Product code: 26552

logo KANLUX
SHADE J/K-FR - KANLUX SHADE J/K-FR - KANLUX
Lampshade for aluminium profiles SHADE SHADE J/K-FR Product code: 26564

logo KANLUX
SHADE C/D/E/I-FR - KANLUX SHADE C/D/E/I-FR - KANLUX
Lampshade for aluminium profiles SHADE SHADE C/D/E/I-FR Product code: 26572

logo KANLUX
SHADE C/D/E/I-W - KANLUX
Lampshade for aluminium profiles SHADE SHADE C/D/E/I-W Product code: 26574

logo KANLUX
SHADE C/D/E/I-W 2M - KANLUX
Lampshade for aluminium profiles SHADE SHADE C/D/E/I-W 2M Product code: 26575

logo KANLUX
SHADE CK C/D/E/I-FR2M - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK C/D/E/I-FR2M Product code: 26577

logo KANLUX
SHADE CK C/D/E/I-W - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK C/D/E/I-W Product code: 26578

logo KANLUX
SHADE CK C/D/E/I-W 2M - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK C/D/E/I-W 2M Product code: 26579

logo KANLUX
SHADE CK G - KANLUX
Lampshade for aluminium profiles SHADE SHADE CK G Product code: 26580

logo KANLUX
SHADE-U H-FR - KANLUX
Lampshade for aluminium profiles SHADE SHADE-U H-FR Product code: 26582

logo KANLUX
SHADE-O H-W - KANLUX
Lampshade for aluminium profiles SHADE SHADE-O H-W Product code: 26586

logo KANLUX
STOPPER K - KANLUX
End cap for aluminium profiles STOPPER STOPPER K Product code: 26589

logo KANLUX
STOPPER-O H - KANLUX
End cap for aluminium profiles STOPPER STOPPER-O H Product code: 26594

logo KANLUX
HANDLE J/K - KANLUX
Bracket for aluminium profiles HANDLE HANDLE J/K Product code: 26595

logo KANLUX
HANDLE B/F - KANLUX
Bracket for aluminium profiles HANDLE HANDLE B/F Product code: 26596

logo KANLUX
HANDLE G - KANLUX
Bracket for aluminium profiles HANDLE HANDLE G Product code: 26598

logo KANLUX
SPRING I - KANLUX
Bracket for aluminium profiles SPRING I Product code: 26601

logo Kanlux Factory
SEALINGS G - KANLUX
Seals for aluminium profiles SEALINGS G SEALINGS G Product code: 26602

logo KANLUX
STOPPER I-W - KANLUX
End cap for aluminium profiles STOPPER STOPPER I-W Product code: 26603

logo KANLUX
STOPPER K-W - KANLUX
End cap for aluminium profiles STOPPER STOPPER K-W Product code: 26606

logo KANLUX
POWELED P 24V 60W - KANLUX
CV power supply unit POWELED POWELED P 24V 60W Product code: 26816

logo KANLUX
LC 100W 24V IP67 UNV - KANLUX
CV power supply unit LC LC 100W 24V IP67 UNV Product code: 33423

NEW NEW
logo KANLUX
CON P 10 RGB - KANLUX CON P 10 RGB - KANLUX
Connector for LED tapes CON P RGB CON P 10 RGB Product code: 38474

NEW NEW
logo KANLUX
CON P 10 RGB CP - KANLUX CON P 10 RGB CP - KANLUX
Connector for LED tapes CON P RGB CON P 10 RGB CP Product code: 38475

NEW NEW
logo KANLUX
CON P 10 RGB CPC - KANLUX CON P 10 RGB CPC - KANLUX
Connector for LED tapes CON P RGB CON P 10 RGB CPC Product code: 38476

Specification

General description
Warranty [years] 3
EAN13 5905339384300
Weight and dimensions
Height [mm] 5000
Width [mm] 10
Length [mm] 5000
Depth [mm] 2
Weight 121g
Sales unit piece
Outer box 25
Additional features
  • 3 years Warranty under the terms of the warranty statement, available on our website
Technical data
Rated voltage [V] 24 DC
Rated power [W] 1m = max 15 (RGB)
Show more ▾
Class of protection against electric shock III
IP class 00
Luminous flux of the light fitting [lm] 1m = max 470
Colour temperature [K] RGB
Colour uniformity [SDCM] 6
Mercury content no
Diode type LED SMD
Number of on/off cycles ≥30000
Rated lamp-service life [h] 30000
Colour temperature RGB
Connection type Free cable ends
Minimum distance from the illuminated object 0,1m
Ambient temperature range to which the product can be exposed 5÷25
Possibility of cutting LED strips into segments [cm] 3,1
Useful luminous flux of the light source Φuse [lm] 0,5m = max 235
Useful luminous flux of the light source Φuse [lm] in sphere (360°)
