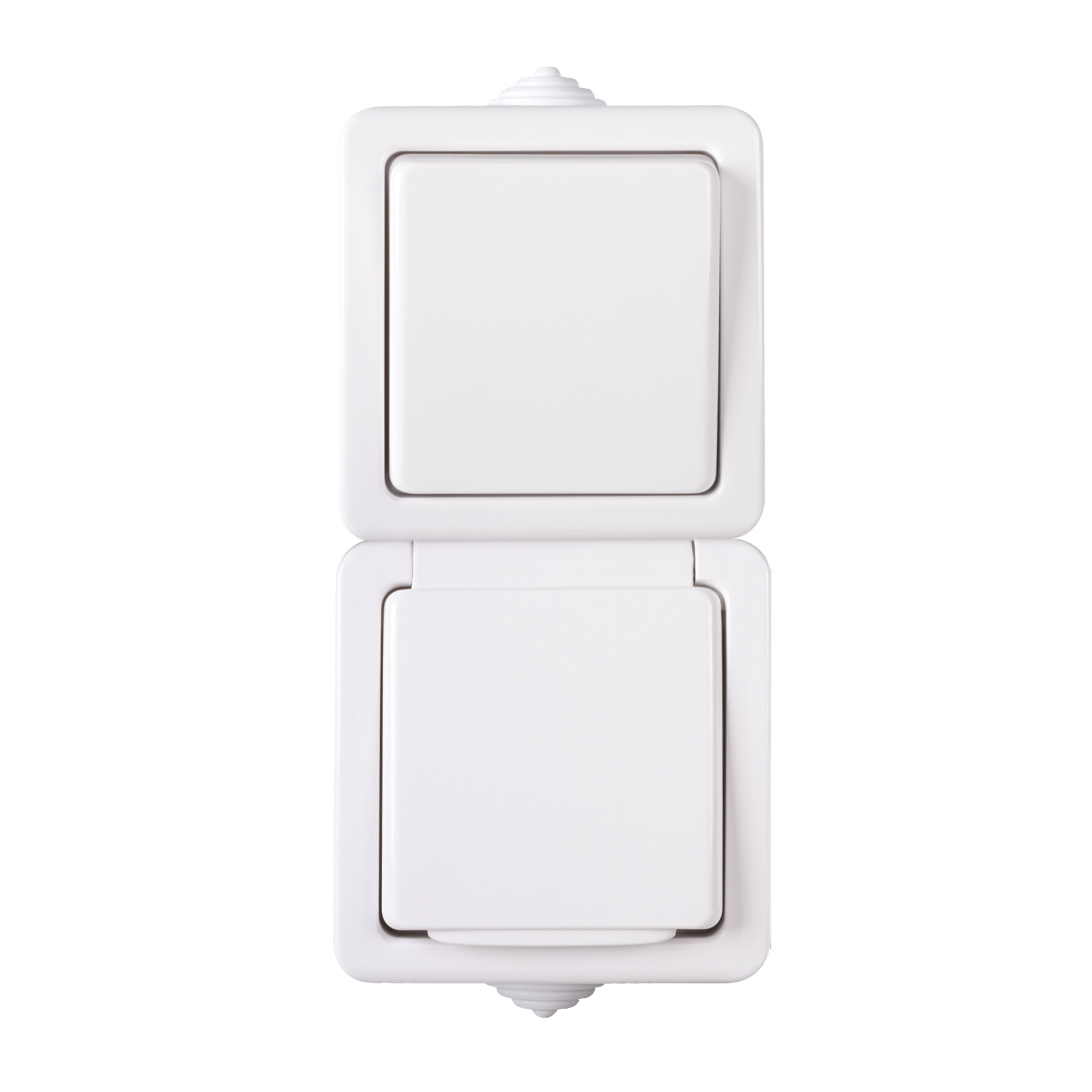

Single-pole switch and type E power socket, vertical, with contact protection TEKNO

TEKNO 05-3121-102 bi

Product code: 27358 logo MOWION


Scroll down to the full specification

Specification

General description
EAN13 5905339273581
Colour white
Weight and dimensions
Weight 164g
Sales unit piece
Outer box 5
Technical data
Rated voltage [V] 250 AC
Rated current [A] 16
Rated current [AX] 10
Colour white
Show more ▾
Number of levers 1
Number of sockets 1
Place of assembly wall mounted
Highlighting Not applicable
IP class 54
Terminal type Screw terminal
Plastic ABS
Material of contacts CuZn70
Class of protection against electric shock I
Earthing type typu E
Contact protection
